Hummer H2. Manual - part 233

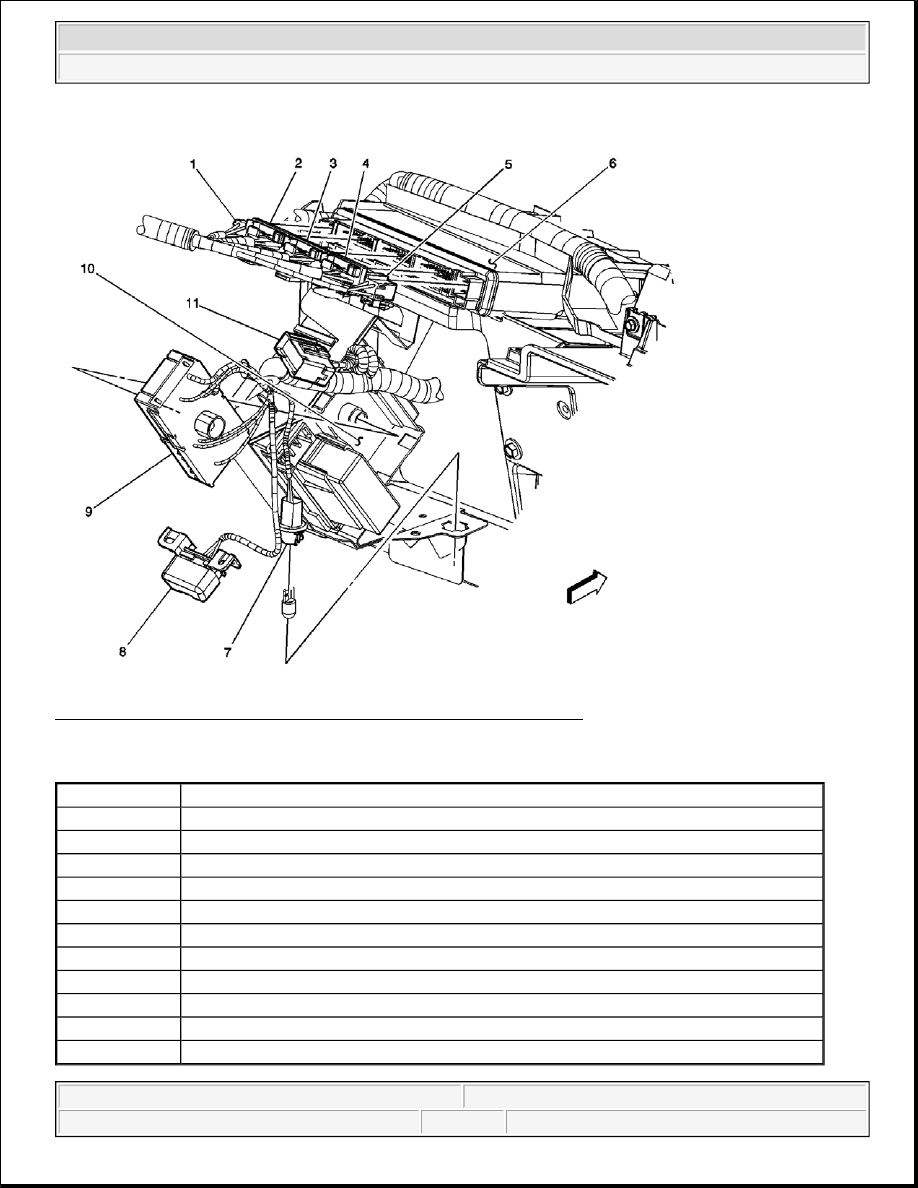

Fig. 3: Data Link Connector & Splice Pack SP205 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 3

Callout

Component Name

1

BCM-C1

2

BCM-C2

3

BCM-C4

4

BCM-C3

5

BCM-C5

6

Body Control Module (BCM)

7

Footwell Courtesy Lamp-Left (If Equipped)

8

Data Link Connector (DLC)

9

Fuse Block-IP-C1

10

Fuse Block-IP Center Block

11

Splice Pack SP205



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Data Link Communications - Hummer H2



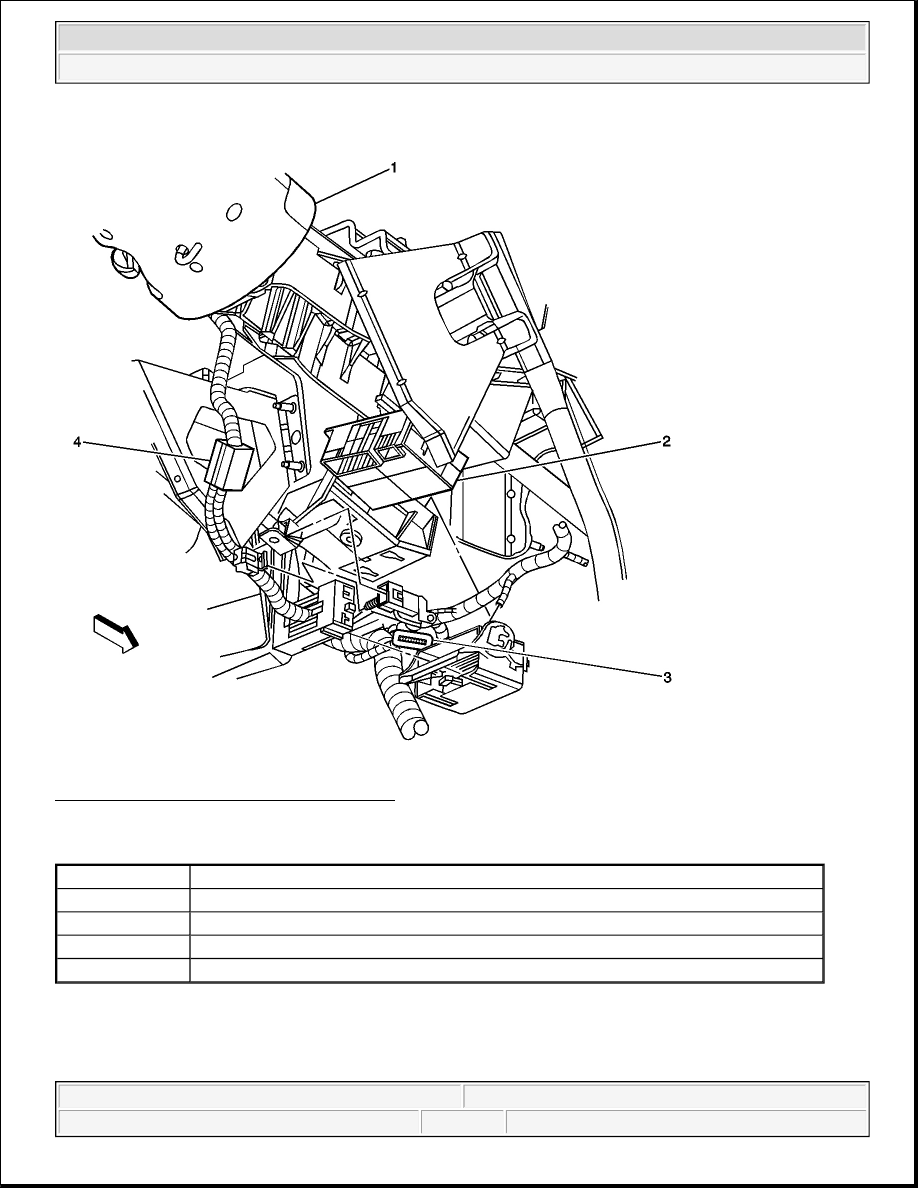

Fig. 4: Splice Pack SP206 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 4

Callout

Component Name

1

Steering Column

2

Transfer Case Shift Control Module

3

Splice Pack SP206

4

Steering Wheel Controls Backlight Fuse



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Data Link Communications - Hummer H2



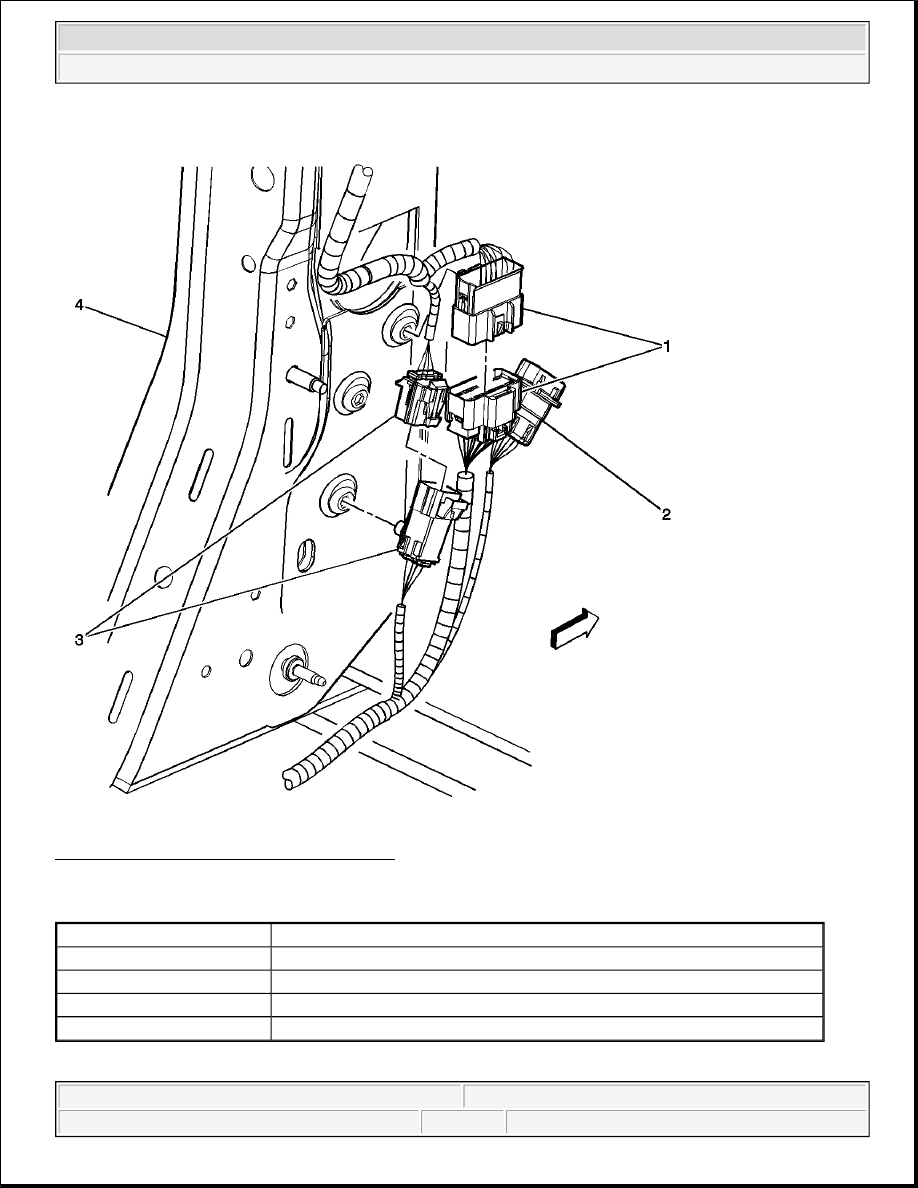

Fig. 5: Splice Pack SP207 Component Views
Courtesy of GENERAL MOTORS CORP.

Callouts For Fig. 5

DATA LINK COMMUNICATIONS CONNECTOR END VIEWS

Callout

Component Name

1

C200

2

Splice Pack SP207

3

C201

4

Left Side Cowl Panel



2004 Hummer H2

2004 ACCESSORIES & EQUIPMENT Data Link Communications - Hummer H2



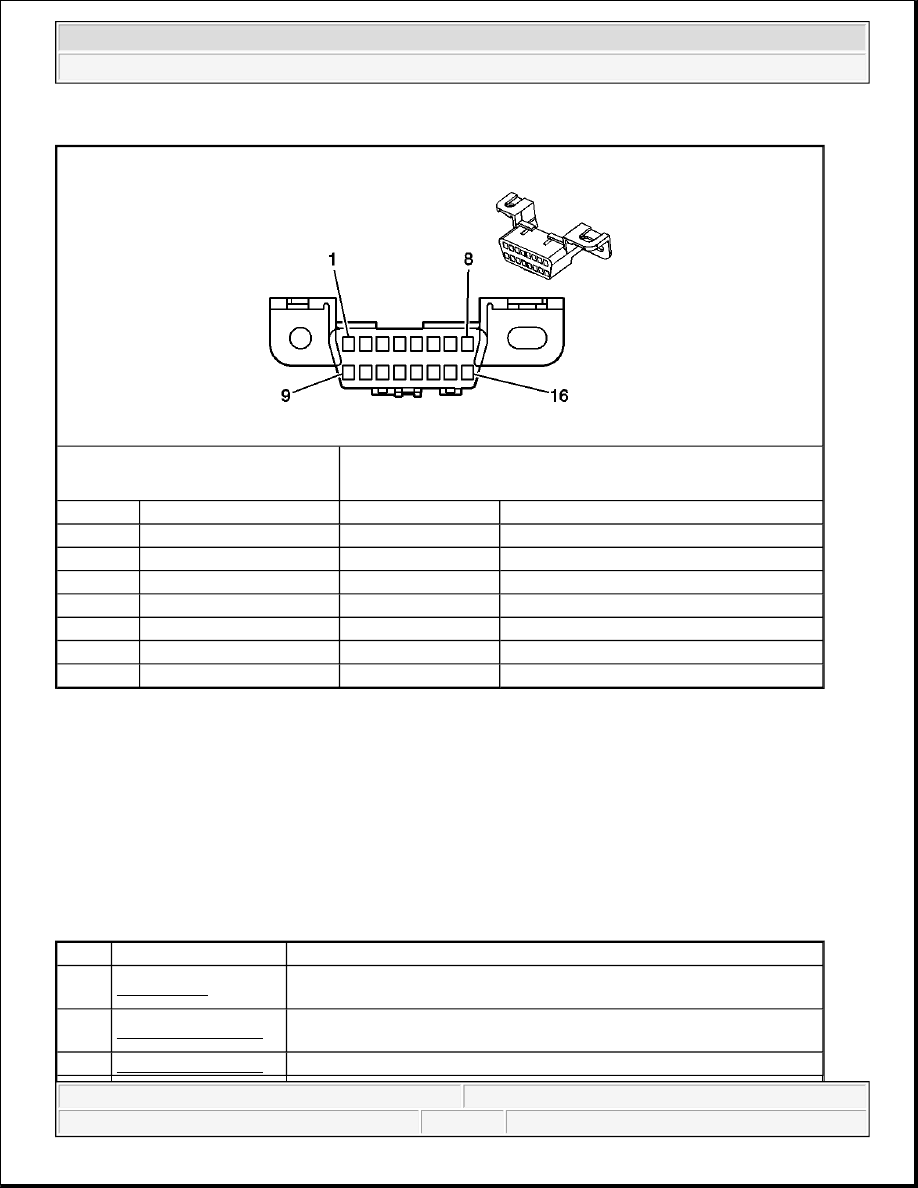

Data Link Connector Terminal Identification - (DLC)

DIAGNOSTIC INFORMATION AND PROCEDURES

DIAGNOSTIC STARTING POINT - DATA LINK COMMUNICATIONS

Begin the diagnosis of the Data Link Communications by performing the Diagnostic System Check for the
system in which the customer concern is apparent. The Diagnostic System Check will direct you to the correct
procedure within the Data Link Communications section when a communication malfunction is present.

DIAGNOSTIC TROUBLE CODE (DTC) LIST

Diagnostic Trouble Code (DTC) List

Connector Part Information

z

12110250

z

16-Way F Metri-Pack 150 Series (BK)

Pin

Wire Color

Circuit No.

Function

1

-

-

Not Used

2

PU

1132

DLC Class 2 Serial Data

3

-

-

Not Used

4

BK

1050

Ground

5

BK/WH

1851

Ground

6-15

-

-

Not Used

16

OG

640

Battery Positive Voltage

DTC Diagnostic Procedure

Modules

U1000 DTC U1000

Audio Amplifier, BCM, DDM, DSM, EBCM, ESC, FPDM, HVAC,
IPC, PCM, Radio, RSA, SDM, TCSCM, VCIM

U1016 DTC U1001-U1254

Audio Amplifier, BCM, DDM, DSM, EBCM, ESC, FPDM, HVAC,
IPC, Radio, RSA, SDM, TCSCM, VCIM

U1026 DTC U1001-U1254

EBCM, IPC, PCM
