Hummer H2. Manual - part 2292

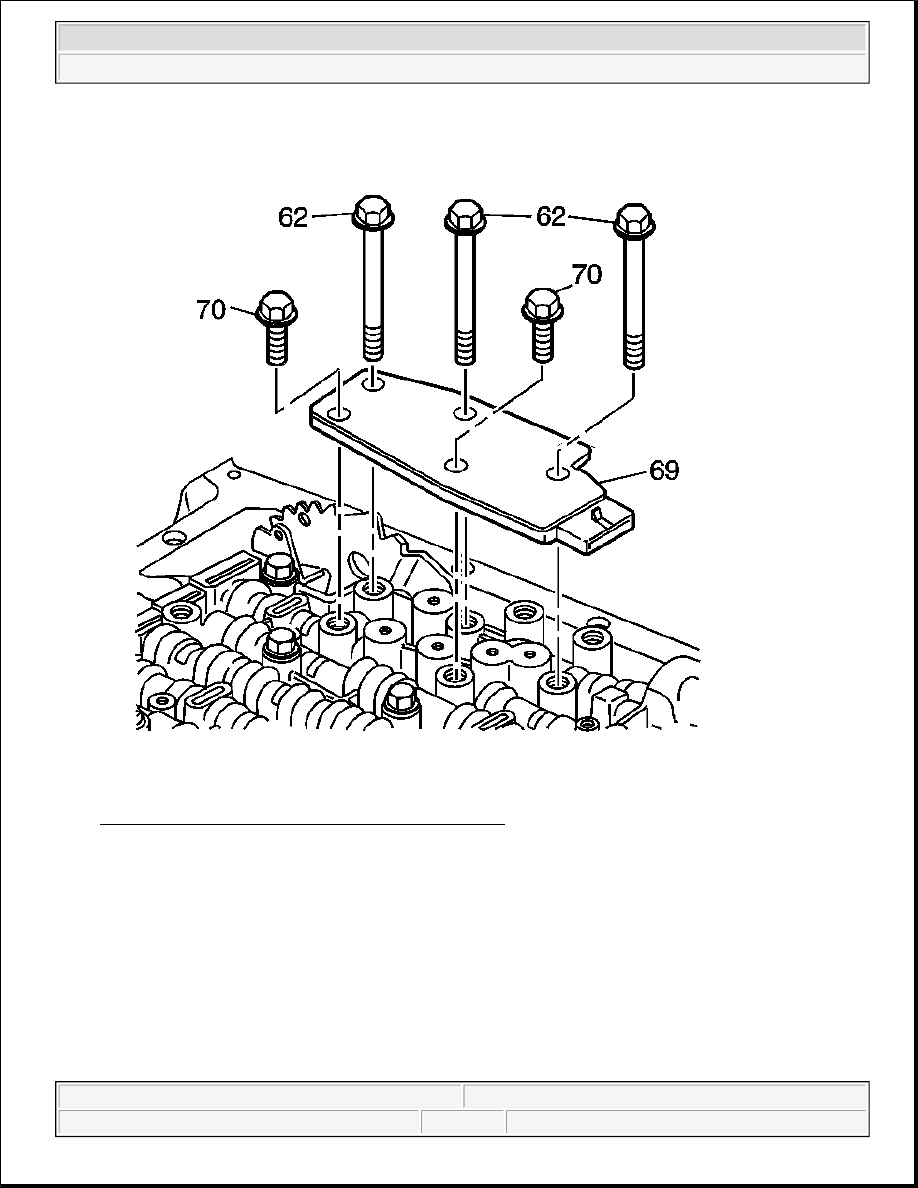

Fig. 202: TFP Manual Valve Position Switch & Bolts
Courtesy of GENERAL MOTORS CORP.

6. Remove the transmission fluid pressure (TFP) manual valve position switch assembly bolts (62, 70).

7. Remove the TFP manual valve position switch (69).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

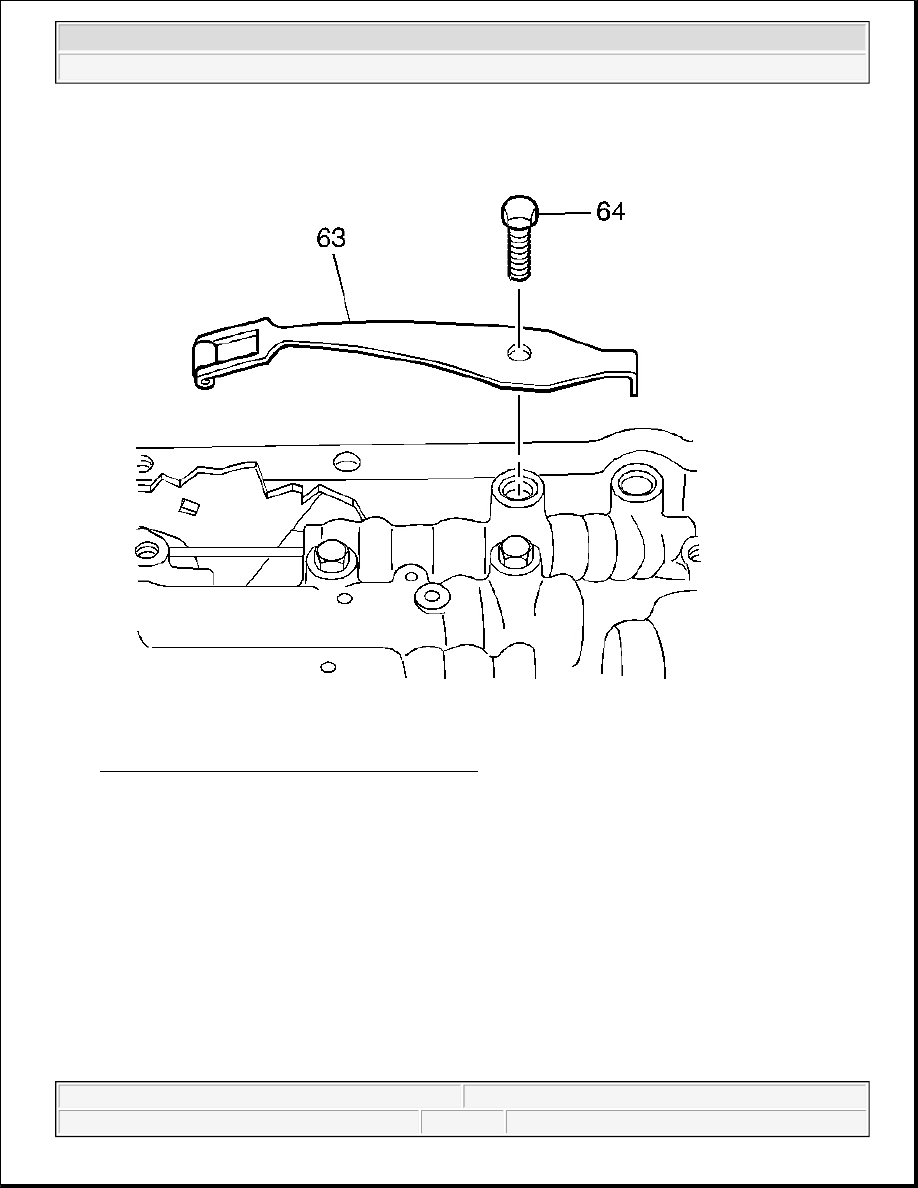

Fig. 203: Manual Detent Spring Bolt & Assembly
Courtesy of GENERAL MOTORS CORP.

8. Remove the manual detent spring bolt (64).

9. Remove the manual detent spring assembly (63).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

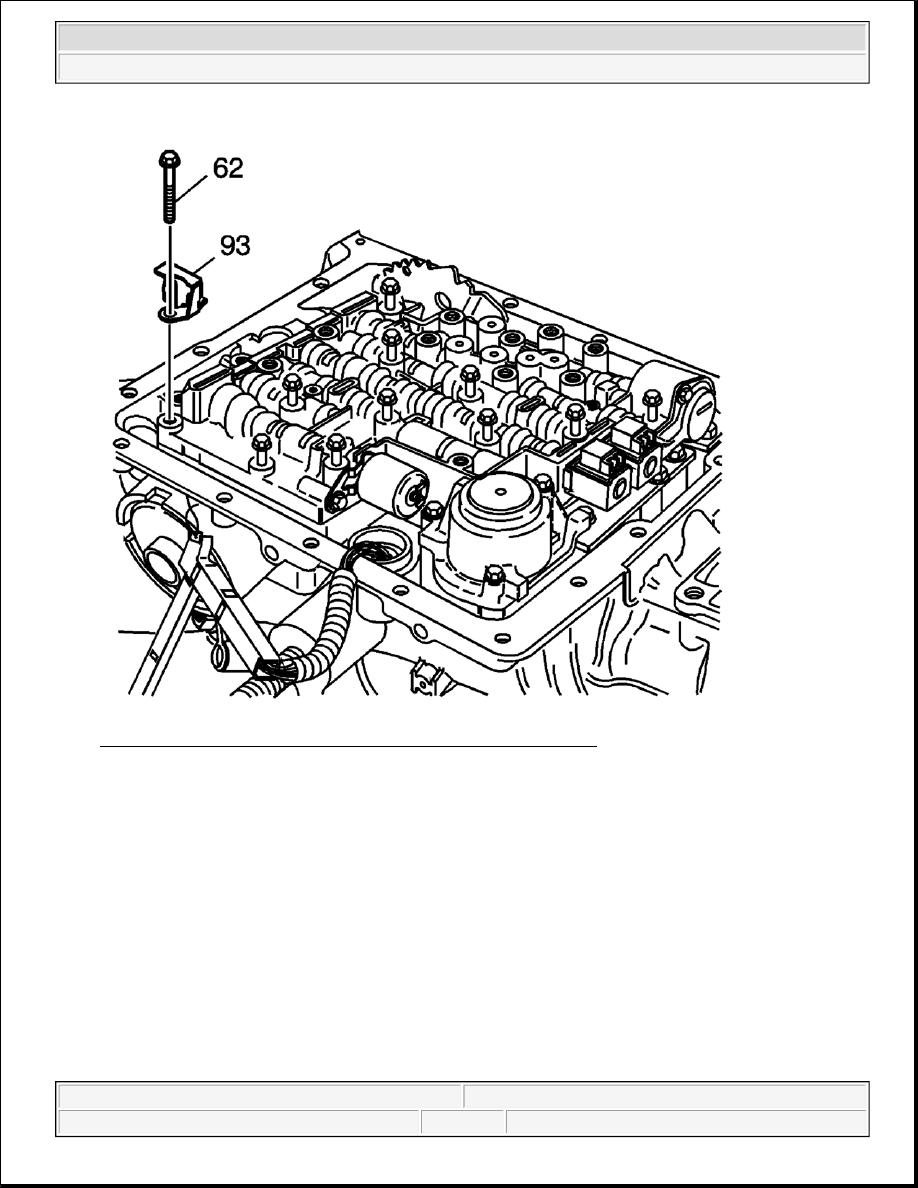

Fig. 204: Fluid Level Indicator Stop Bracket & Valve Body Bolts
Courtesy of GENERAL MOTORS CORP.

10. Remove all valve body bolts (62).

11. Remove the fluid level indicator stop bracket (93).



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2

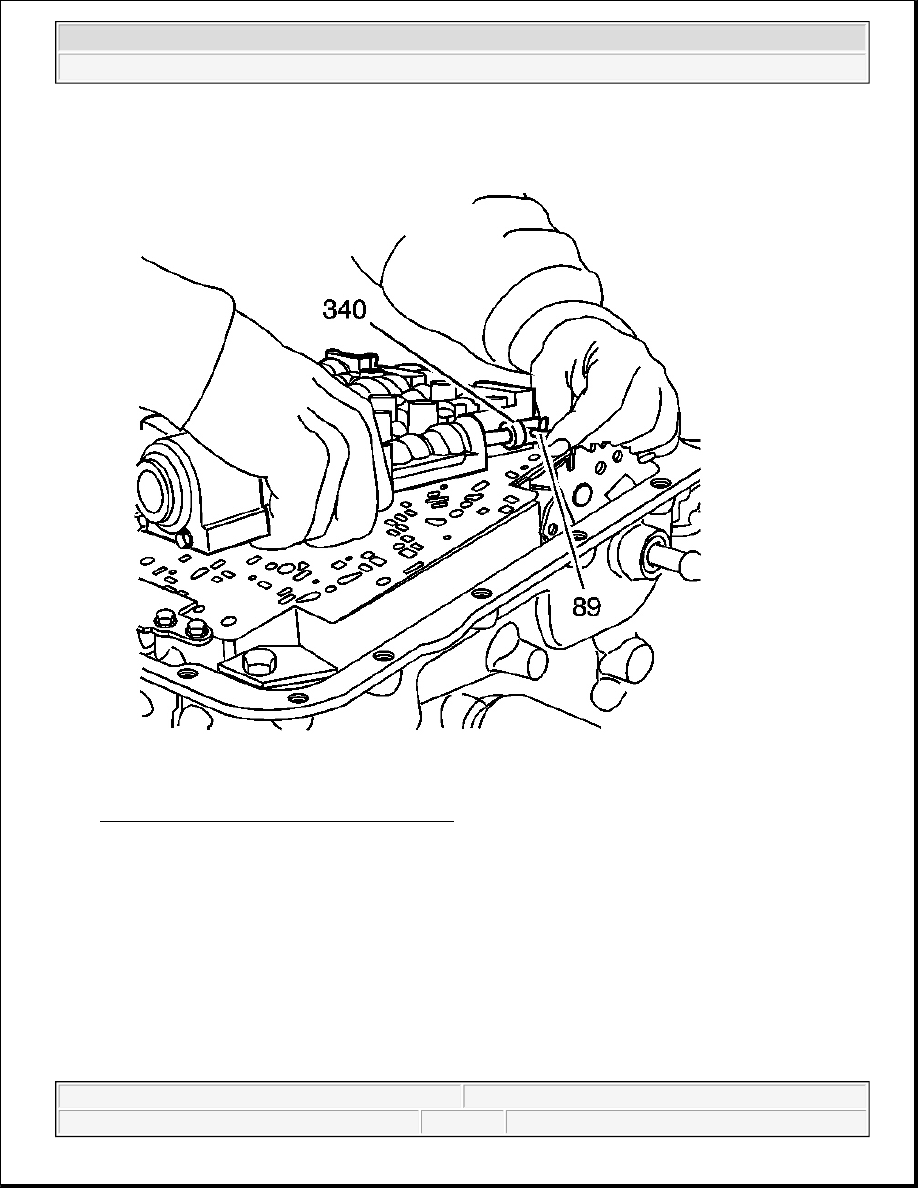

Fig. 205: Manual Valve Link & Manual Valve
Courtesy of GENERAL MOTORS CORP.

12. Lift the valve body carefully so that the checkballs remain on the spacer plate in the correct location.

While lifting the valve body, disconnect the manual valve link from the manual valve.



2004 Hummer H2

2004 TRANSMISSION Automatic Transmission - 4L60-E/4L65-E (Introduction) - Hummer H2
