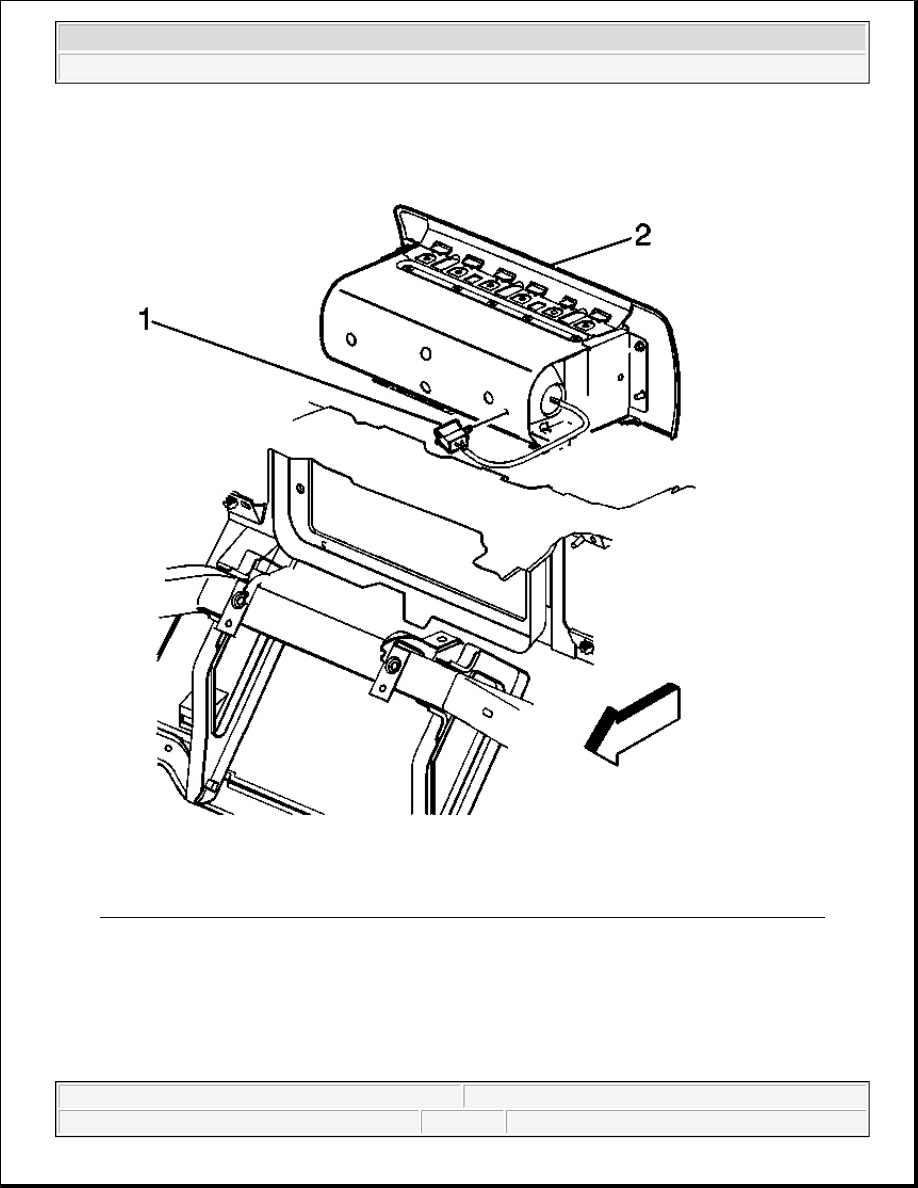

Fig. 77: Connector Position Assurance (CPA) & I/P Module Yellow 4-Way Connector - Zone 5
Courtesy of GENERAL MOTORS CORP.

19. Disconnect the inflatable restraint I/P module connector (1) located behind the I/P module (2).



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

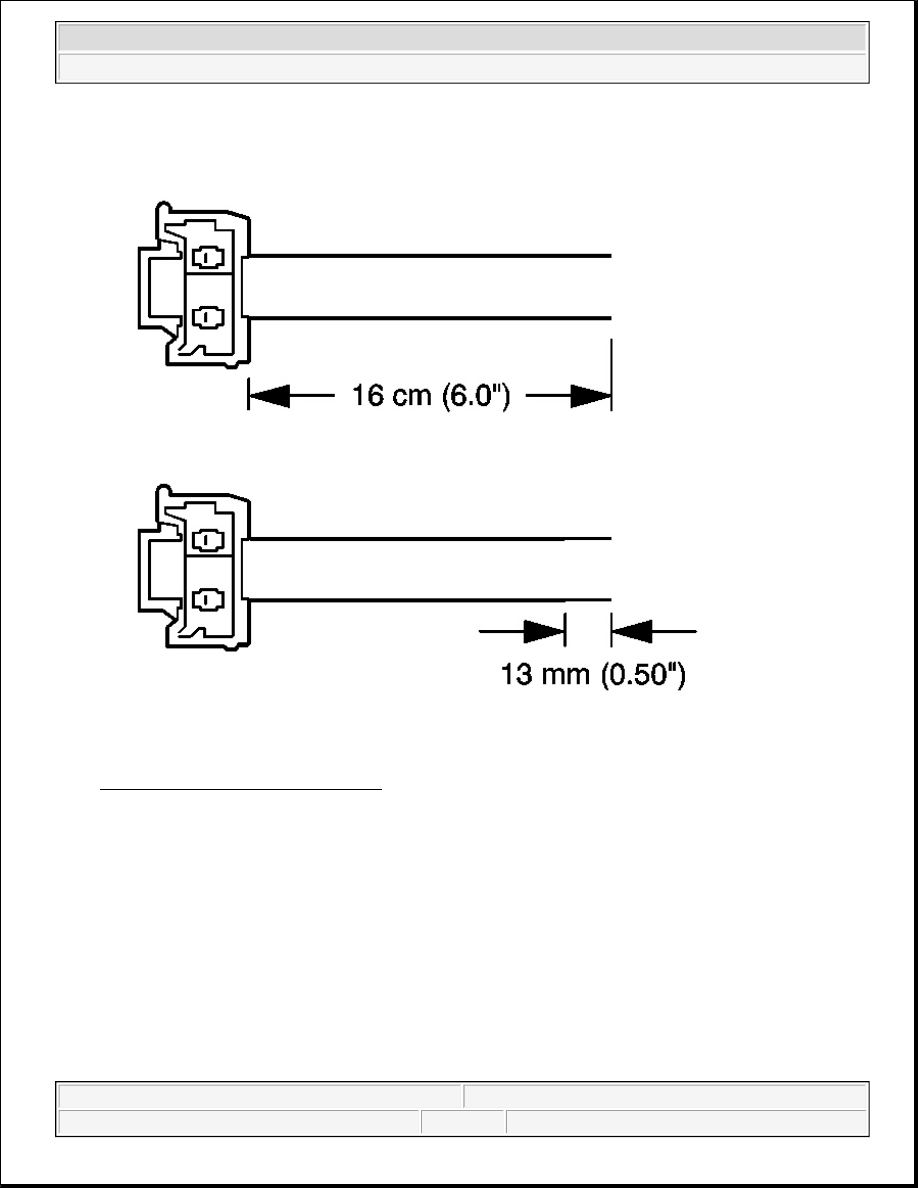

Fig. 78: Measuring Connector Wires
Courtesy of GENERAL MOTORS CORP.

20. Cut the I/P module harness connector out of the vehicle, leaving at least 16 cm (6 in) of wire at the

connector.

21. Strip 13 mm (0.5 in) of insulation from each of the connector wire leads.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

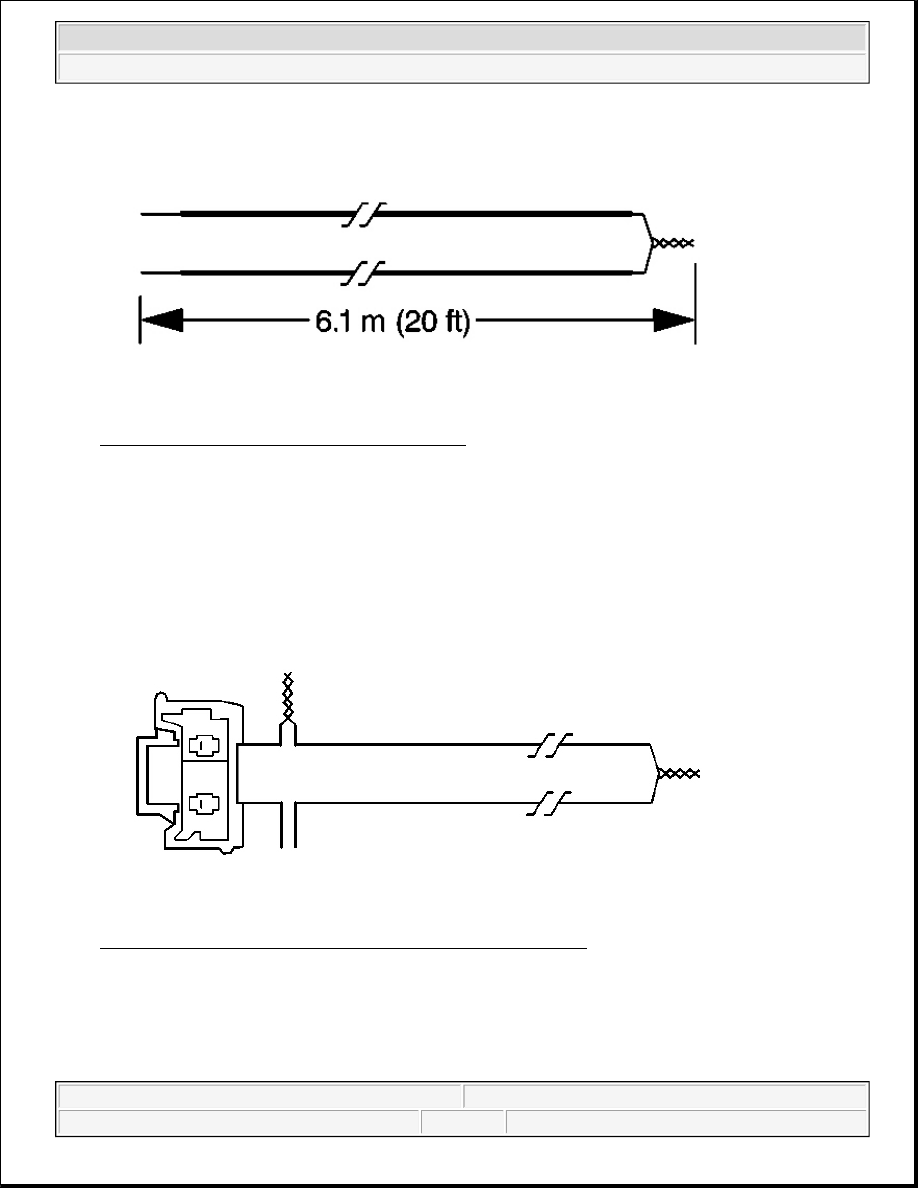

Fig. 79: Fabricating 20 Ft. Deployment Harness
Courtesy of GENERAL MOTORS CORP.

22. Cut two 6.1 m (20 ft) deployment wires from a 0.8 mm (18 gauge) or thicker multi-strand wire. These

wires will be used to fabricate the deployment harness.

23. Strip 13 mm (0.5 in) of insulation from both ends of the wires cut in the previous step.

24. Twist together one end from each of the wires in order to short the wires.

Fig. 80: View Of Twisted Connector Wire To Deployment Wire
Courtesy of GENERAL MOTORS CORP.

25. Twist together one connector wire lead to one deployment wire.

26. Inspect that the connection is secure.



2004 Hummer H2

2004 RESTRAINTS SIR - Hummer H2

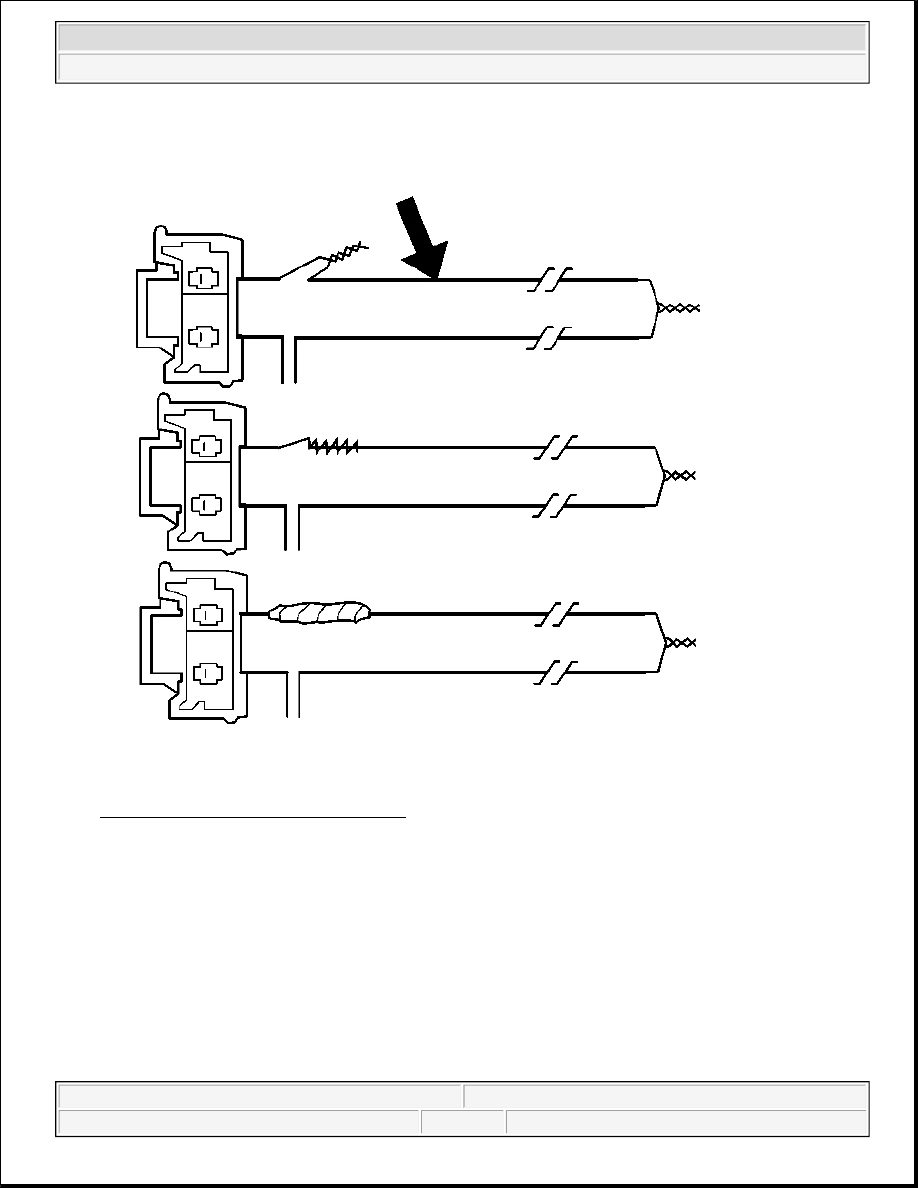

Fig. 81: Identifying Twisted Connection
Courtesy of GENERAL MOTORS CORP.

27. Bend flat the twisted connection.

28. Secure and insulate the connection using electrical tape.
