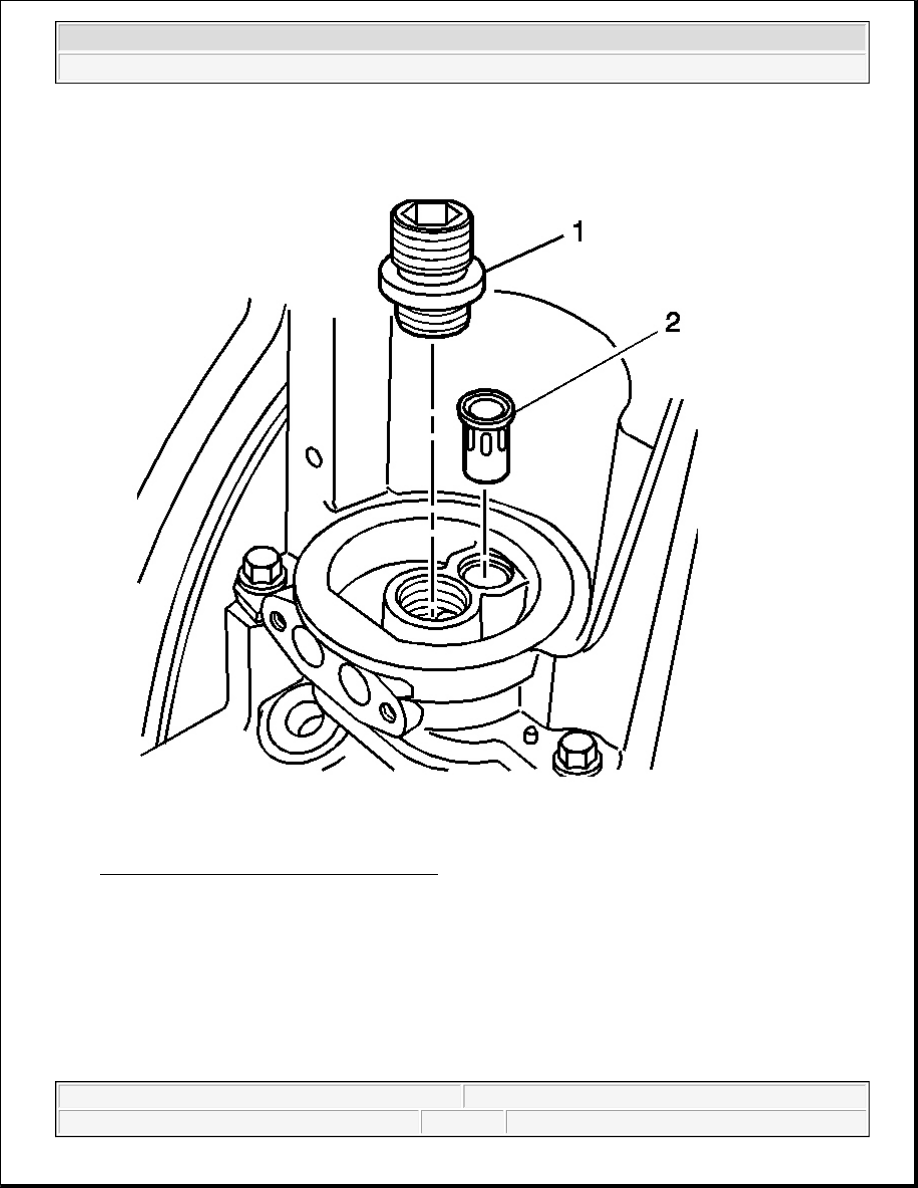

Fig. 150: Oil Filter Adapter & Bypass Valve
Courtesy of GENERAL MOTORS CORP.

1. Install the oil filter adapter (1).

Tighten: Tighten the oil filter adapter to 55 N.m (40 lb ft).

NOTE:

Refer to Fastener Notice in Cautions and Notices.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2

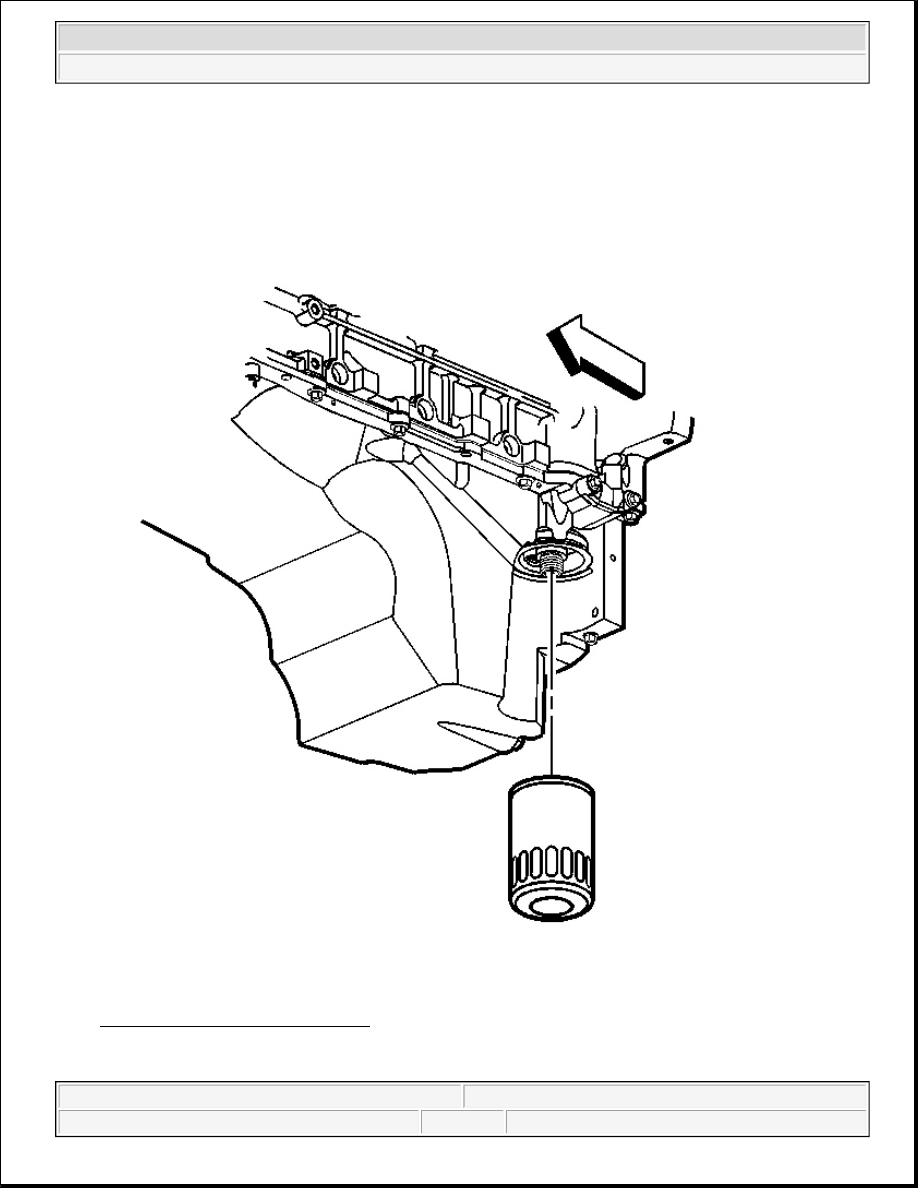

Fig. 151: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.

2. Install the oil filter.

3. Refill the engine oil. Refer to Capacities - Approximate Fluid and/or Fluid and Lubricant

Recommendations in Maintenance and Lubrication.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



OIL FILTER BYPASS VALVE REPLACEMENT

Removal Procedure

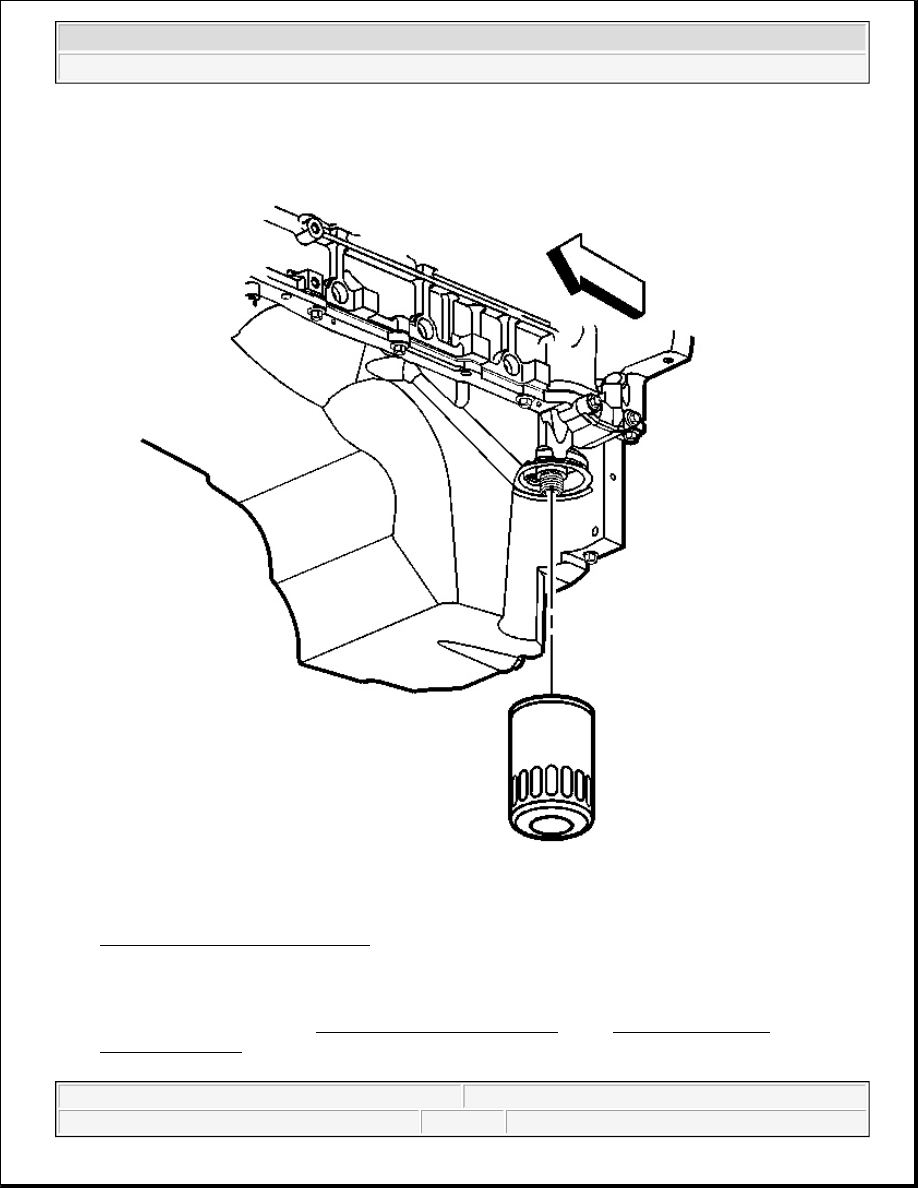

Fig. 152: View Of Engine Oil Filter
Courtesy of GENERAL MOTORS CORP.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



1. Drain the engine oil.

2. Remove the oil filter.

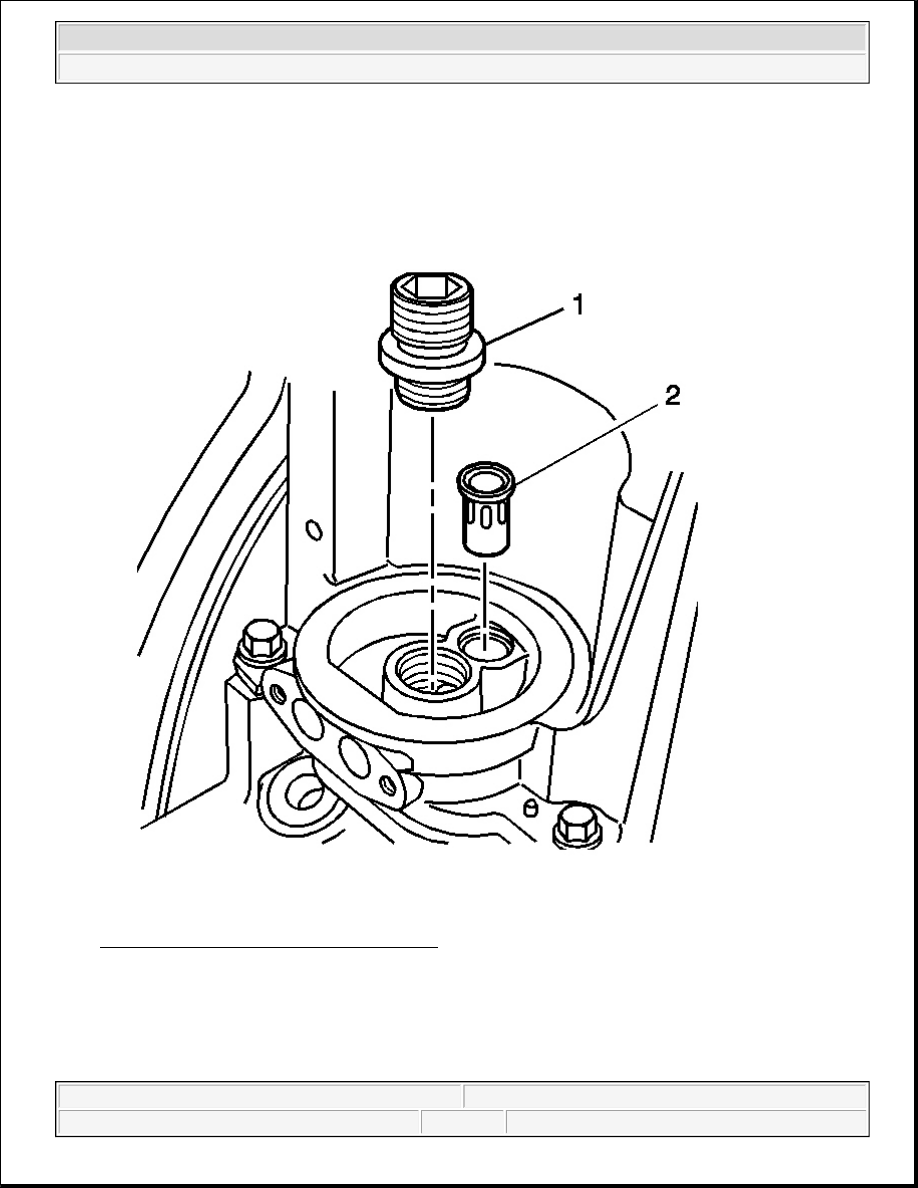

Fig. 153: Oil Filter Adapter & Bypass Valve
Courtesy of GENERAL MOTORS CORP.

3. Remove the oil filter adapter (1).

4. Remove the oil filter bypass valve (2).

Installation Procedure
