1. Remove the throttle body. Refer to Throttle Body Assembly Replacement .

2. Remove the fuel injectors. Refer to Fuel Injector Replacement .

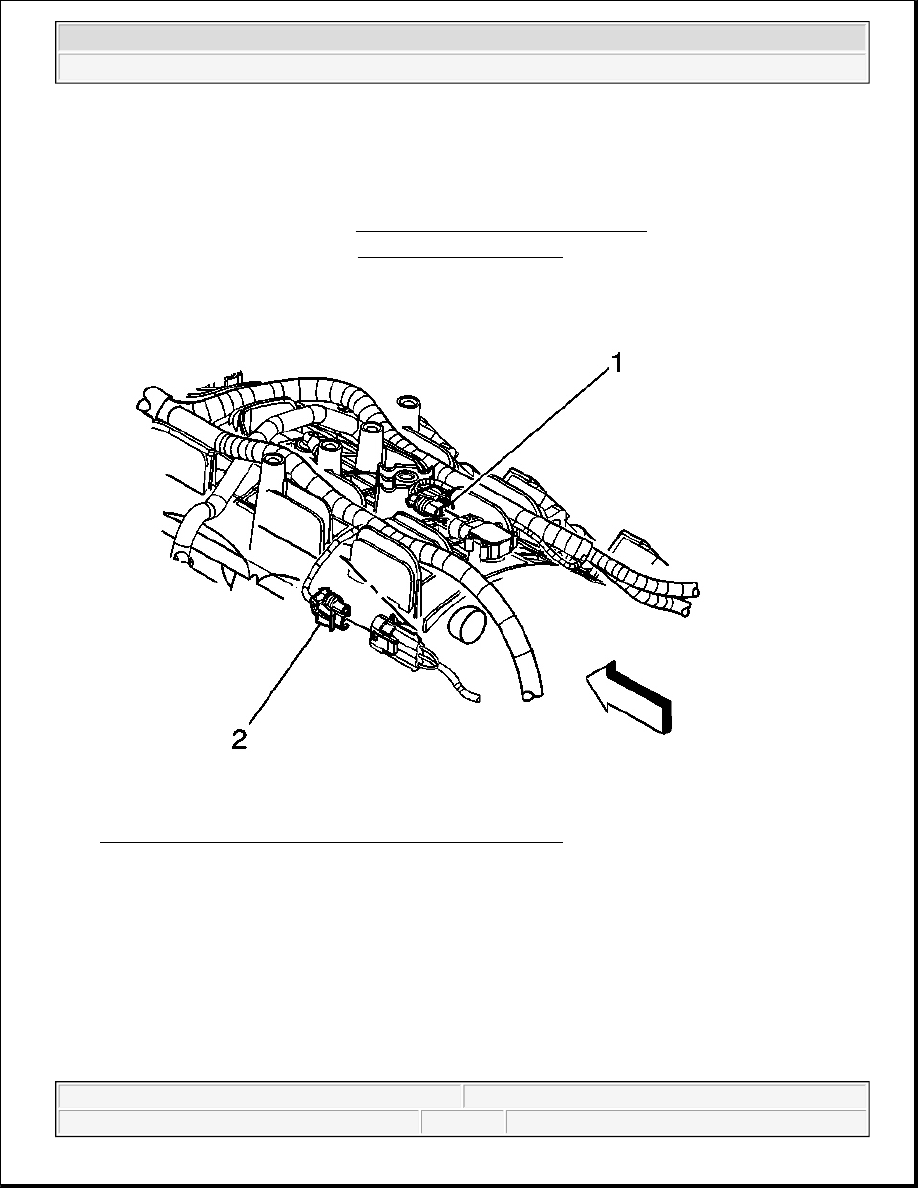

Fig. 56: MAP Sensor & Knock Sensor Electrical Connectors
Courtesy of GENERAL MOTORS CORP.

3. Disconnect the following electrical connectors:

z

Manifold absolute pressure (MAP) sensor (1)

z

Knock sensor (2)

4. Remove the knock sensor harness electrical connector from the intake manifold.

5. Set the electrical harness aside.

IMPORTANT: The intake manifold, throttle body, fuel rail, and injectors may be removed

as an assembly. If not servicing the individual components, remove the
manifold as a complete assembly.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



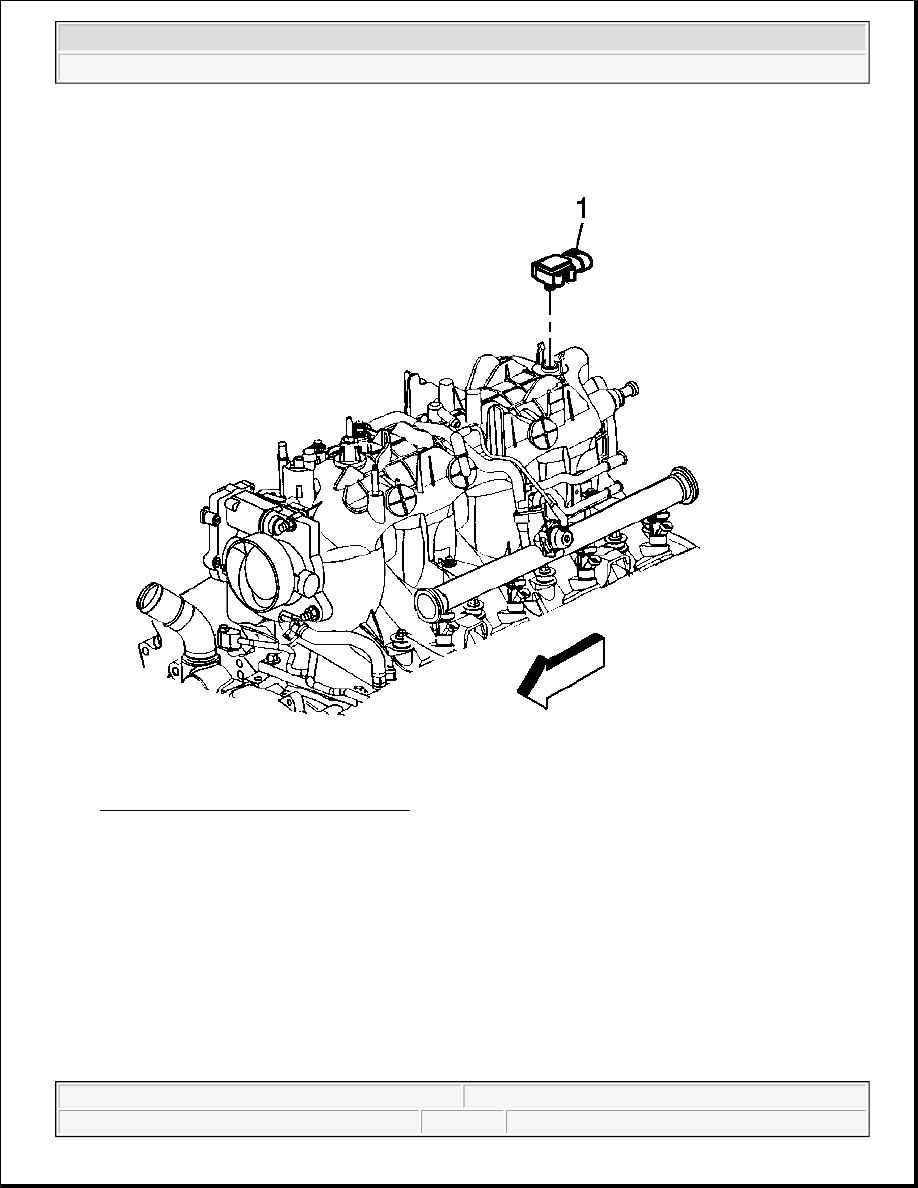

Fig. 57: MAP Sensor & Intake Manifold
Courtesy of GENERAL MOTORS CORP.

6. Remove the MAP sensor (1) from the intake manifold.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



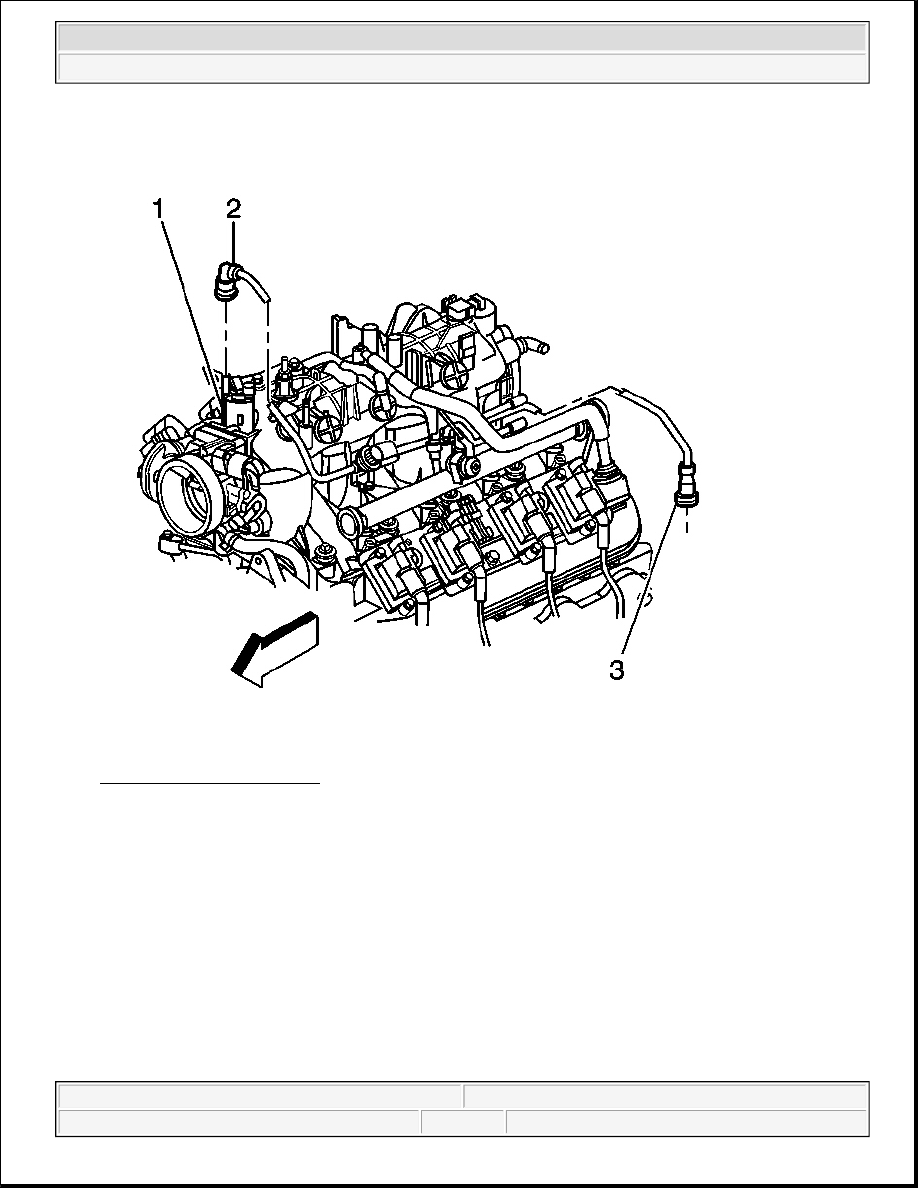

Fig. 58: Top View Of Engine
Courtesy of GENERAL MOTORS CORP.

7. Remove the evaporative emission (EVAP) purge solenoid vent tube by performing the following:

1. Remove the EVAP tube end (2) from the solenoid (1).

2. Squeeze the EVAP pipe quick connect fitting (3) retainer together.

3. Remove the EVAP tube end (3) from the vapor pipe.



2004 Hummer H2

2004 ENGINE Engine Mechanical - 4.8L, 5.3L, and 6.0L - Hummer H2



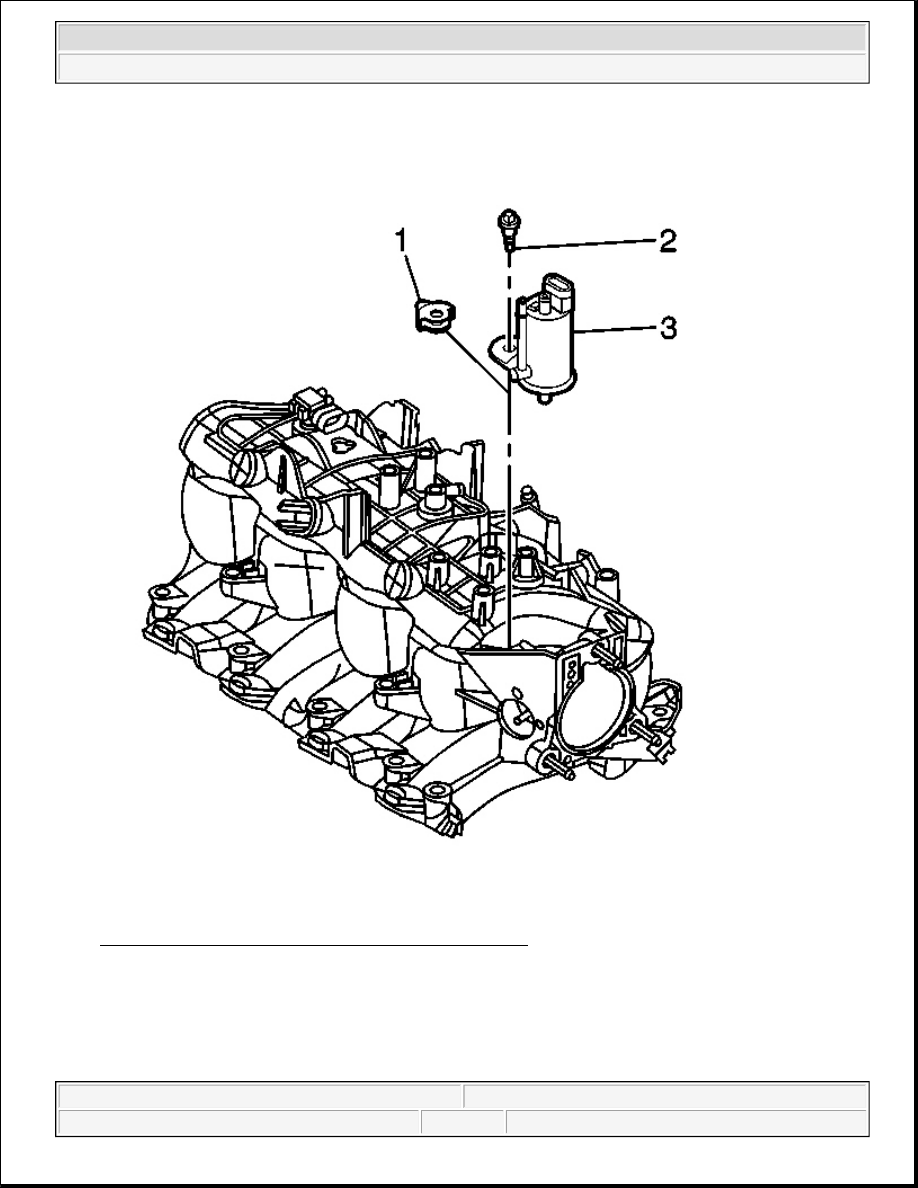

Fig. 59: EVAP Purge Solenoid Bolt, Solenoid & Isolator
Courtesy of GENERAL MOTORS CORP.

8. Remove the EVAP purge solenoid bolt (2), solenoid (3), and isolator (1) from the intake manifold.
