17-24

Power Steering

Steering Wheel Installation

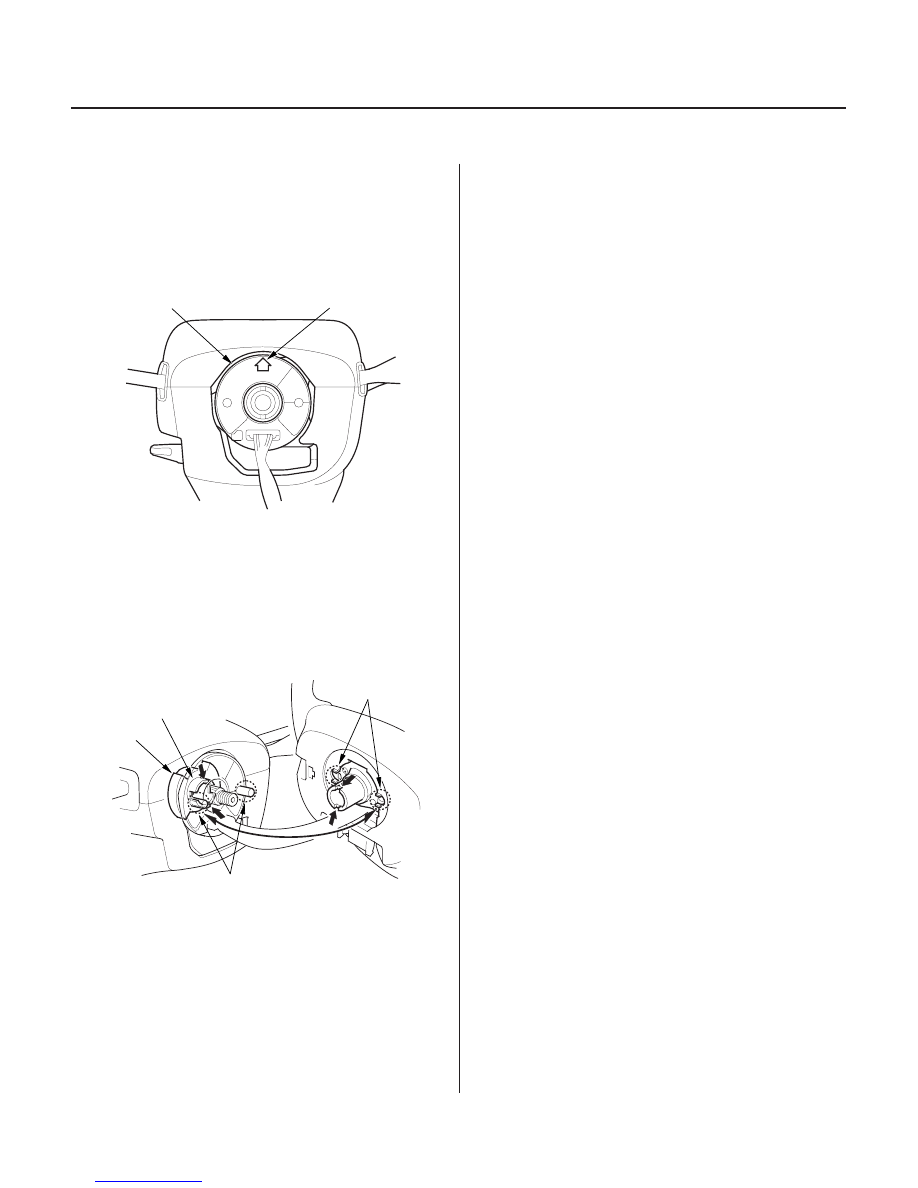

1. Before installing the steering wheel, make sure the

front wheels are aligned straight ahead, then center
the cable reel (A). Do this by first rotating the cable
reel clockwise until it stops. Then rotate it
counterclockwise about two and half turns. The
arrow mark (B) on the cable reel should point
straight up.

2. Position the two tabs (A) of the turn signal

canceling sleeve (B) as shown, and install the
steering wheel on to the steering column shaft,
making sure the steering wheel hub (C) engages
the pins (D) of the cable reel and tabs of the
canceling sleeve. Do not tap on the steering wheel
or steering column shaft when installing the
steering wheel.

3. For ’99-01 models; install a new steering wheel nut,

and tighten it to 49 N·m (5.0 kgf·m, 36 lbf·ft).

4. For ’02-04 models; install a new steering wheel bolt,

and tighten it to 38 N·m (3.9 kgf·m, 28 lbf·ft).

5. Connect the radio remote switches connector and

cruise control switch connector.

6. Install the driver’s airbag, and confirm that the

system is operating properly (see page 23-369).

7. Check the horn, radio remote switch, cruise control

set/resume switch and turn signal canceling switch
for proper operation.

8. Reconnect the battery and do the following.

• Power window control unit resetting procedure

(see page 22-200).

• PCM idle learn procedure (see page 11-202).
• Set the clock.
• Enter the radio anti-theft code.
• Enter the navigation system anti-theft code.

03/07/29 09:49:05 61S0X050_170_0024

０１

０２

Ｓ０Ｘ４Ａ００Ｆ００００００５７１０１ＫＤＡＴ００

Removal

17-25

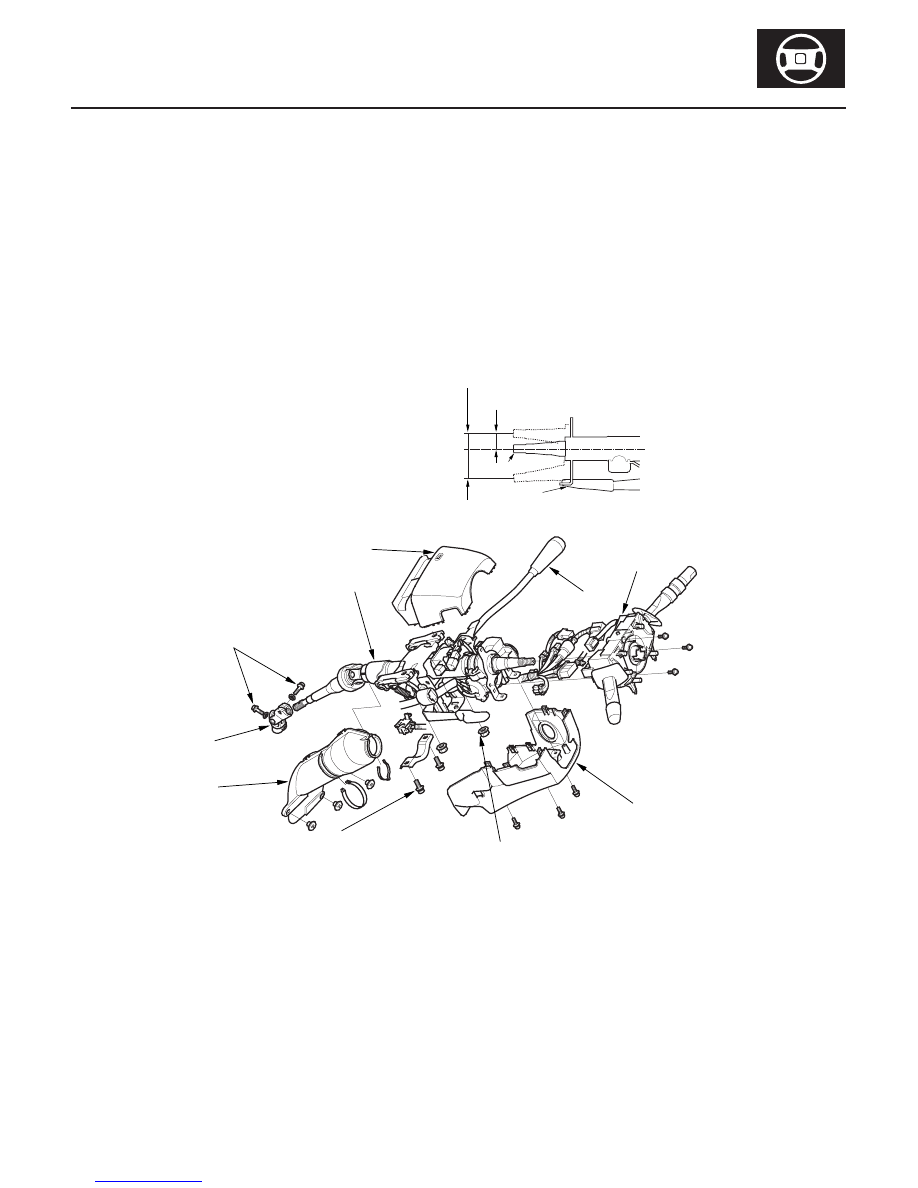

Steering Column Removal and Installation

MAXIMUM UPPER POSITION

NEUTRAL POSITION

MAXIMUM LOWER POSITION

8 mm (5/16 in.)

FULL STROKE: 23 mm (0.9 in.)

16 N·m (1.6 kgf·m, 12 lbf·ft)

22 N·m
(2.2 kgf·m, 16 lbf·ft)

SRS components are located in this area. Review the SRS component locations, ’99-01 models (see page 23-18),
’02 model (see page 23-19), ’03-04 models (see page 23-20), and the precautions and procedures (see page 23-21) in
the SRS before performing repairs or service.

1. Record the radio station presets, and disconnect the battery.

2. Remove the driver’s airbag, steering wheel, and cable reel (see page 23-368).

3. Set the column shaft (A) in the neutral position by pulling up the steering column to uppermost position, then

lower it 8 mm (0.31 in.). Tighten the tilt lever (B).

4. Remove the column covers (A).

5. Move the shift lever (B) to the N position, and remove the shift cable from the column, and set it aside.

8. Remove the steering joint cover (D).

9. Disconnect the steering joint (E), and remove it from the column shaft.

10. Remove the steering column (F) by removing the attaching nuts and bolts.

(cont’d)

03/07/29 09:49:06 61S0X050_170_0025

Disconnect the ignition switch connectors and disconnect the harness clips.

Remove the combination switch assembly (C) from the steering column shaft by disconnecting the connectors and
removing the screws.

０３

Installation

17-26

Power Steering

Steering Column Removal and Installation (cont’d)

22 N·m
(2.2 kgf·m,
16 lbf·ft)

22 N·m
(2.2 kgf·m, 16 lbf·ft)

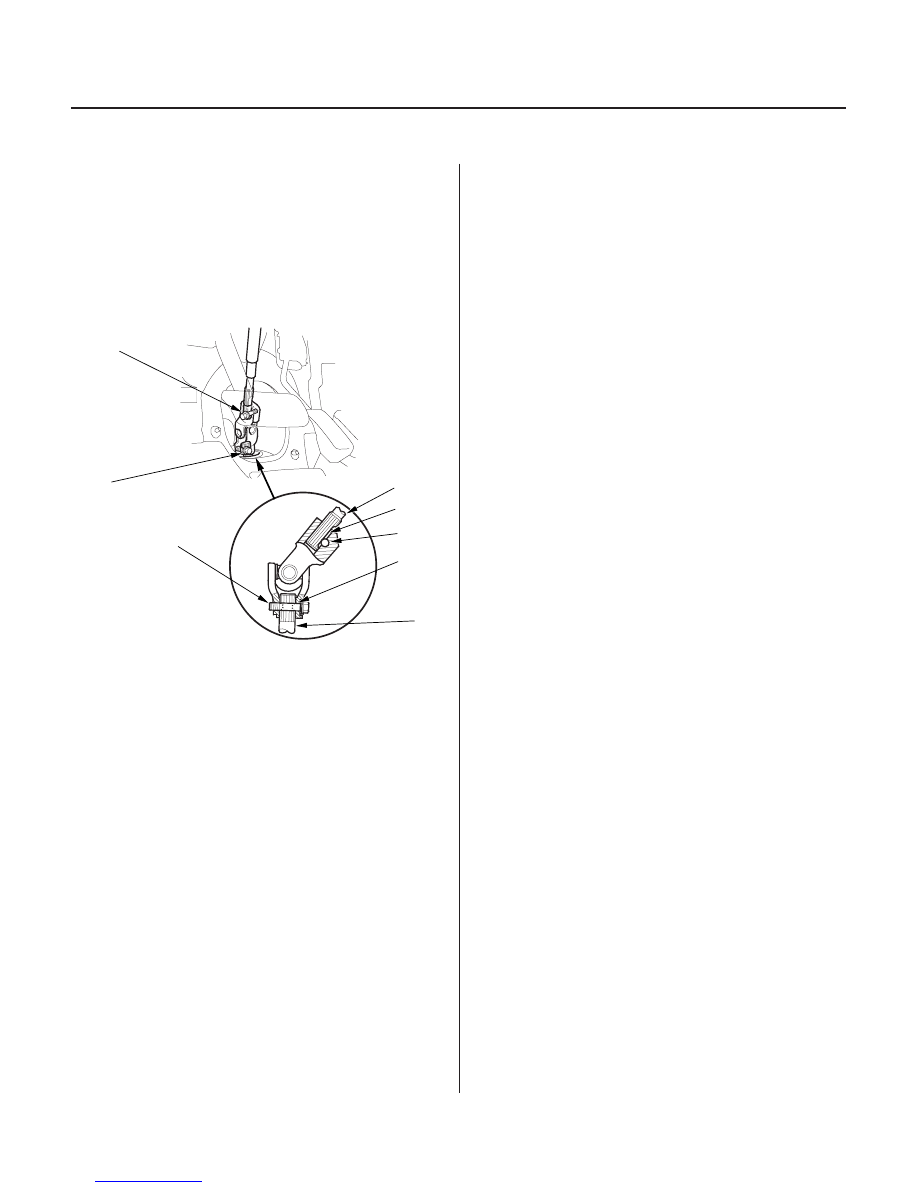

1. Install the steering column and make sure the wires

are not caught or pinched by any parts.

2. Insert the upper end of the steering joint onto the

steering shaft (A) (line up the bolt hole (B) with the
flat portion (C) on the shaft).

3. Slip the lower end of the steering joint onto the

pinion shaft (E) (line up the bolt hole (F) with the
groove (G) around the shaft), and loosely install the
lower joint bolt. Be sure that the lower joint bolt is
securely in the groove in the pinion shaft.

4. Pull on the steering joint to make sure that the

steering joint is fully seated. Then install the upper
joint bolt and tighten it.

5. Tighten both the upper and lower joint bolts to the

specified torque.

6. Finish the installation, and note these items:

• Make sure the wire harness is routed and

fastened properly.

• Make sure the connectors are properly connected.
• Reinstall the steering wheel (see page 17-24).
• Reconnect the battery.

– Do the PCM idle learn procedure (see page 11-

202).

– Do the power window control unit reset

procedure (see page 22-200).

– Set the clock.
– Enter the anti-theft codes for the radio and the

navigation system, then the customer’s radio
station presets.

• Verify cruise control, horn, radio remote, and

turn signal switch operation.

• Check wheel alignment (see page 18-5).

03/07/29 09:49:06 61S0X050_170_0026

０１

Ｓ０Ｘ４Ａ００Ｆ００００００５７１０１ＭＣＡＴ００

17-27

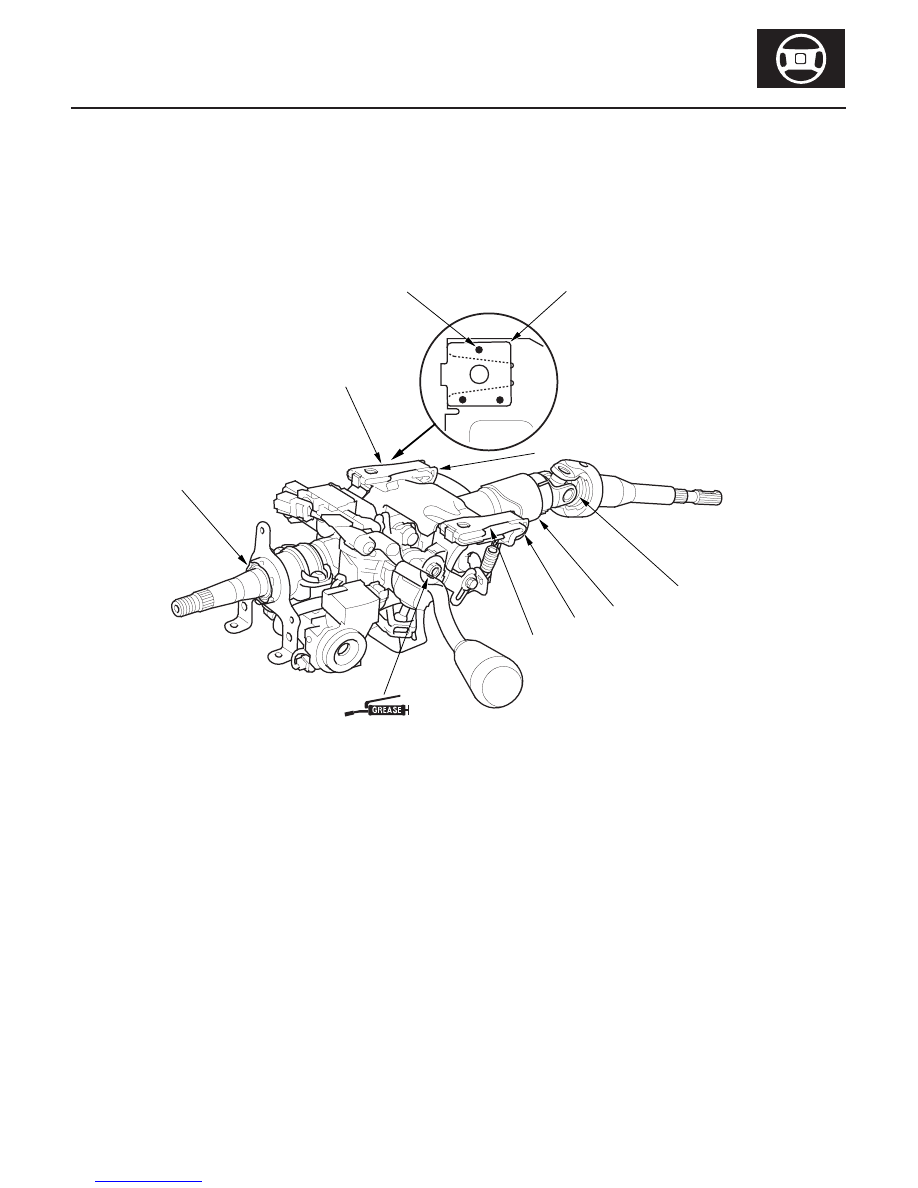

Steering Column/Tilt Lever Inspection/Adjustment

• Check the steering column ball bearing (A) and the steering joint bearings (B) for play and proper movement. If any

bearing is noisy or has excessive play, replace the steering column as an assembly.

• Check the retaining collar (C) for damage. If it is damaged, replace the steering column as an assembly.
• Check the absorbing plates (D), absorbing plate guides (E) and sliding capsules (F) for distortion or breakage. If there

is distortion or breakage, replace the steering column as an assembly. The sliding capsule is attached to the column
bracket with the plastic injections (G).

(cont’d)

03/07/29 09:49:07 61S0X050_170_0027
