Honda Element. Manual - part 504

Fig. 26: Identifying 3P Connector From Headlight
Courtesy of AMERICAN HONDA MOTOR CO., INC.

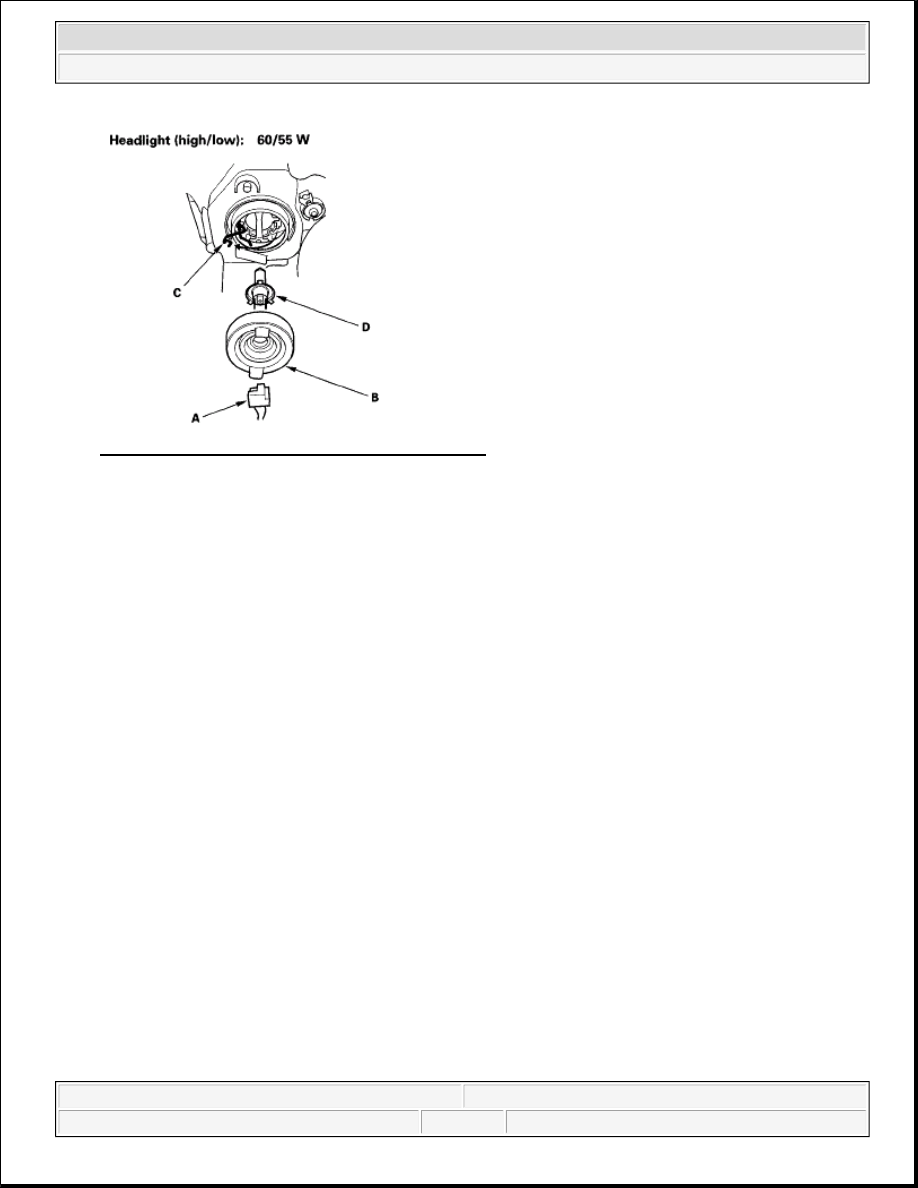

2. Remove the rubber cover (B).

3. Pull the retaining spring (C) away from the bulb (D), then remove the bulb.

4. Install a new bulb in the reverse order of removal. Make sure the tabs on the bulb align with the notches

in the headlight.

HEADLIGHT (SC MODEL)

1. Disconnect the 2P connector (A) from the headlight.

Headlight (high beam): 60 W

Headlight (low beam): 55 W



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



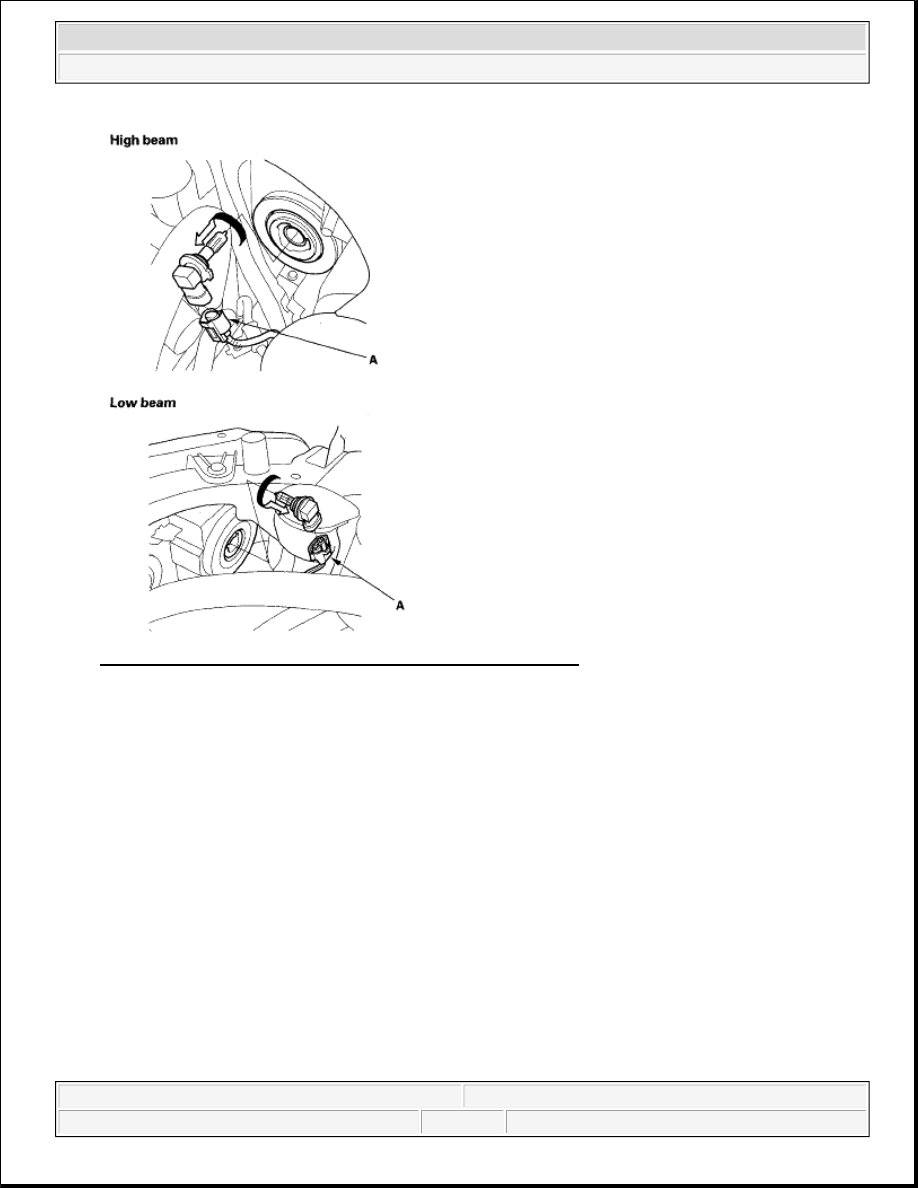

Fig. 27: Identifying 2P Connector From Headlight (SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the bulb socket 45° counterclockwise to remove the bulb.

3. Install a new bulb in the reverse order of removal.

FRONT TURN SIGNAL/PARKING LIGHT

1. Disconnect the connector (A) from the light.

Front Turn Signal/Parking Light:

21/5 W (Except SC model)

28/8 W(SC model)



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



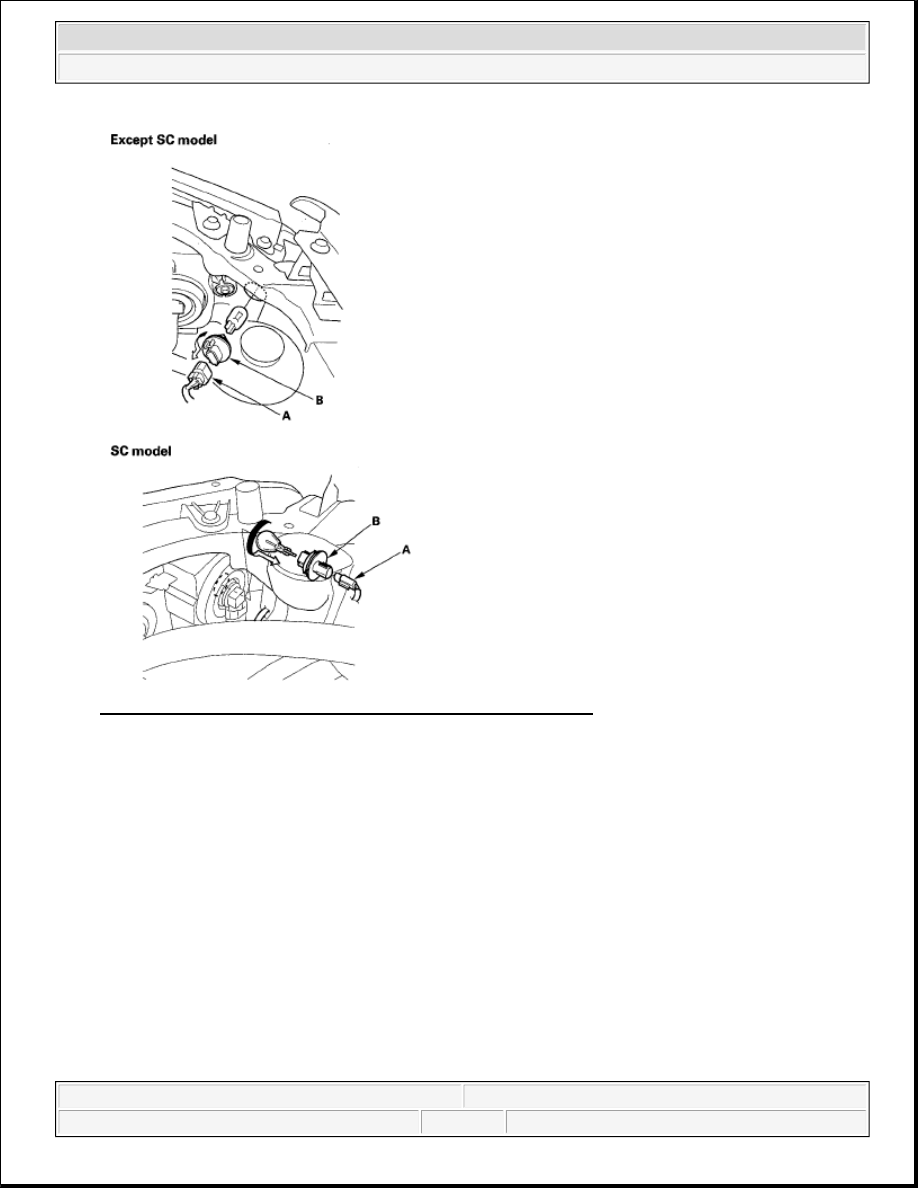

Fig. 28: Identifying Front Turn Signal/Parking Light Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.

3. Install the new bulb in the reverse order of removal.

FRONT SIDE MARKER LIGHT (SC MODEL)

1. Disconnect the connector (A) from the light.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



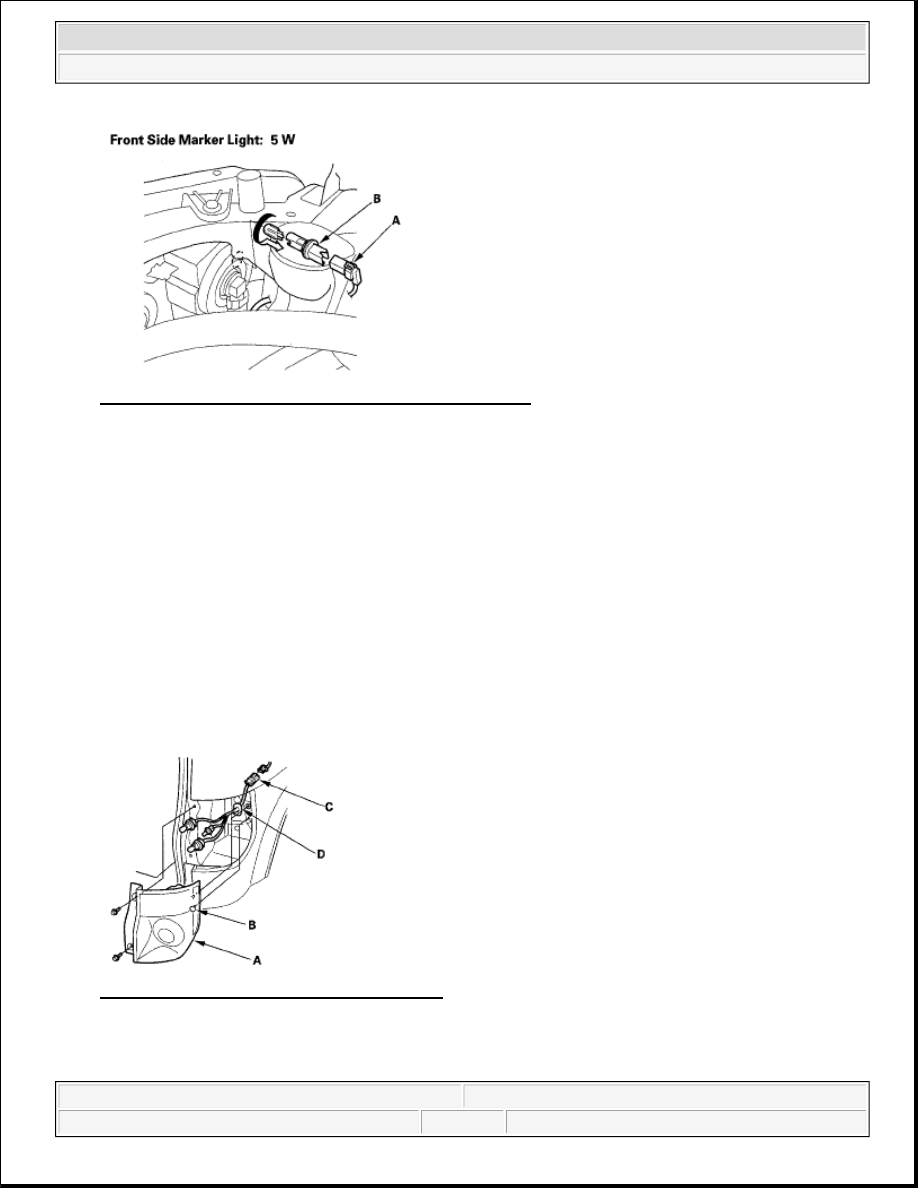

Fig. 29: Identifying Front Side Marker Light Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.

3. Install the new bulb in the reverse order of removal.

TAILLIGHT REPLACEMENT

1. Open the hatch and the tailgate.

2. Remove the two mounting bolts from the taillight (A).

Brake/Rear side marker/Taillight: 21/5 W

Back-up Light: 18 W

Rear Turn Signal Light: 21 W

Fig. 30: Identifying Taillight Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Pull the taillight away from the body to disengage the clip (B).

4. Turn the bulb socket 45° counterclockwise to remove the bulb socket.
