Honda Element. Manual - part 414

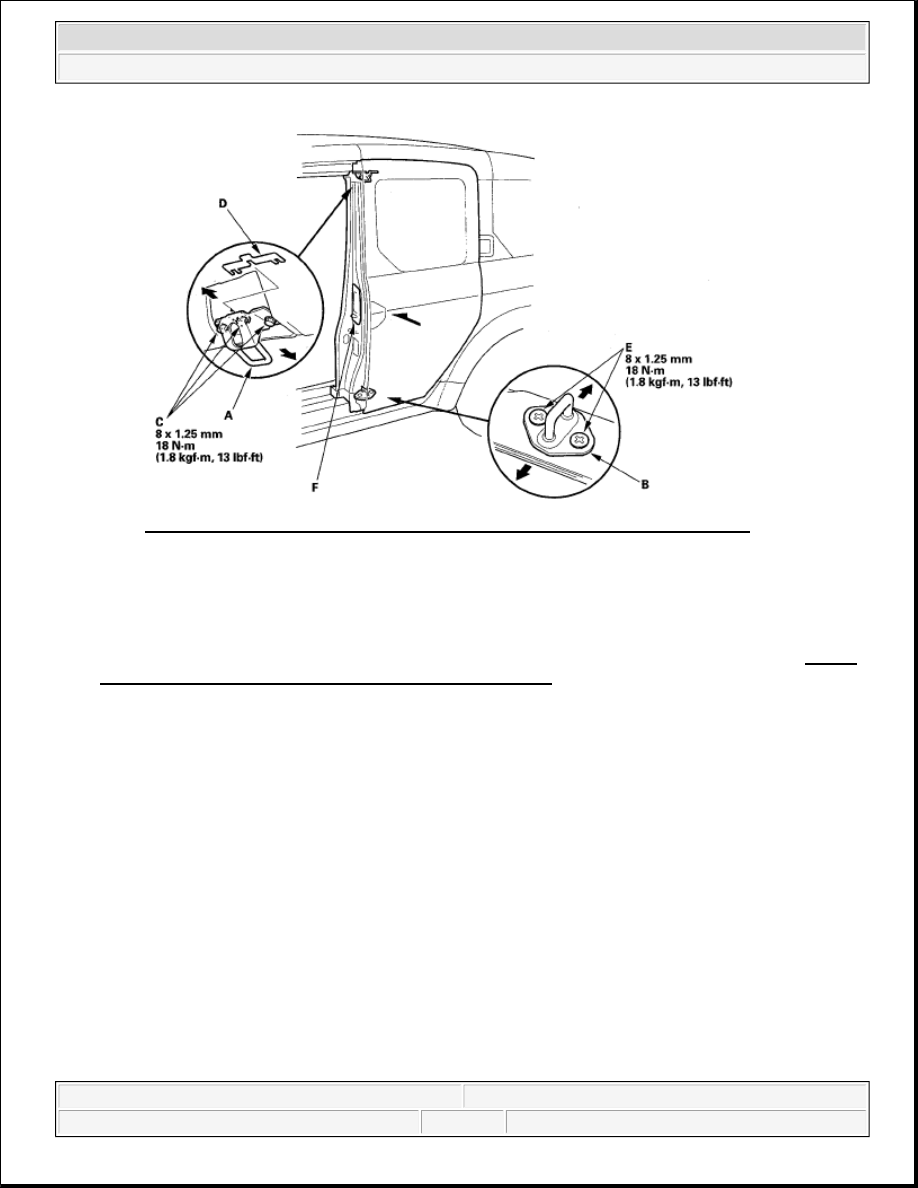

Fig. 63: Identifying Rear Door Striker Adjustment With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Lightly tighten the bolts and screws.

4. Hold the door handle (Flout, and push the door against the body to be sure the strikers allow a flush fit. If

the door latches properly, tighten the bolts and screws and recheck.

5. Check the door unlock synchronization. If necessary, adjust the upper and lower latch cables (see REAR

DOOR UNLOCK SYNCHRONIZATION ADJUSTMENT ).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Doors - Element



2007 HONDA

Element

BUZZERS, RELAYS & TIMERS

BUZZERS, RELAYS & TIMERS LOCATION

CIRCUIT PROTECTION DEVICES

CIRCUIT PROTECTION DEVICES LOCATION

CONTROL UNITS

CONTROL UNITS LOCATION

Component

Location

A/C Compressor Clutch Relay

In underhood fuse/relay box. See Fig. 84.

A/F Sensor Relay

Behind glove box. See Fig. 43.

A/T Reverse Relay

Behind glove box. See Fig. 43.

Blower Motor Relay

In underhood fuse/relay box. See Fig. 84.

Condenser Fan Relay

In underhood fuse/relay box. See Fig. 84.

Headlight Relay 1

In underhood fuse/relay box. See Fig. 84.

Headlight Relay 2

In underhood fuse/relay box. See Fig. 84.

Horn Relay

In underhood fuse/relay box. See Fig. 84.

Ignition Coil Relay

Behind glove box. See Fig. 43.

PGM-FI Main Relay 1

Behind glove box. See Fig. 44.

PGM-FI Main Relay 2

Behind glove box. See Fig. 44.

Power Window Relay

In underdash fuse/relay box. See Fig. 83.

Radiator Fan Relay

In underhood fuse/relay box. See Fig. 84.

Rear Accessory Power Socket Relay

Behind glove box. See Fig. 43.

Rear Window Defogger Relay

In underhood fuse/relay box. See Fig. 84.

Starter Cut Relay

On underdash fuse/relay box. See Fig. 83.

Taillight Relay

In underdash fuse/relay box. See Fig. 83.

Throttle Actuator Control Middle Relay

Behind glove box. See Fig. 43.

Turn Signal/Hazard Relay

In underdash fuse/relay box. See Fig. 83.

Component

Location

Underdash Fuse/Relay Box

Behind left side of dash, right of steering column.

See Fig. 28.

Underhood Fuse/Relay Box

Left rear of engine compartment. See Fig. 5.

Component

Location

ECM/PCM

Behind glove box. See Fig. 46.

ELD Unit

In underhood fuse/relay box. See Fig. 84.



2007 Honda Element EX

2007 HONDA Element





2007 Honda Element EX

2007 HONDA Element



MOTORS

MOTORS LOCATION

SENDING UNITS & SENSORS

Immobilizer Control Unit Receiver

In steering wheel cover. See Fig. 25.

Keyless Receiver Unit

Under left side of dash. See Fig. 111.

ODS Unit

In side of front passenger's seat. See Fig. 99.

Rear Window Wiper Intermittent Control Unit

Behind left quarterpanel. See Fig. 59.

Security Control Unit Connector (Optional)

Behind left side of dash. See Fig. 111.

SRS Unit

Below center of dash. See Fig. 36.

Throttle Actuator Control Module

Under left side of dash. See Fig. 81.

TPMS Control Unit

Under middle of dash. See Fig. 114.

Trailer Lighting Control Unit Connector

Under left side of dash. See Fig. 26.

VSA Modulator-Control Unit

Right rear corner of engine compartment. See Fig.

107.

Component

Location

A/C Condenser Fan Motor

Front of engine compartment. See Fig. 3.

Air Mix Control Motor

Below left side of dash, on HVAC unit. See Fig. 33.

Blower Motor

Below right side of dash, on blower unit. See Fig.

48.

Driver's Door Lock Actuator

Rear of driver's door. See Fig. 91.

Front Passenger's Door Lock Actuator

Rear of front passenger's door. See Fig. 92.

Fuel Tank Unit

In fuel tank. See Fig. 57.

Mode Control Motor

Behind right side of dash, on HVAC unit. See Fig.

45.

Power Mirror Connector (Left)

Front of driver's door. See Fig. 90.

Power Mirror Connector (Right)

Front of front passenger's door. See Fig. 90.

Power Window Motor (Driver's)

In driver's door. See Fig. 50.

Power Window Motor (Front Passenger's)

In right front door. See Fig. 51.

Radiator Fan Motor Connector

Behind left side of radiator. See Fig. 4.

Rear Window Washer Motor

Behind right front inner fender, on washer fluid

reservoir. See Fig. 68.

Rear Window Wiper Motor

Below middle of rear window. See Fig. 62.

Recirculation Control Motor

Behind right side of dash, on blower unit. See Fig.

45.

Starter

Left side of engine. See Fig. 11.

Windshield Washer Motor

Behind right side of front bumper, on washer fluid

reservoir. See Fig. 66.

Windshield Wiper Motor

Under left side of cowl cover. See Fig. 23.



2007 Honda Element EX

2007 HONDA Element



SENDING UNITS & SENSORS LOCATION

Component

Location

A/F Sensor

On front of three-way catalytic converter. See Fig.

75.

APP Sensor

Right rear corner of engine compartment. See Fig.

105.

CKP Sensor

Lower right front of engine, near crankshaft pulley.

See Fig. 69.

CMP Sensor A

Rear of cylinder head. See Fig. 16.

CMP Sensor B

Rear of cylinder head. See Fig. 16.

Driver's Seat Position Sensor

Under driver's seat. See Fig. 118.

ECT Sensor

Rear of cylinder head. See Fig. 15.

ECT Sensor 2

Bottom of radiator. See Fig. 71.

Evaporator Temperature Sensor Connector

Behind left side of dash, near HVAC unit. See Fig.

32.

FTP Sensor

Under left rear of vehicle. See Fig. 77.

Inner Side Front Passenger's Weight Sensor
Connector

Under front passenger's seat. See Fig. 120.

Input Shaft (Mainshaft) Speed Sensor

Right rear of transaxle. See Fig. 19.

Knock Sensor

Left side of engine. See Fig. 11.

Left Front Impact Sensor

Behind left side of front bumper. See Fig. 65.

Left Side Impact Sensor (1st)

On left side of floor.

Left Side Impact Sensor (2nd)

Behind left quarterpanel. See Fig. 123.

MAF/IAT Sensor

Left side of intake manifold. See Fig. 13.

MAP Sensor

Left side of intake manifold. See Fig. 14.

Outer Side Front Passenger's Weight Sensor
Connector

Under front passenger's seat. See Fig. 120.

Output Shaft (Countershaft) Speed Sensor (A/T)

Right front of transaxle. See Fig. 19.

Output Shaft (Countershaft) Speed Sensor (M/T)

Top of transaxle. See Fig. 103.

Rear Safing Sensor

Under center console. See Fig. 116.

Right Front Impact Sensor

Behind right side of front bumper. See Fig. 67.

Right Side Impact Sensor (1st)

On right side of floor. See Fig. 117.

Right Side Impact Sensor (2nd)

Behind right quarterpanel.

Roll Rate Sensor

On left side of floor. See Fig. 119.

Secondary HO2S

Under middle of vehicle. See Fig. 75.

Steering Angle Sensor

On steering column. See Fig. 109.

TP Sensor/Throttle Actuator

On intake manifold. See Fig. 14.

VSA Sensor Cluster

Under center console. See Fig. 56.

Wheel Speed Sensor Connector (Left Front)

Left side of engine compartment. See Fig. 72.

Wheel Speed Sensor Connector (Right Front)

Right side of engine compartment. See Fig. 69.

Wheel Speed Sensor (Left Rear)

On left rear wheel. See Fig. 76.

Wheel Speed Sensor (Right Rear)

On right rear wheel. See Fig. 79.
