Fig. 4: Identifying Main Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CRUISE CONTROL SET/DECEL, RESUME/ACCEL, CANCEL SWITCH
TEST/REPLACEMENT

SRS components are located in this area. Review the SRS component locations (see COMPONENT
LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ),
before performing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).

2. Remove the cover (A), then remove the cruise control set/decel, resume/accel, cancel switch (B).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



Fig. 5: Identifying Cruise Control Set/Decel And Resume/Accel Cancel Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check for continuity between the terminals in each switch position according to Fig. 6.



If there is continuity, and it matches the table, but switch failure occurred on the cruise control
input test, check and repair the wire harness on the switch circuit.



If there is no continuity in one or both positions, replace the switch.

Fig. 6: Identifying Cruise Control Set/Decel, Resume/Accel, Cancel Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CLUTCH PEDAL POSITION SWITCH TEST

M/T

1. Disconnect the 2P connector from the clutch pedal position switch (A).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



Fig. 7: Identifying 2P Connector From Clutch Pedal Position Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the clutch pedal position switch.

3. Check for continuity between the terminals according to Fig. 8.



If the continuity is not as specified, replace the clutch pedal position switch.



If OK, install the clutch pedal position switch and adjust the pedal height (see CLUTCH PEDAL,
CLUTCH PEDAL POSITION SWITCH, AND CLUTCH INTERLOCK SWITCH
ADJUSTMENT ).

Fig. 8: Clutch Pedal Position Switch Test Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Cruise Control - Element



2007-2008 ENGINE

Cylinder Head - Element

SPECIAL TOOLS

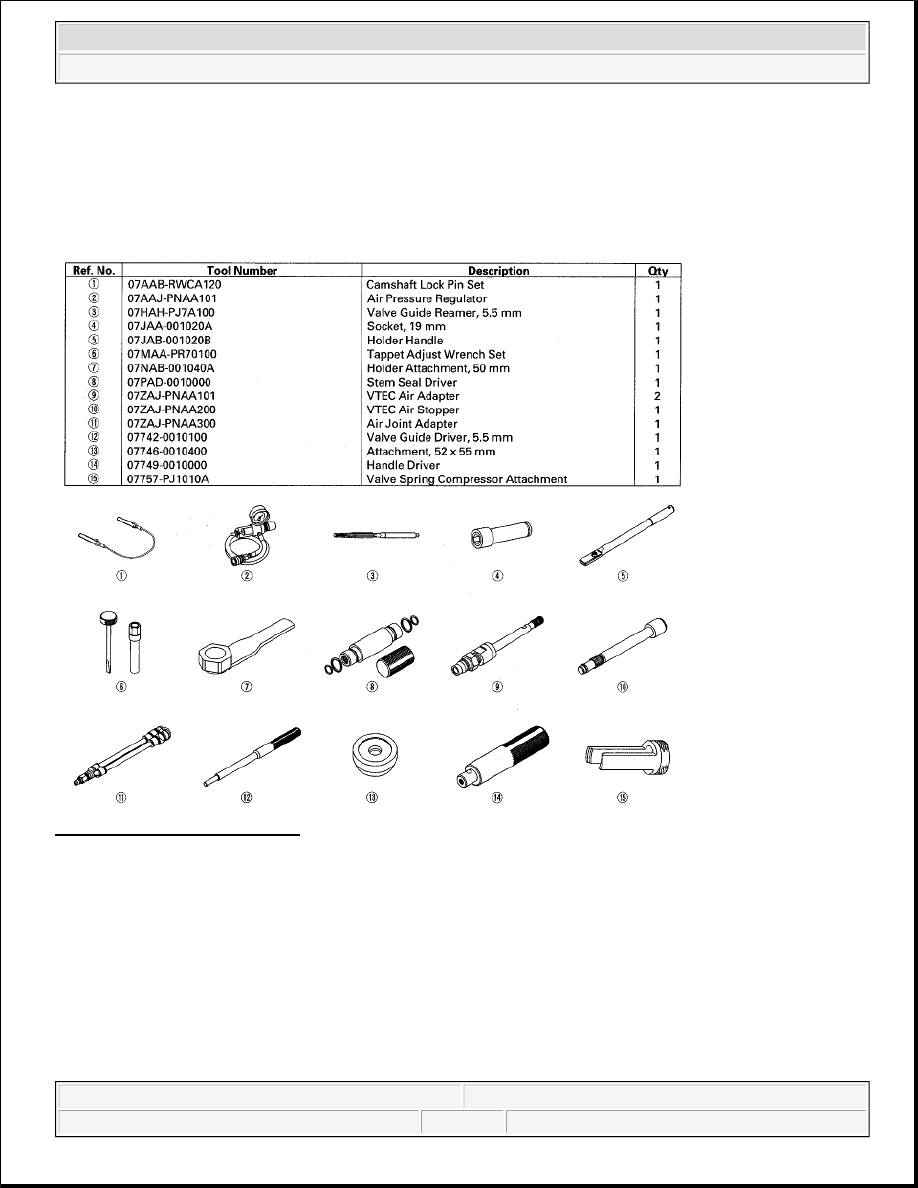

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX



2007 Honda Element EX

2007-2008 ENGINE Cylinder Head - Element
