Attachment, 52 x 55 mm 07746-0010400

1. Remove the idler gear shaft bearing (A) from the end cover (B) with the adjustable bearing puller and a

commercially available 3/8 "-16 slide hammer (C).

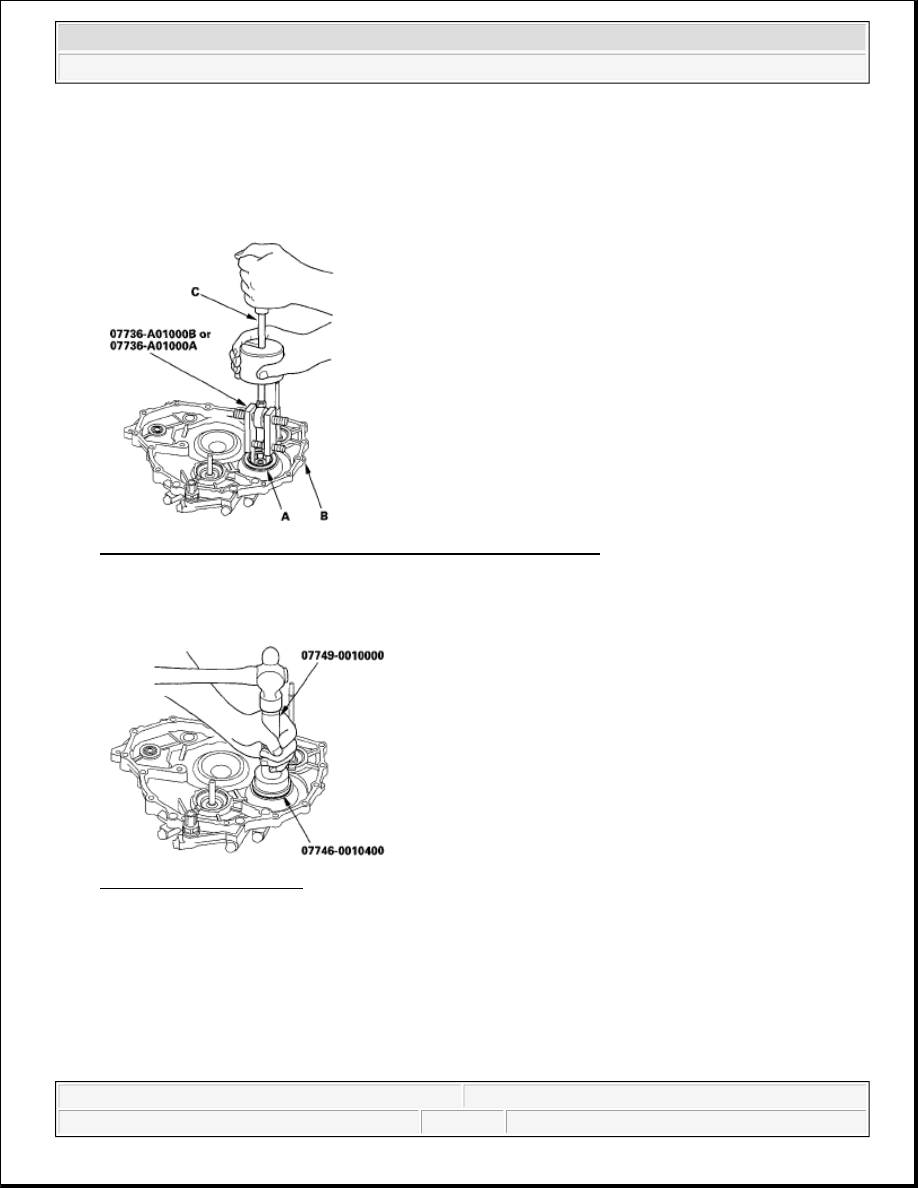

Fig. 405: Identifying Bearing Puller On Idler Gear Shaft Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new bearing in the end cover with the driver and 52 x 55 mm attachment.

Fig. 406: Tapping Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SELECTOR CONTROL SHAFT OIL SEAL REPLACEMENT

Special Tools Required



Driver 07749-0010000



Attachment, 22 x 24 mm 07746-0010800



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



1. Remove the oil seal (A) from the end cover (B).

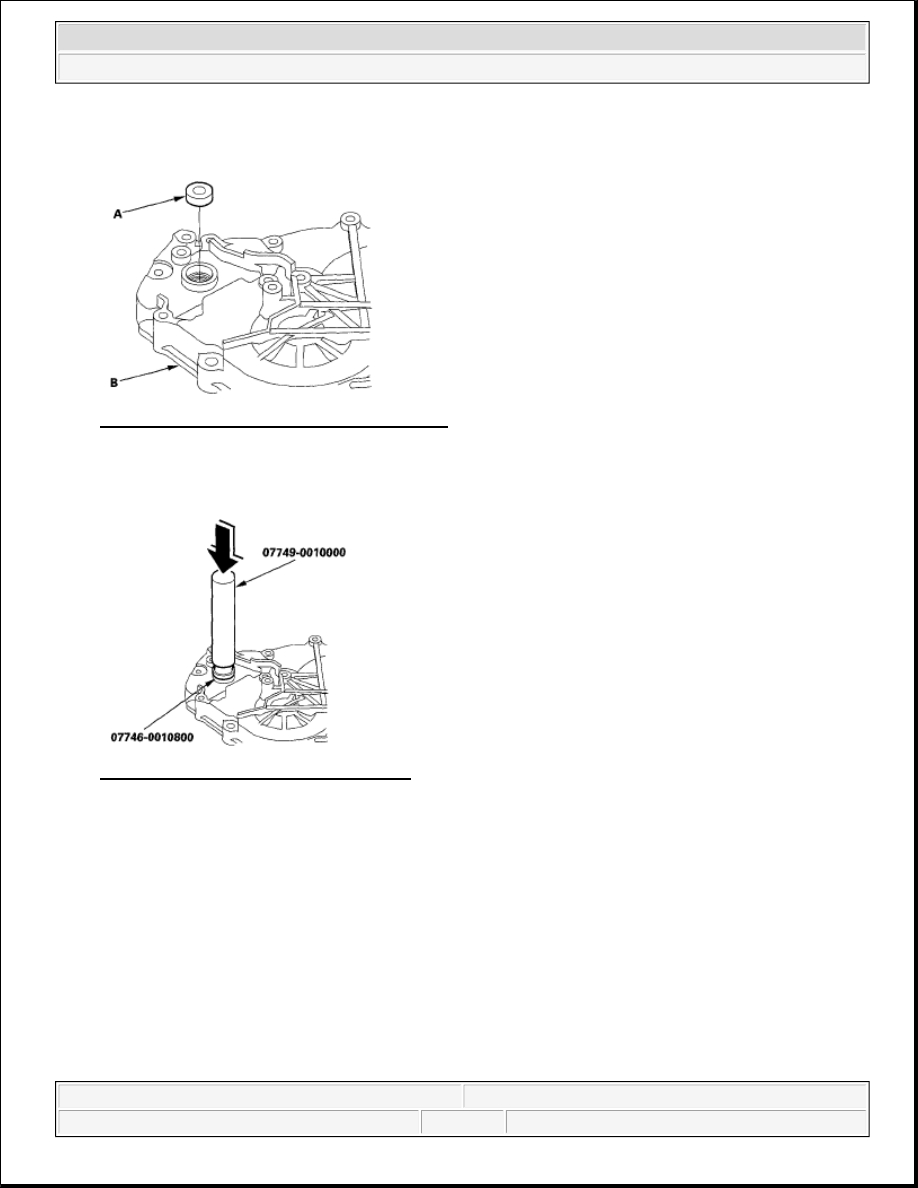

Fig. 407: Identifying Oil Seal And End Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new oil seal flush to the end cover with the driver and 22 x 24 mm attachment.

Fig. 408: Identifying Oil Seal And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SELECTOR CONTROL SHAFT BEARING REPLACEMENT

Special Tools Required



Driver 07749-0010000



Attachment, 22 x 24 mm 07746-0010800

1. Remove the oil seal from the end cover, then remove the bearing.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

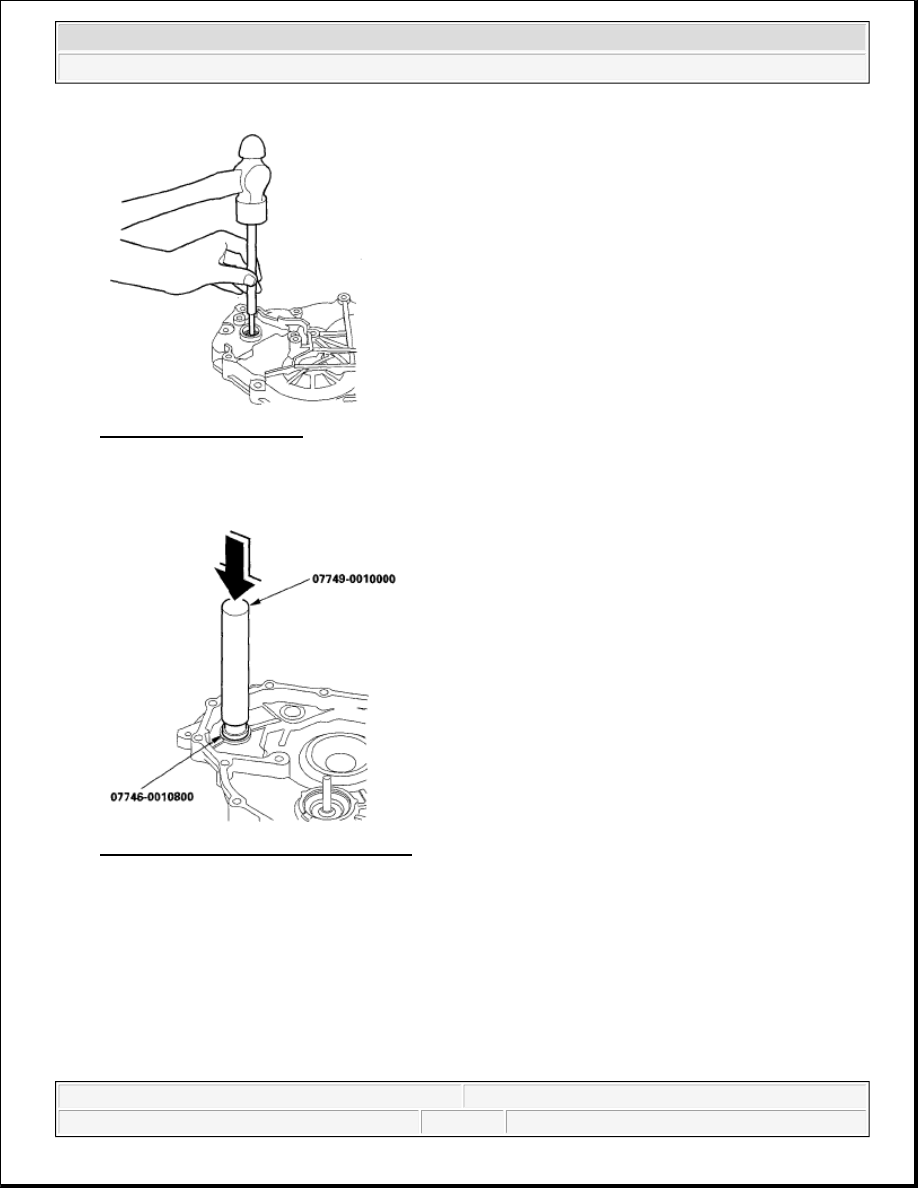

Fig. 409: Tapping Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the new bearing flush to the end cover with the driver and 22 x 24 mm attachment.

Fig. 410: Identifying Bearing And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the new oil seal.

ATF FEED PIPE REPLACEMENT

1. Remove the snap rings (A), ATF feed pipes (B), and feed pipe flanges (C) from the end cover (D).

NOTE:

Replace the end cover, if the 1st clutch ATF feed pipe (E) replacement is
required.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

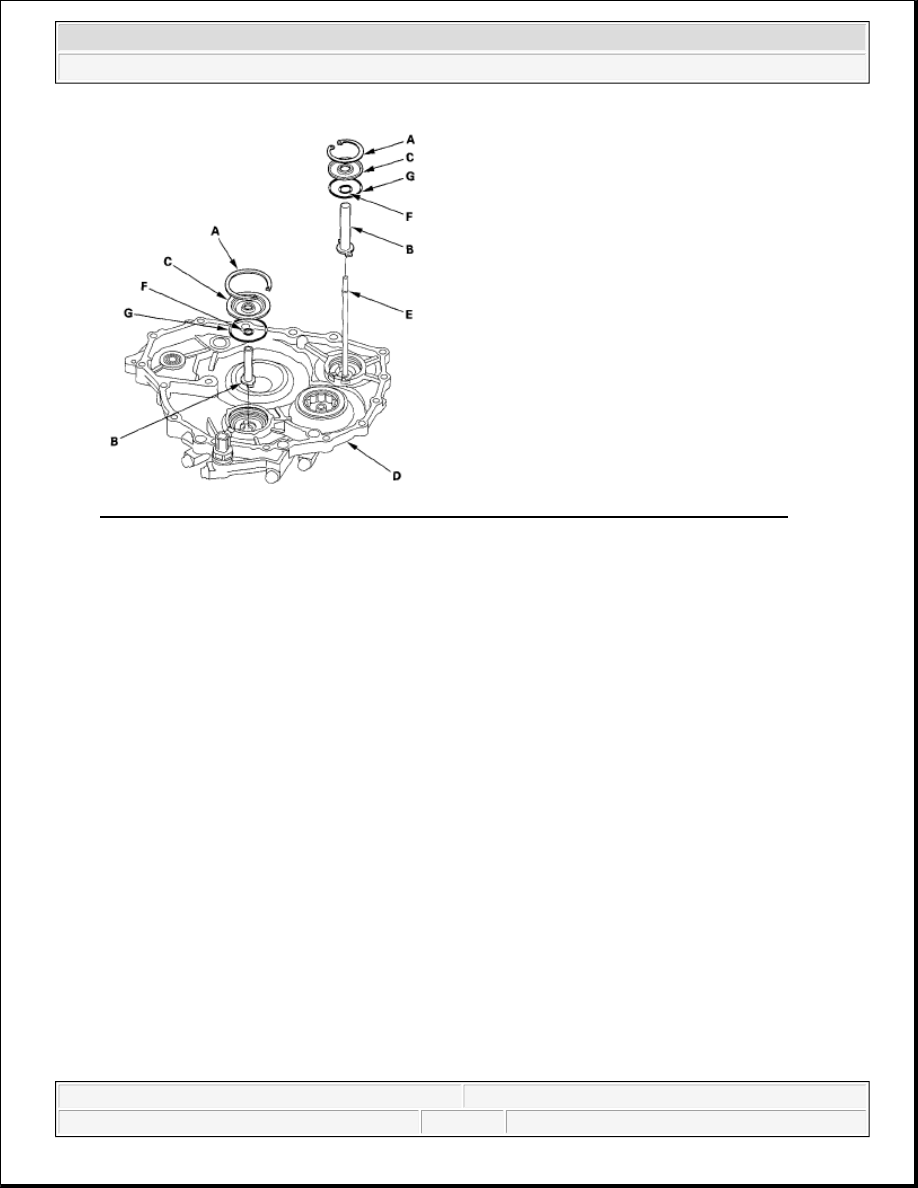

Fig. 411: Identifying Snap Rings, ATF Feed Pipes And Feed Pipe Flanges And End Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install new O-rings (F) over the ATF feed pipes.

3. Install the ATF feed pipes in the end cover by aligning the feed pipe tabs with the indentations in the end

cover.

4. Install new O-rings (G) in the end cover, then install the feed pipe flanges over the ATF feed pipes.

5. Secure the ATF feed pipes and feed pipe flanges with the snap rings.

HOUSING AND SHAFT ASSEMBLY REMOVAL

1. Remove the ATF feed pipe (A) from the idler gear shaft, and the ATF lubrication pipe (B) from the

transmission housing.

NOTE:

The illustration shows the 4WD transmission; the 2WD transmission does not
have the transfer mechanism.



2007 Honda Element EX
