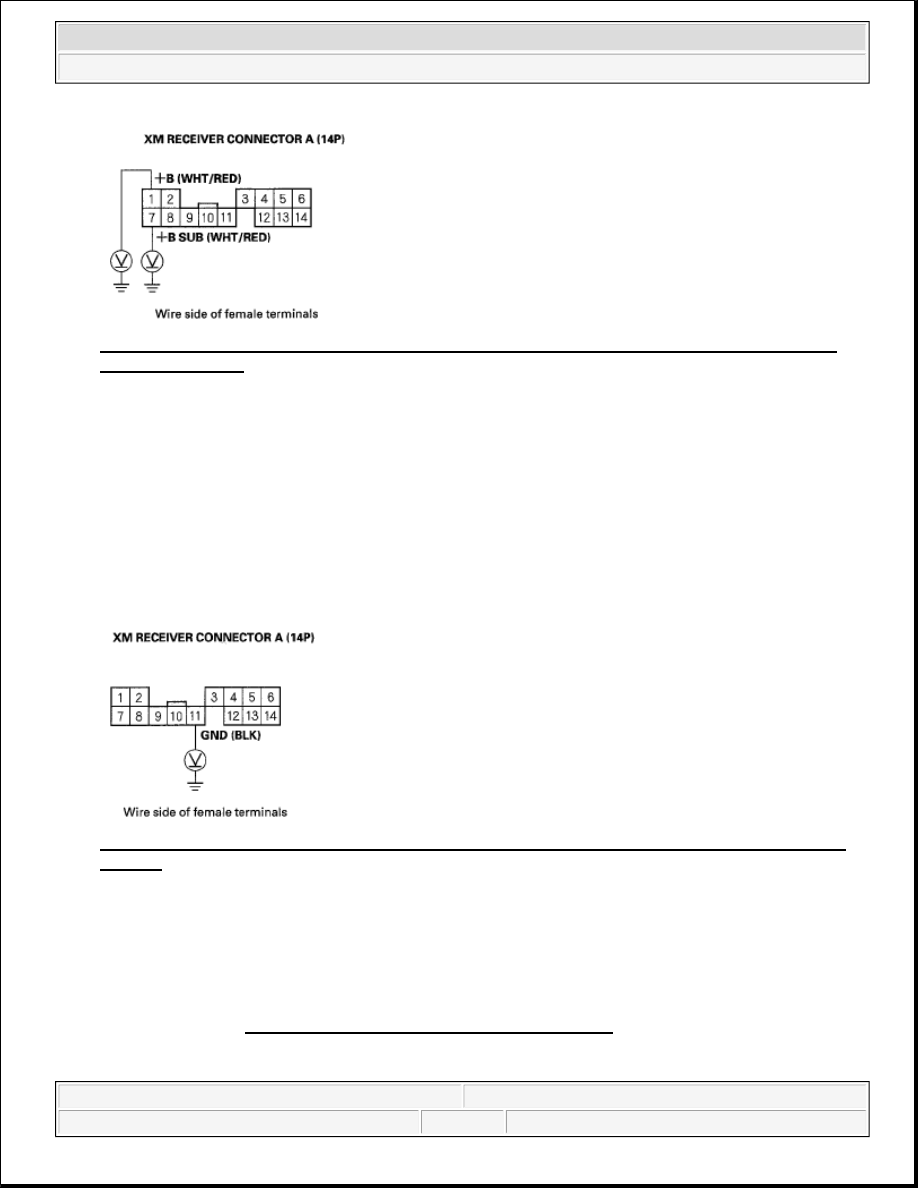

Fig. 50: Measuring Voltage Between XM Receiver Connector A (14P) No. 1 And No. 7 Terminal
And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 2.

NO -Repair open in the wire between No. 9 (10 A) fuse in the under-hood fuse/relay box and XM
receiver connector A (14P) No. 1 terminal.

2. Turn the ignition switch ON (II).

3. Measure the voltage between XM receiver connector A (14P) No. 11 terminal and body ground.

Fig. 51: Measuring Voltage Between XM Receiver Connector A (14P) No. 11 Terminal And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 0.1 V?

YES -Go to step 4.

NO -Repair open in the wire between the XM receiver connector A (14P) No. 11 terminal and body
ground (G551) (see FLOOR WIRE HARNESS (RIGHT BRANCH) ).

4. Turn the ignition switch OFF.



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



5. Measure the voltage between XM receiver connector A (14P) No. 2 terminal and body ground.

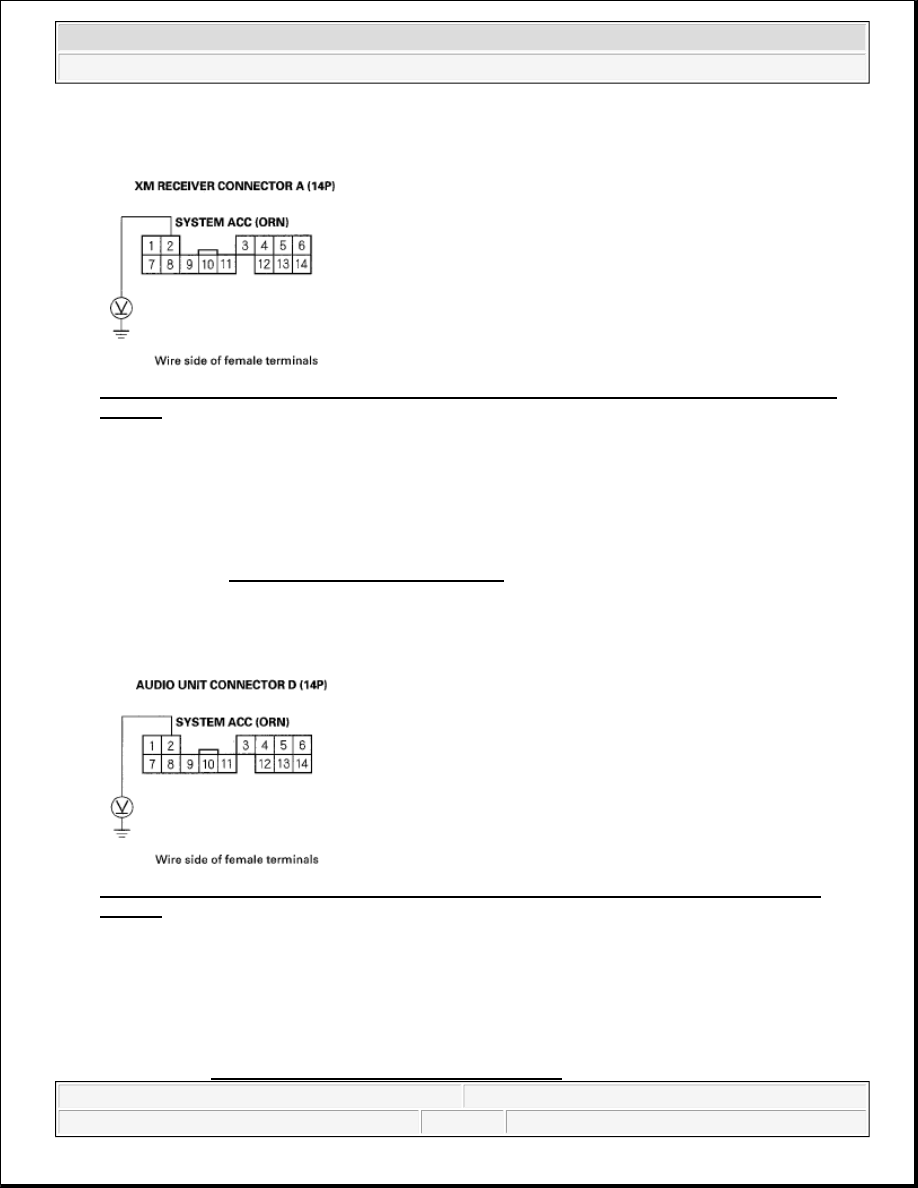

Fig. 52: Measuring Voltage Between XM Receiver Connector A (14P) No. 2 Terminal And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there 10V or more present?

YES -Go to step 6.

NO -Substitute a known-good XM receiver and recheck. If 10 V or more are present, replace the original
XM receiver (see XM RECEIVER REPLACEMENT ).

6. Turn the ignition switch ON (II).

7. Measure the voltage between the audio unit connector D (14P) No. 2 terminal and body ground.

Fig. 53: Measuring Voltage Between Audio Unit Connector D (14P) No. 2 Terminal And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there less than 0.5 V?

YES -Go to step 8.

NO -Substitute a known-good audio unit and recheck. If 0.5 V or less are present, replace the original
audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ).



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



8. Turn the ignition switch OFF.

9. Remove the audio unit (see AUDIO UNIT REMOVAL/INSTALLATION ), and disconnect audio unit

connector D (14P).

10. Disconnect XM receiver connector A (14P).

11. Check for continuity between audio unit connector D(14P) and body ground according to the table.

CONNECTOR REFERENCE

Fig. 54: Checking Continuity Between Audio Unit Connector D(14P) And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Short to body ground in the wire(s) between the audio unit and the XM receiver. Replace the
affected shielded harness.

NO -Go to step 12.

12. Check for continuity between the audio unit connector D (14P) according to the table.

TERMINALS REFERENCE

NOTE:

Eject all the CDs before remove the audio unit to prevent damaging the CD
player's load mechanism.

Audio unit connector Wire color

D9

BLU

D10

PNK

From terminal To terminals

D3

D9, D10

D9

D10



2007 Honda Element EX

2007-2008 ACCESSORIES AND EQUIPMENT Audio - Element



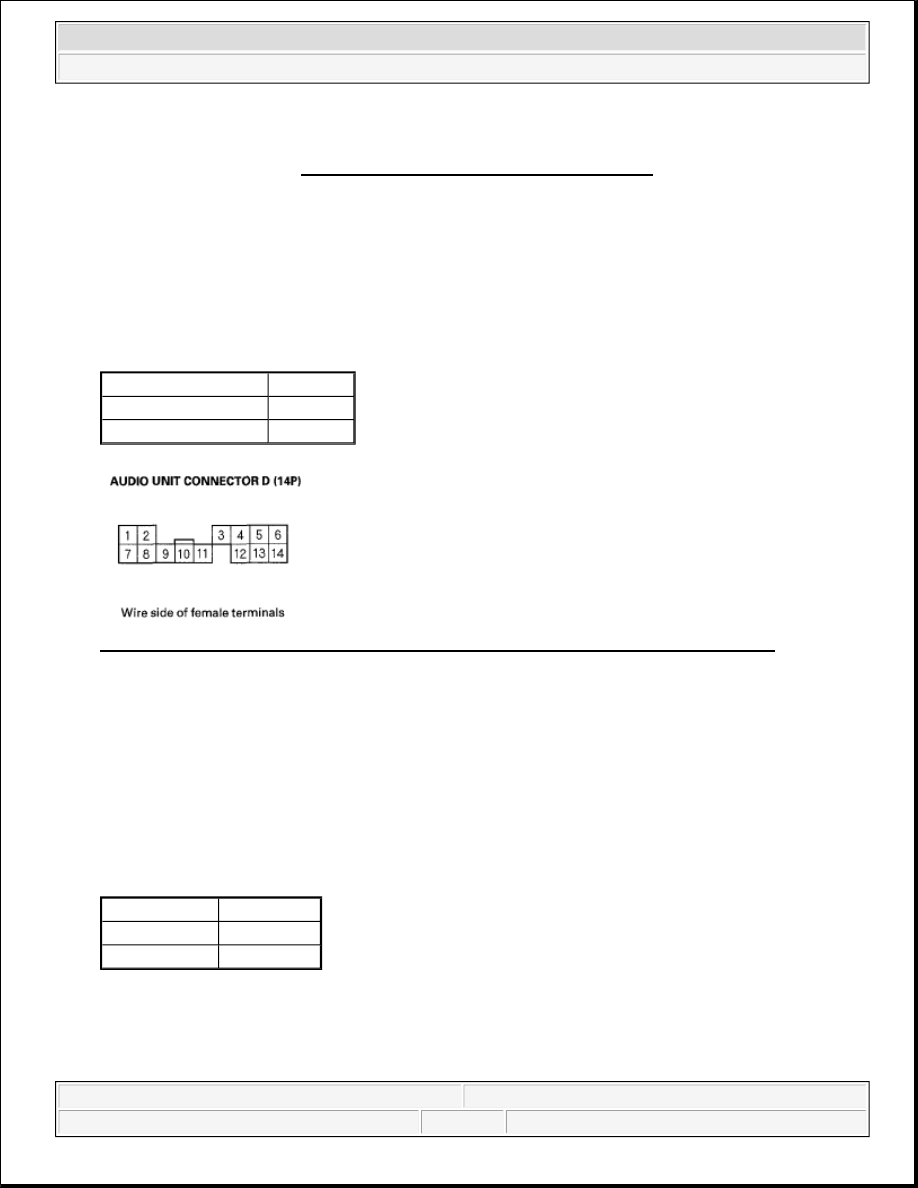

Fig. 55: Checking Continuity Between Audio Unit Connector D (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity between any of the terminals?

YES -Short in the wire(s) between the audio unit and the XM receiver. Replace the affected shielded
harness.

NO -Go to step 13.

13. Check for continuity between audio unit connector D (14P) and XM receiver connector A (14P)

according to the table.

CONNECTOR REFERENCE

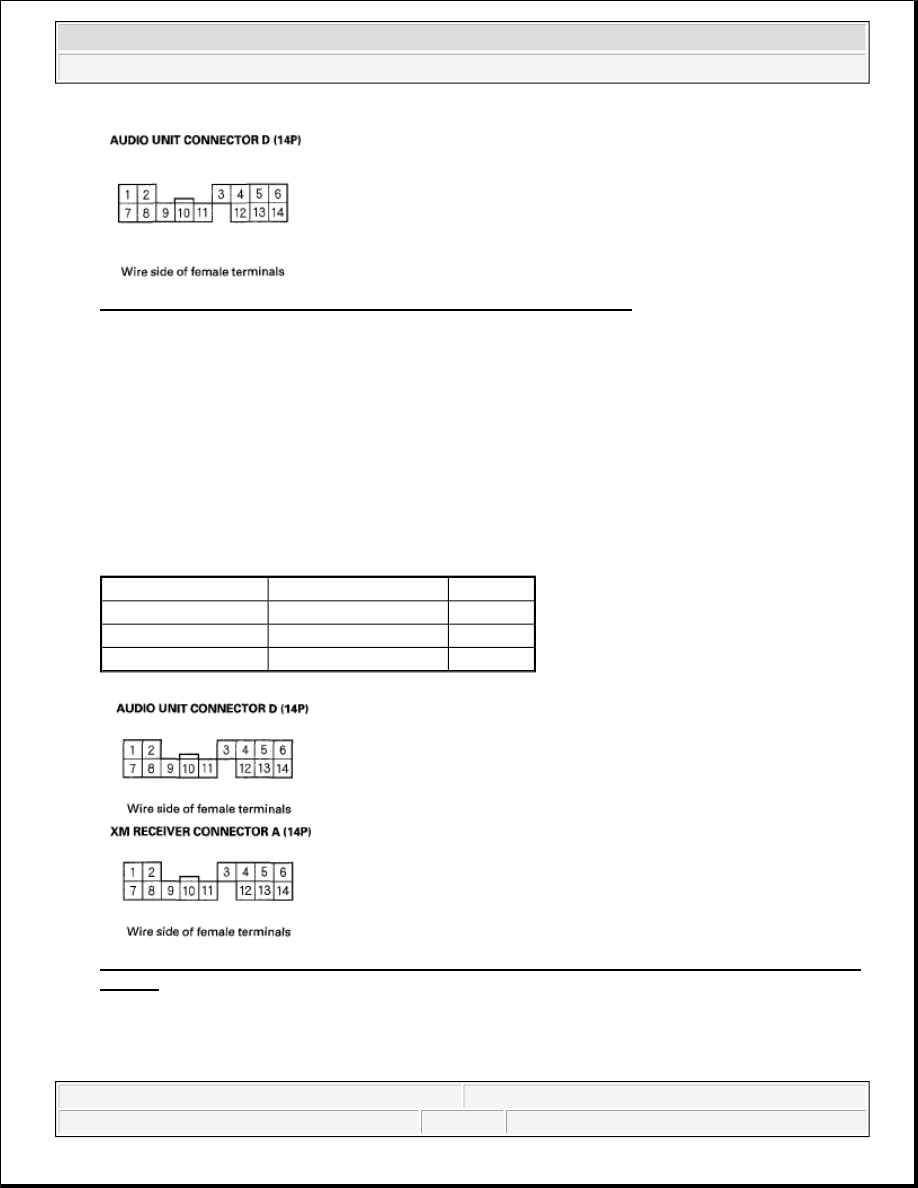

Fig. 56: Checking Continuity Between Audio Unit Connector D (14P) And XM Receiver Connector
A (14P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

Audio unit connector XM receiver connector Wire color

D3

A3

BRN

D9

A9

BLU

D10

A10

PNK
