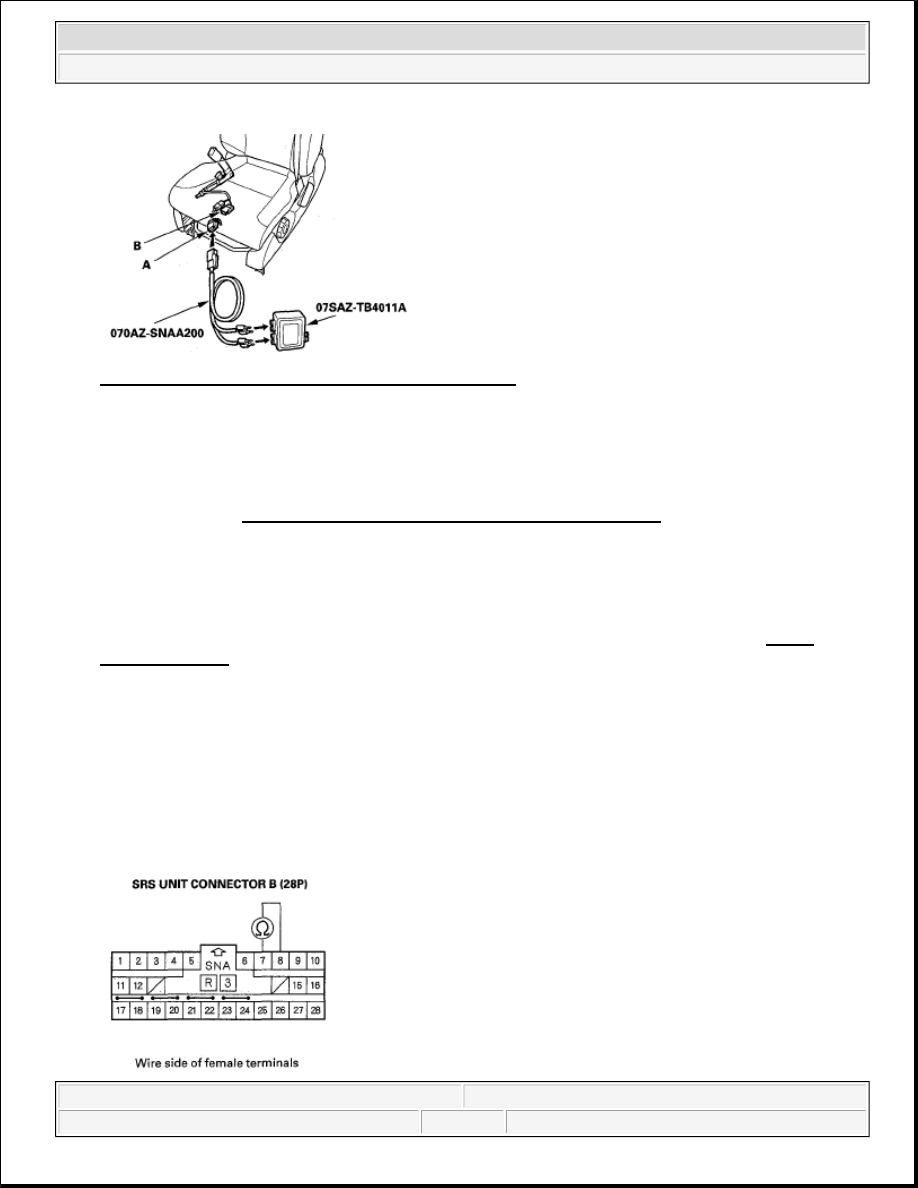

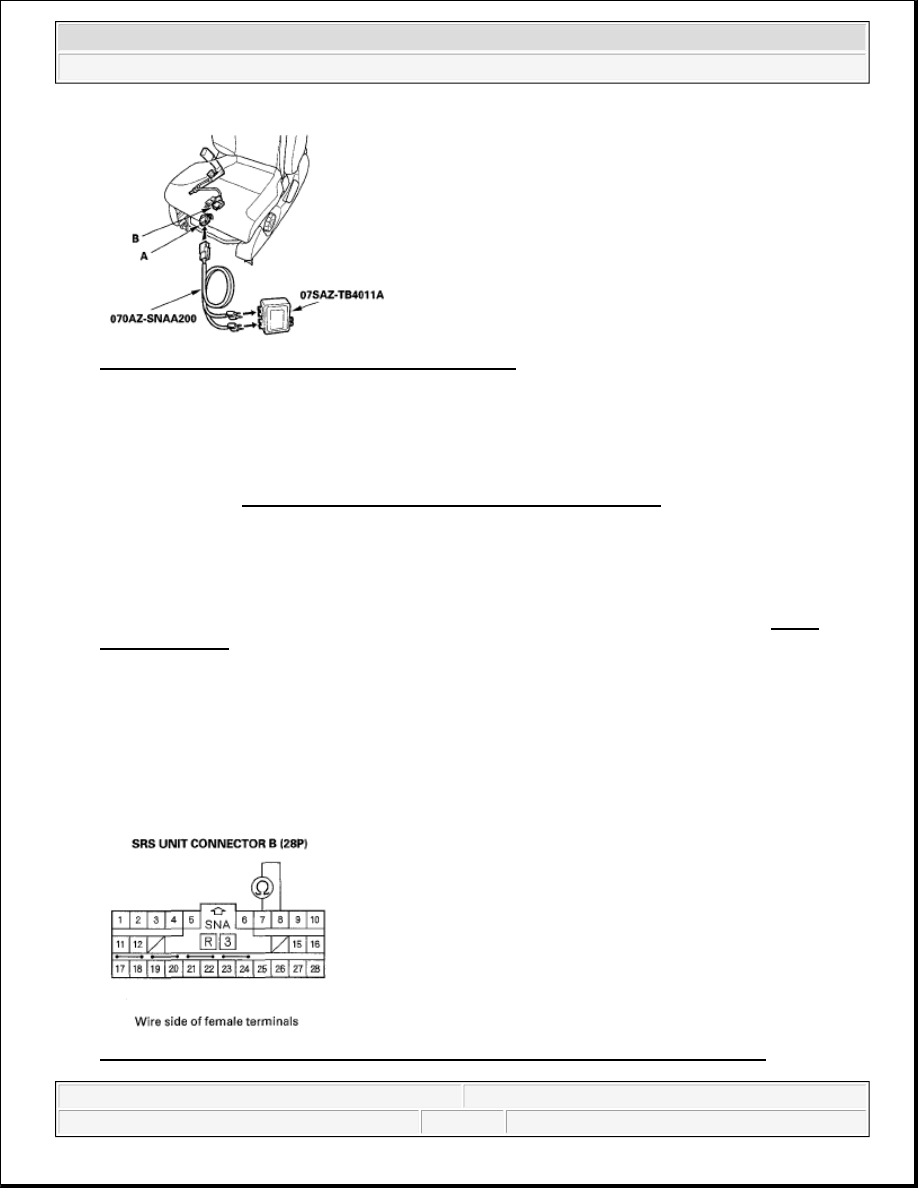

Fig. 85: Measuring Resistance Between SRS Unit Connector B (28P) Terminal 4 And Body Ground Is the resistance as specified? YES -Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the NO -Short to ground in the floor wire harness; replace the floor wire harness. DTC 27-1X ("X" CAN BE 0 THRU 9 OR A THRU F): OPEN IN DRIVER'S SEAT BELT BUCKLE Special Tools Required SRS inflator simulator 07SAZ-TB4011A SRS simulator lead K 070AZ-SNAA200 1. Clear the DTC memory (see CLEAR THE DTC MEMORY WITH THE HDS ). 2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off. Does the SRS indicator stay on, and is DTC 27-1x indicated? YES -Go to step 3. NO -Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures (see 3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, and wait for 3 minutes. 4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt buckle tensioner connector (B). NOTE: Before doing troubleshooting procedure, review SRS Precautions and
