Honda Element. Manual - part 90

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The ECM/PCM does not receive any signals from the gauge control module for at least 1 second.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

Sequence

None

Duration

1 second or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

9.0 V

-

No active DTCs

U0028



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



2007-08 RESTRAINTS

SRS (Supplemental Restraint System) - Element

COMPONENT LOCATION INDEX

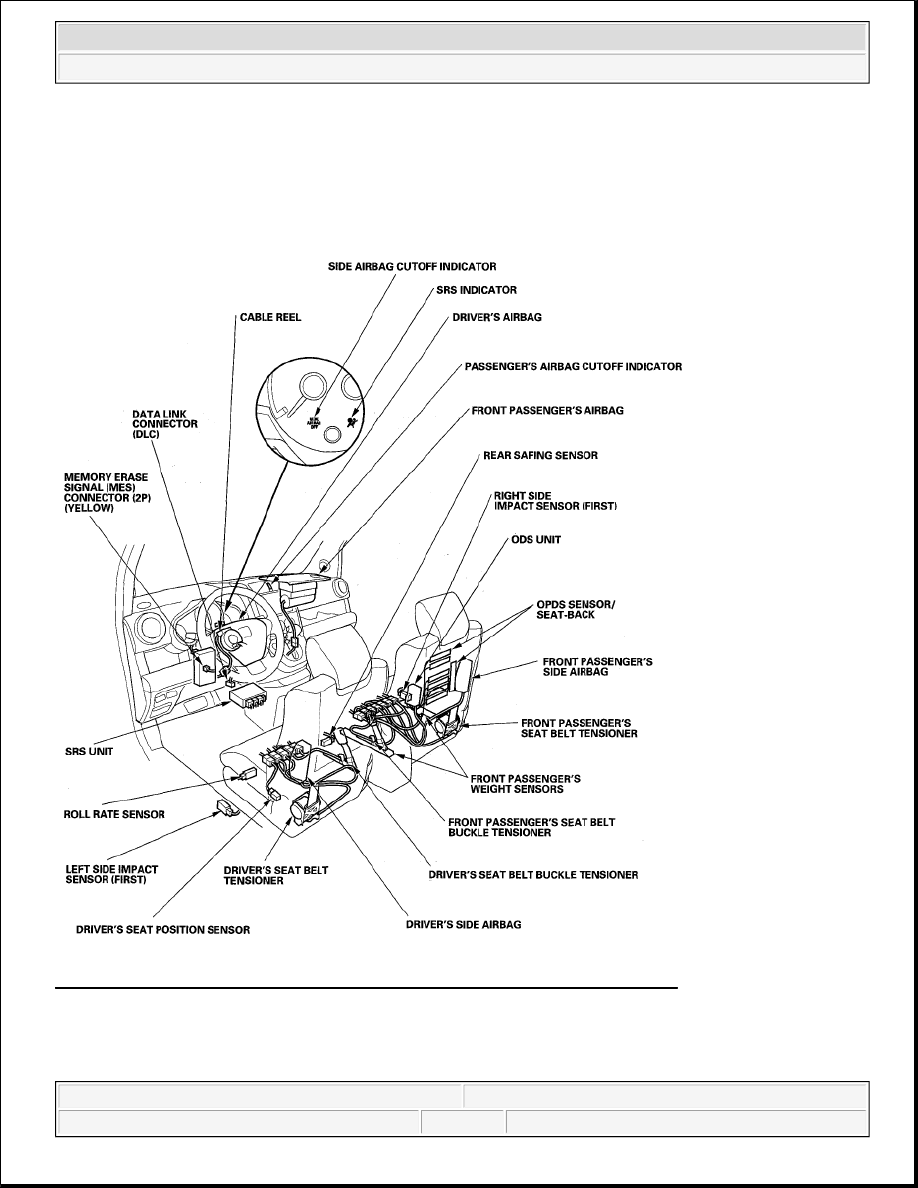

Fig. 1: Identifying Supplemental Restraint System Components Location (1 Of 2)



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element





2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

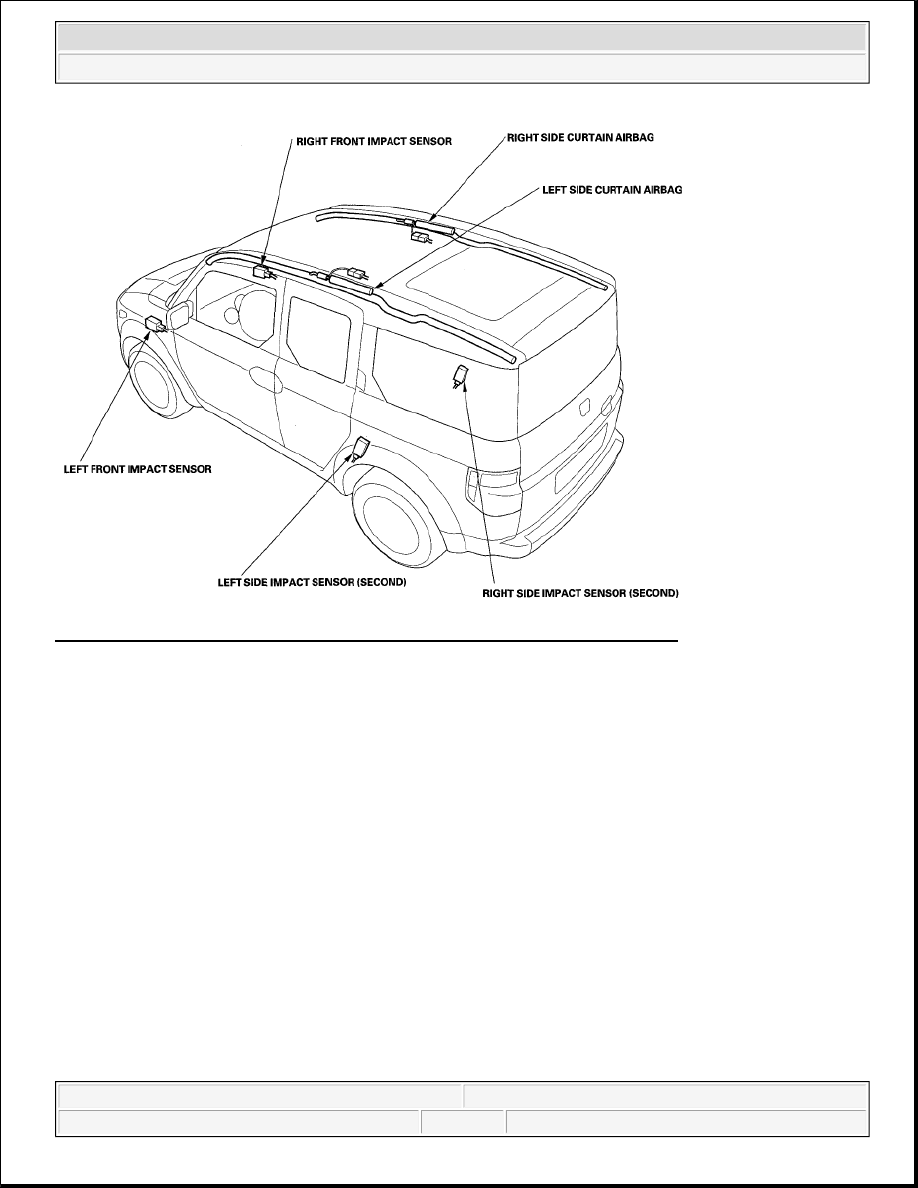

Fig. 2: Identifying Supplemental Restraint System Components Location (2 Of 2)

PRECAUTIONS AND PROCEDURES

GENERAL PRECAUTIONS

Please read the following precautions carefully before performing the airbag system service. If the instructions
described in this manual are not properly followed, the airbags could accidentally deploy and cause damage or
injuries.



Except when performing electrical inspections, always turn the ignition switch OFF, ground the SCS line
with the HDS to take the ECM/PCM out of active status, disconnect the negative cable from the battery,
and wait at least 3 minutes before beginning work.



Use replacement parts which are manufactured to the same standards and quality as the original parts. Do
not install used SRS parts. Use only new parts when making SRS repairs.



Carefully inspect any SRS part before you install it. Do not install any part that shows signs of being
dropped or improperly handled, such as dents, cracks or deformation.

NOTE:

The SRS memory is not erased even if the ignition switch is turned OFF or
the battery cables are disconnected from the battery.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element

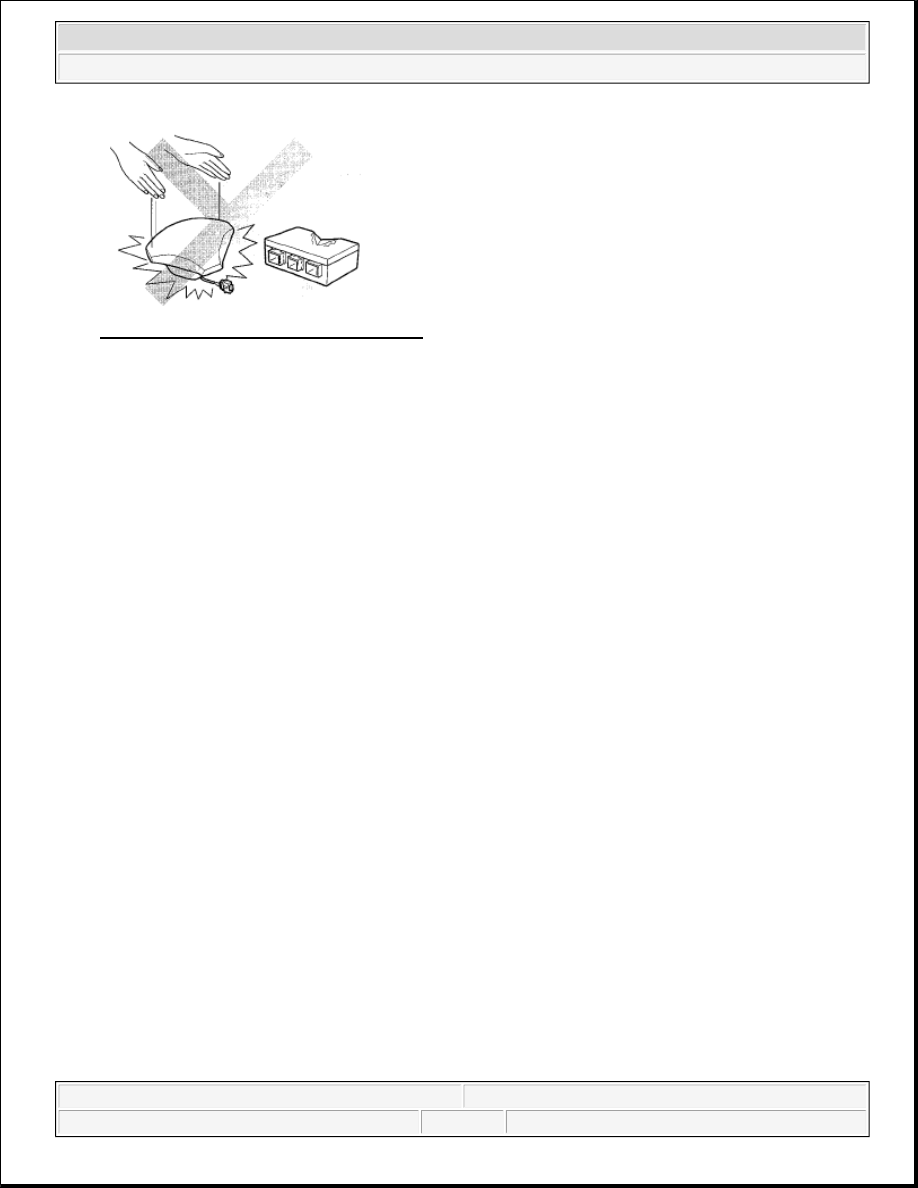

Fig. 3: Precaution For Handling SRS Part



Before removing any of the SRS parts (including the disconnection of the connectors), always disconnect
the SRS connector.



Use only a digital multimeter to check the system. If it is not a Honda multimeter, make sure its output is
10 mA (0.01 A) or less when switched to the lowest value in the ohmmeter range. A tester with a higher
output could cause accidental deployment and possible injury.



Do not put objects on the front passenger's airbag.



The original audio system has a coded theft protection circuit. Make sure you have the anti-theft codes for
the audio system.



Before returning the vehicle to the customer, enter the anti-theft codes for the audio system. Set the clock.

STEERING-RELATED PRECAUTIONS

Cable Reel Alignment



Misalignment of the cable reel could cause an open in the wiring, making the SRS system, remote
steering wheel controls, and the horn inoperative. Center the cable reel whenever the following is
performed (see step 6 on ).



Installation of the steering wheel



Installation of the cable reel



Installation of the steering column



Other steering-related adjustment or installation



Do not disassemble the cable reel.



Do not apply grease to the cable reel.



If the cable reel shows any signs of damage, replace it with a new one. For example, if it does not rotate
smoothly, replace the cable reel.

AIRBAG HANDLING AND STORAGE

Do not disassemble an airbag. It has no serviceable parts. Once an airbag has been deployed, it cannot be
repaired or reused.

For temporary storage of an airbag during service, observe the following precautions.



2007 Honda Element EX

2007-08 RESTRAINTS SRS (Supplemental Restraint System) - Element
