DTC P0717: PROBLEM IN INPUT SHAFT (MAINSHAFT) SPEED SENSOR CIRCUIT (NO SIGNAL
INPUT)

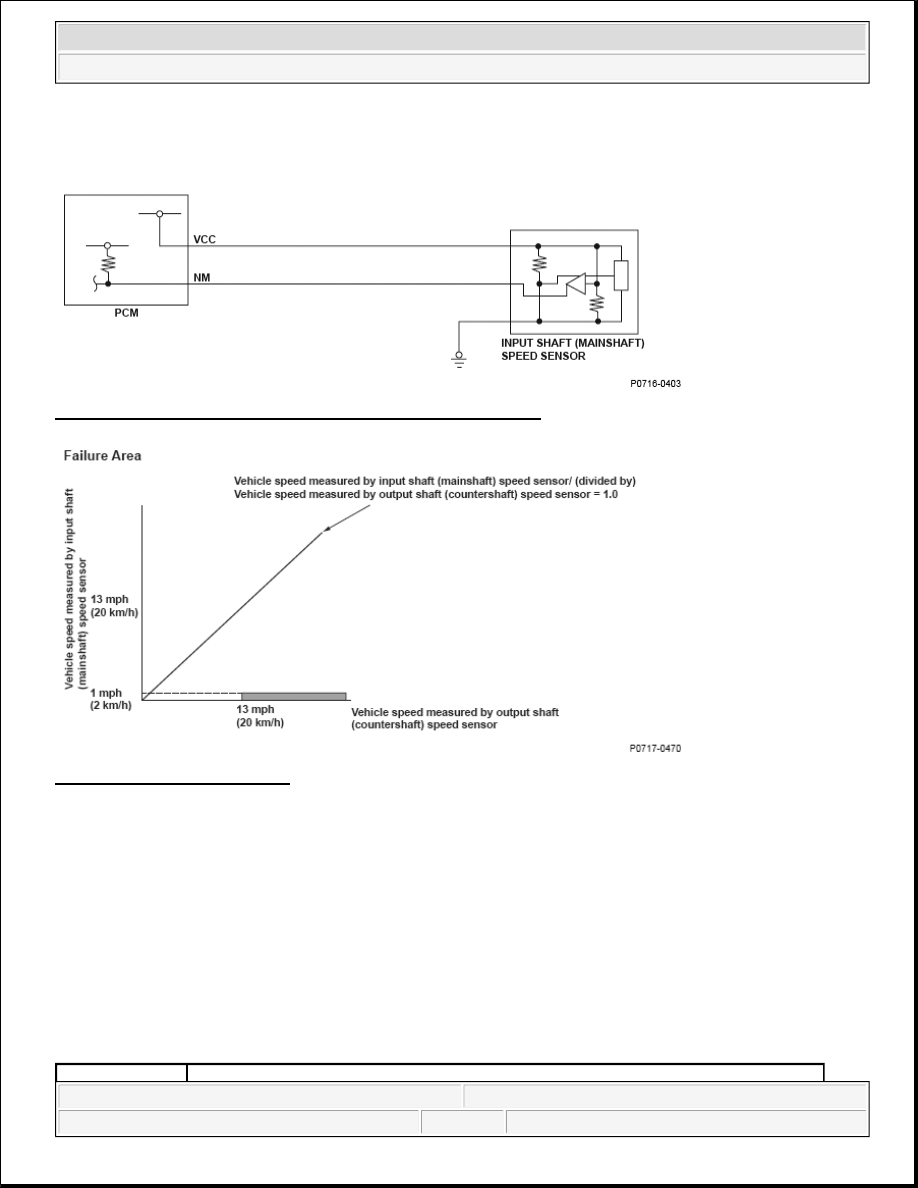

Fig. 99: Input Shaft (Mainshaft) Speed Sensor Circuit Diagram

Fig. 100: Vehicle Speed Graph

General Description

The input shaft (mainshaft) speed sensor is attached to the outside of the transmission housing. The input shaft
(mainshaft) speed sensor generates a pulsing signal according to the speed of the input shaft (mainshaft) idler
gear on the input shaft (mainshaft). Using that signal, the powertrain control module (PCM) determines the
speed of the input shaft (mainshaft). If no pulses occur with the input shaft (mainshaft) rotating, the PCM
detects a malfunction that may be caused by an open, a temporary open, or a short to ground. Based on the
correlation between the vehicle speed measured by the output shaft (countershaft) speed sensor and the input
shaft (mainshaft) speed sensor, a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

When the vehicle speed measured by the output shaft (countershaft) speed sensor is 13 mph (20 km/h) or more,
the vehicle speed measured by the input shaft (mainshaft) speed sensor is 1 mph (2 km/h) or less for at least 10
seconds.

Driving Pattern

Start the engine, and drive the vehicle at a speed of 13 mph (20 km/h) or more for at least 10 seconds.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

Execution

Continuous

Sequence

None

Duration

10 seconds or more

DTC Type

One drive cycle, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Engine speed 500 rpm

-

Vehicle speed 13 mph (20 km/h)

-

Battery
voltage

11.0 V

-

Shift lever
position

D, 2, or 1

No active
DTCs

P0705, P0706, P0716, P0721, P0722, P0962, P0963, P0966, P0967, P0970, P0971,
P0973, P0974, P0976, P0977, P0979, P0980, P0982, P0983, P0985, P0986

Others

Not during shifting
Not when the shift lever is being shifted
No electrical noise in the output shaft (countershaft) speed sensor output circuit



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0718 (15): ADVANCED DIAGNOSTICS

DTC P0718: INPUT SHAFT (MAINSHAFT) SPEED SENSOR INTERMITTENT FAILURE

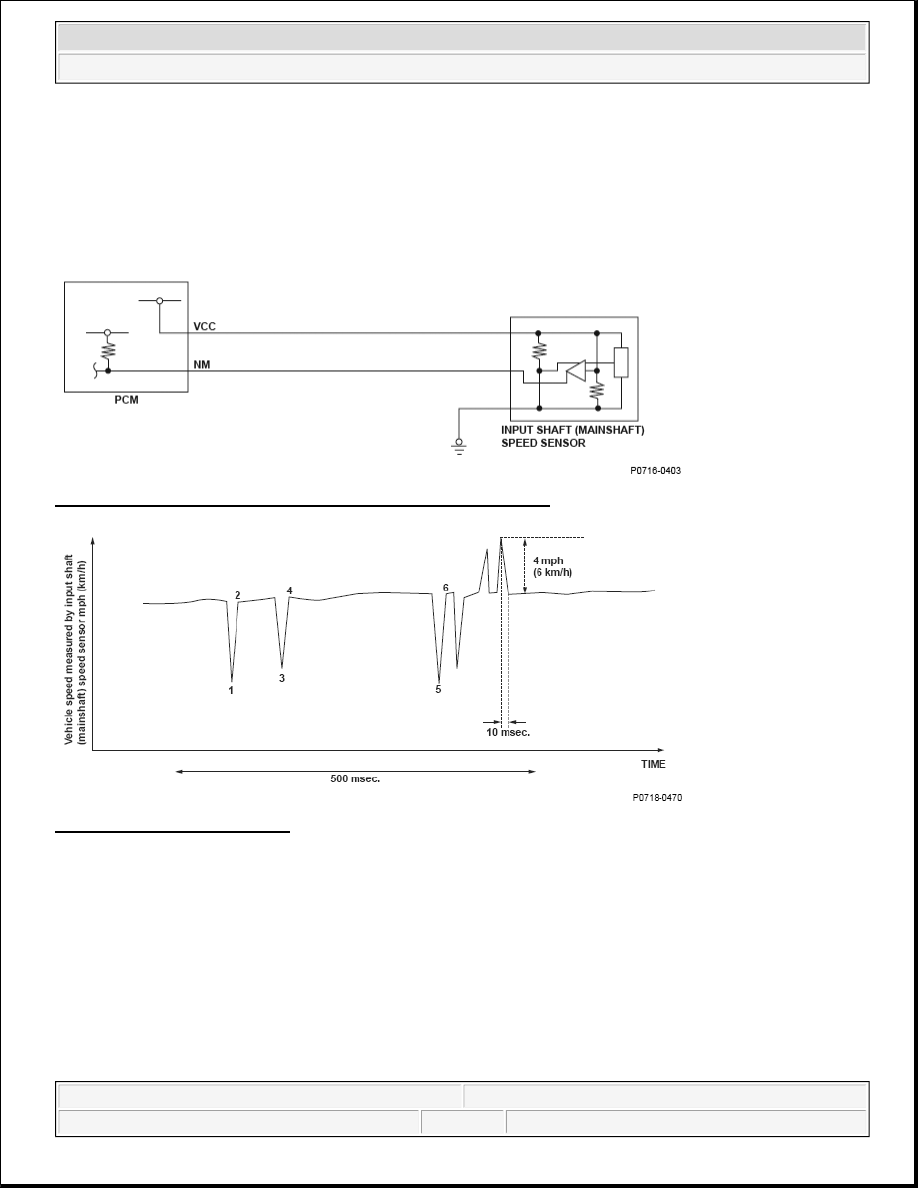

Fig. 101: Input Shaft (Mainshaft) Speed Sensor Circuit Diagram

Fig. 102: Vehicle Speed Graph

General Description

The input shaft (mainshaft) speed sensor is attached to the outside of the transmission housing. The input shaft
(mainshaft) speed sensor generates a pulsing signal according to the speed of the input shaft (mainshaft) idler
gear on the input shaft (mainshaft). Using that signal, the powertrain control module (PCM) determines the
speed of the input shaft (mainshaft). If no pulses occur with the input shaft (mainshaft) rotating, the PCM
detects a malfunction that may be caused by an open, a temporary open, or a short to ground. Based on the
fluctuation of the vehicle speed measured by the input shaft (mainshaft) speed sensor, a malfunction is detected
and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The fluctuation of the vehicle speed measured by the input shaft (mainshaft) speed sensor in 10 milliseconds is
4 mph (6km/h) or more, and it fluctuates at least six times within 500 milliseconds.

Driving Pattern

Start the engine, and drive the vehicle at a speed of 13 mph (20 km/h) or more so it shifts from 1st to 5th in D
position.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM memory. If
the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the freeze
frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

Execution

Continuous

Sequence

None

Duration

500 msec

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Vehicle speed

13 mph (20 km/h)

-

Battery voltage 11.0 V

-

No active DTCs P0716, P0717, P0721, P0722

Others

Not during shifting
Not when an output shaft (countershaft) speed sensor intermittent failure is detected
