Malfunction Threshold

The number of detections is 832 (CTAGLT67)*1, 416 (CTAGLT67)*2 or more.

*1: A/T model

*2: M/T model

Driving Pattern

Condition

Minimum

Maximum

Engine
coolant
temperature

156 °F (69 °C)

-

Intake air
temperature

-13 °F (-25 °C)

-

Estimated
TWC
temperature

932 °F (500 °C)

-

Engine
speed

A/T 1,300 rpm

2,600 rpm

M/T 1,825 rpm

3,750 rpm

MAP
value

A/T

27 kPa (7.9 in.Hg, 200 mmHg)

89 kPa (26.3 in.Hg, 670 mmHg)

M/T

73 kPa (21.6 in.Hg, 550 mmHg)

Vehicle speed 4 mph (5 km/h)

-

Fuel trim

0.69

1.47

Fuel feedback Closed loop
Monitoring
priority

P0456, P0457, P0497

No active
DTCs

P0010, P0011, P0101, P0102, P0103, P0107, P0108, P0112, P0113, P0117, P0118,
P0133, P0134, P0135, P0137, P0138, P0139, P0141, P0171, P0172, P0300, P0301,
P0302, P0303, P0304, P0335, P0339, P0340, P0341, P0344, P0443, P0496, P0497,
P1009, P1128, P1129, P1157, P1172, P145C, P2195, P2227, P2228, P2229, P2238,
P2252, P2270, P2271, P2646, P2647, P2648, P2649, P2A00



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



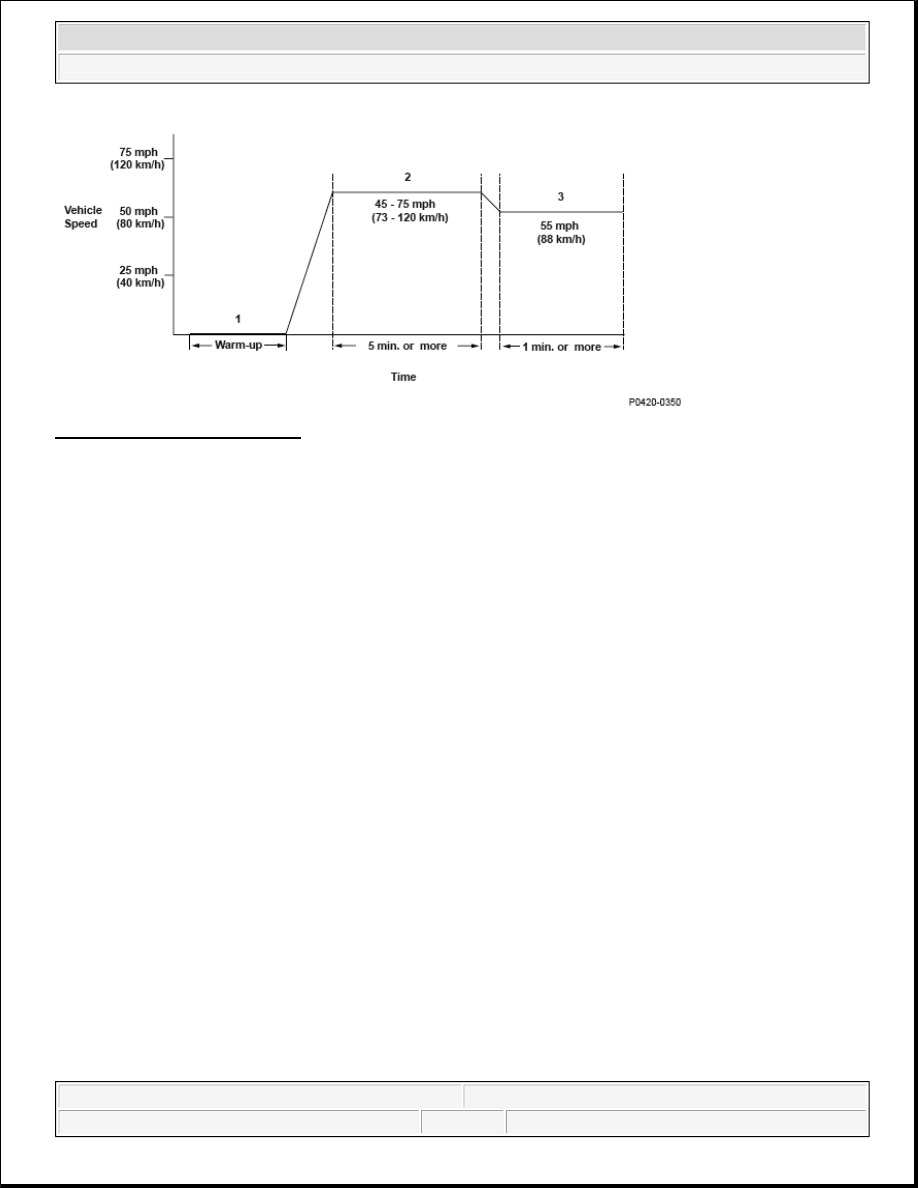

Fig. 52: Vehicle Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Drive the vehicle at a speed between 45 - 75 mph (73 - 120 km/h) for at least 5 minutes, to warm up the

TWC.

3. Set a vehicle speed of 55 mph (88 km/h) on the cruise control, and drive for at least 1 minute.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the ECM/PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and the
freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0443 (92): ADVANCED DIAGNOSTICS

DTC P0443: EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE CIRCUIT
MALFUNCTION



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



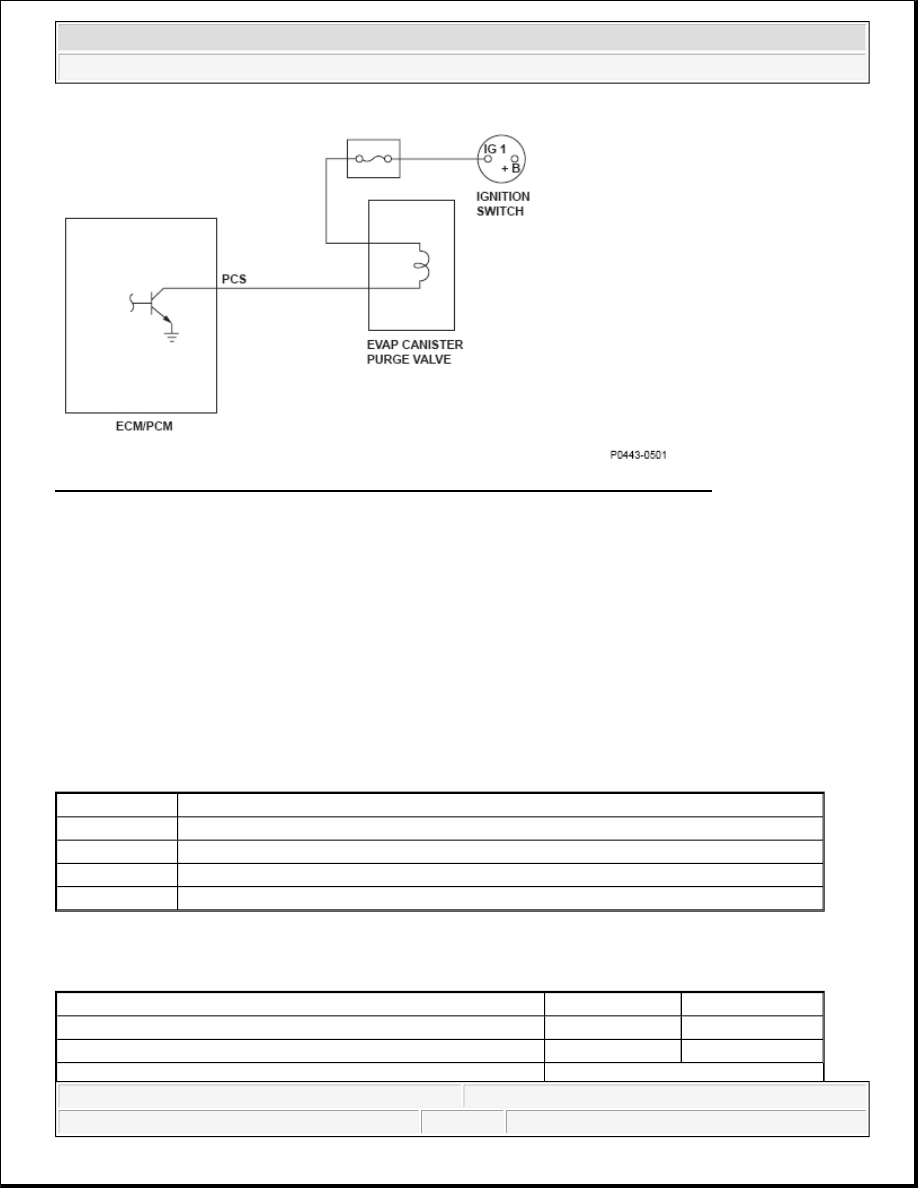

Fig. 53: Evaporative Emission Control System Canister Purge Valve Circuit Diagram

General Description

The evaporative emission (EVAP) canister purge valve is attached to the vacuum port between the EVAP
canister and the intake manifold. The engine control module (ECM)/powertrain control module (PCM) does not
turn on the EVAP canister purge valve when the engine coolant temperature is 131 °F (55 °C) or less. The
ECM/PCM adjusts the amount of fuel vapor sent to the engine by controlling the EVAP canister purge valve
duty cycle.

When the return signal does not change according to the EVAP canister purge valve output for a set time, the
ECM/PCM detects a malfunction, and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

PASSED/FAILED/EXECUTING/OUT OF (TEST) CONDITION

Condition

Minimum

Maximum

Battery voltage

10.1 V

-

EVAP canister purge valve output duty

2 %

98 %



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Malfunction Threshold

The return signal does not change according to the EVAP canister purge valve output for at least 5 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0451 (91): ADVANCED DIAGNOSTICS

DTC P0451: FUEL TANK PRESSURE (FTP) SENSOR CIRCUIT RANGE/PERFORMANCE
PROBLEM

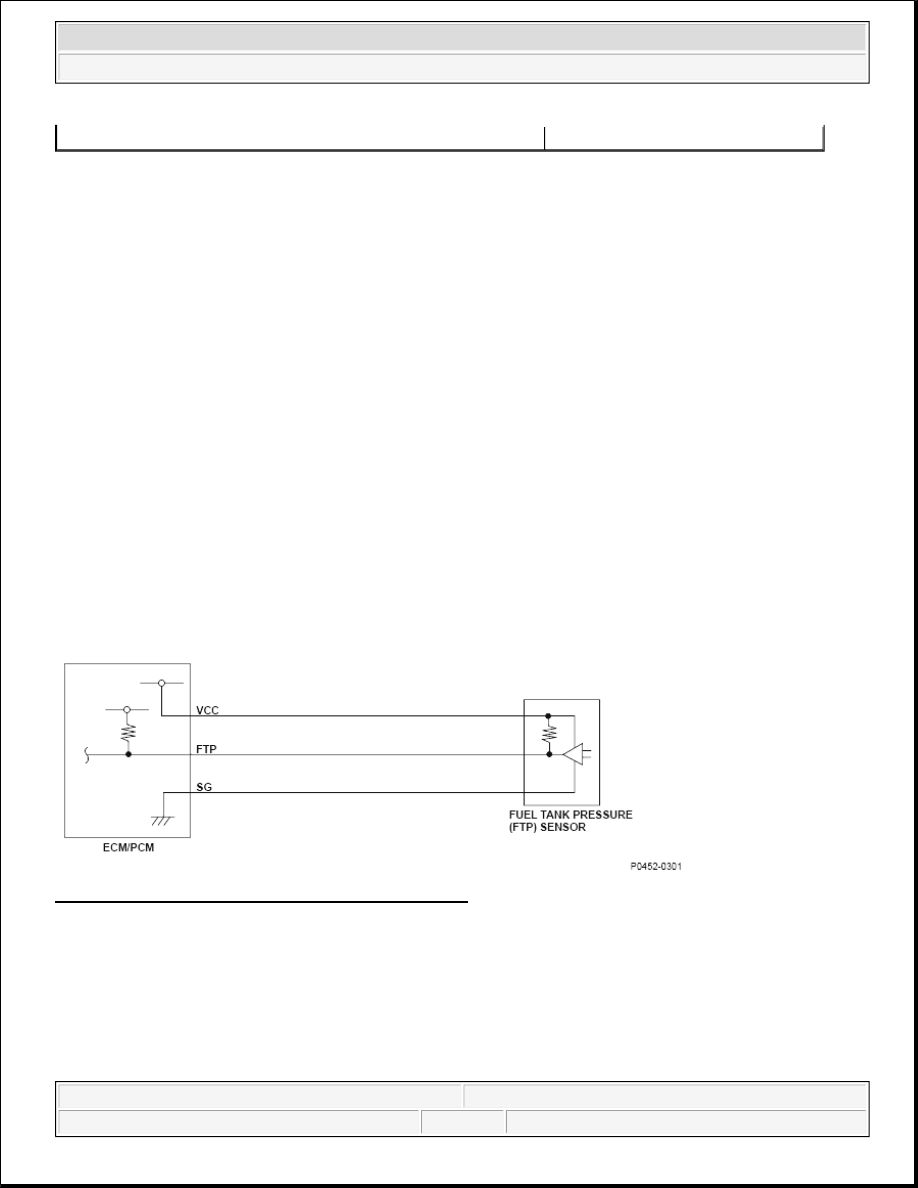

Fig. 54: Fuel Tank Pressure Sensor - Circuit Diagram

State of the engine

Running
