ENABLE CONDITIONS

Malfunction Threshold

The number of misfires versus engine revolutions is equal to or greater than the values in the table.

MALFUNCTION THRESHOLD VALUE

Driving Pattern

Condition

Minimum

Maximum

Engine coolant
temperature

14 °F (-10 °C)

(1)

-

68 °F (20 °C)

(2)

Engine speed

500 rpm

6,500 rpm

MAP
value

(3)

700 rpm

A/T 25 kPa (7.3 in.Hg, 183 mmHg)

-

M/T 24 kPa (6.9 in.Hg, 173 mmHg)

2,500
rpm

A/T 23 kPa (6.7 in.Hg, 168 mmHg)

-

M/T 21 kPa (6.1 in.Hg, 154 mmHg)

Fuel feedback

Other than during fuel cut-off operation

No active DTCs

P0107, P0108, P0117, P0118, P0122, P0123, P0222, P0223, P0335, P0339,
P1128, P1129, P2227, P2228, P2229

Other

Test-drive on a flat road to avoid misdetection

(1)

When starting the engine at an engine coolant temperature of more than 14 °F (-10 °C).

(2)

When starting the engine at an engine coolant temperature of 14 °F (-10 °C) or less.

(3)

Varies with driving conditions.

Misfire Type

The number of engine revolutions

The number of misfires

Misfire Type 1 (Severe)

Per 200 revolutions

18 - 90 times

(1)

Misfire Type 2 (Light)

Per 1,000 revolutions

105 times

(1)

Depending on engine speed and load.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



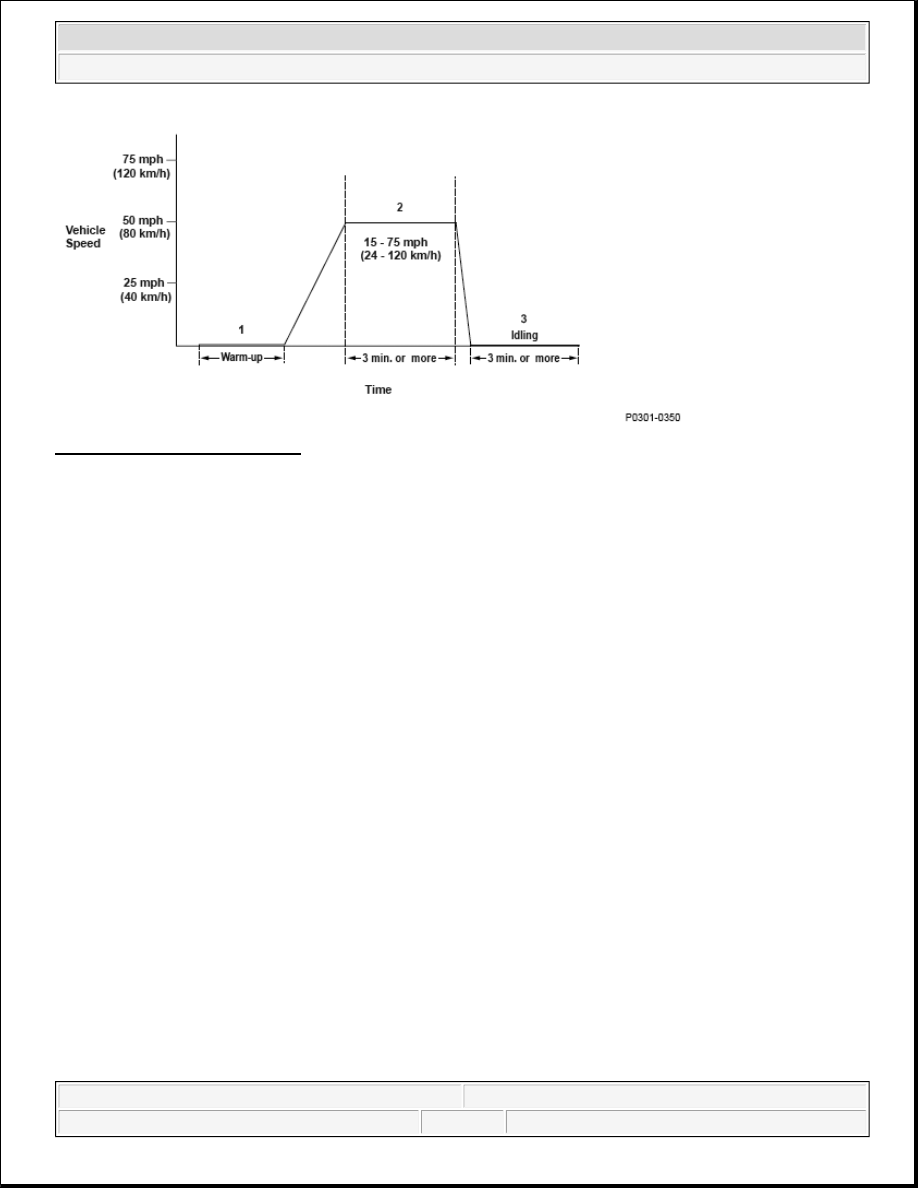

Fig. 42: Vehicle Driving Pattern

1. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on.

2. Drive the vehicle at a speed between 15 - 75 mph (24 - 120 km/h) for at least 3 minutes.

3. Stop the vehicle, and let the engine idle for at least 3 minutes.

When freeze frame data is stored, drive the vehicle under those conditions instead of Driving
Patterns 2 or 3.

When you have difficulty duplicating the DTC because of road conditions and traffic situations,
repeat the driving pattern several times.

Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

Misfire Type 1: Under high rpm or high load conditions: The MIL blinks once per second if a type 1 misfire
(catalyst damaging) occurs, and a Temporary DTC is stored. If the type 1 misfire ceases, the MIL goes off. If a
type 1 misfire occurs during the next (second) drive cycle, the MIL blinks at the first misfire occurrence, and
the DTC and the freeze frame data are stored. The MIL remains on steady if the type 1 misfire ceases.

Under normal driving conditions: The MIL blinks once per second if a type 1 misfire occurs a third time, and a
Temporary DTC is stored. If a type 1 misfire occurs during the next (second) drive cycle, the MIL blinks during
the third type 1 misfire occurrence, and the DTC and the freeze frame data are stored. If the type 1 misfire
ceases, the MIL remains on steady.

Misfire Type 2: When a type 2 misfire (emission-related but not severe enough to immediately damage the
TWC) occurs within the first 1,000 engine revolutions after engine start-up, a Temporary DTC is stored.

If a type 2 misfire occurs after the first 1,000 engine revolutions after engine start-up, a Temporary DTC is
stored during the fourth type 2 misfire occurrence.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



If a type 2 misfire occurs during the next (second) drive cycle, the MIL comes on, and the DTC and the freeze
frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive drive cycles in which the
engine conditions are similar to the first time the malfunction was detected.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool Clear
command or by disconnecting the battery.

DTC P0301 (71), P0302 (72), P0303 (73), P0304 (74): ADVANCED
DIAGNOSTICS

DTC P0301: NO. 1 CYLINDER MISFIRE DETECTED; DTC P0302: NO. 2 CYLINDER MISFIRE
DETECTED; DTC P0303: NO. 3 CYLINDER MISFIRE DETECTED; DTC P0304: NO. 4 CYLINDER
MISFIRE DETECTED

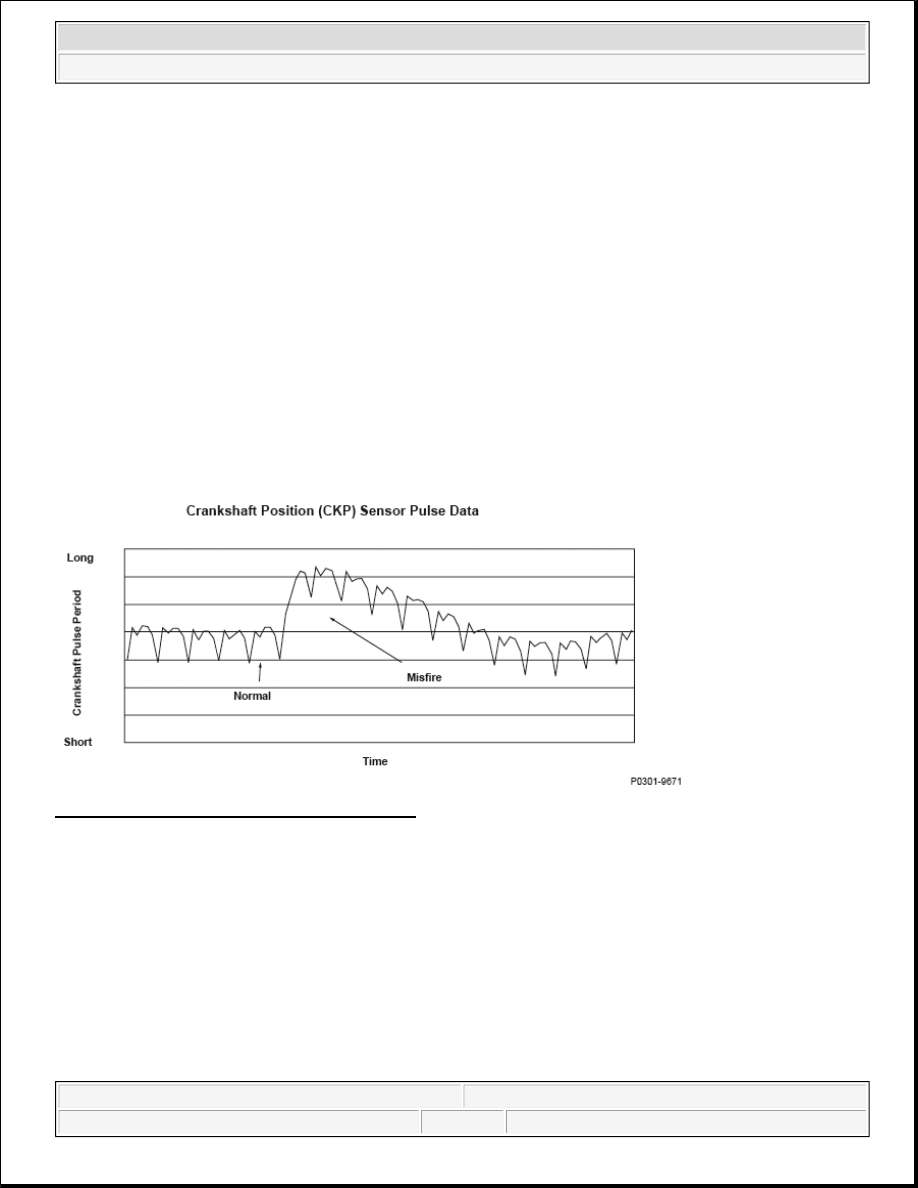

Fig. 43: Crankshaft Position Sensor Pulse Data

General Description

The crankshaft vibrates slightly when each cylinder fires. If a misfire occurs, the crankshaft rotation speed
changes rapidly. The engine control module (ECM)/powertrain control module (PCM) monitors engine
misfiring based on the output pulses from the crankshaft position (CKP) sensor, counts the number of misfires,
and determines which cylinder is misfiring. If a misfire is detected, a DTC is stored.

There are two types of misfire detection.

Type 1 (1 drive cycle): When the number of misfires per 200 engine revolutions reaches the level that damages
the three way catalyst (TWC), a DTC is stored and the MIL blinks. When the misfire ceases, the MIL remains
on steady instead of blinking.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



Type 2 (2 drive cycles): When the number of misfires per 1,000 engine revolutions reaches the level that affects
FTP mode exhaust emissions, a DTC is stored and the MIL comes on.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The number of misfires versus engine revolutions is equal to or greater than the values in the table.

MALFUNCTION THRESHOLD VALUE

Execution

Continuous

Sequence

None

Duration

Type 1

Every 200 rpm

Type 2

Every 1,000 rpm

DTC Type

Two drive cycles, MIL ON

OBD Status

PASSED/FAILED/EXECUTING/OUT OF (TEST) CONDITION

Condition

Minimum

Maximum

Engine coolant
temperature

14 °F (-10 °C)

(1)

-

68 °F (20 °C)

(2)

Engine speed

500 rpm

6,500 rpm

MAP value

(3)

700 rpm

A/T 25 kPa (7.3 in.Hg, 183 mmHg)

-

M/T 24 kPa (6.9 in.Hg, 173 mmHg)

2,500
rpm

A/T 23 kPa (6.7 in.Hg, 168 mmHg)

-

M/T 21 kPa (6.1 in.Hg, 154 mmHg)

Fuel feedback

Other than during fuel cut-off operation

No active DTCs

P0117, P0118, P0122, P0123, P0222, P0223, P0335, P0339, P1128, P1129,
P2227, P2228, P2229

Other

Test-drive on a flat road to avoid misdetection

(1)

When starting the engine at an engine coolant temperature of more than 14 °F (-10 °C).

(2)

When starting the engine at an engine coolant temperature of 14 °F (-10 °C) or less.

(3)

Varies with driving conditions.

Misfire Type

The number of engine revolutions

The number of misfires

Misfire Type 1 (Severe)

Per 200 revolutions

18 - 90 times

(1)

Misfire Type 2 (Light)

Per 1,000 revolutions

105 times

(1)

Depending on engine speed and load.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element
