Great Wall service chassis and body Manual - part 111

B0-68

Vehicle Body

 Body Dimension

Body Dimension

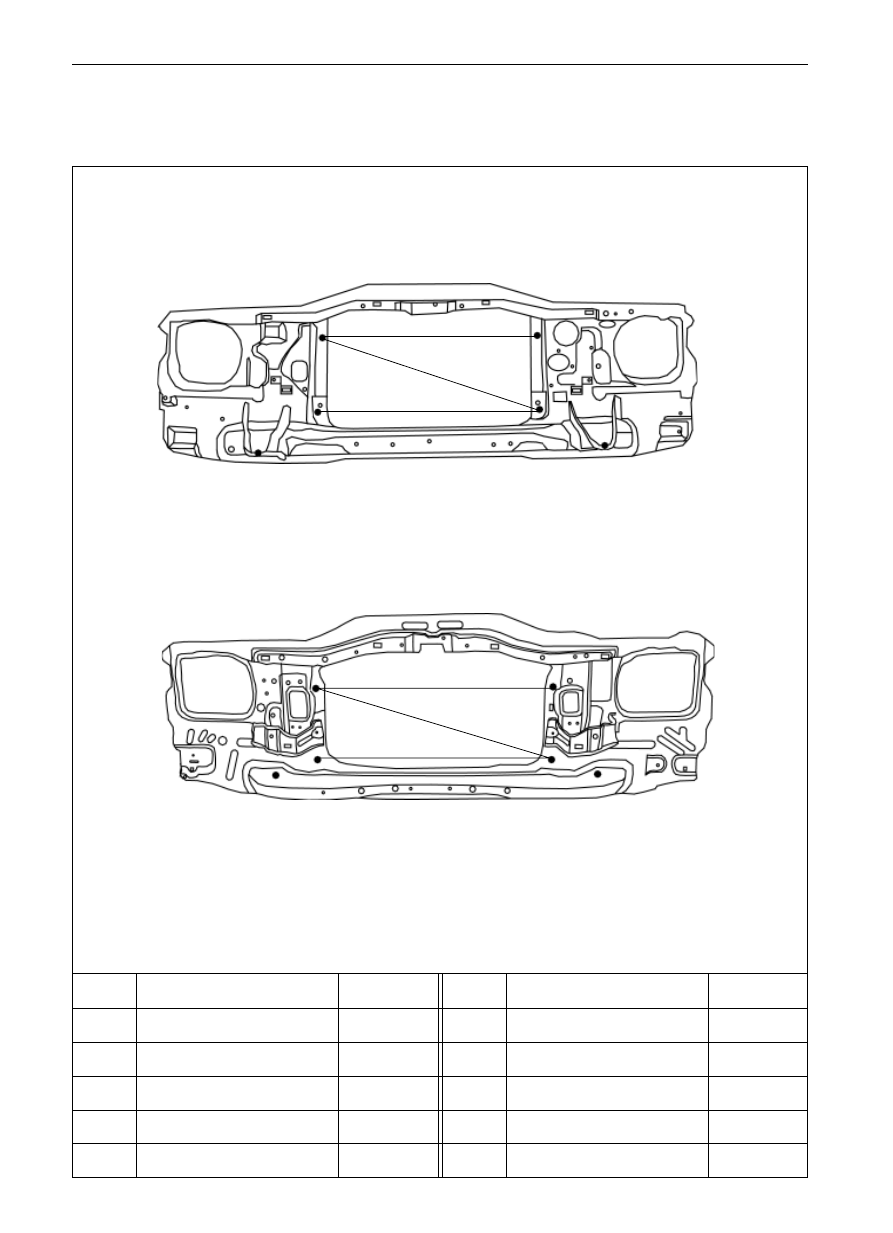

Large lamp seat (

)

SF
(point Size in 3D)

Dr
(point Size in 3D)

Mark

Name

Bore diameter

Mark

Name

Bore diameter

A,a

Radiator mounting hole

M8

B,b

Radiator mounting hole

M8

C,c

Cab mounting hole

 10
 20

A

B

b

a

603

`

c

573

573

A

B

a

b

c

C

573

573

623

B0-69

Body Dimension

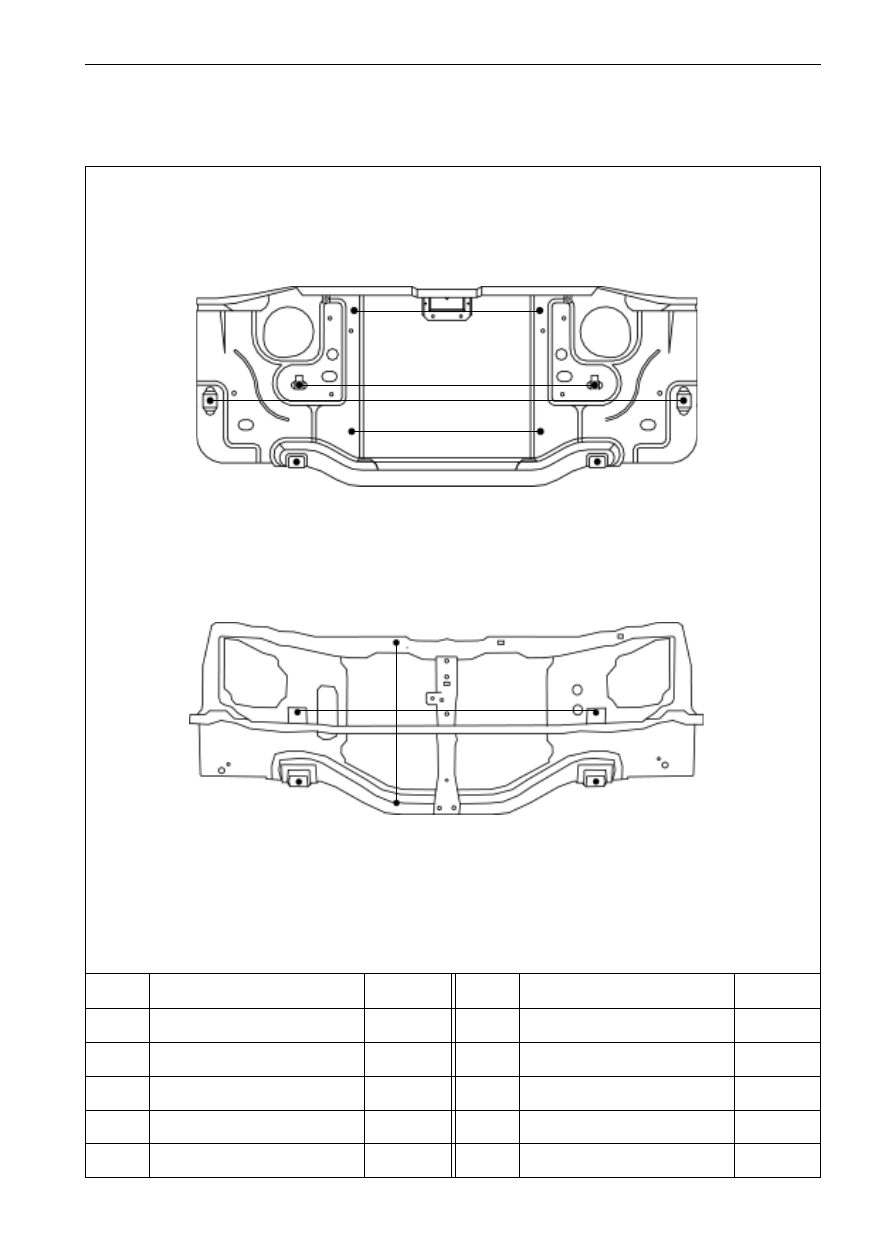

Large lamp seat (

)

Vehicle Body

 Body Dimension

SL SY
(point Size in 3D)

SK SJ
(point Size in 3D)

Mark

Name

Bore diameter

Mark

Name

Bore diameter

A,a

Radiator mounting hole

F,f

Mounting hole of median mesh

B,b

Fixing bolts of front bar

G,g

Vertical projection spot of lower
beam of radiator

C,c

Fixing bolts of front bar

D,d

Radiator mounting hole

E,e

Cab mounting hole

A

B

b

a

C

c

802

d

e

D

E

969

1406

633

B

b

E

F,f

G,g

799

465

e

B0-70

Body Dimension

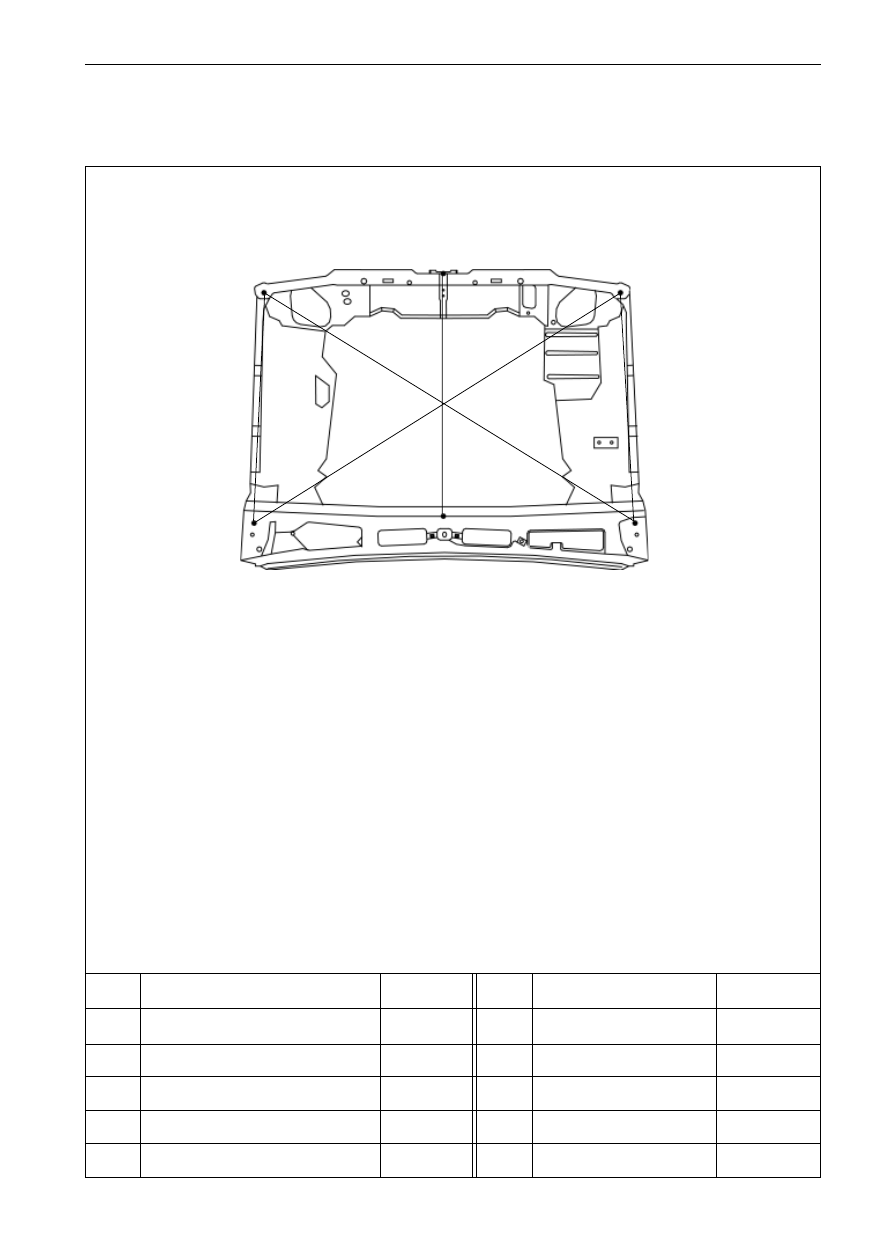

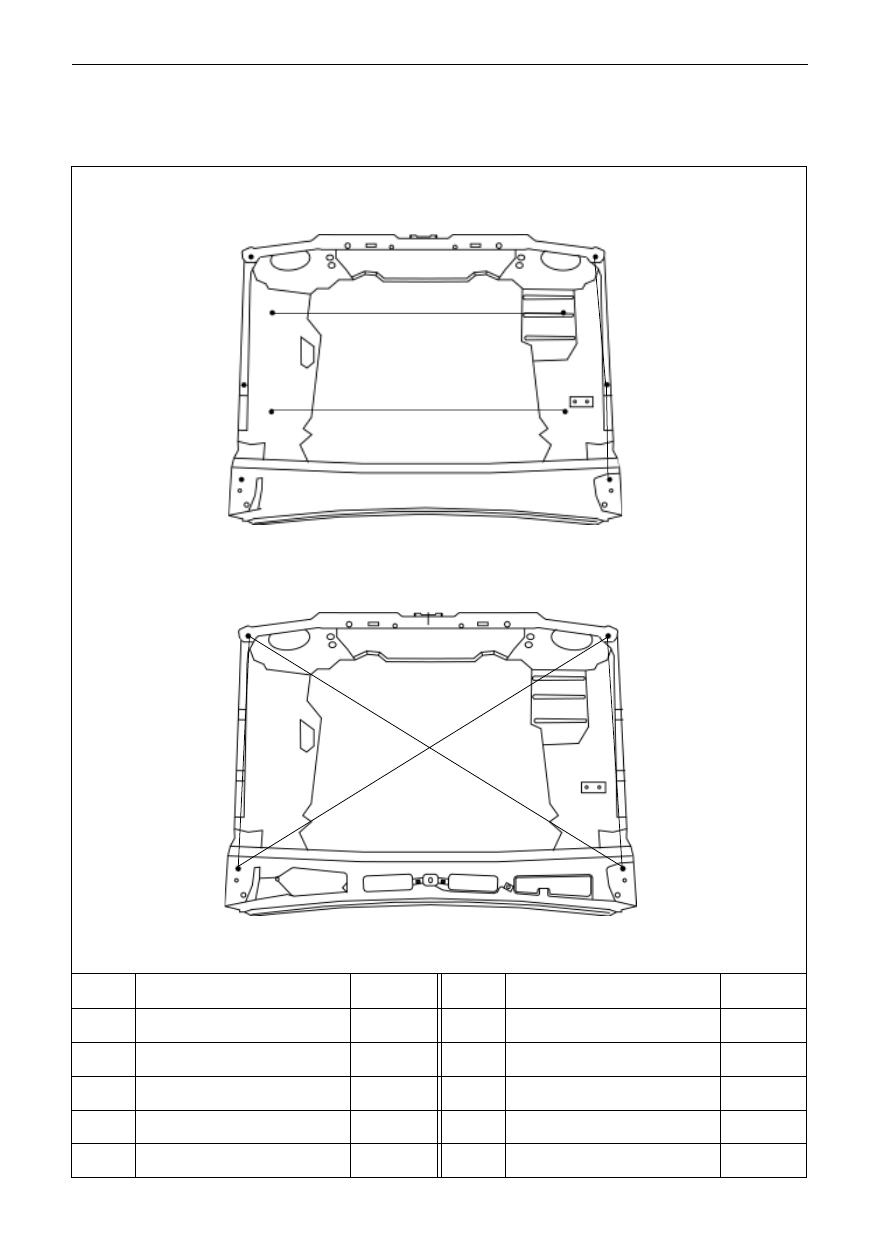

Engine Room (

)

Vehicle Body

 Body Dimension

Dr SF
(point size in 3D)

SL SY
(point size in 3D)

Mark

Name

Bore diameter

Mark

Name

Bore diameter

H,h

Front locating hole of mudguard

M8

M,m

Locating hole of upper part of
front wall

7

I,i

Hole of fixing nut of large lamp

M8

N,n

First mounting hole of wing panel

J,j

Front locating hole of mudguard

M6

K,k

First mounting hole of engine cover

M6

L,l

First mounting hole of wing panel

10

Remark: the deviation

in length of diagonal

line of engine room

should not be more than

4 mm.

J

K

L

I

H

j

k

l

á

h

1005

1268

582

384

M

N

m

n

728

728

B0-71

Body-Body Dismension

SK SJ
(point size in 3D)

O,o

Mark

Name

Bore diameter

Mark

Name

Bore diameter

M,m

Hole of fixing nut of large lamp

7

N,n

First mounting hole of engine cover

O,o

Vertical face of median mesh

P,p

Projection line of vertical face of
median mesh

Remark: the deviation in length

of diagonal line of engine room

should not be more than 4 mm.

M

N

m

n

845

P,p

711

711

Body Dimension

Engine Room (

)
