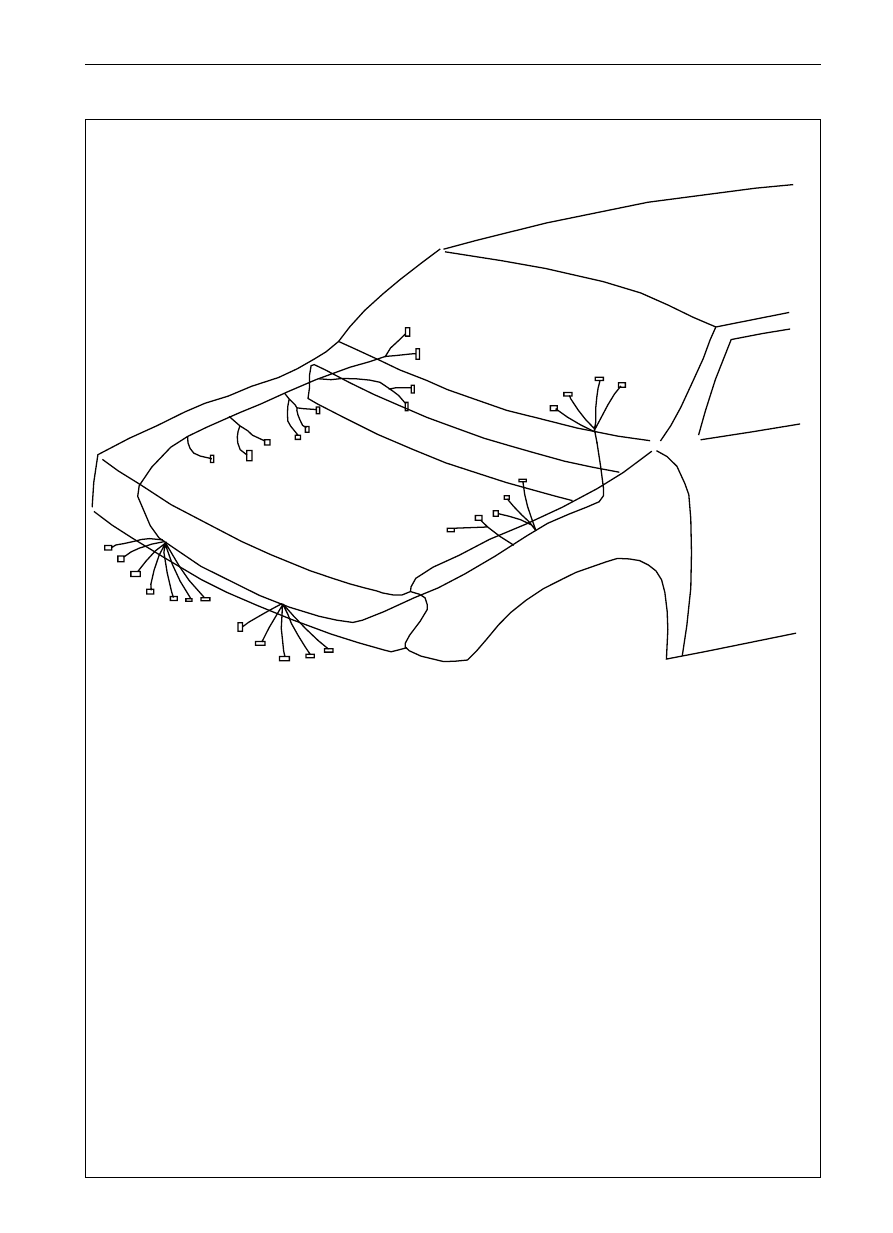

Great Wall service chassis and body Manual - part 85

BE-69

SL SK SY SJ

1

connected to cab wire harness

2

connected to cab wire harness

3

odometer sensor

4

back-up lamp switch

5

turn lamp on right side

6

grounding wire

7

brush motor

8

protective box II

9

wire connecting with accumulator anode

10 wire connecting with accumulator anode

11 electromagnetic fan

12 washer motor

13 right fog lamp

14 right turn lamp

15 right headlamp

16 right small lamp

17 horn electric horn

18 left turn lamp

19 left small lamp

20 left headlamp

21 left fog lamp

22 pressure switch of air-conditioner

23 generator

24 generator

25 grounding wire

26 turn lamp on left side

27 brake liquid level sensor

28 connected to cab wire harness

29 connected to cab wire harness

30 connected to cab wire harness

31 flasher relay

1

O

3

4

5

6

7

8

9

10

11

12

13

14

15 16 17

18

19

20 21

22

23

24 25

26

27

28

29

30 31

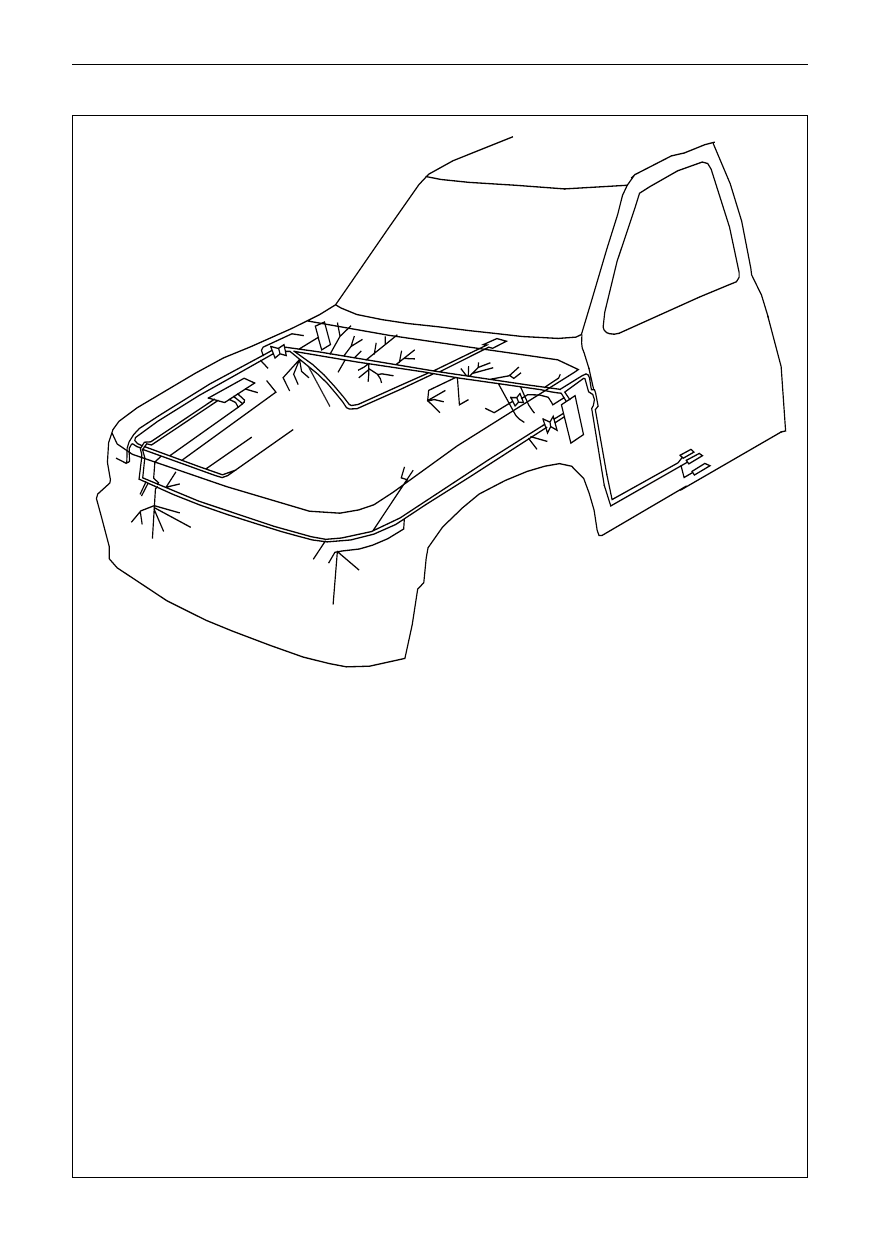

Housing wire harness (continued)

Body Electric System

 Wire Harness Distribution

BE-70

SF

1

2

P

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22
23 2425

26

27 28

2930 31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53 54

5556

57

58

59

Housing wire harness (continued)

60

61

1

left door lamp switch

2

defrost switch at tail door

3

window regulator at tail door

4

parking brake switch

5

ignition lock

6

combined switch

7

instrument

8

combined switch shell

9

grounding wire

10 amplifying plate of air-conditioner

11 heat-sensitive resistance

12 control panel of air-conditioner

13 A/C Switch

14 glove-box lamp switch

15 glove-box lamp

16 speed-adjusting resistance

17 blower

18 indoor temperature sensor

19 right front loudspeaker

20 brush motor

21 turn lamp on right side

22 electric fan relay

23 maxi-fuse

24 joint of wire harness at right front door

25 right front door lamp switch

26 right electric back-up mirror

27 grounding wire

28 rear sound box wire

29 ashtray lamp

30 CD Device wire

31 cigarette lighter A

32 cigarette lighter B

33 dual flasher switch

34 fog lamp switch

35 temperature indicator

36 stop lamp switch

37 brake liquid level sensor

38 control case of central control lock

39 left front loudspeaker

40 automatic aerial

41 turn lamp on left side

42 generator

43 left front conner lamp

44 left front lever-shaped lamp

45 front fog lamp

46 left headlamp

47 temperature control switch

48 connected to wire of 220

49 spraying motor A

50 spraying motor B

51 right front conner lamp

52 right headlamp

53 horn A

54 horn B

55 right front lever-shaped lamp

56 right front fog lamp

57 electric fan

58 outdoor temperature sensor

59 connected to chassis wire harness

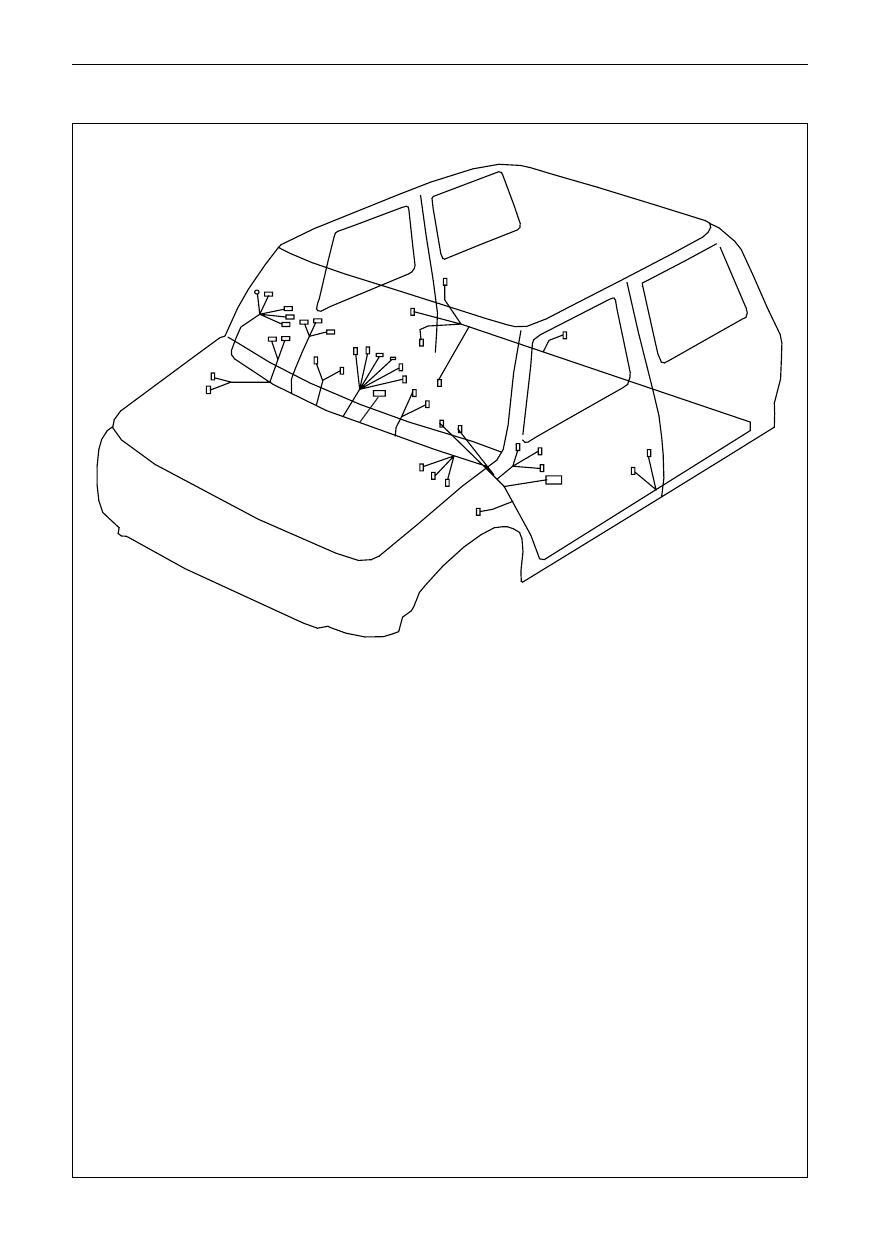

anright central wire harness

60 connected to left central wire harness

61 connected to engine wire harness

Body Electric System

 Wire Harness Distribution

BE-71

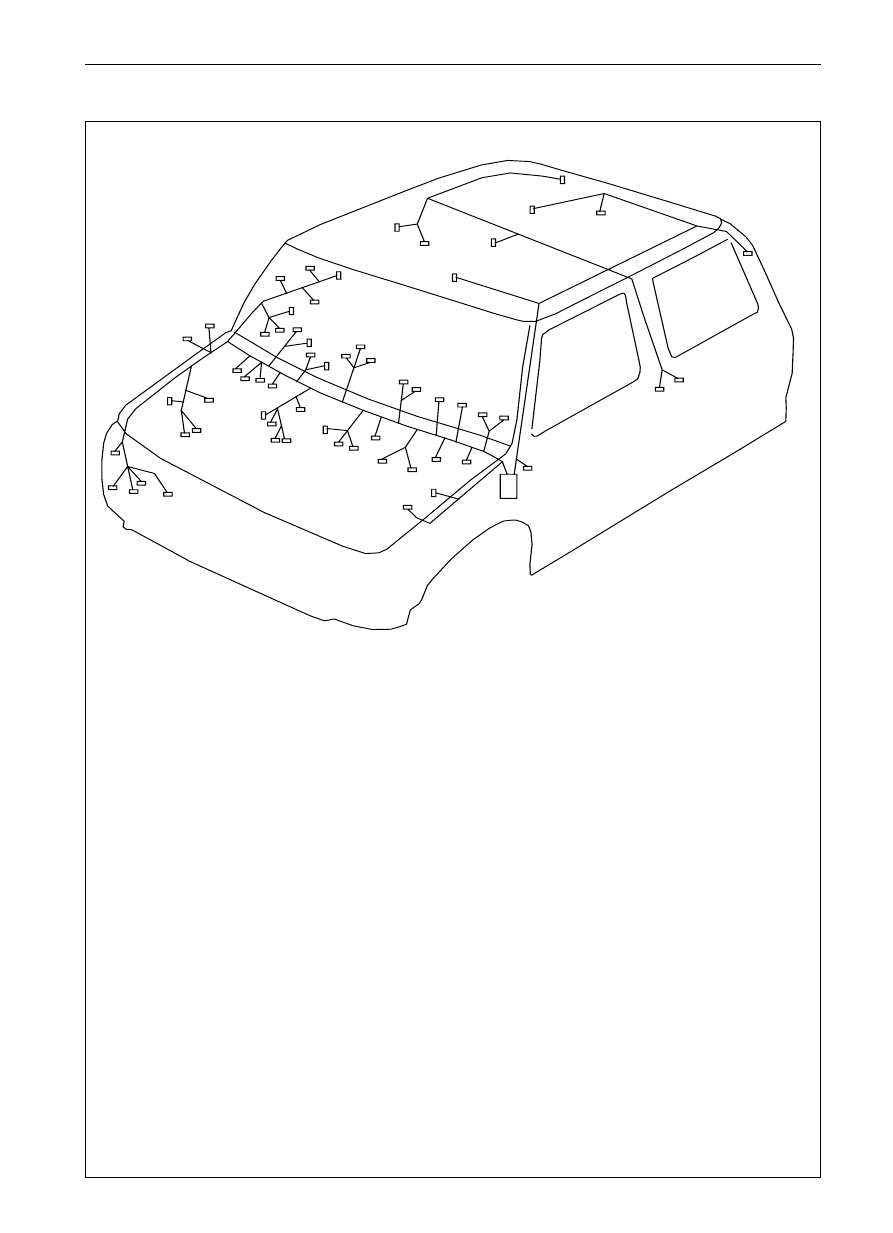

Cab wire harness

a ê

1

right front turn lamp

2

outdoor temperature sensor

3

right lever-shaped lamp

4

front fog lamp

5

horn

6

accumulator wire of 220V

7

electromagnetic fan

8

temperature control switch

9

protective box II

10 turn signal lamp on right side

11 brush motor

12 plug of engine wire harness

13 wire harness at right rear door

14 plug of frame wire harness

15 door lamp switch

16 wire harness at right front door

17 door lamp

18 right external electric rear vision mirror

19 protective box III

20 indoor temperature sensor

21 right loudspeaker

22 speed-adjusting resistance

23 air blower

24 grounding wire

25 A/C switch

26 controlling element

27 ashtray lamp

28 receiver wire

29 cigarette lighter

30 cigarette lighter

31 rear sound box wire

32 amplifying plate of air-conditioner

33 grounding wire

34 heat-sensitive resistance

35 dual flasher switch

36 fog lamp switch

37 temperature indicator

38 combined switch shell lamp

39 combined switch

40 ignition switch

41 combination instrument A

42 combination instrument B

43 parking brake switch

44 brake switch

45 left loudspeaker

46 control case of central control lock

47 grounding wire

48 grounding wire

49 voltage regulator

50 brake liquid level alarming device

51 protective box I

52 plug of wire harness at left rear door

53 door lamp

54 door lamp switch

55 ceiling lamp

56 lamp for reading

57 door lamp

58 door lamp switch

59 backup radar screen

60 right rear loudspeaker

61 highly-mounted stop lamp

62 left rear loudspeaker

1

2

3

4

5

6

7 8

9

10

11

12

13

14

15

16

17

18

19

20 21

22

23

24

25

26

27

28

29 30

31

32

33

34

35

36 37

38

39 40

41

42

43

44

45

46

47 48

49

50

51

52

53

54

55

56

57

58

59

60

61

62

Body Electric System

 Wire Harness Distribution

BE-72

pi=ph

1

grounding wire

2

wire harness at right front door

3

warm air motor

4

wire harness at right front door

5

control case of central control lock

6

heat-sensitive resistance

7

speed-adjusting resistance

8

connected to housing wire harness

9

connected to housing wire harness

10 A/C switch

11 air-volume switch

12 ashtray luminous lamp

13 ECU

14 receiver

15 rear loudspeaker

16 cigarette lighter

17 cigarette lighter grounding wire

18 cigarette lighter luminous lamp

19 fog lamp switch

20 dual flasher switch

21 luminous lamp on air-conditioner panel

22 combined switch

23 instrument

24 instrument

25 stop lamp switch

26 connected to roof wire harness

27 connected to housing wire harness

28 connected to housing wire harness

29 connected to housing wire harness

30 connected to wire harness at left front door

31 connected to wire harness at left front door

32 connected to wire harness at left front door

33 protective box I

34 grounding wire

35 wire harness at left front door

36 connected to wire harness at left rear door

37 parking brake switch

38 connected to wire harness at right rear door

39 right front door lamp switch

40 connected to chassis wire harness

1 2

3

4

5

6

7

8

9

10 11

12

13

14

15

1617

18 19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

Cab Wire harness (continued)

40

Body Electric System

 Wire Harness Distribution
