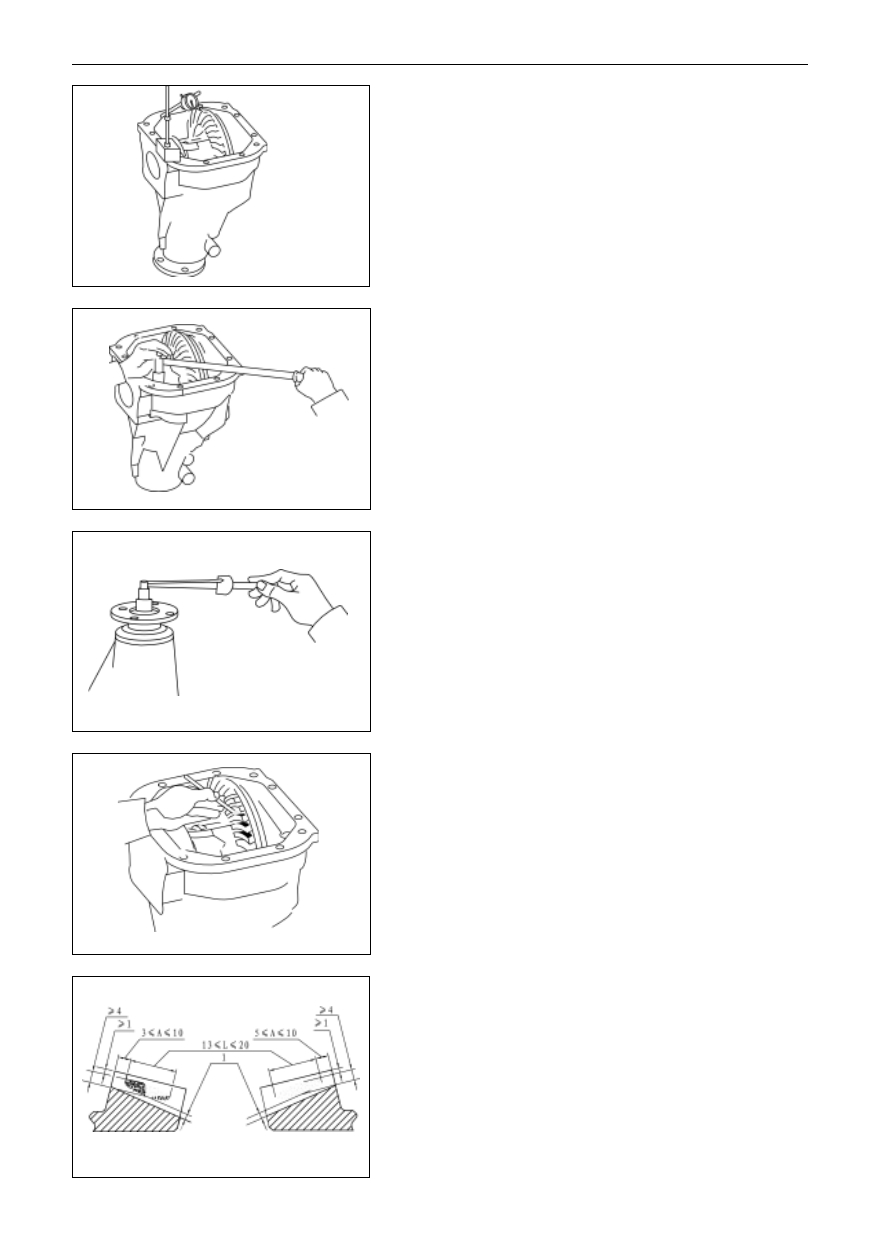

12. Measure the clearance between the axle driven bevel

gear and the driving bevel gear with dial indicating lamp.

Clearance: 0.15-0.25mm

Remark: if the play fails to fall within the specified range,

change with the adjusting gasket of other thickness to satisfy

the requirement under the precondition there is no clearance

between the adjusting gasket and the differential.

14. Measure the total preload of the front speed reducer with

torque tester;

Fastening torque

(1.8-2.4)N
m

13. Mount on the left and the right cap-differential bearing:

Screw up the bolts with spanner to the specified torque;

Fastening torque

78N
m

15. Check the teeth engagement between the axle driven

bevel gears:

(a)

Coat three or four teeth at three different positions of the

axle driven bevel gear in red

(b)

Hold the flange tightly while rotating the axle driven

bevel gear.

(c)

Check the teeth engagement situation.

Remark: the trace of the teeth of axle driven bevel gear should

satisfy this requirement. Otherwise, select the suitable adjust-

ing washer for correcting according to the situation of poor

teeth engagement;

Select the adjusting gasket that makes the main teeth apart

from the axle driven bevel gear.

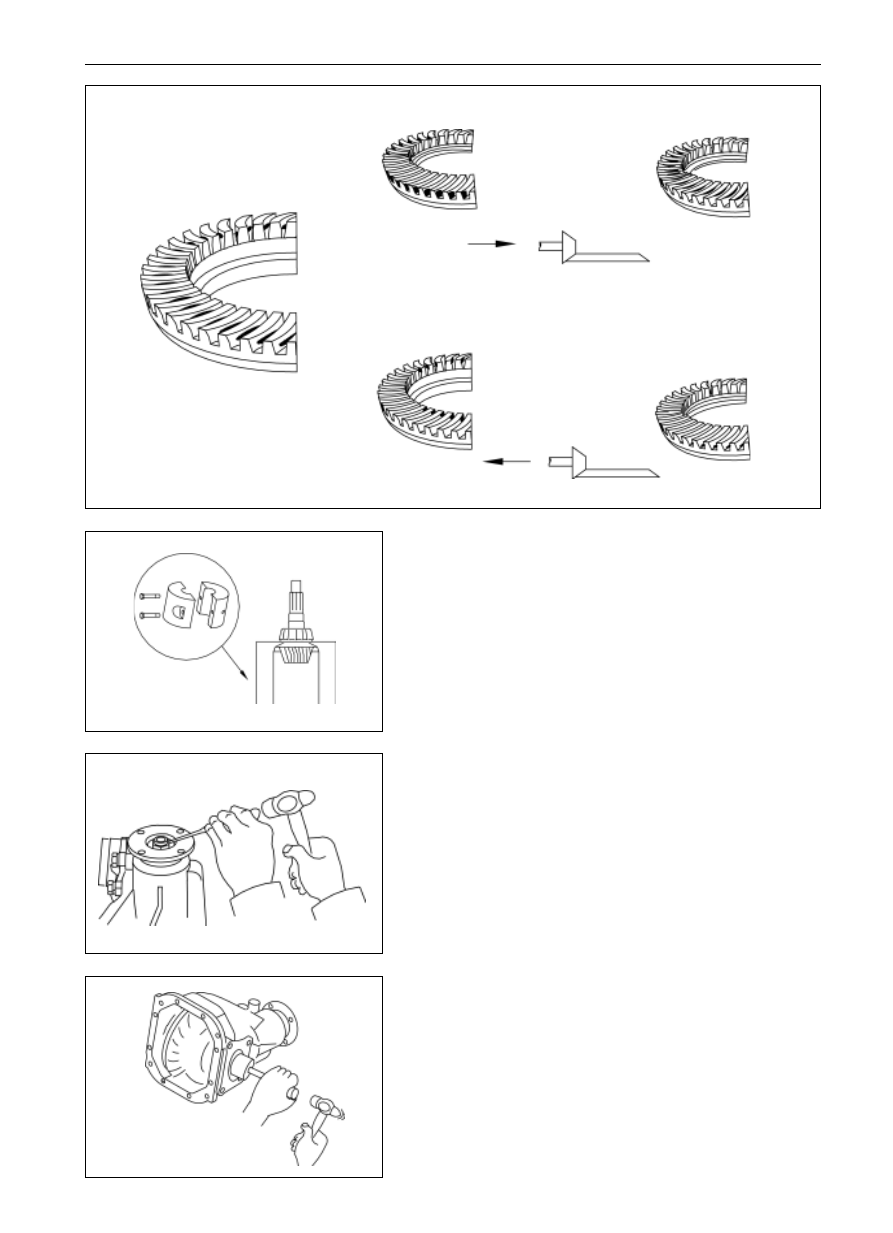

convex surface of gear

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (Assembly of Front Speed Reducer)

concave surface of gear

SA-77

heel end engagement

tooth top engagement

Select the adjusting gasket that make the main teeth contact

closer with the axle driven bevel gear.

toe end engagement

tooth top engagement

Select the adjusting gasket that make the main teeth contact farther with the axle driven bevel gear.

(d)

Tear down the bearing 32307 from the driving bevel gear

and change the adjusting washer.

(e)

Re-measure the total preload of the front speed reducer

and the situation of teeth engagement until they satisfy

the requirement.

16. Rivet the main-tooth nut;

17. Mount on the new oil seal ó front half-shaft;

Press in the new oil seal with the SST until it flush with the

outer face of the oil seal, coat the moderate lubricant on the

position of oil seal and on the lip open of oil seal.

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (Assembly of Front Speed Reducer)

SA-78

18. Mount on the front drive axle shaft sleeve;

Notice: Thread locking agent should be coated on the

bolt thread.

Fastening torque

88N
m

19. Mount on the front long semi-axis and the front minor

half-shaft.

(a)

Mount the new snapping ring on half-shaft.

(b)

Mont on the front semi-axis and the front minor half-

shaft.

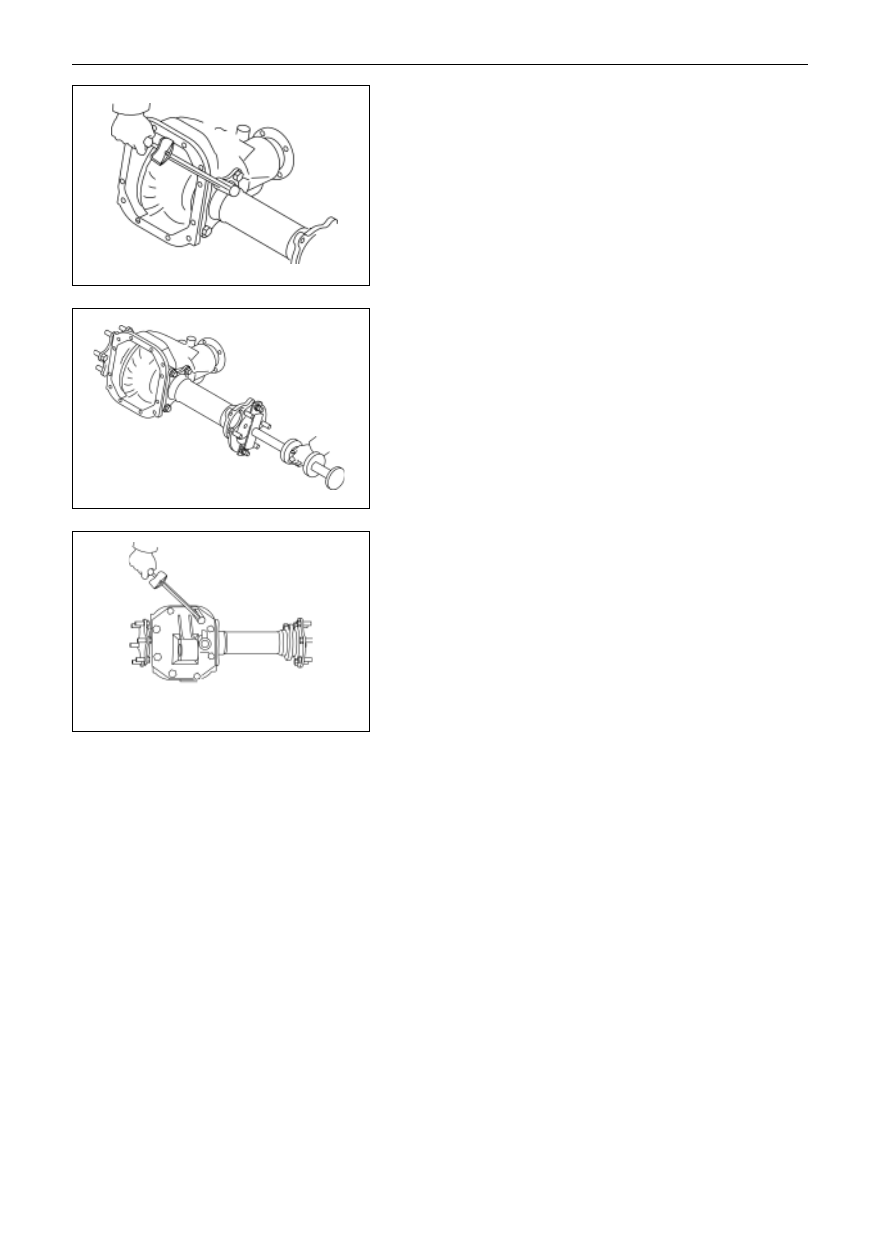

20. Mount the front speed reducer shell assembly:

(a)

Clear the front speed reducer shell and the contact face of

front speed reducer shell;

(b)

Coat the glue line with diameter of 2-3 mm, and the glue

line should be even and without fracture.

Remark: The front speed reducer shell should be mounted

ready within 15 min after coating the glue.

(c)

The bolts, before screwed up, should be coated with

thread locking sealing agent and screwed up to the

specified torque.

Fastening torque

47N
m

Suspension System and Automobile Axle (SF/4WD)

 Front Speed Reducer (Assembly of Front Speed Reducer)

SA-79

Rear Axle Shaft

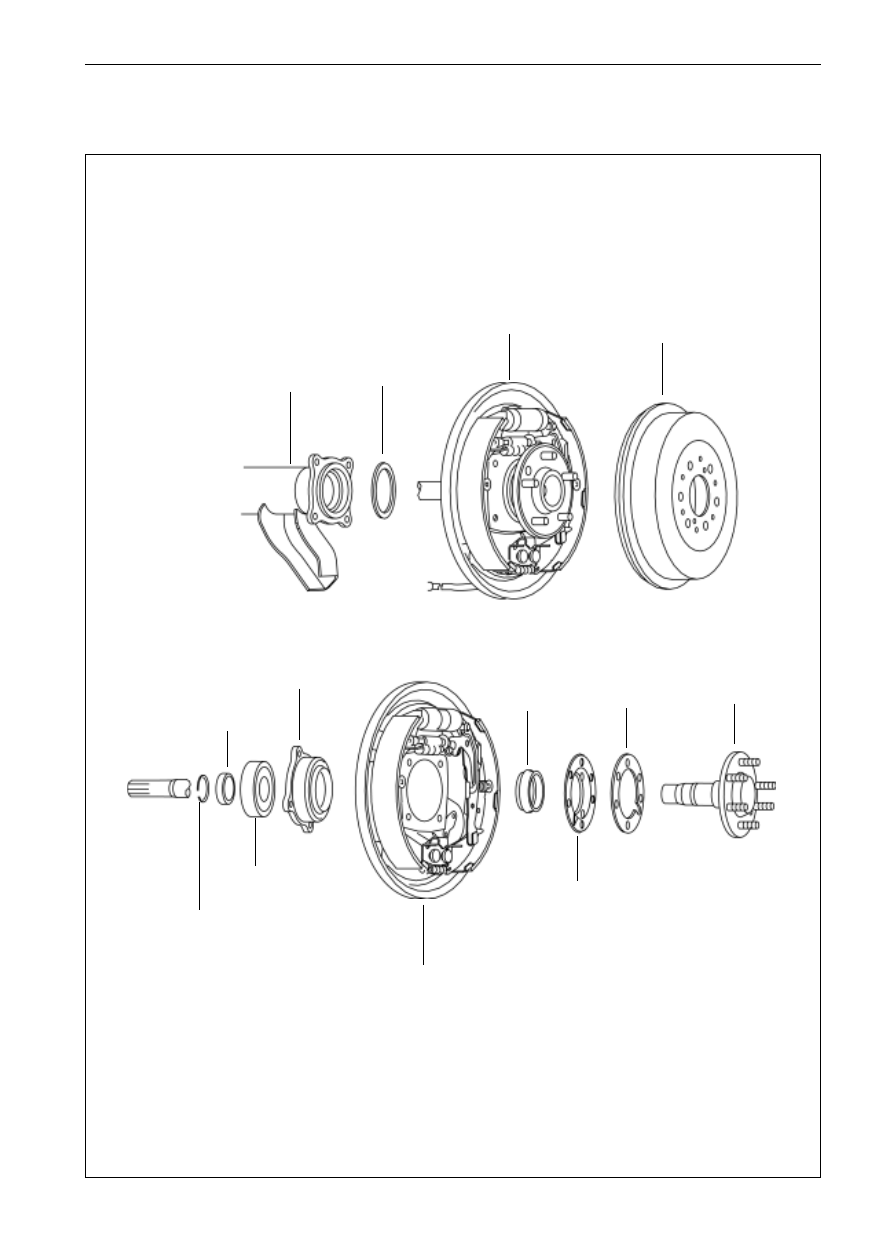

Element figure

rear axle housing

 O rubber O-ring seal

rear brake

brake drum

inner oil seal seat of
rear wheel bearing

bearing seat

oil seal of rear
wheel bearing

liner

half-shaft

grooved ball
bearing

rear brake

oil-guard tray

 Parts that cannot be reused after being used

Suspension System and Automobile Axle (rear)

 Rear Axle Shaft

 flat steel retainer ring for shaft
