Automatic transmission-31
Power transmission
manual 1
st
-Gear
In manual 1
st
–Gear, the drive of transmission is send to the rear clutch cylinder through the input shaft. In this
condition, each function unit of transmission is shown as follows:
The clutch C2 is engaged through the 3-4 one-way clutch (OWC) to drive the front sun gear.
The engagement of B2 brake belt make the planetary gear carrier to stop.
The front sun gear drive the short planetary gear to rotate in anticlockwise.
The short planetary gear drive the long planetary gear to rotate in clockwise.
The long planetary gear rotate around its axial to drive the internal gear ring and output
shaft to rotate in clockwise to realize the movement in forward direction.
In overspeed, clutch C4 can provides certain brake force through 3-4 one-way clutch .
Control:
In stable status, the action of solenoid valve and valve is shown as follows:
The solenoid valve S1 and S2 is powered on.
In the action of pressure of line 500, the gear shift valve of 1-2, 2-3, 3-4 gear are kept in position of 1
st
-Gear.
The manual-operated valve transmission fluid (line pressure ) makes the clutch C2 to engagement.
LO-1
st
(line pressure) oil flows to the clutch C4 through the 1-2 Gear switching valve to engage the B2 brake belt.

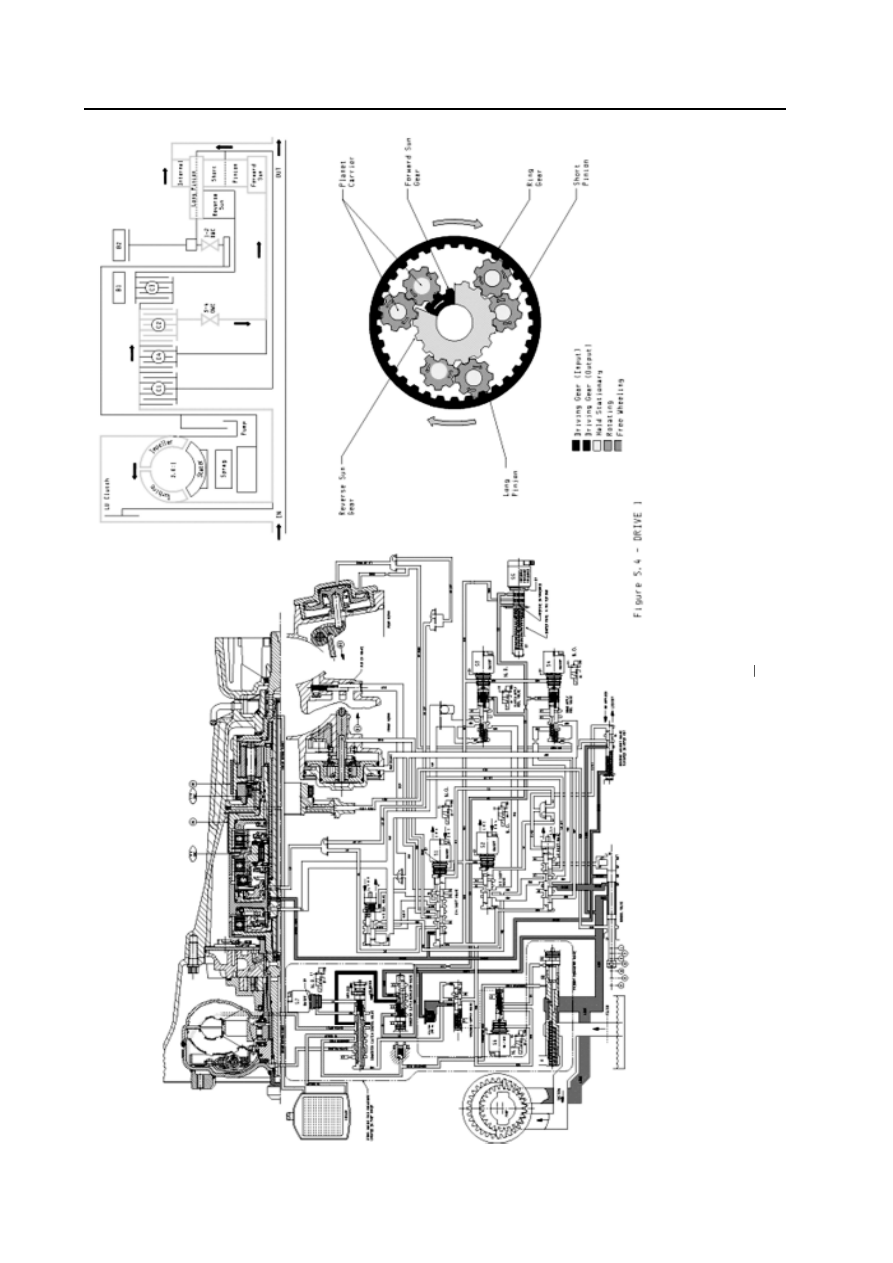

Refer to Figure 5.3 and Table 5.4.

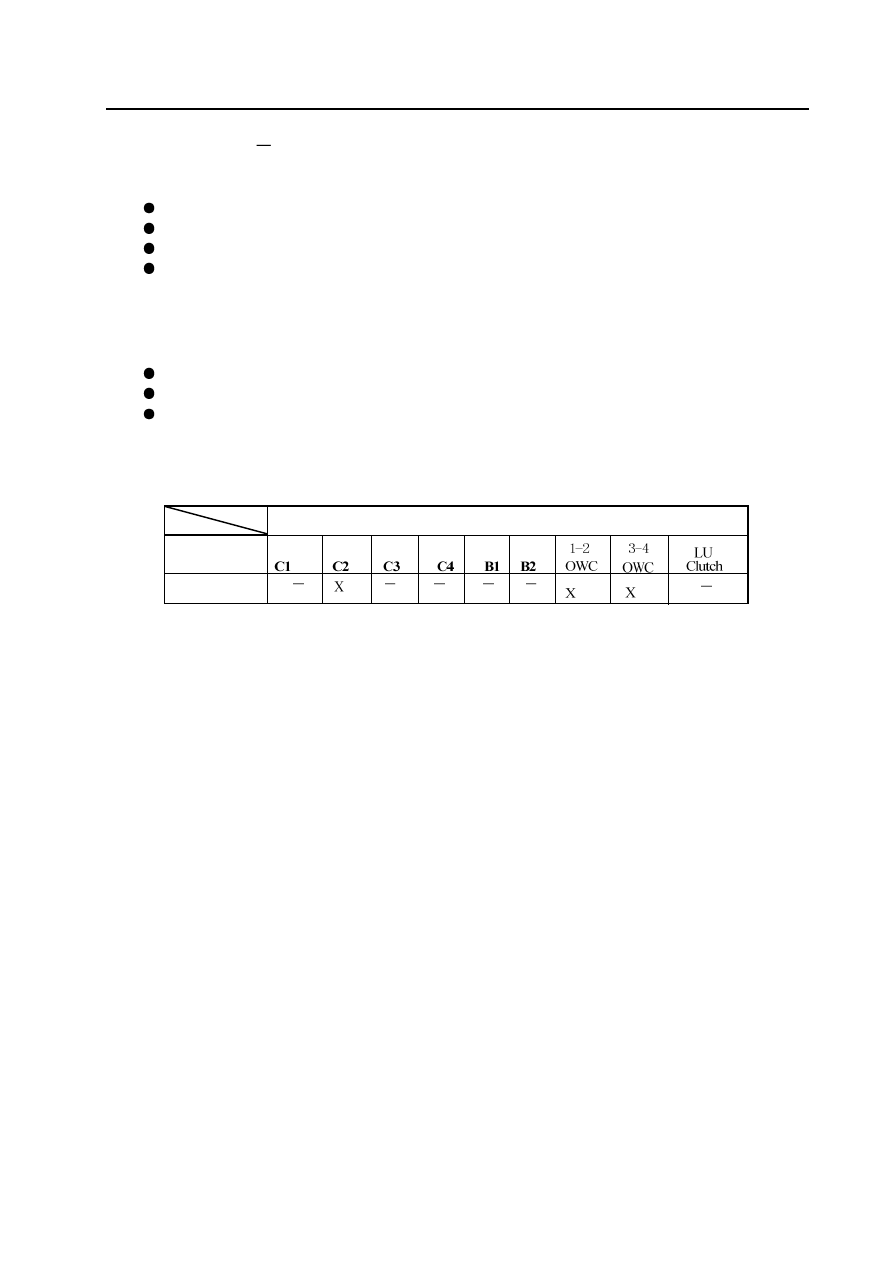

Table 5.4
The participating condition of each unit in manual 1
st
-Gear
Name of participated unit
X
X
