Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 29

Cab

BF-14

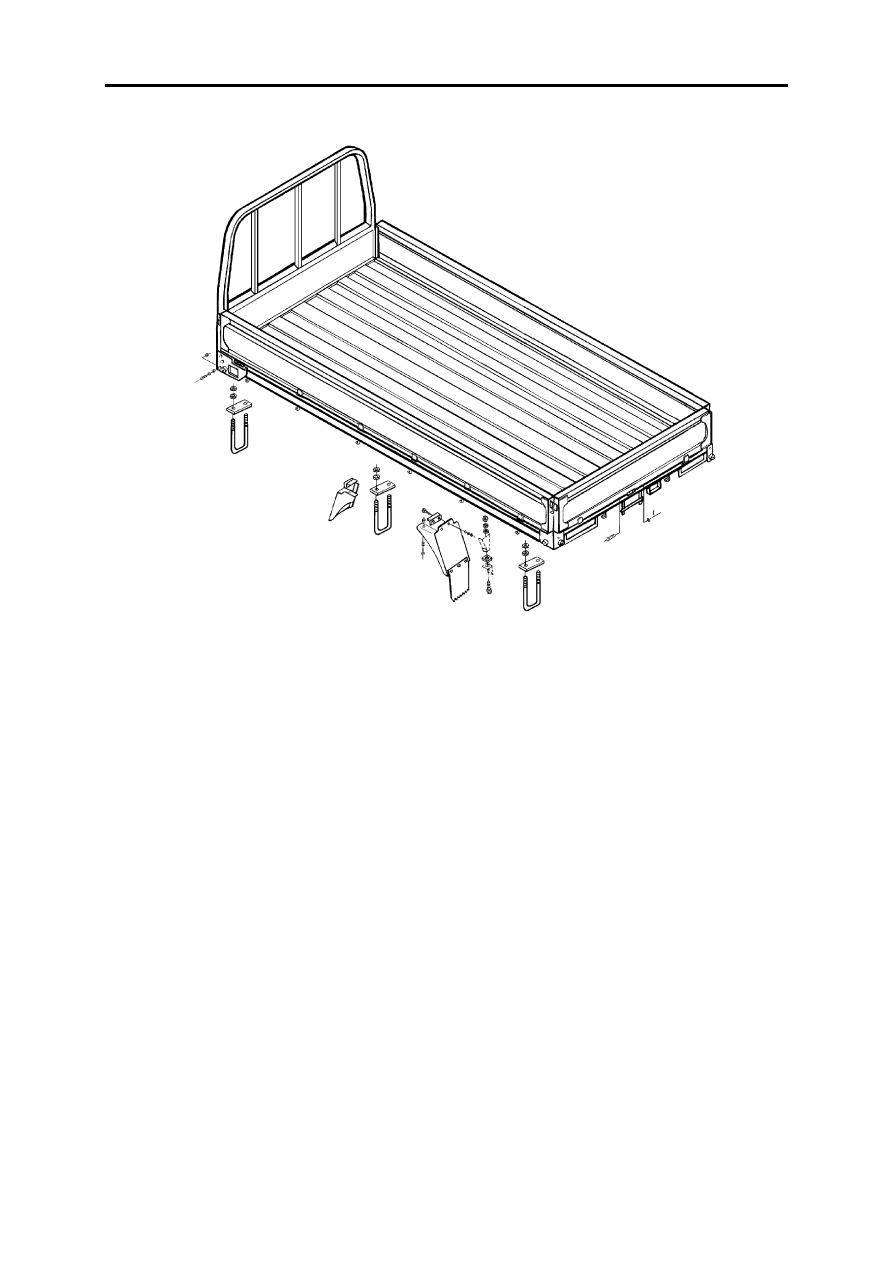

Cab body mounting

Note:
Different model has different shape of cargo body.

Chassis Frame

BF-15

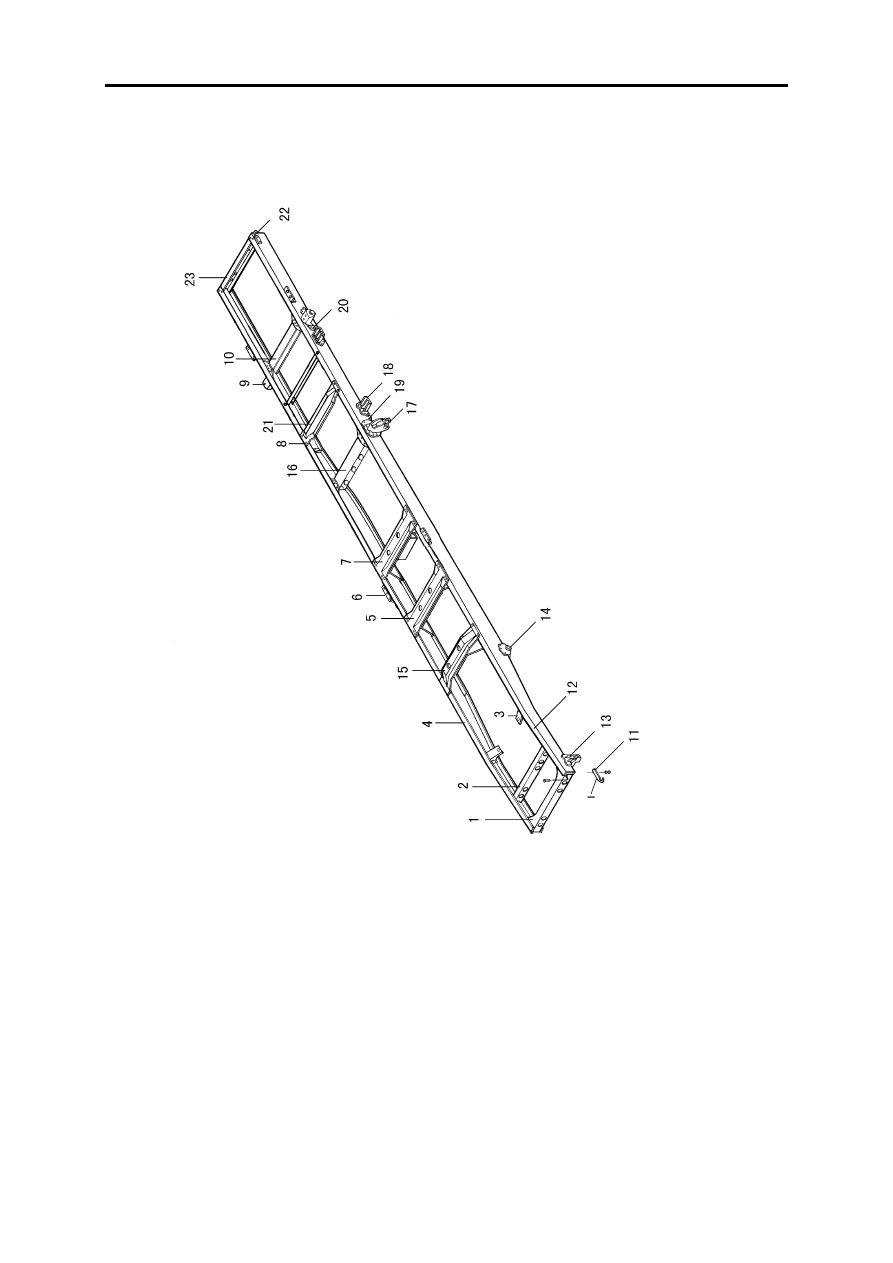

Chassis Frame

Chassis Frame

1.Front cross member assy
2.2nd cross member
3.Right bracket of rear mounting
4.Left side member
5.4th cross member
6.Lower angle iron for fixing chas-
sis frame
7.Propeller midship mounting
cross member
8.Damper cross member

9.Lifting eye end bracket
10.Rear leaf spring cross member
11.Hook bracket
12.Right side member
13.Fixed end bracket
14.Lifting eye end bracket
15.Engine rear mounting cross
member
16.Rear leaf spring cross member
17.Fixed end bracket

18.Sub-spring bracket
19.Stiffening plate--rear bracket of
rear spring
20.Stiffening plate--rear bracket of
front spring
21.Bolt
22.Rear hook set
23.Rear cross member

Chassis Frame

BF-16

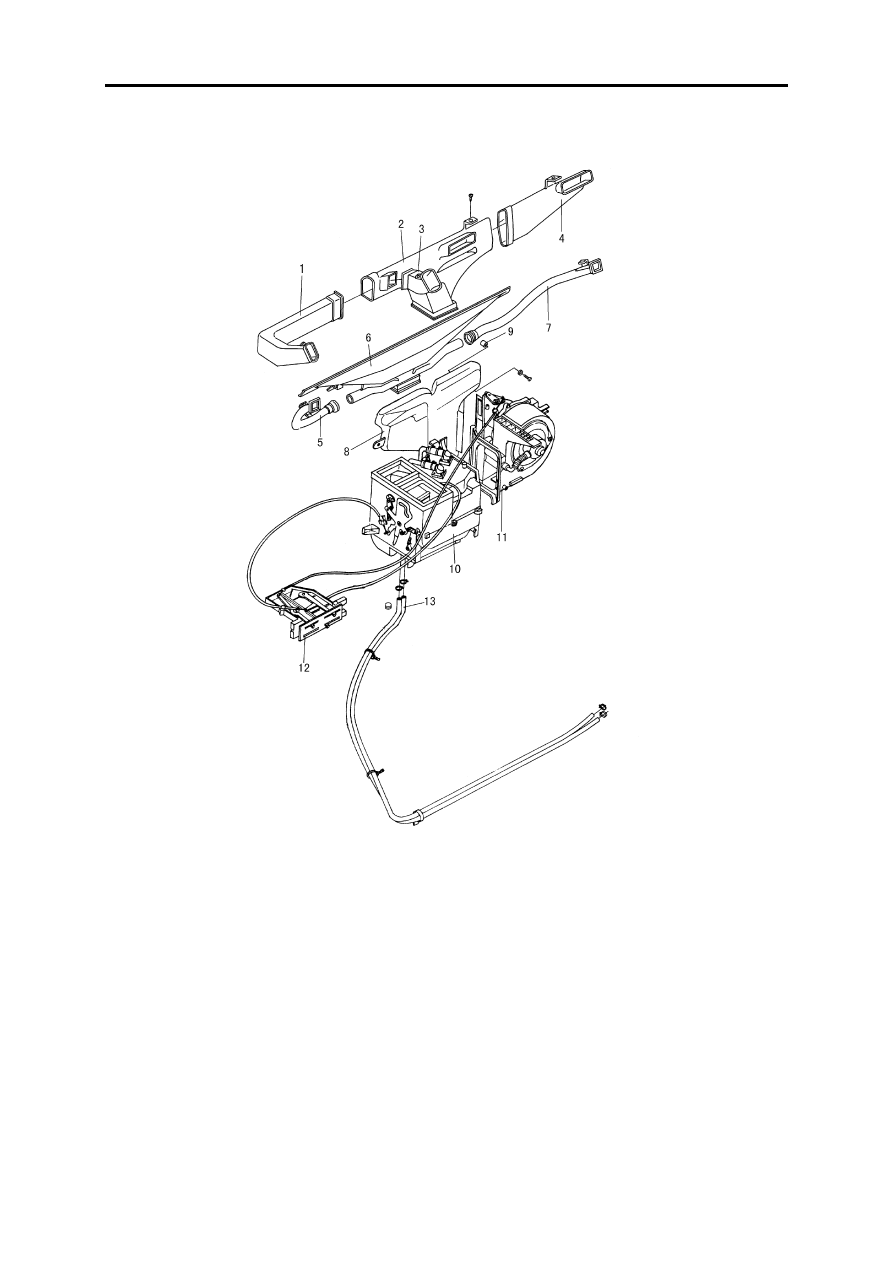

Construction of the Heater

1.Left air pipe
2.Wind channel assy
3.Middle air pipe
4.Right air pipe assy
5.Left door defroster hose assy
6.Defroster nozzle assy
7.Right door defroster hose assy

8.Wind inlet channel assy
9.Plastic nut assy
10.Heater assy
11.Air blower assy
12.Heater control mechanism assy
13.Water inlet tube--heater

Electric System

EL

Table of Contents

Specification ................................................................................................... EL-1
Bulb Type ....................................................................................................... EL-1
Trouble Analysis............................................................................................. EL-2
General Instruction ......................................................................................... EL-5
Battery ............................................................................................................ EL-6
Alternator........................................................................................................ EL-7
Starting Division............................................................................................. EL-9
Electromagnetic Main Power Switch ............................................................. EL-9
Exhaust Brake System .................................................................................. EL-10
Hazard Warning System............................................................................... EL-11
Accessories ................................................................................................... EL-12
Horn .............................................................................................................. EL-13
Fog Lamps .................................................................................................... EL-15
Instruments ................................................................................................... EL-16
Instrument Panel ........................................................................................... EL-17
Speedometer ................................................................................................. EL-19
Tachometer ................................................................................................... EL-22
Water Temperature Meter and Fuel Meter ................................................... EL-24
