9.0

CONNECTOR PINOUTS

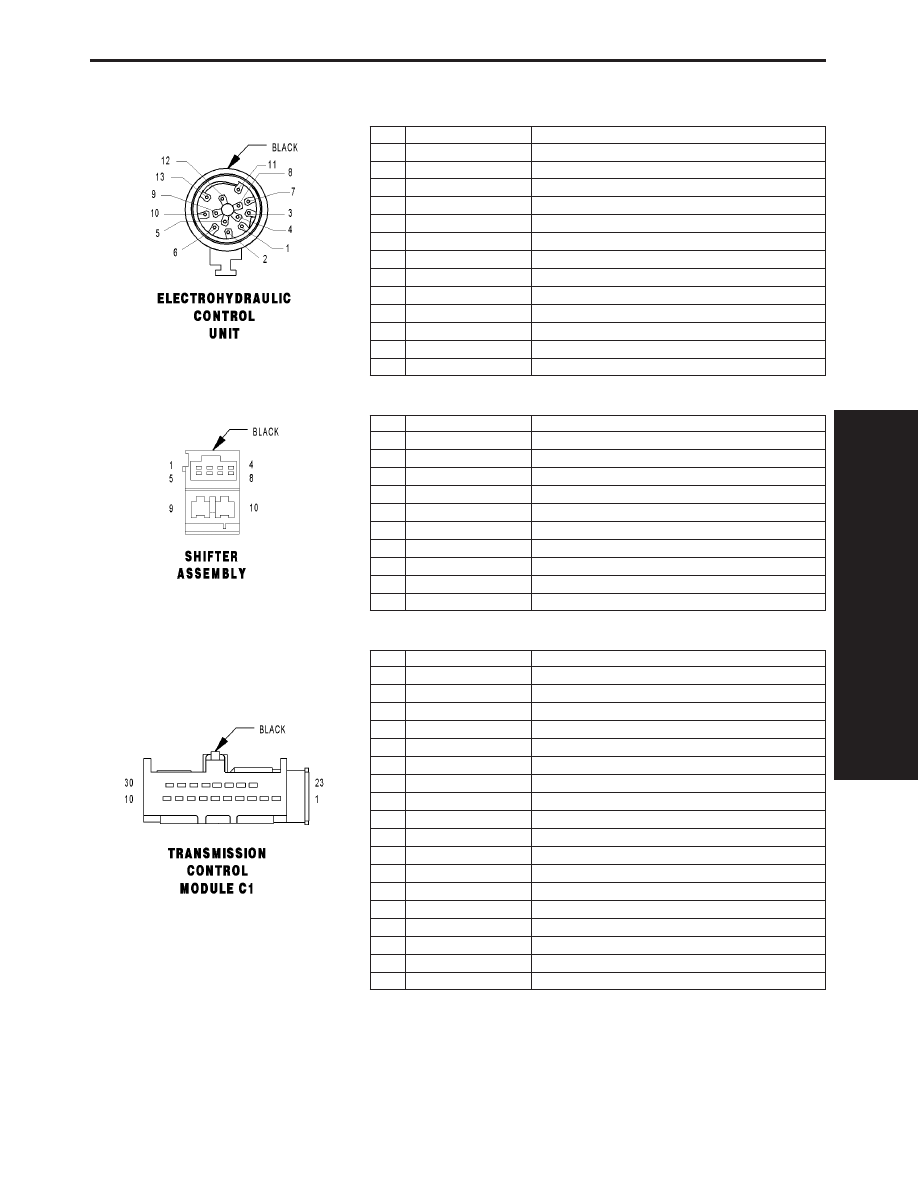

ELECTROHYDRAULIC CONTROL UNIT - BLACK

CAV

CIRCUIT

FUNCTION

1

20BL/DG

N3 INPUT SPEED SENSOR

2

16BR/GY

MODULATION PRESSURE SOLENOID CONTROL

3

20BL/GY

N2 INPUT SPEED SENSOR

4

20GY/BL

TEMPERATURE SENSOR-P/N SWITCH

5

-

-

6

16BK

SOLENOID SUPPLY VOLTAGE

7

20BK/BL

SENSOR SUPPLY VOLTAGE

8

16WT/BL

2-3 SOLENOID CONTROL

9

16YL

3-4 SOLENOID CONTROL

10

16BK/RD

SHIFT PRESSURE SOLENOID CONTROL

11

16YL/BL

TCC SOLENOID CONTROL

12

20PK

SENSOR GROUND

13

16WT

1-2/4-5 SOLENOID CONTROL

SHIFTER ASSEMBLY - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

20GY/DG/RD

LAMP DRIVER

3

20BL/DG

K-ABS/SHIFTER ASSEMBLY

4

18BR

GROUND

5

20BK/BL/RD

BRAKE LAMP SWITCH

6

20DG/WT

CAN C BUS (+)

7

20DG

CAN C BUS (-)

8

18BK/DG

TRANSMISSION RELAY OUTPUT

9

16WT/BL/RD

FUSED IGNITION SWITCH OUTPUT (RUN-START)

10

16WT/RD

BACK-UP LAMP

TRANSMISSION CONTROL MODULE C1 - BLACK

CAV

CIRCUIT

FUNCTION

1

20BL

K-TCM/RADIO

2

-

-

3

-

-

4

-

-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

10

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

16BK/DG

TRANSMISSION RELAY OUTPUT

30

18BR

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

131

CONNECTOR PINOUTS

TRANSMISSION CONTROL MODULE C2 - BLACK

CAV

CIRCUIT

FUNCTION

12

20BL/GY

N2 INPUT SPEED SENSOR

13

20BK/BL

SENSOR SUPPLY VOLTAGE

14

16WT

1-2/4-5 SOLENOID CONTROL

15

16YL

3-4 SOLENOID CONTROL

16

16WT/BL

2-3 SOLENOID CONTROL

17

16YL/BL

TCC SOLENOID CONTROL

33

20PK

SENSOR GROUND

34

20GY/BL

TEMPERATURE SENSOR-P/N SWITCH

35

20BL/DG

N3 INPUT SPEED SENSOR

36

16BR/GY

MODULATION PRESSURE SOLENOID CONTROL

37

16BK/RD

SHIFT PRESSURE SOLENOID CONTROL

38

16BK

SOLENOID SUPPLY VOLTAGE

H

20DG/WT

CAN C BUS (+)

L

20DG

CAN C BUS (-)

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

132

CONNECTOR PINOUTS

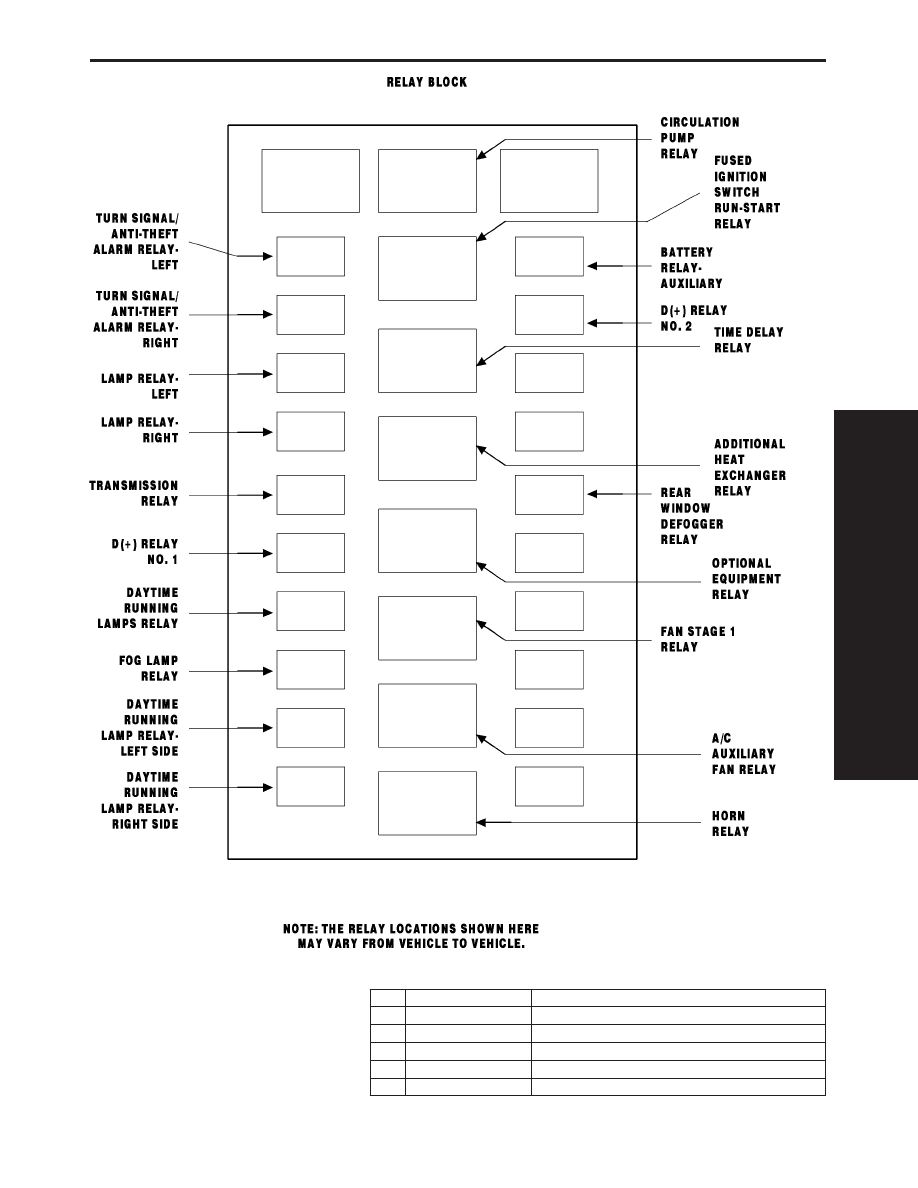

TRANSMISSION RELAY (RELAY BLOCK)

CAV

CIRCUIT

FUNCTION

30

16BK/DG

TRANSMISSION RELAY OUTPUT

85

16BR

GROUND

86

16BK/YL

FUSED IGNITION SWITCH OUTPUT (RUN-START)

87

16RD

FUSED B(+)

87A

-

-

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

133

CONNECTOR PINOUTS

10.0

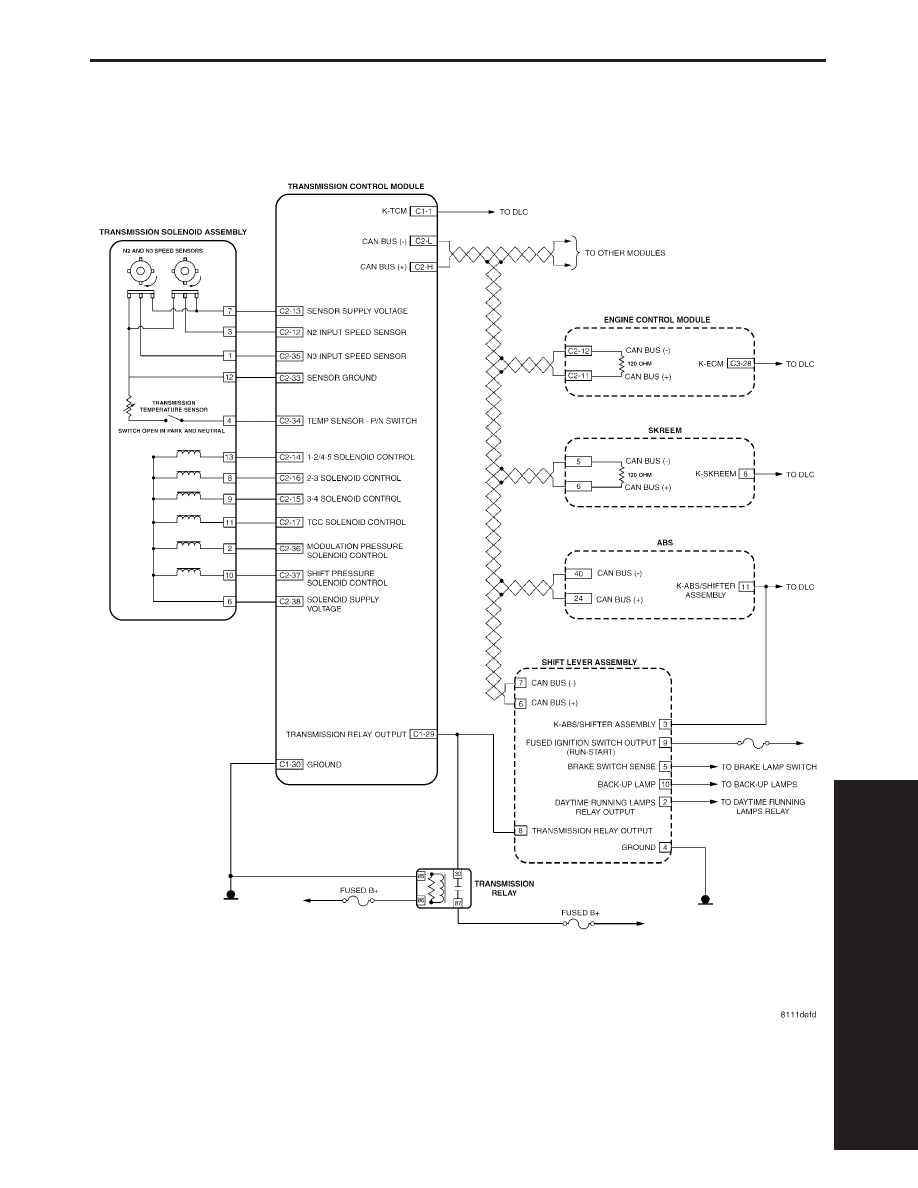

SCHEMATIC DIAGRAMS

S

C

H

E

M

A

T

I

C

D

I

A

G

R
A

M

S

135

SCHEMATIC DIAGRAMS
