described in Step 4. Allow clear top coat to dry hard.
If desired, Step 5 can be performed on clear top coat.

WARNING: AVOID PROLONGED SKIN CONTACT
WITH PETROLEUM OR ALCOHOL – BASED CLEAN-
ING

SOLVENTS.

PERSONAL

INJURY

CAN

RESULT.AVOID PROLONGED SKIN CONTACT WITH
PETROLEUM OR ALCOHOL – BASED CLEANING
SOLVENTS. PERSONAL INJURY CAN RESULT.

FINESSE SANDING / BUFFING
& POLISH

DESCRIPTION

CAUTION: Do not remove more than.5 mils of
clearcoat finish, if equipped. Basecoat paint must
retain clearcoat for durability.
Use a Paint Thickness Gauge #PR-ETG-2X or equiv-
alent to determine film thickness before and after
the repair.

Minor acid etching, orange peel, or smudging in

clearcoat or single-stage finishes can be reduced with
light finesse sanding, hand buffing, and polishing. If
the finish has been finesse sanded in the past,
it cannot be repeated. Finesse sanding opera-
tion should be performed by a trained automo-
tive paint technician.

23 - 78

PAINT

VA

SEATS

TABLE OF CONTENTS

page

page

ARMREST

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 79

HEADREST

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 79

SEAT - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

SEAT BACK - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 80

SEAT CUSHION - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

SEAT ADJUSTERS - FRONT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 81

SEAT - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 82

REAR SEAT BACK SHIELD

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 82

SEAT BACK CUSHION/COVER - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 82

SEAT CUSHION/COVER - REAR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 83

ARMREST

REMOVAL

(1) Remove the screws and remove the armrest

cover.

(2) Remove the three bolts and remove the arm-

rest from the seat back.

INSTALLATION

(1) Install the armrest and install the three bolts.
(2) Install the armrest cover and install the

screws.

HEADREST

REMOVAL

(1) Press the release button and remove the head-

rest. (Fig. 1)

INSTALLATION

(1) Insert headrest posts into seat back and seat

fully.

SEAT - FRONT

REMOVAL

(1) Disconnect and isolate battery negative cable.
(2) Remove the seat belt anchor bolt.
(3) Remove the seat bolts.

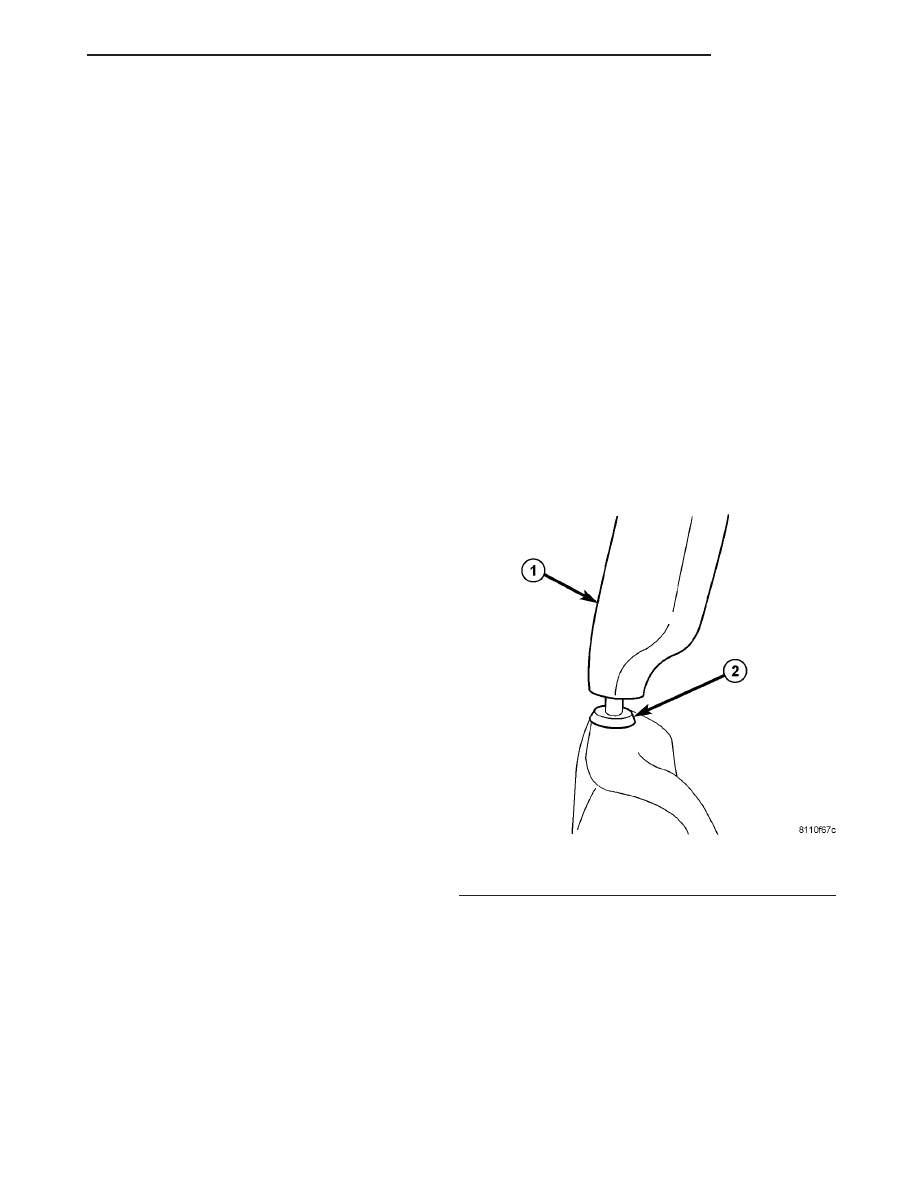

Fig. 1 HEAD REST

1 - HEADREST
2 - RELEASE BUTTON

VA

SEATS

23 - 79

(4) Disconnect

the

electrical

connectors,

if

equipped.

INSTALLATION

(1) Position seat in vehicle and connect the electri-

cal connectors, if equipped.

(2) Install the mounting bolts and tighten to 25

N·m (18 ft. lbs.).

(3) Install the seat belt anchor and bolt.
(4) Tighten anchor bolt to 35 N·m (26 ft. lbs.).
(5) Connect battery negative cable.

SEAT BACK - FRONT

REMOVAL

(1) Disconnect and isolate battery negative cable.
(2) Remove seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - FRONT - REMOVAL)

(3) Verify that seat back is in full upright position.
(4) Disconnect lumbar support hose, if equipped.

(Fig. 3)

(5) Remove seat back bolts and remove seat

back.

INSTALLATION

(1) Remove stop screw.
(2) Install seat back locking spline side first.

NOTE: For better centering of seat back in the
mounting bore during installation, operate the seat
back release lever once.

(3) Install the spline side seat back bolt.
(4) Install remaining seat back side.

NOTE: It may be necessary to press the guide tabs
apart slightly.

(5) Install the remaining seat back bolt.
(6) Tighten the seat back bolts to 20 N·m (15 ft.

lbs.).

(7) Place seat back in the foremost position until

the hold down spring latches audibly.

(8) Install stop bolt and tighten to 20 N·m (15 ft.

lbs.).

(9) Connect the lumbar support hose, if equipped.
(10) Check seat back operation.
(11) Install the seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - FRONT - INSTALLA-
TION)

SEAT CUSHION - FRONT

REMOVAL

(1) Disconnect and isolate battery negative cable.
(2) Move seat to the foremost position.
(3) On standard cushion equipped vehicles, remove

the front two screws. (Fig. 4)

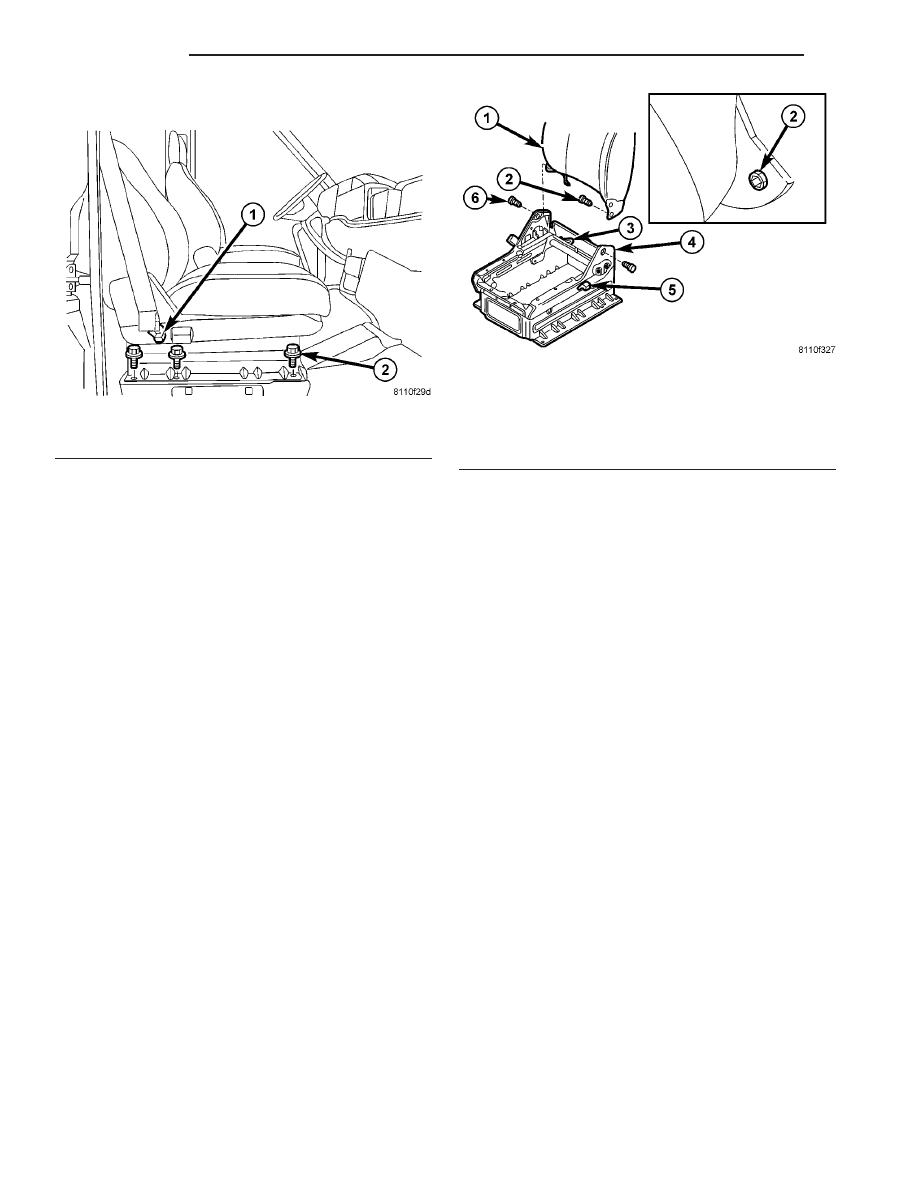

Fig. 2 FRONT SEAT

1 - SEAT BELT ANCHOR BOLT
2 - BOLTS (6)

Fig. 3 FRONT SEAT BACK

1 - SEAT BACK
2 - STOP BOLT
3 - LUMBAR SUPPORT HOSE
4 - GUIDE TAB
5 - RELEASE LEVER
6 - SEAT BACK BOLTS (2)

23 - 80

SEATS

VA

(4) On comfort seat equipped vehicles, operate the

front release lever. (Fig. 5)

(5) Slide seat cushion forward and lift off the

mounting points.

(6) Disconnect

the

electrical

connectors,

if

equipped.

INSTALLATION

(1) Connect seat cushion electrical connectors, if

equipped.

(2) Place seat cushion onto mounting points.
(3) On comfort seat equipped vehicles, slide seat

cushion to the rear until the arresting mechanism
latches audibly.

(4) On standard cushion equipped vehicles, install

the front two screws.

(5) Connect battery negative cable.

SEAT ADJUSTERS - FRONT

REMOVAL

(1) Remove the seat. (Refer to 23 - BODY/SEATS/

SEAT - FRONT - REMOVAL)

(2) Remove the seat back. (Refer to 23 - BODY/

SEATS/SEAT BACK - FRONT - REMOVAL)

(3) Remove the seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - FRONT - REMOVAL)

(4) Remove the four bolts attaching adjust to seat

track.

INSTALLATION

(1) Install the adjuster onto the seat track and

install the bolts.

(2) Install the seat back. (Refer to 23 - BODY/

SEATS/SEAT BACK - FRONT - INSTALLATION)

(3) Install the seat cushion. (Refer to 23 - BODY/

SEATS/SEAT CUSHION - FRONT - INSTALLA-
TION)

(4) Install the seat. (Refer to 23 - BODY/SEATS/

SEAT - FRONT - INSTALLATION)

SEAT - REAR

REMOVAL

(1) Turn all release levers on the legs of the appro-

priate rear seat up. (Fig. 6) and (Fig. 7)

(2) Lift seat up and out of the seat mounting

cups.

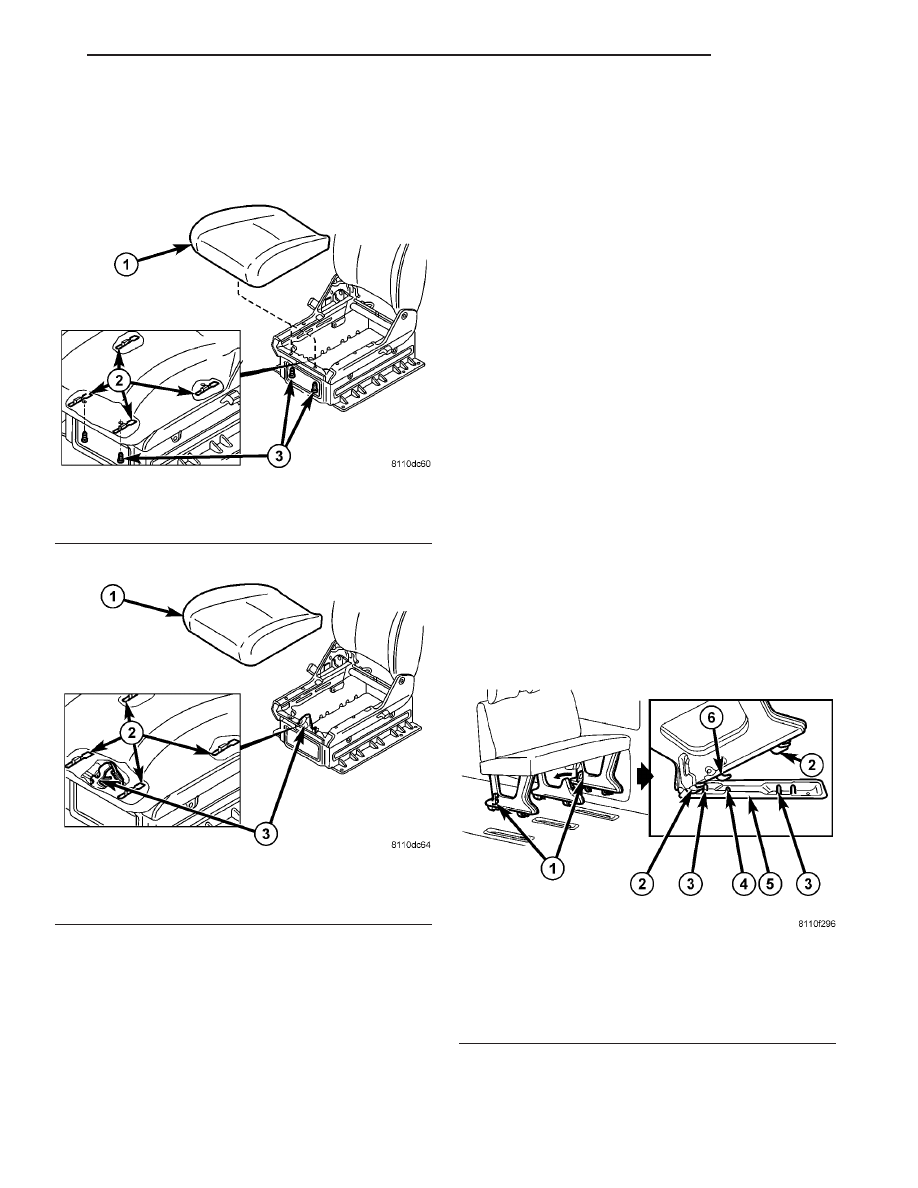

Fig. 4 STANDARD SEAT CUSHION

1 - SEAT CUSHION
2 - MOUNTING POINTS
3 - SCREWS (2)

Fig. 5 COMFORT SEAT CUSHION

1 - SEAT CUSHION
2 - MOUNTING POINTS
3 - RELEASE LEVER

Fig. 6 THREE PASSENGER BENCH

1 - RELEASE LEVERS
2 - MOUNTING LEGS
3 - RETAINING BOLT
4 - RETAINING BOLT
5 - MOUNTING CUP
6 - MOUNTING LEG

VA

SEATS

23 - 81
