C201 - BLACK (MAIN BODY SIDE)

CAV

CIRCUIT

1

-

2

16GY/DG/RD

3

16RD/BL

4

16RD/YL/WT

4

20BL/VT

5

16VT/WT

6

20BL/RD/WT

7

16BK/RD

8

16RD/YL

9

16BK/RD

10

18BK/BL

11

16YL

12

-

13

16RD

14

-

15

18RD/BK

16

-

17

-

18

-

19

-

20

-

21

-

22

-

C202 - (DASH SIDE)

CAV

CIRCUIT

1

16WT/RD

2

16WT/BL/RD

3

20BK/BL/RD

4

20BL/DG

5

-

6

18BK/DG

7

20DG/WT

8

20DG

9

-

10

-

11

20YL

12

-

8W - 80 - 16

8W-80 CONNECTOR PIN-OUTS

VA

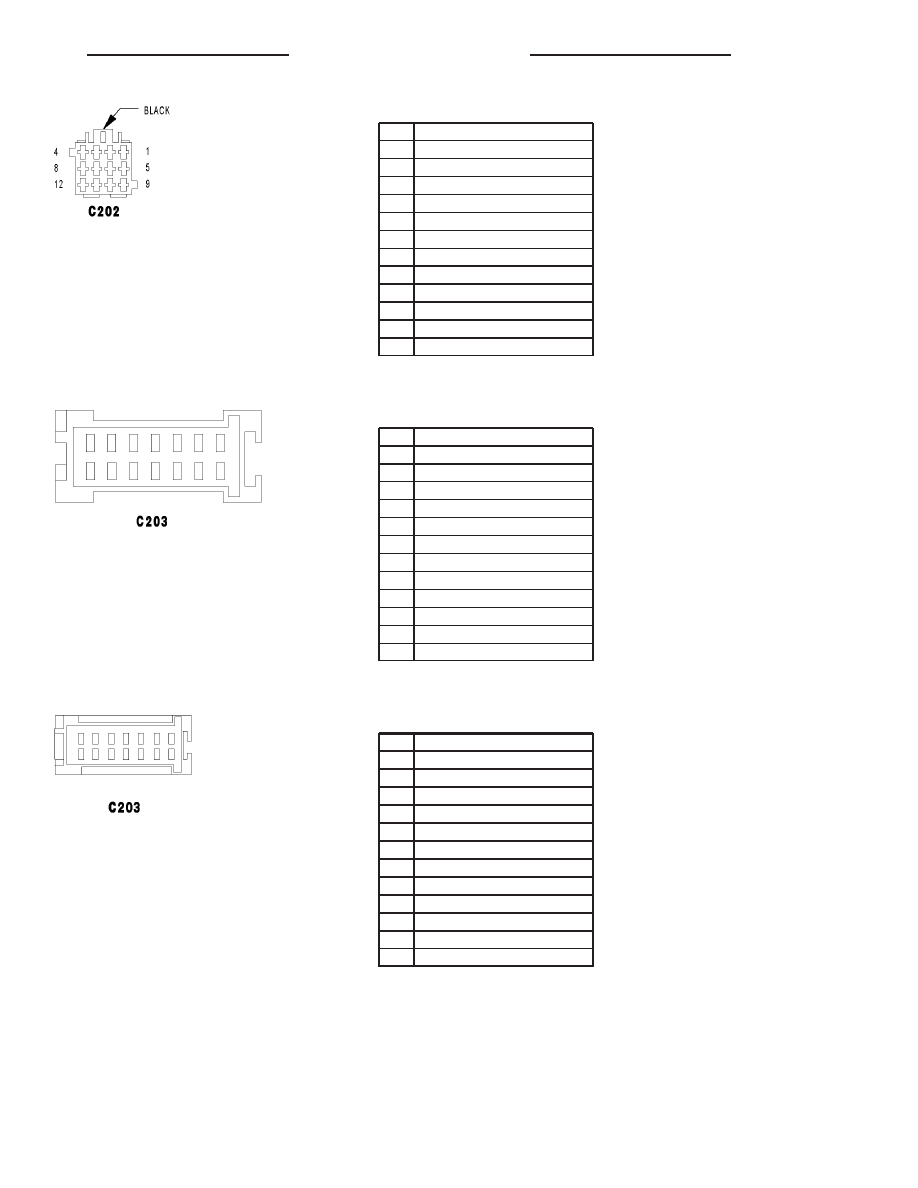

C202 - BLACK (MAIN BODY SIDE)

CAV

CIRCUIT

1

16WT/RD

2

16WT/BL/RD

3

20BK/BL/RD

4

20BL/DG

5

-

6

18BK/DG

7

20DG/WT

8

20DG

9

-

10

-

11

20YL

12

-

C203 - (DASH SIDE)

CAV

CIRCUIT

1

18GY/YL

2

18GY/BR

3

18GY/WT

4

-

5

-

6

-

7

-

8

-

9

-

10

18VT/DG

11

16RD

12

-

C203 - BLACK (MAIN BODY SIDE)

CAV

CIRCUIT

1

18GY/YL

2

18GY/BR

3

18GY/WT

4

-

5

-

6

-

7

-

8

-

9

-

10

18VT/DG

11

16RD

12

-

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 17

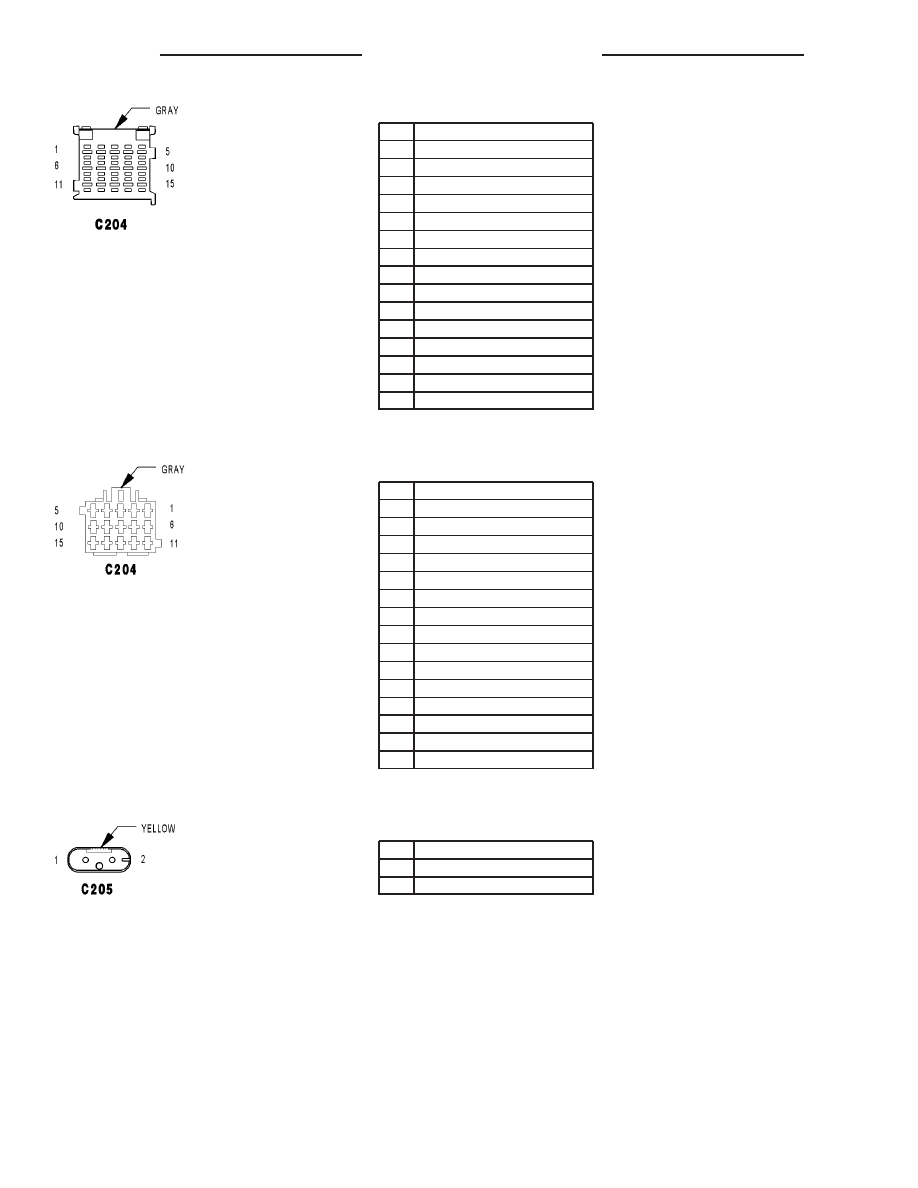

C204 - GRAY (DASH SIDE)

CAV

CIRCUIT

1

18BK/RD

2

18BK/YL

3

20DG/WT

4

20DG

5

18DG/RD

6

18BR/VT

7

16BL

8

16BL/YL

9

16BL/DG

10

18BR/BL

11

20BR/RD

12

20RD/BL

13

16RD/BK

14

14BK/VT

15

16RD

C204 - GRAY (MAIN BODY SIDE)

CAV

CIRCUIT

1

18BK/RD

2

18BK/YL

3

20DG/WT

4

20DG

5

18DG/RD

6

18BR/VT

7

16BL

8

16BL/YL

9

16BL/DG

10

18BR/BL

11

20BR/RD

12

20RD/BL

13

16RD/BK

14

14BK/VT

15

16RD

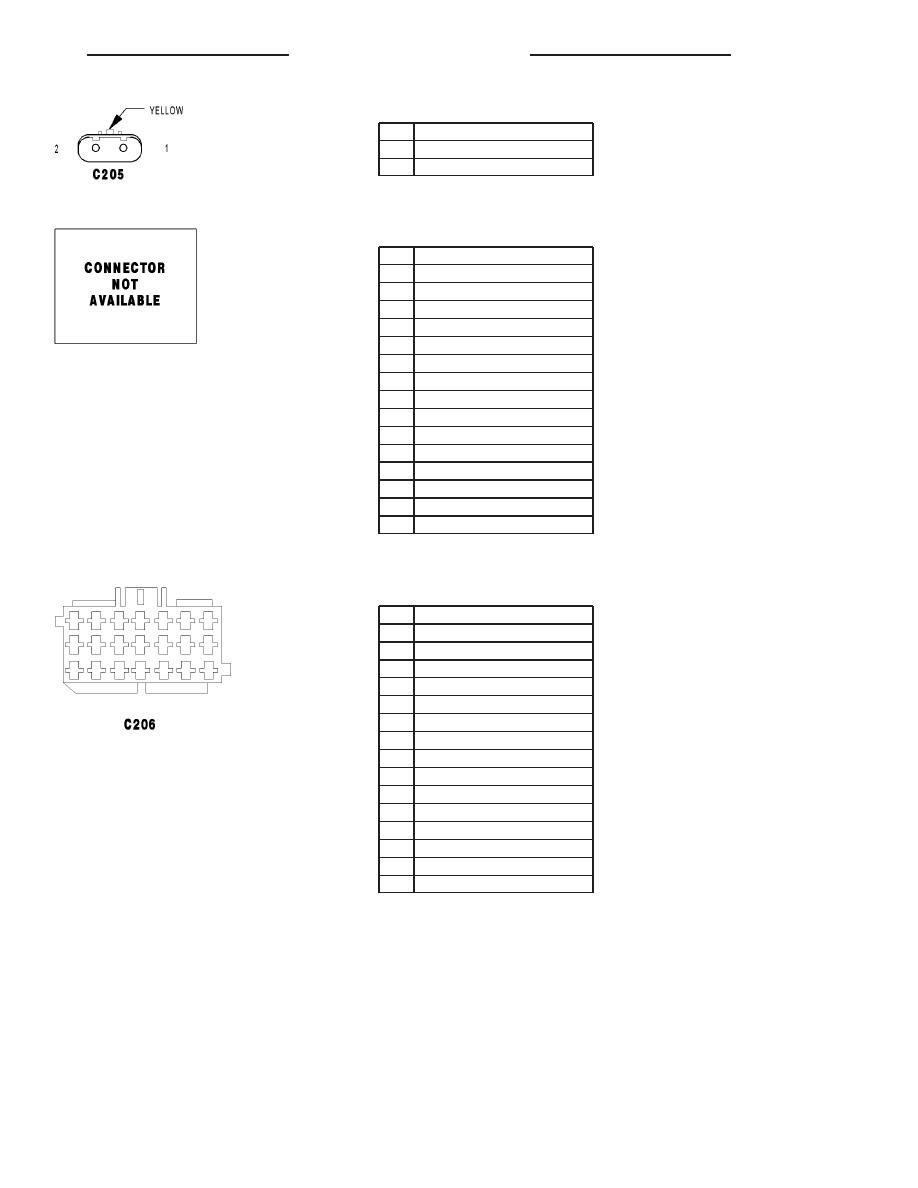

C205 - YELLOW (DASH SIDE)

CAV

CIRCUIT

1

20BL/DG

2

20BR/DG

8W - 80 - 18

8W-80 CONNECTOR PIN-OUTS

VA

C205 - YELLOW (MAIN BODY SIDE)

CAV

CIRCUIT

1

20BL/DG

2

20BR/DG

C206 - (DASH SIDE)

CAV

CIRCUIT

1

16RD

2

14BK/VT

3

16VT/DG

4

16VT/RD

5

16VT/YL

6

16VT/BK

7

16VT/BR

8

16VT

10

16BK/RD

11

18BR/WT

15

16BK/BL/WT

18

16VT/YL

19

16VT/BL

20

18RD/BK/WT

21

18BK/BL

C206 - (MAIN BODY SIDE)

CAV

CIRCUIT

1

16BK/BL/WT

2

14BK/VT

3

16VT/DG

4

16VT/RD

5

16VT/YL

6

16VT/BK

7

16VT/BR

8

16VT

10

16BK/RD

11

18BR/WT

15

16BK/BL/WT

18

16VT/YL

19

16VT/BL

20

16RD/BK/WT

21

18BK/BL

VA

8W-80 CONNECTOR PIN-OUTS
