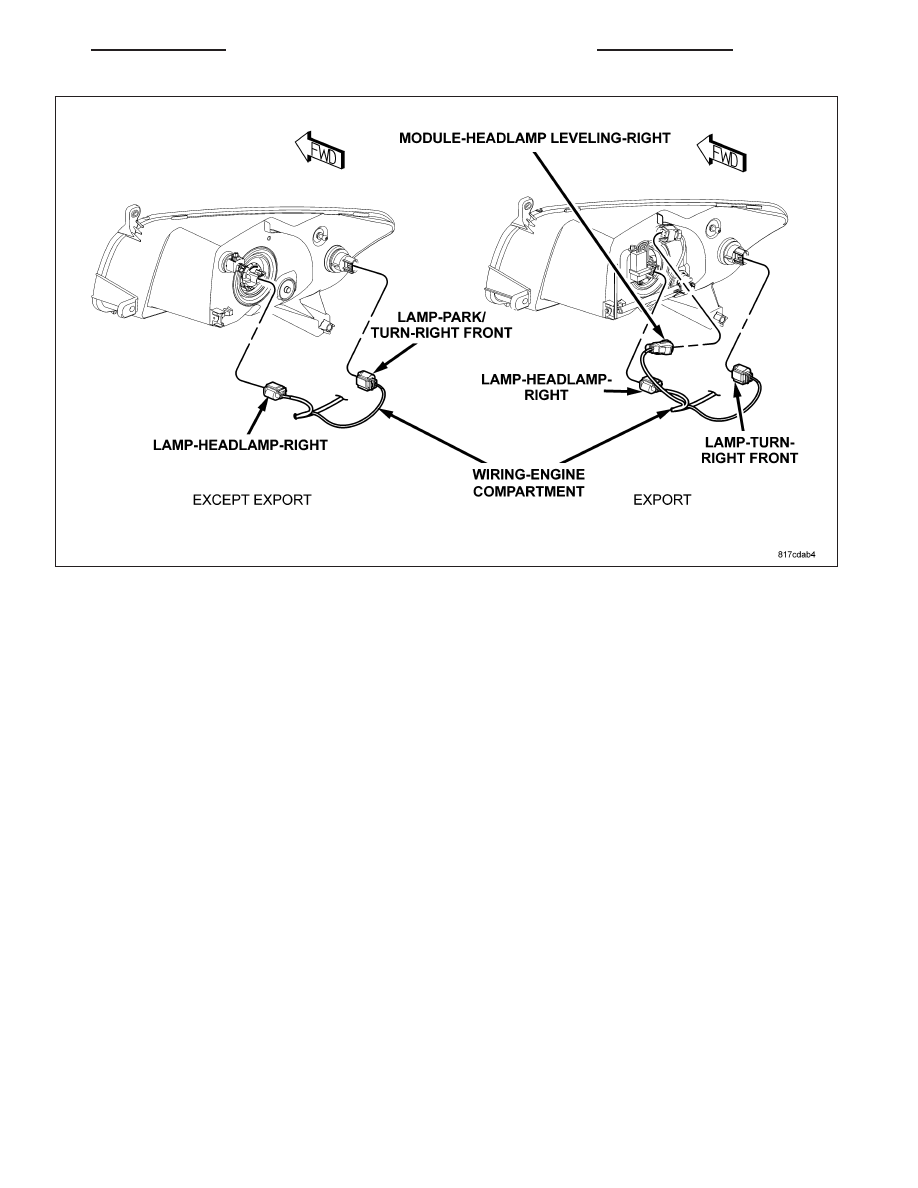

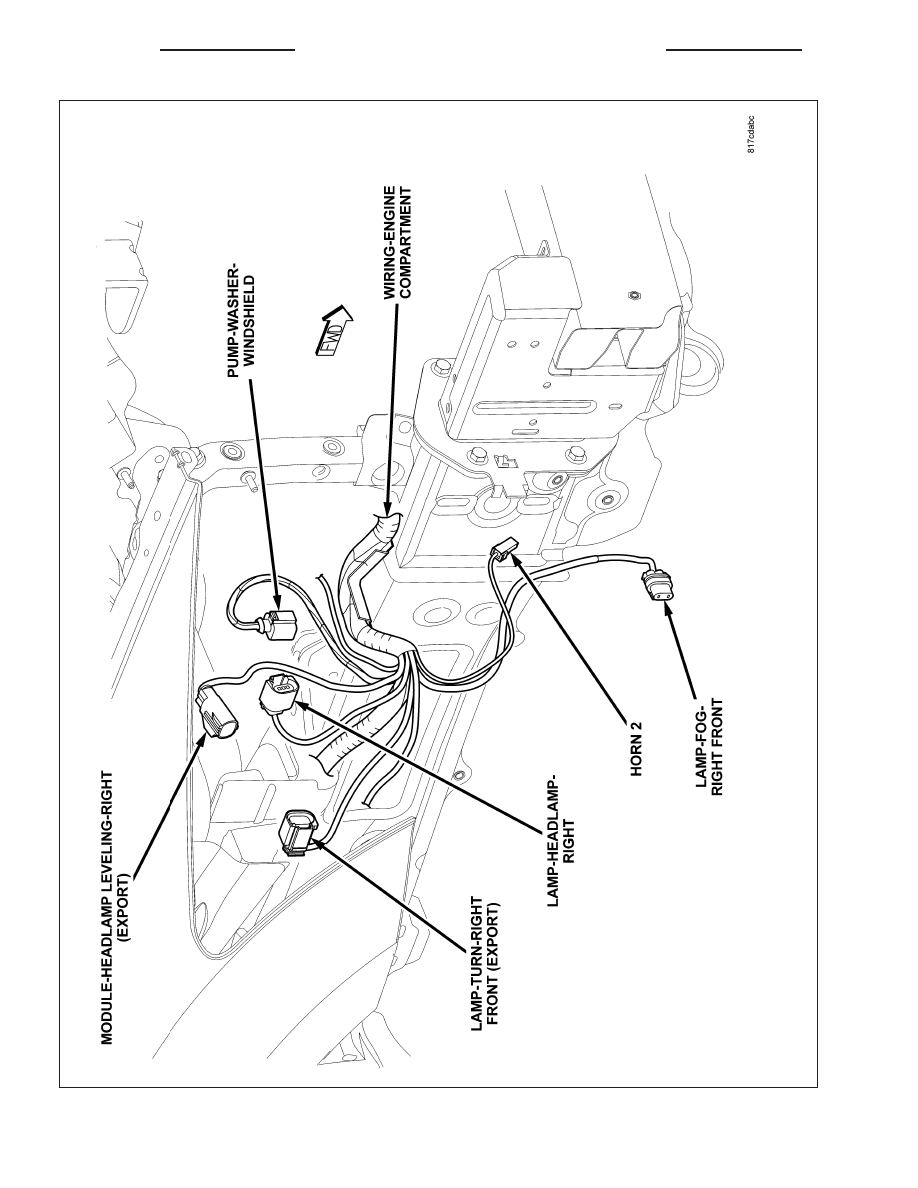

Dodge Caliber. Manual - part 660
SPLICE
LOCATION
FIG.
S106
Left Front of Engine
14
S107
Left Front of Engine
14
S108 (Diesel)
Left Front of Engine
18
S109
Powertrain Harness
N/S
S110
Powertrain Harness
N/S
S111
Powertrain Harness
N/S
S112
Powertrain Harness
N/S
S113
Near Battery
N/S
S120
Top of Engine in Injector Wire Harness Trough
N/S
S121
Top Front of Transaxle
21
S150
Left Front of Engine
14, 18
S153
Left Side of Engine In T/O for Engine Control Module C2
18
S200
Below Center Console
35
S201
Center Instrument Panel
30
S202 (LHD)
Left of Instrument Panel
24
S202 (RHD)
Center of Instrument Panel
30
S203 (LHD)
Left of Instrument Panel
24
S203 (RHD)
Center of Instrument Panel
30
S204 (LHD)
Left of Instrument Panel
25
S204 (RHD)
Left of Instrument Panel
31
S205 (LHD)
Left of Instrument Panel
24
S205 (RHD)
Right of Instrument Panel
30
S206 (LHD)
Left of Instrument Panel
24
S206 (RHD)
Center of Instrument Pane
30
S207
Left of Instrument Panel
24, 31
S208 (LHD)
Left of Instrument Panel
24
S208 (RHD)
Right of Instrument Panel
30
S209
Left of Instrument Panel
24, 31
S214
Lower Center of Instrument Panel
30, 35
S216 (LHD)
Left of Instrument Panel
24
S216 (RHD)
Right of Instrument Panel
30
S217
In Cluster T/O
29
S220
Left Side of Instrument Panel
24
S225 (LHD)
Right Side of Steering Wheel
34
S300
Left Side Body Below B-Pillar
48
S301 (LHD)
Body Harness Below Right Side of Instrument Panel
45
S301 (RHD)
Body Harness Below Left Side of Instrument Panel
46
S302 (LHD)
Body Harness Below Right Side of Instrument Panel
45
S302 (RHD)
Body Harness Below Left Side of Instrument Panel
46
S303
Left Front Fender
13
S304
Rear of Left Front Fender
13
S305
Body Harness Near Left Side Instrument Panel
44
S306
Left Side Body Below Front Door Opening
48
S307
Body Harness Below Left Side Instrument Panel
44, 46
S308
Left Side Body Below Front Door Opening
48
S309
Body Harness Below Center of Instrument Panel
45
PM
8W-91 CONNECTOR/GROUND/SPLICE LOCATION
8W - 91 - 11
