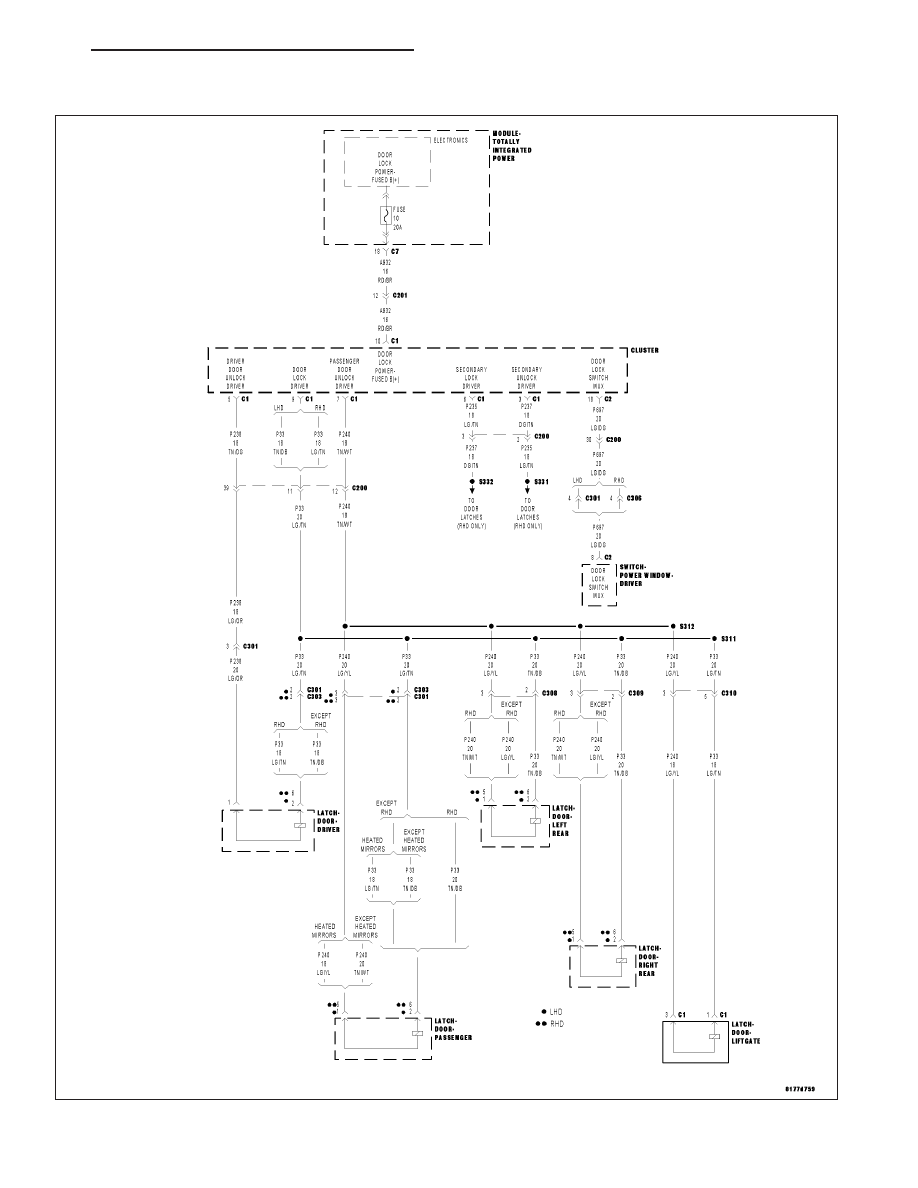

*ALL DOORS FAIL TO LOCK AND UNLOCK

For a complete wiring diagram Refer to Section 8W.

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 29

Possible Causes

DTC’s PRESENT

TIPM FUSE NUMBER 10 OPEN

(P33) DOOR LOCK DRIVER WIRE OPEN

(A932) FUSED B+ CIRCUIT OPEN

INSTRUMENT CLUSTER

Theory of Operation

This test does not cover a secondary latch problem on a right hand drive vehicle.

Diagnostic Test

1.

TEST FOR DIAGNOSTIC TROUBLE CODES

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Driver Door Lock Switch in all positions several times.

Cycle the ignition from on to off and wait for five seconds.

Turn the ignition on.

With the scan tool, read the active DTC’s.

Does the scan tool display any Power Door Lock related DTC’s?

No

>> Go To 2

Yes

>> Refer to the Table of Contents in this section to diagnose and repair the DTC’s.

2.

TIPM FUSE NUMBER 10 OPEN

Using a test light connected to ground, check both sides of the TIPM
fuse number 10.

Does the test light illuminate brightly on both sides of the
fuse?

No

>> Repair the open circuit as necessary. If the fuse is blown,

replace it and try the locks. If it blows again, use the sche-
matics and locate and repair the short circuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

Yes

>> Go To 3

8N - 30

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM

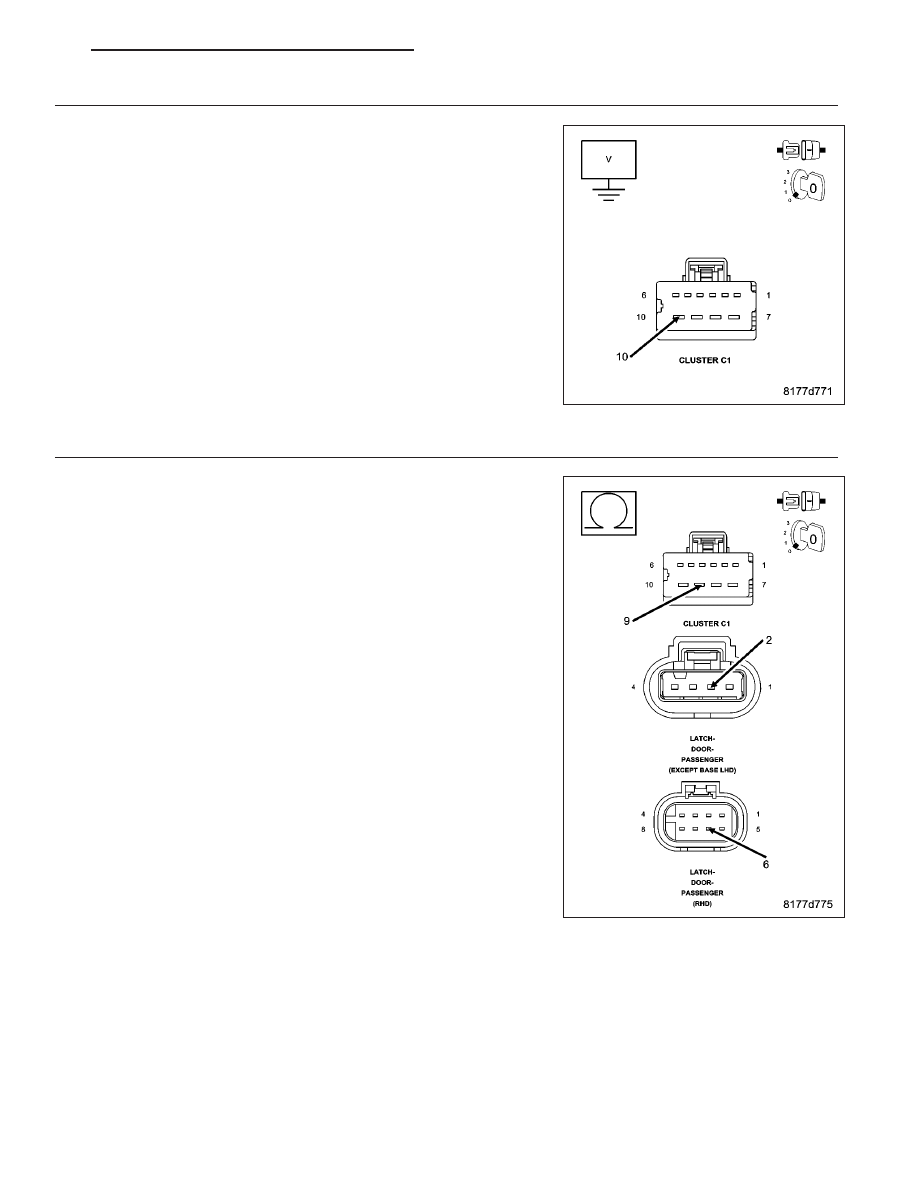

3.

(A 932) FUSED B+ CIRCUIT OPEN

Disconnect the Instrument Cluster C1 connector.

Measure the voltage of the (A932) Fused B+ circuit in the Cluster C1
connector.

Is the voltage above 11.0 volts?

Yes

>> Go To 4

No

>> Repair the (A932) Fused B+ circuit for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

4.

(P33) DOOR LOCK DRIVER WIRE OPEN

Disconnect any Door Latch Connector.

Measure the resistance of the (P33) Door Lock Driver wire between the
Cluster C1 connector and the door latch connector.

Is the resistance below 5.0 ohms?

Yes

>> Replace the Instrument Cluster in accordance with service

information.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

No

>> Repair the (P33) Door Lock Driver wire for an open.

Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 -
ELECTRICAL/POWER LOCKS - DIAGNOSIS AND TEST-
ING)

PM

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 31

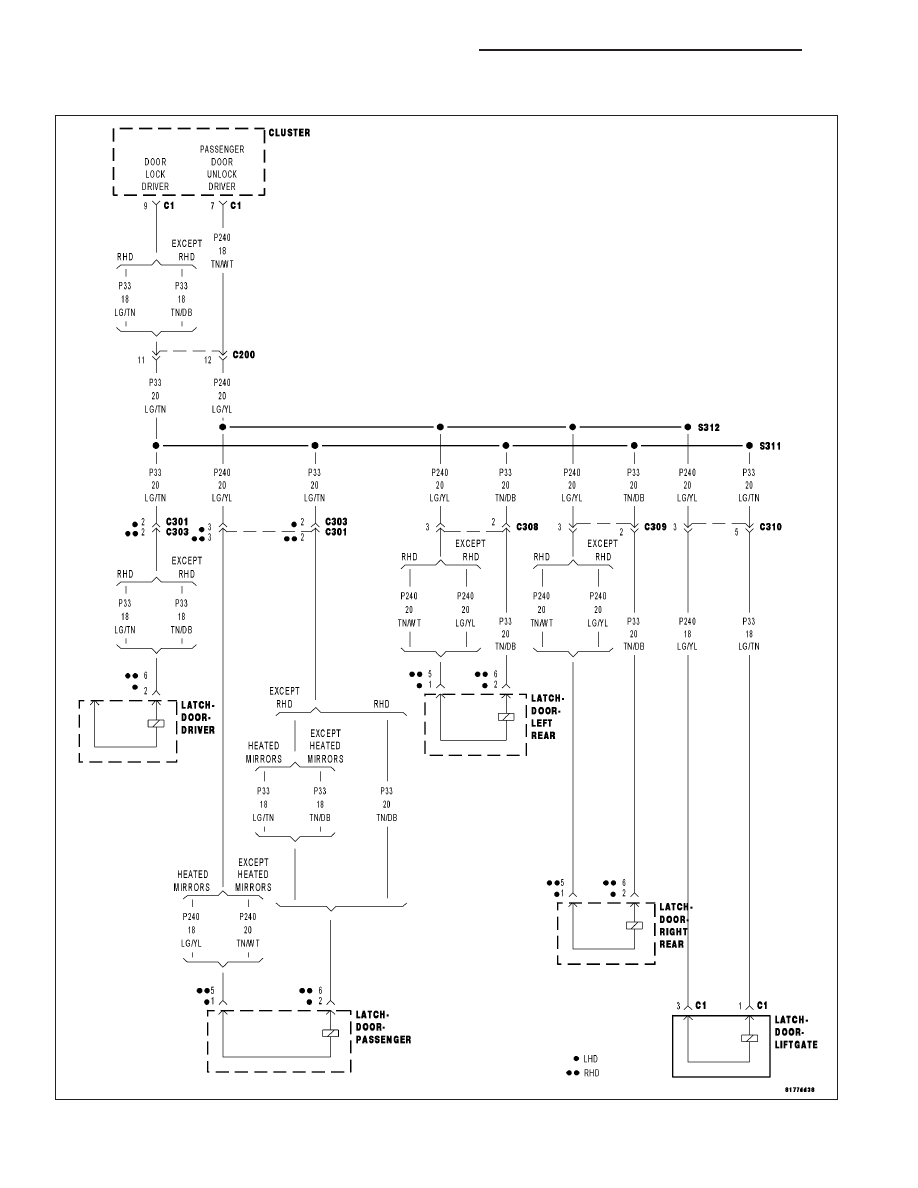

*ALL PASSENGER DOORS FAIL TO LOCK AND UNLOCK

For a complete wiring diagram Refer to Section 8W.

8N - 32

POWER LOCKS - ELECTRICAL DIAGNOSTICS

PM
