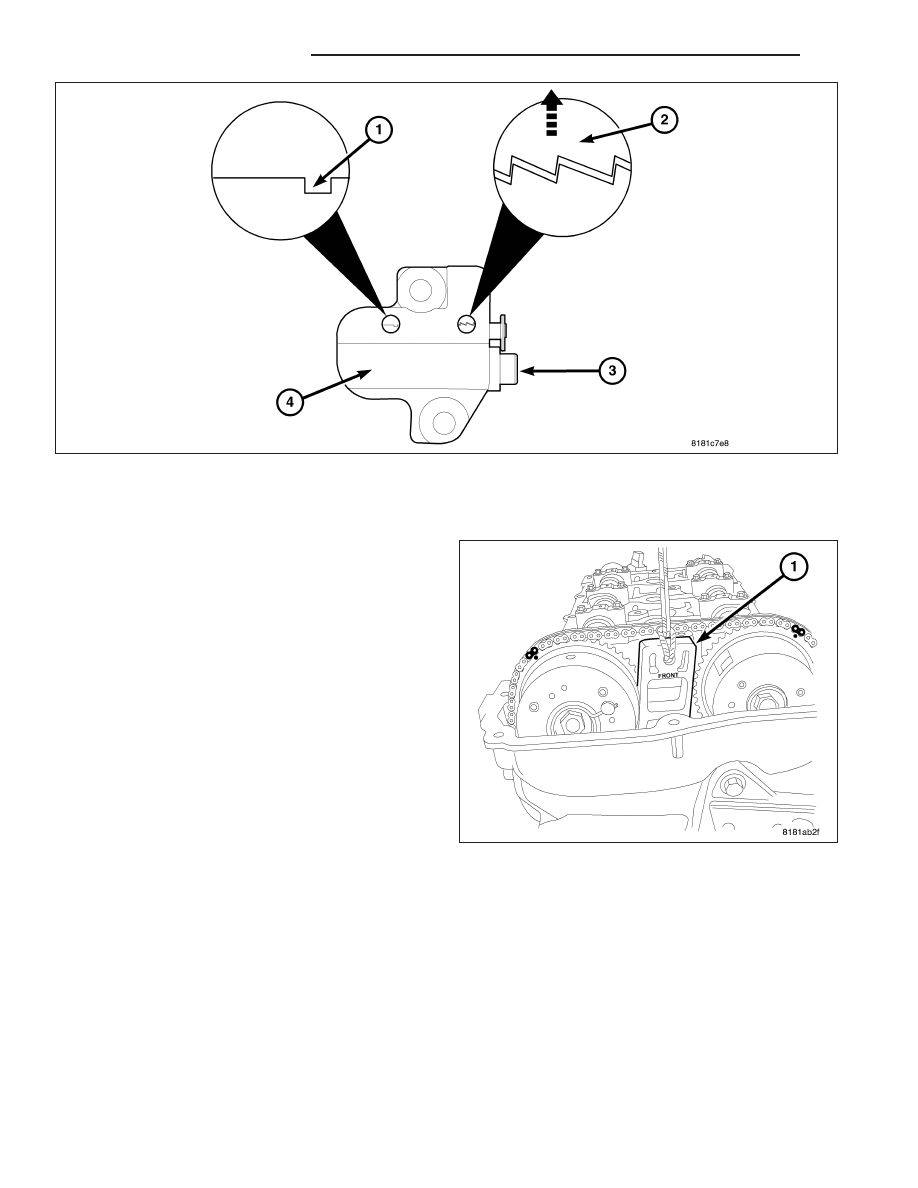

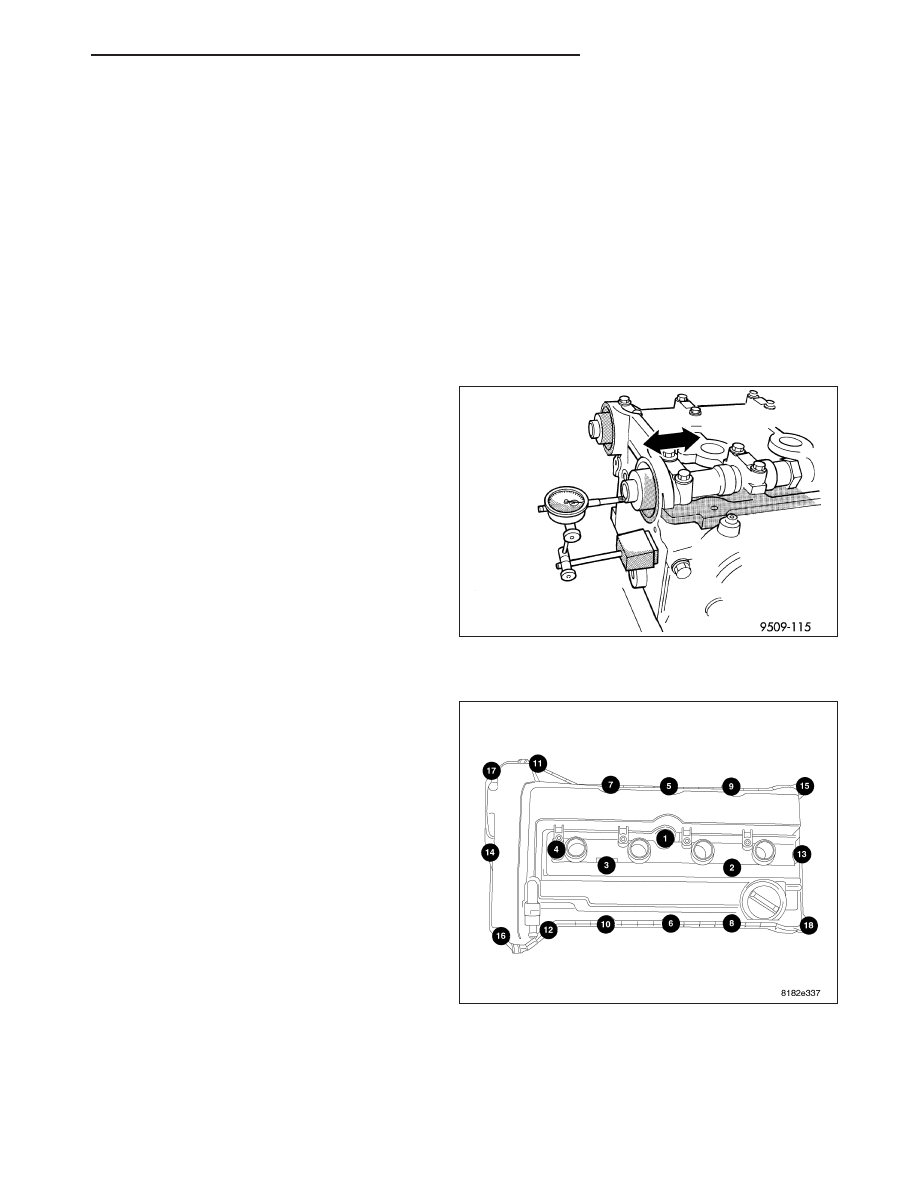

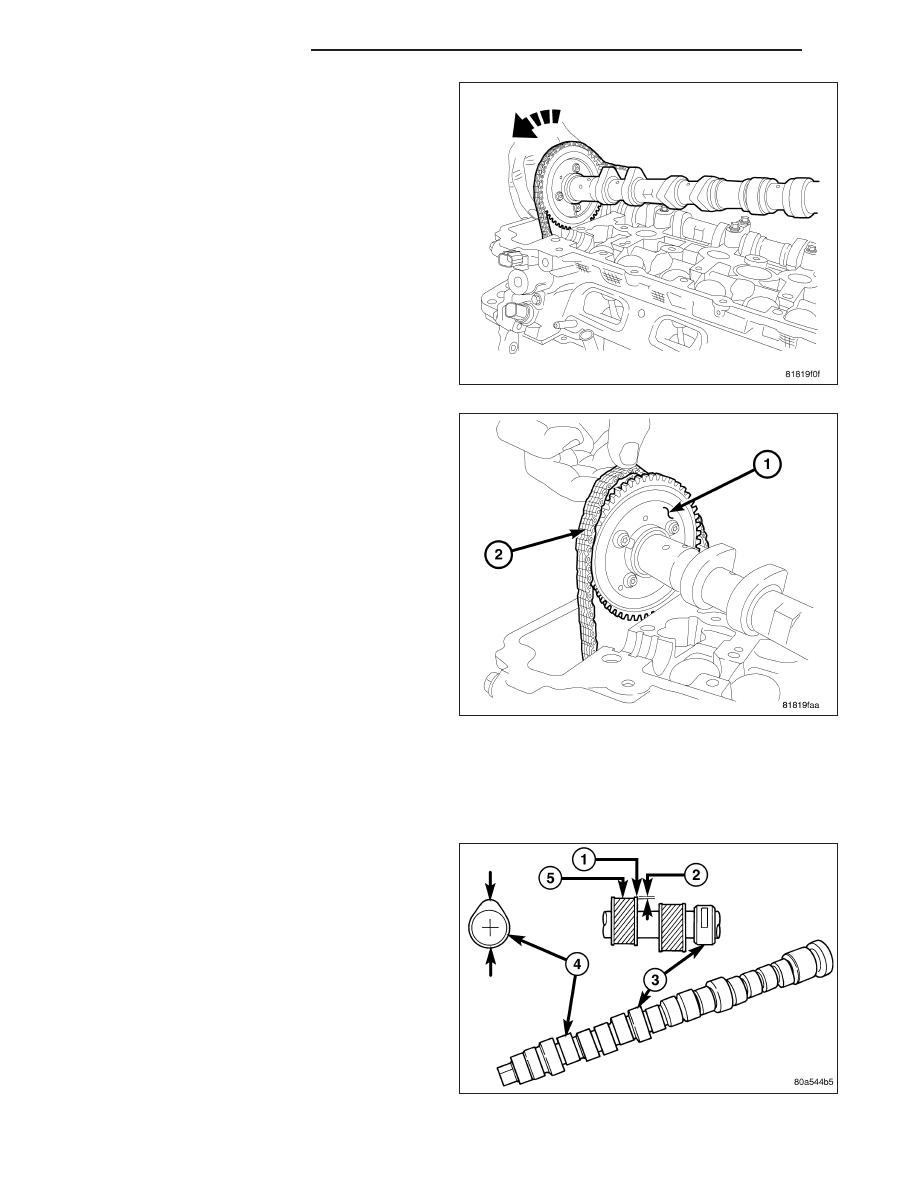

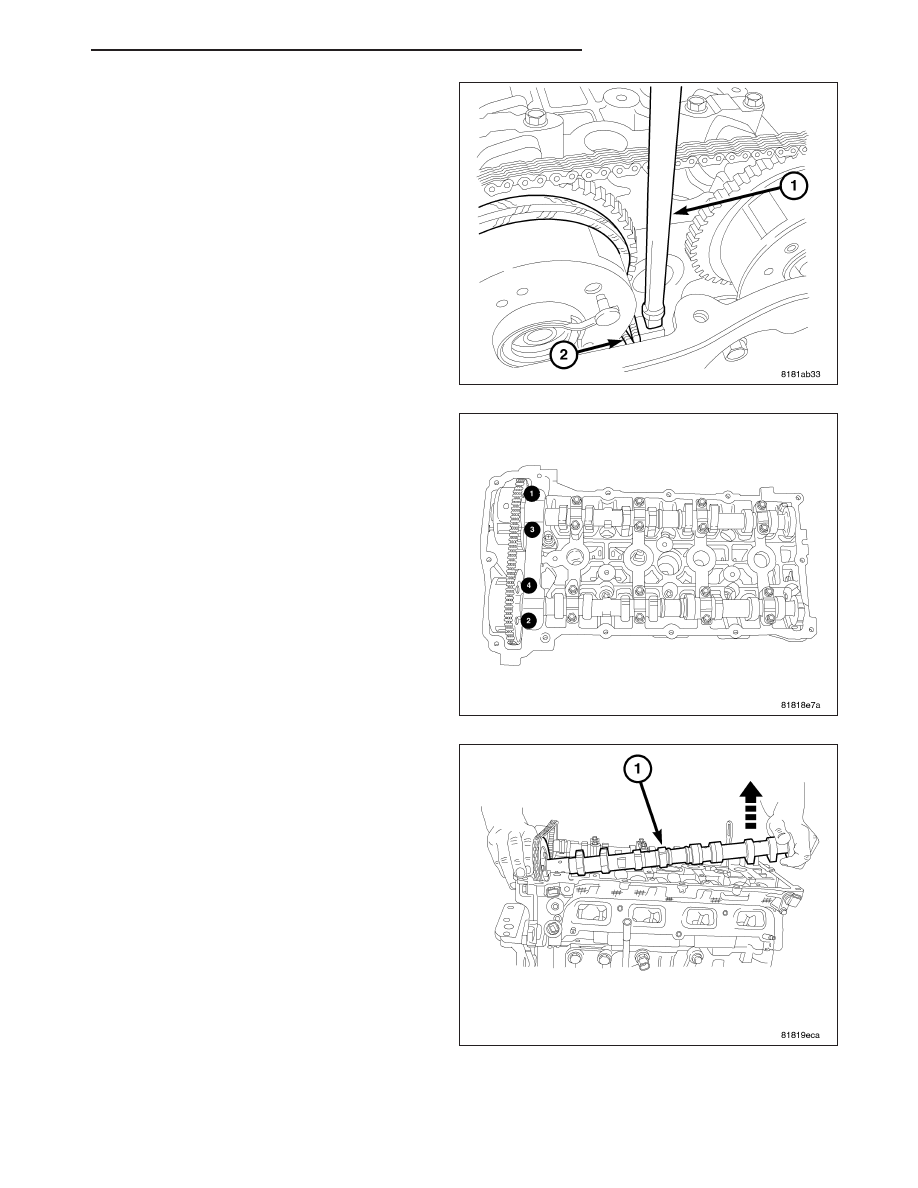

CAMSHAFT(S) DESCRIPTION Both camshafts have six bearing journal surfaces and two cam lobes per cylinder. Flanges on the third journal con- OPERATION The camshaft is driven by the crankshaft via drive sprockets and a chain. The camshaft has precisely machined STANDARD PROCEDURE MEASURING CAMSHAFT END PLAY 1. Using a suitable tool, move camshaft as far rear- ward as it will go. 2. Zero dial indicator. 3. Move camshaft as far forward as it will go. 4. Record reading on dial indicator. For end play specification, (Refer to 9 - ENGINE - SPECIFICA- 5. If end play is excessive, check cylinder head and camshaft for wear; replace as necessary. REMOVAL 1. Remove engine cover by pulling upward. 2. Disconnect negative battery cable. 3. Remove cylinder head cover (Refer to 9 - ENGINE/ CYLINDER HEAD/CYLINDER HEAD COVER(S) - 4. Raise vehicle. 5. Remove right splash shield. PM ENGINE 2.0L WORLD 9 - 1583 |
