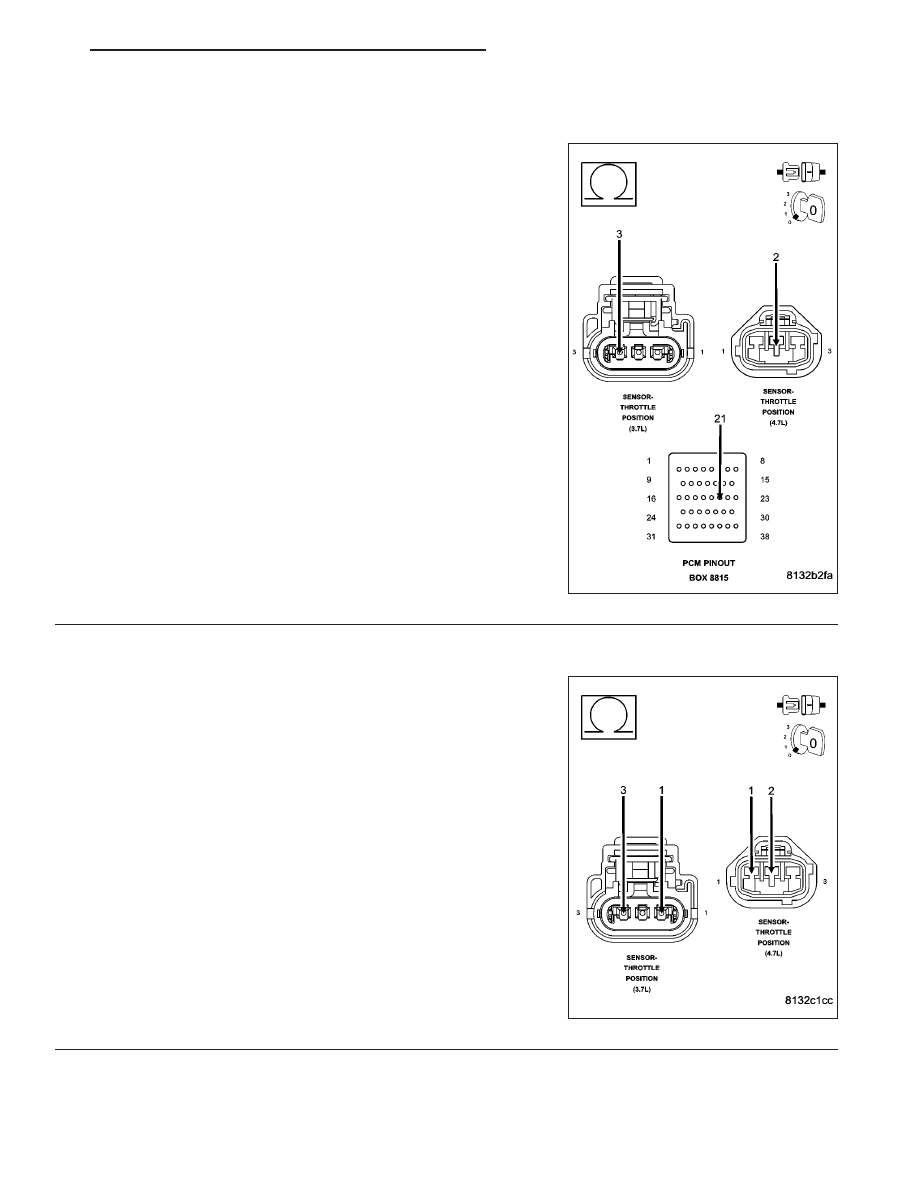

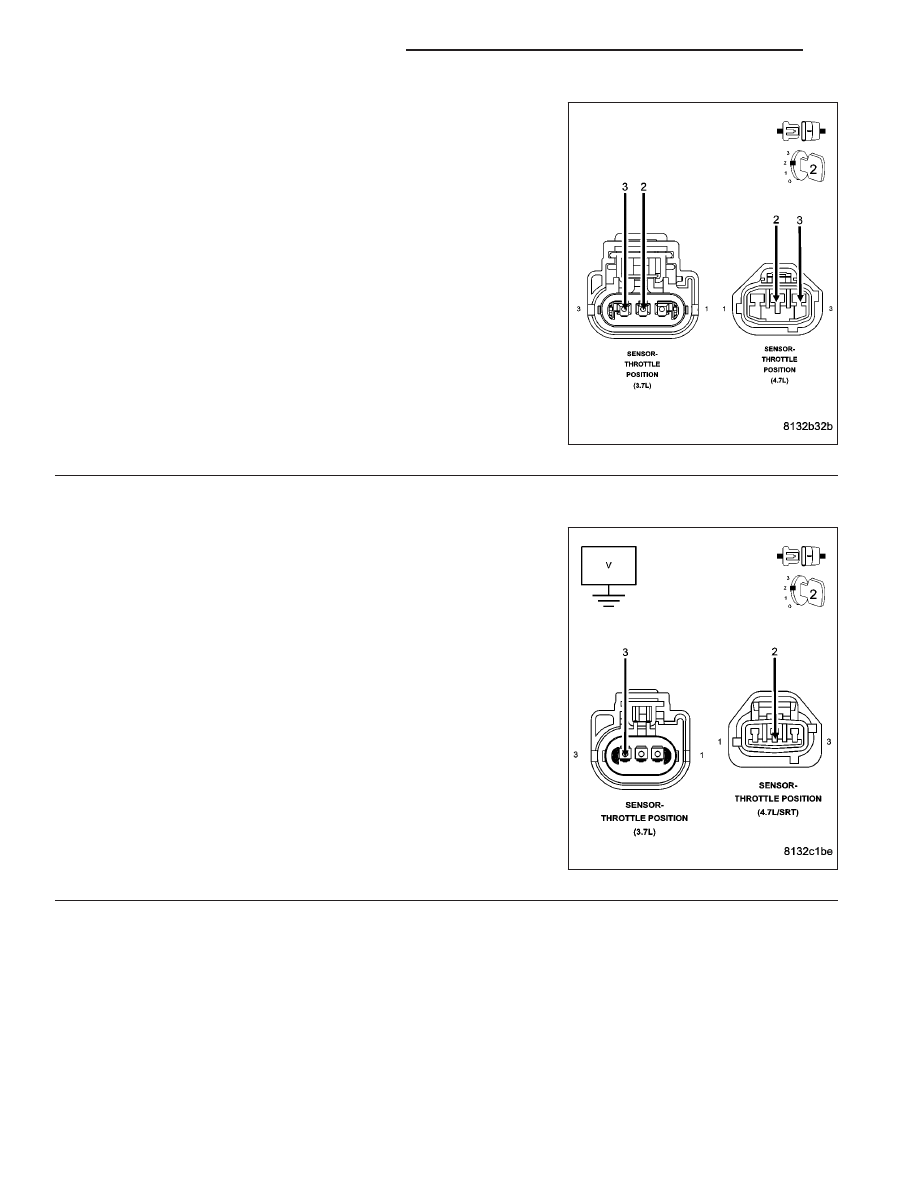

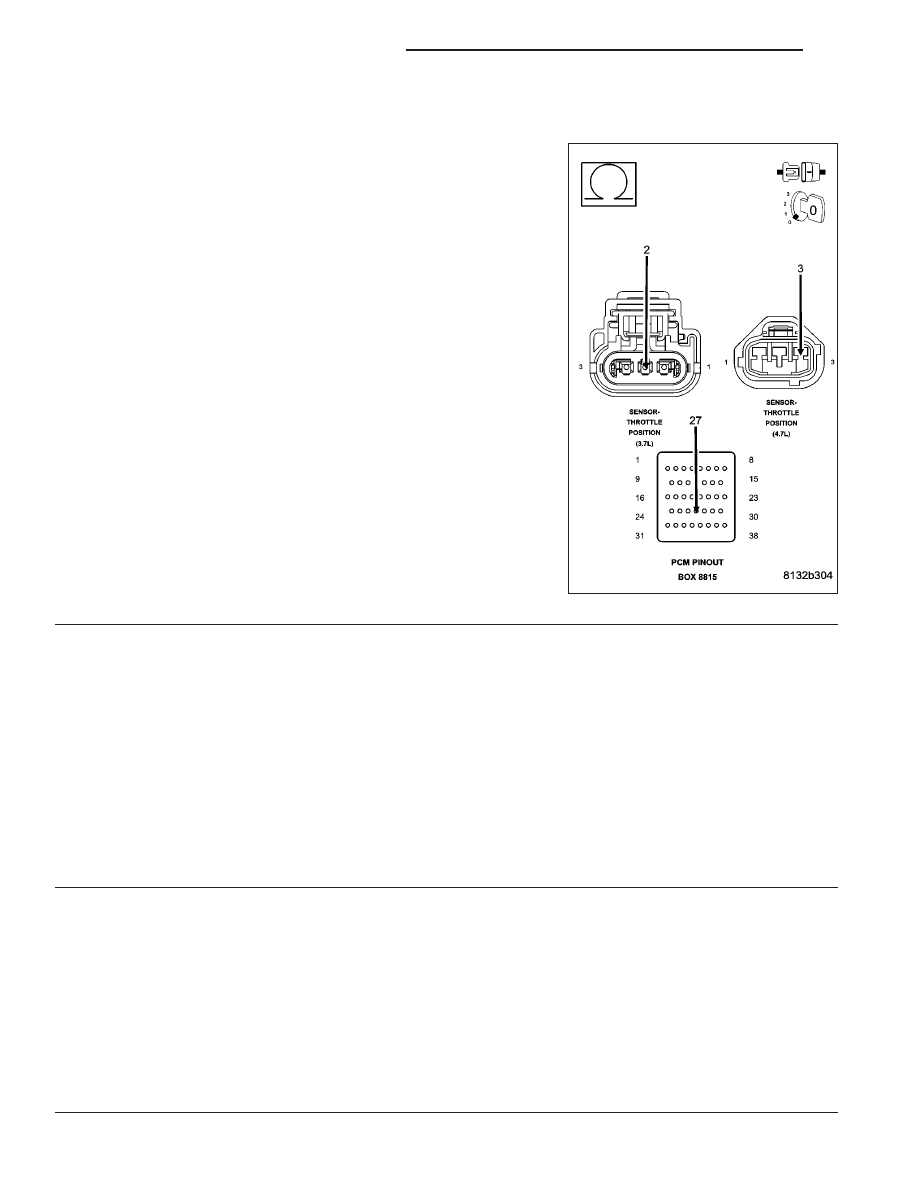

P0123-THROTTLE POSITION SENSOR 1 CIRCUIT HIGH (3.7L, 4.7L) (CONTINUED) For the Engine System Schematic circuit diagram (Refer to 9 - ENGINE - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE (K22) TP SENSOR NO.1 SIGNAL CIRCUIT OPEN (K22) TP SENSOR NO.1 SIGNAL CIRCUIT SHORTED TO THE (F855) 5-VOLT SUPPLY CIRCUIT (K900) SENSOR GROUND CIRCUIT OPEN THROTTLE POSITION SENSOR PCM Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - Diagnostic Test 1. TP SENSOR VOLTAGE ABOVE 4.5 VOLTS NOTE: Make sure the throttle is fully closed and free from binding or carbon build up. With a scan tool, read the TP Sensor voltage. Is the voltage above 4.5 volts? Yes >> Go To 2 No >> Go To 8 HB ENGINE ELECTRICAL DIAGNOSTICS 9 - 131 |
