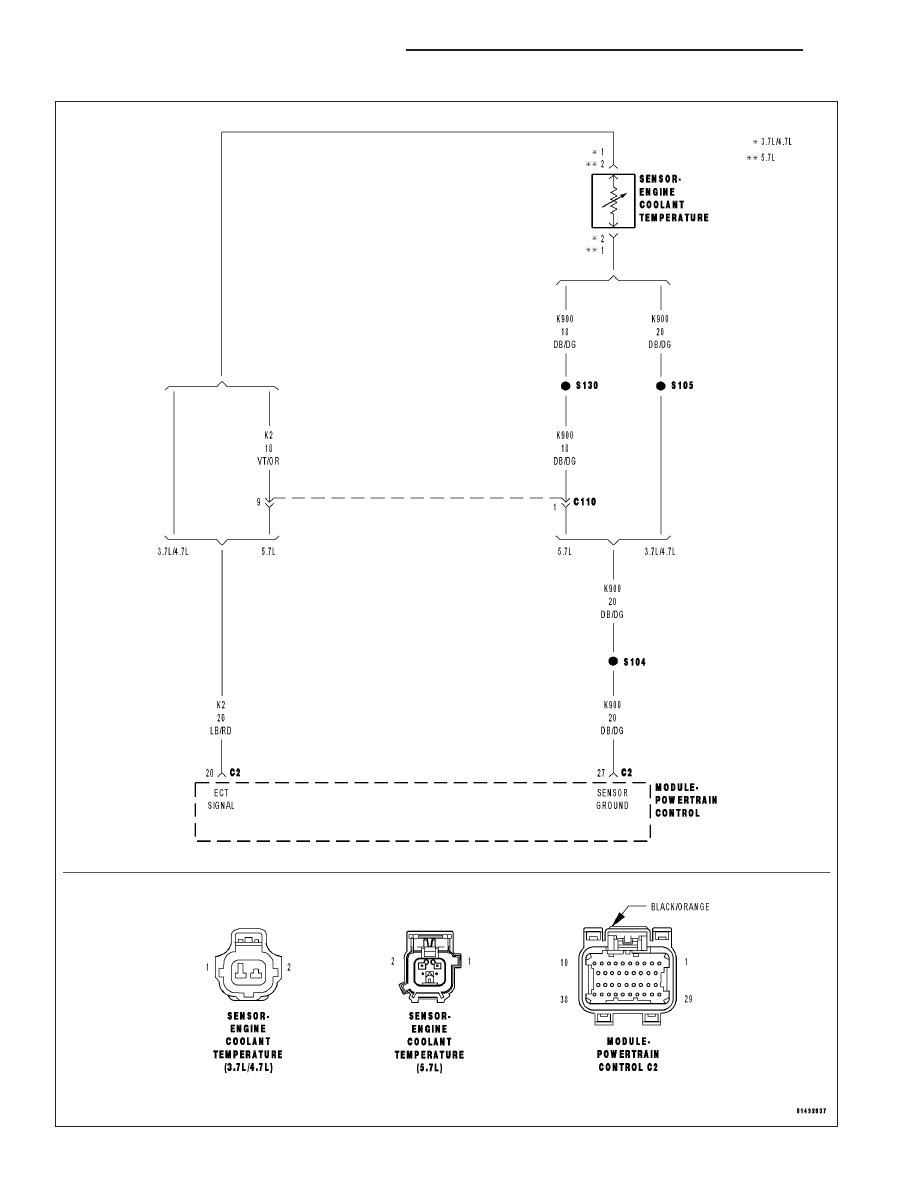

P0116–ENGINE COOLANT TEMPERATURE SENSOR CIRCUIT PERFORMANCE (CONTINUED) 7. (K2) ECT SIGNAL CIRCUIT SHORTED TO GROUND Turn the ignition off. Disconnect the C2 PCM harness connector. Measure the resistance between ground and the (K2) ECT Signal cir- Is the resistance below 100 ohms? Yes >> Repair the short to ground in the (K2) ECT Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 8 8. (K2) ECT SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND CIRCUIT Measure the resistance between the (K2) ECT Signal circuit and the Is the resistance below 5.0 ohms? Yes >> Repair the short between the (K900) Sensor ground circuit and the (K2) ECT Signal circuit. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 9 9. PCM NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal Were there any problems found? Yes >> Repair as necessary. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) No >> Replace and program the Powertrain Control Module per Service Information. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) HB ENGINE ELECTRICAL DIAGNOSTICS 9 - 103 |
