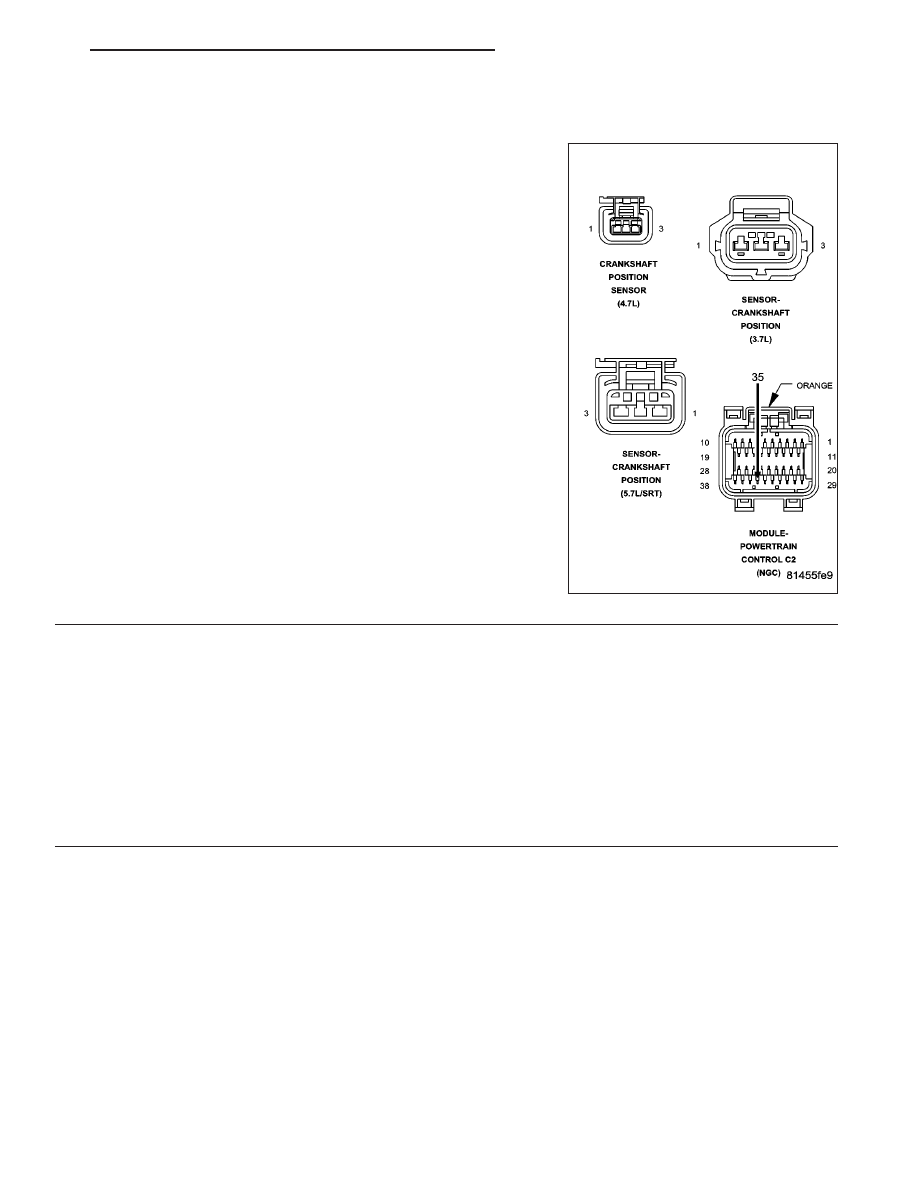

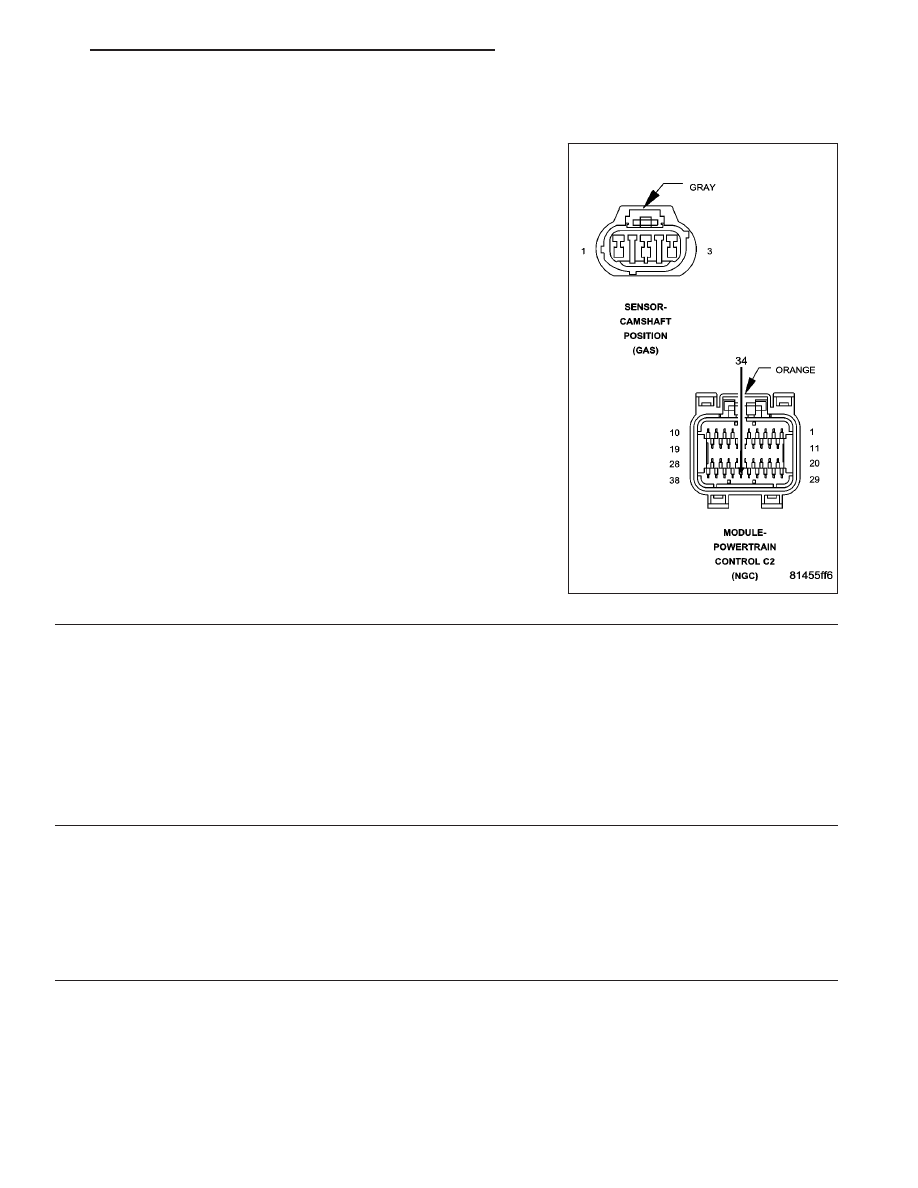

P0016–CRANKSHAFT / CAMSHAFT TIMING MISALIGNMENT (CONTINUED) 3. CMP WIRE HARNESS INSPECTION Turn the ignition off. Visually inspect the related wire harness. Look for any chafed, pierced, Visually inspect the related wire harness connectors. Look for broken, Make sure the Crankshaft Position Sensor and the Camshaft Position Refer to any TSBs that may apply. Were any of the above conditions present? Yes >> Repair as necessary. Perform the POWERTRAIN VERIFICATION TEST. (Refer No >> Go To 4 4. TONE WHEEL/PULSE RING INSPECTION Remove the Camshaft Position Sensor. Inspect the Tone Wheel/Pulse Ring for damage, foreign material, or excessive movement. Were any problems found? Yes >> Repair or replace the Tone Wheel/Pulse Ring as necessary. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) No >> Go To 5 5. CAMSHAFT POSITION SENSOR If there are no possible causes remaining, view repair. Repair Replace the Camshaft Position Sensor. Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE) HB ENGINE ELECTRICAL DIAGNOSTICS 9 - 11 |
