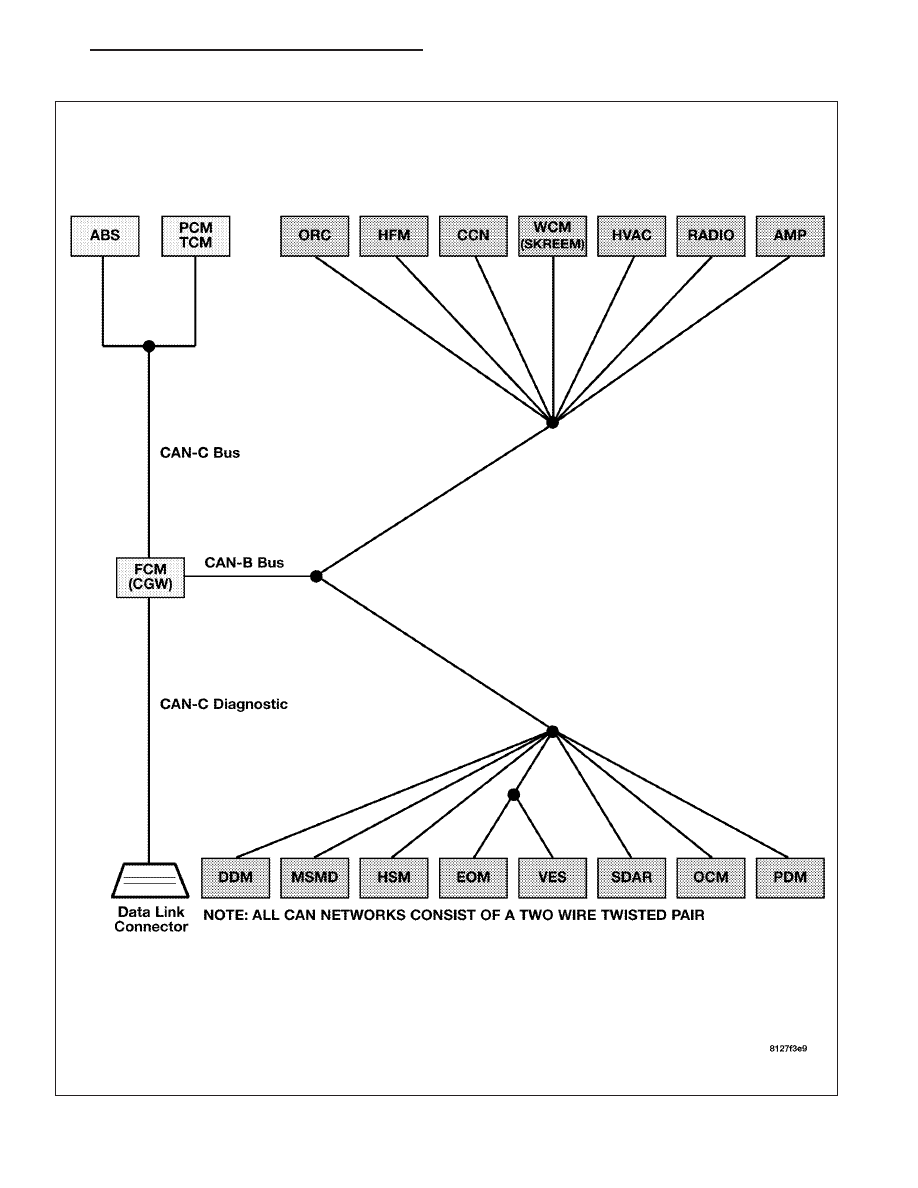

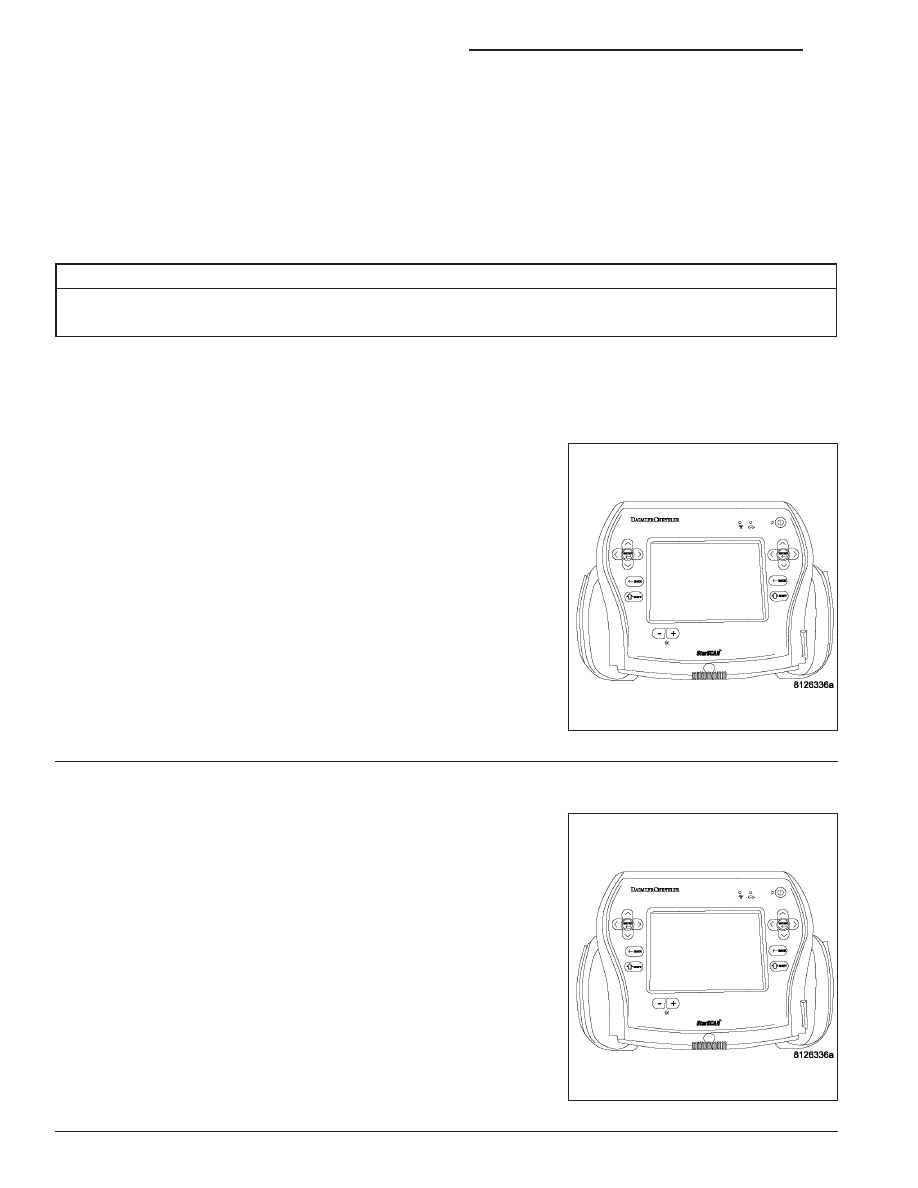

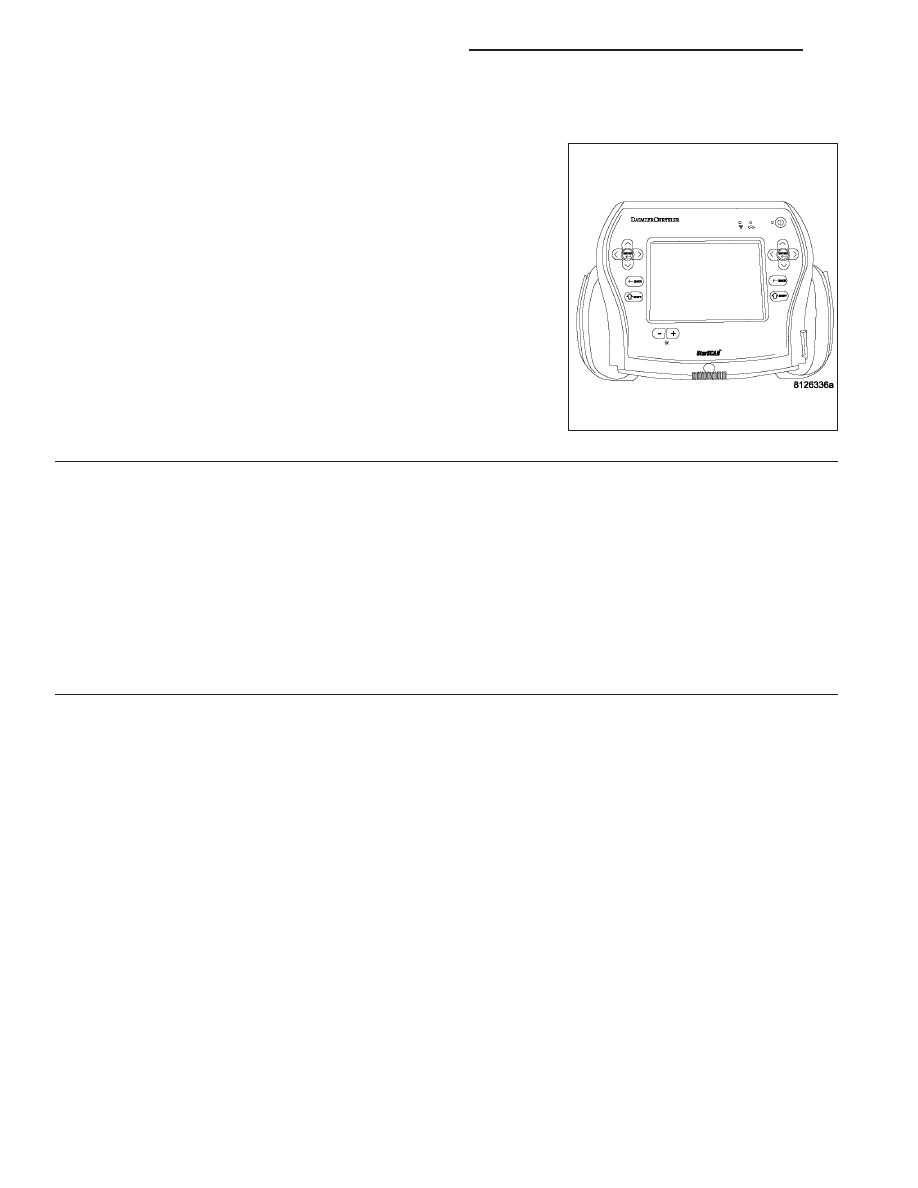

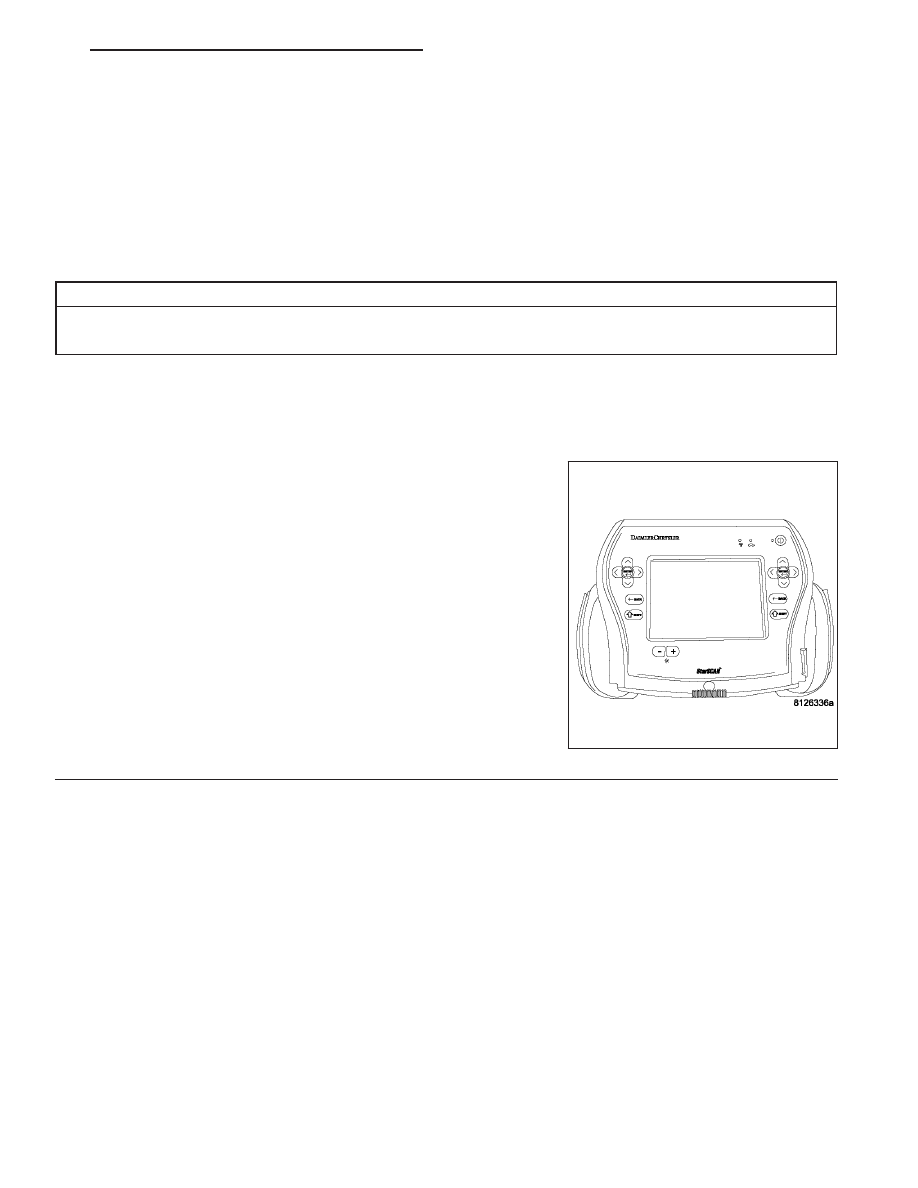

B223B-VEHICLE CONFIGURATION MISMATCH (CONTINUED) For the Airbag circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIAGRAMS). For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes INCORRECT PCM OCCUPANT RESTRAINT CONTROLLER Diagnostic Test 1. VERIFY THAT DTC B223B-VEHICLE CONFIGURATION MISMATCH IS ACTIVE Turn the ignition on. With the scan tool, read ORC DTCs. NOTE: Ensure the battery is fully charged. NOTE: When reconnecting Airbag system components, the igni- Does the scan tool display active: B223B-VEHICLE CONFIGU- Yes >> Go To 2 No >> If the DTC is stored, check for an intermittent condition. Visually inspect the related wiring harness connectors. Perform the ORC VERIFICATION TEST-VER. 1 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 377 |
