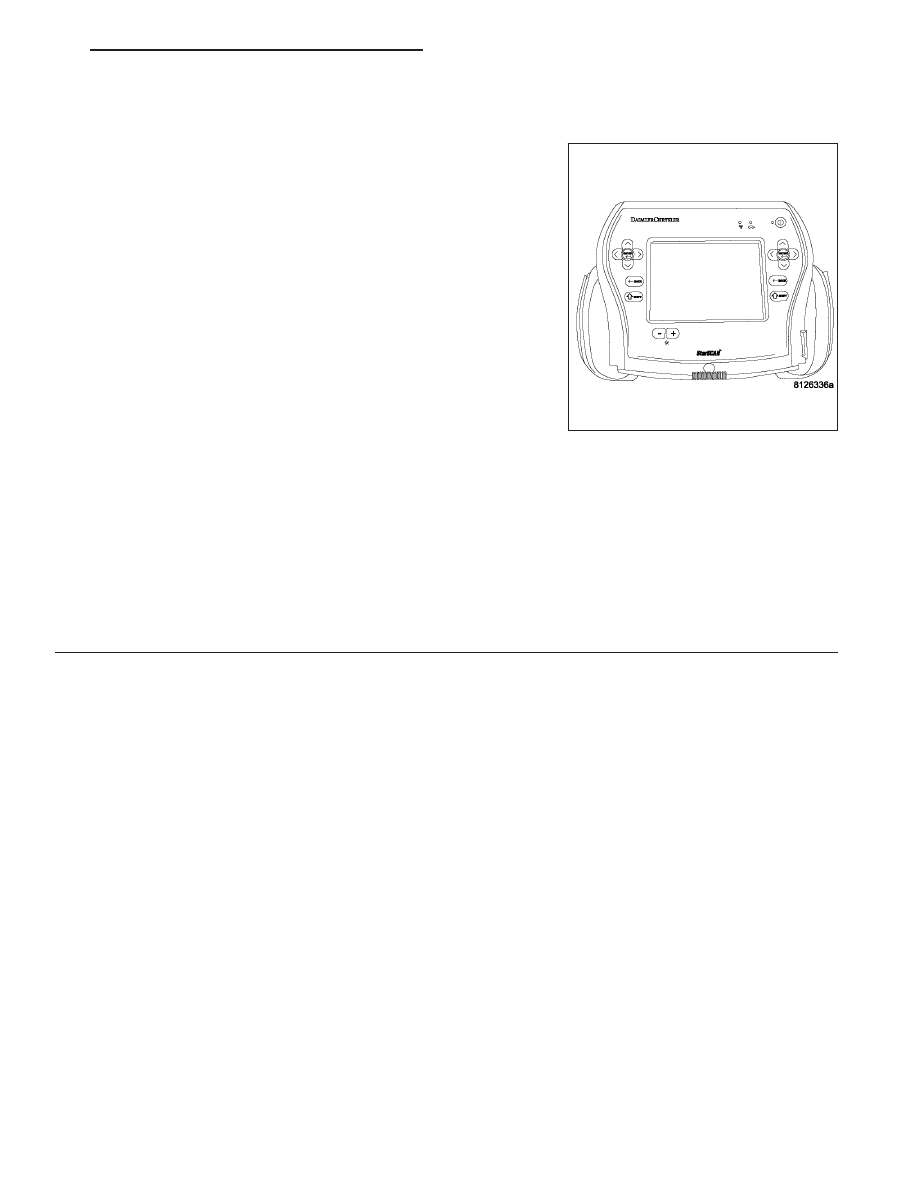

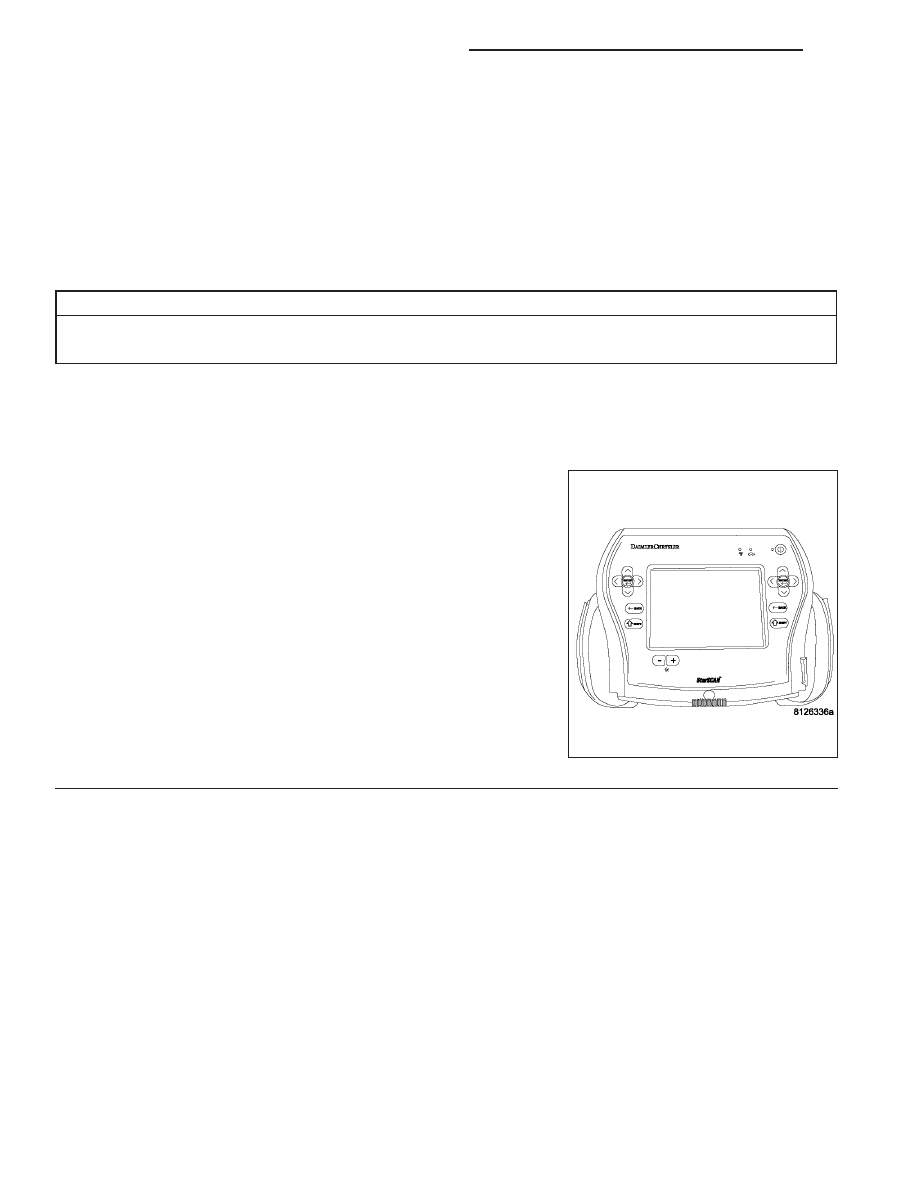

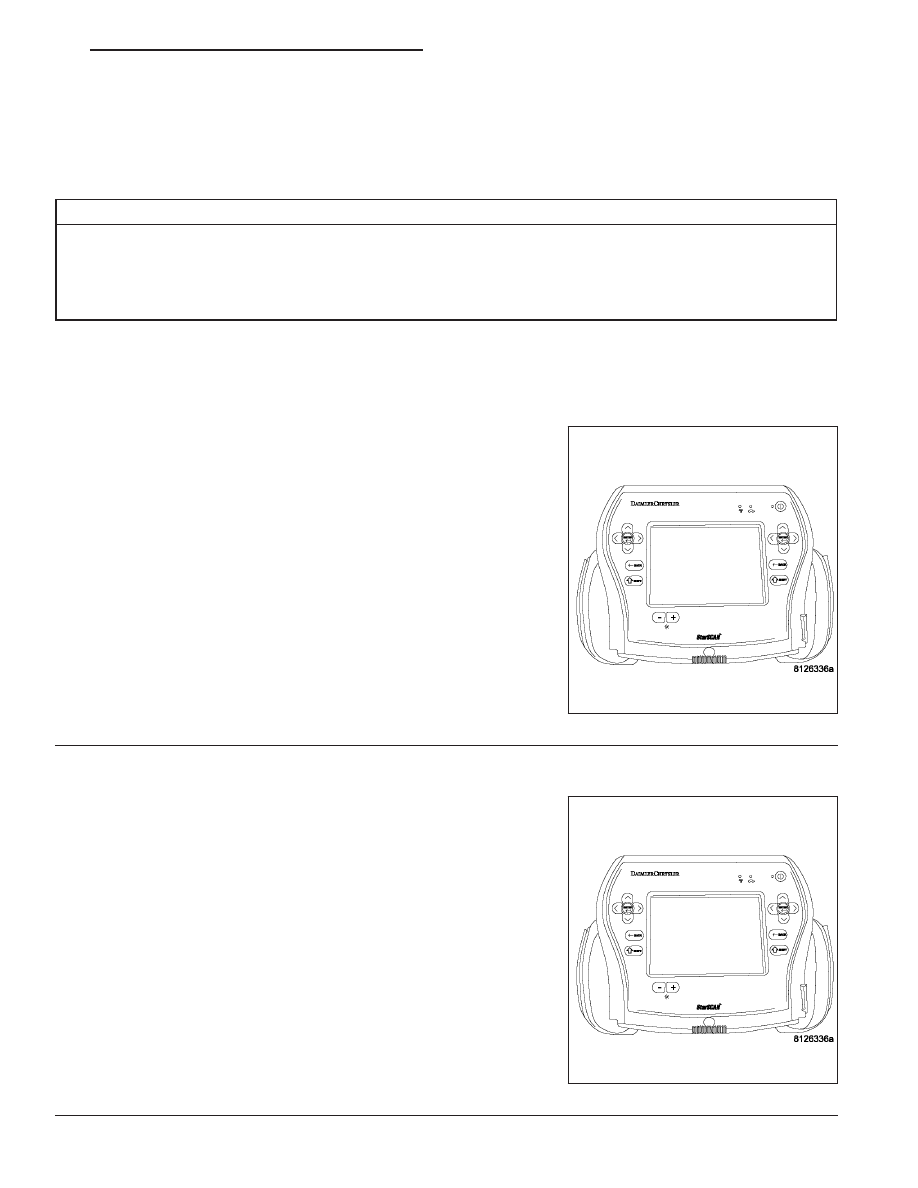

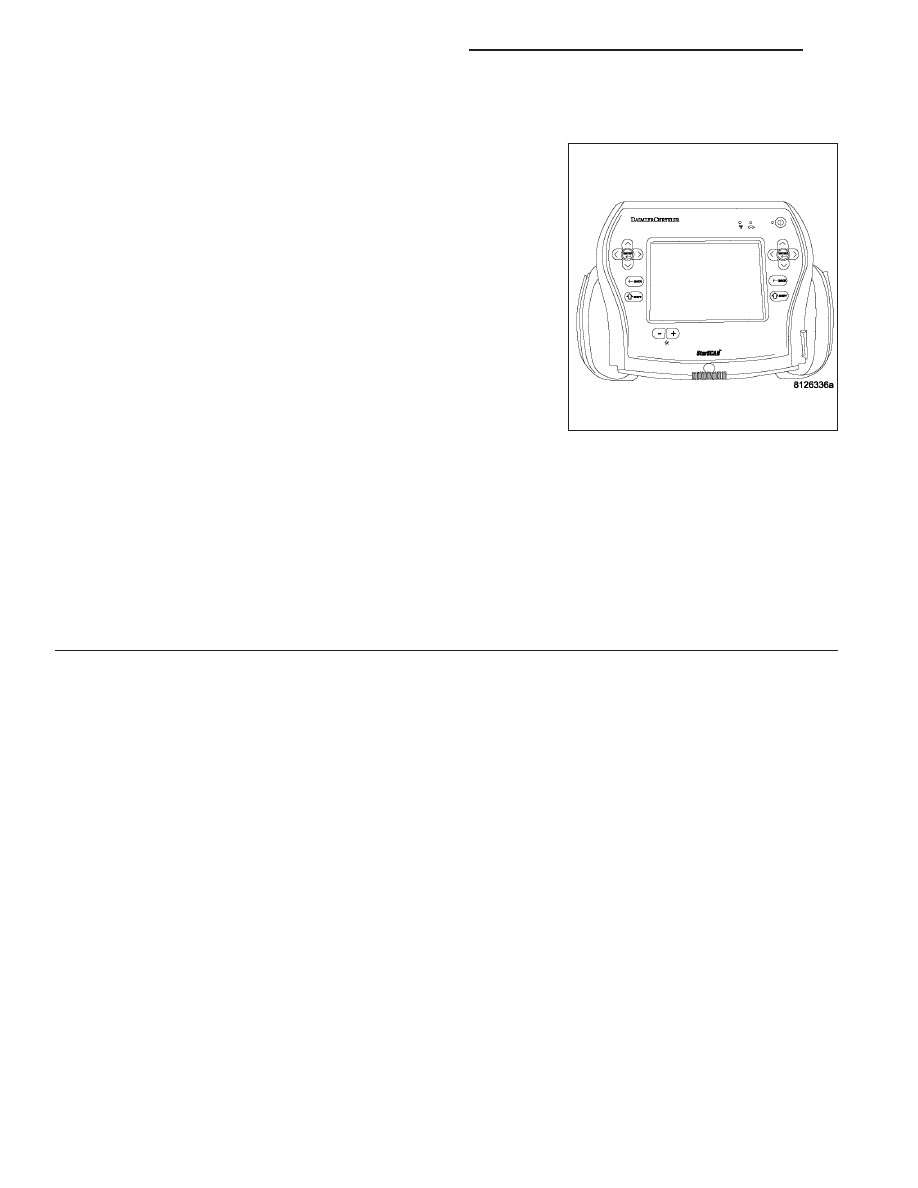

B1BBC-OCS NEGATIVE SYSTEM WEIGHT (CONTINUED) • When Monitored: • Set Condition: Possible Causes DAMAGE TO THE PASSENGER SEAT STRUCTURE, RISER ASSEMBLY, CROSSMEMBERS, SEAT TRACKS, OBJECT UNDER SEAT OR REAR SEAT FOLDED DOWN AND RESTING AGAINST PASSENGER SEAT OCCUPANT CLASSIFICATION MODULE (OCM) Diagnostic Test 1. TEST CONDITIONS • ACTIVE INTERNAL FAULTS • IGNITION FAULTS • BATTERY FAULT • SEAT WEIGHT SENSOR DTC NOTE: Ensure the battery is fully charged. NOTE: When reconnecting Airbag system components, the igni- With the scan tool, read Occupant Classification Module (OCM) DTCs. Does the scan tool display any active DTCs listed above? Yes >> Diagnose and repair the DTCs. Refer to the Table of Con- tents in this Section for a complete list of symptoms. No >> Go To 2 2. ACTIVE OR STORED DTC With the scan tool, read OCM DTCs. Does the scan tool display active: B1BBC–NEGATIVE SYSTEM Yes >> Go To 3 No >> Go To 4 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 317 |
