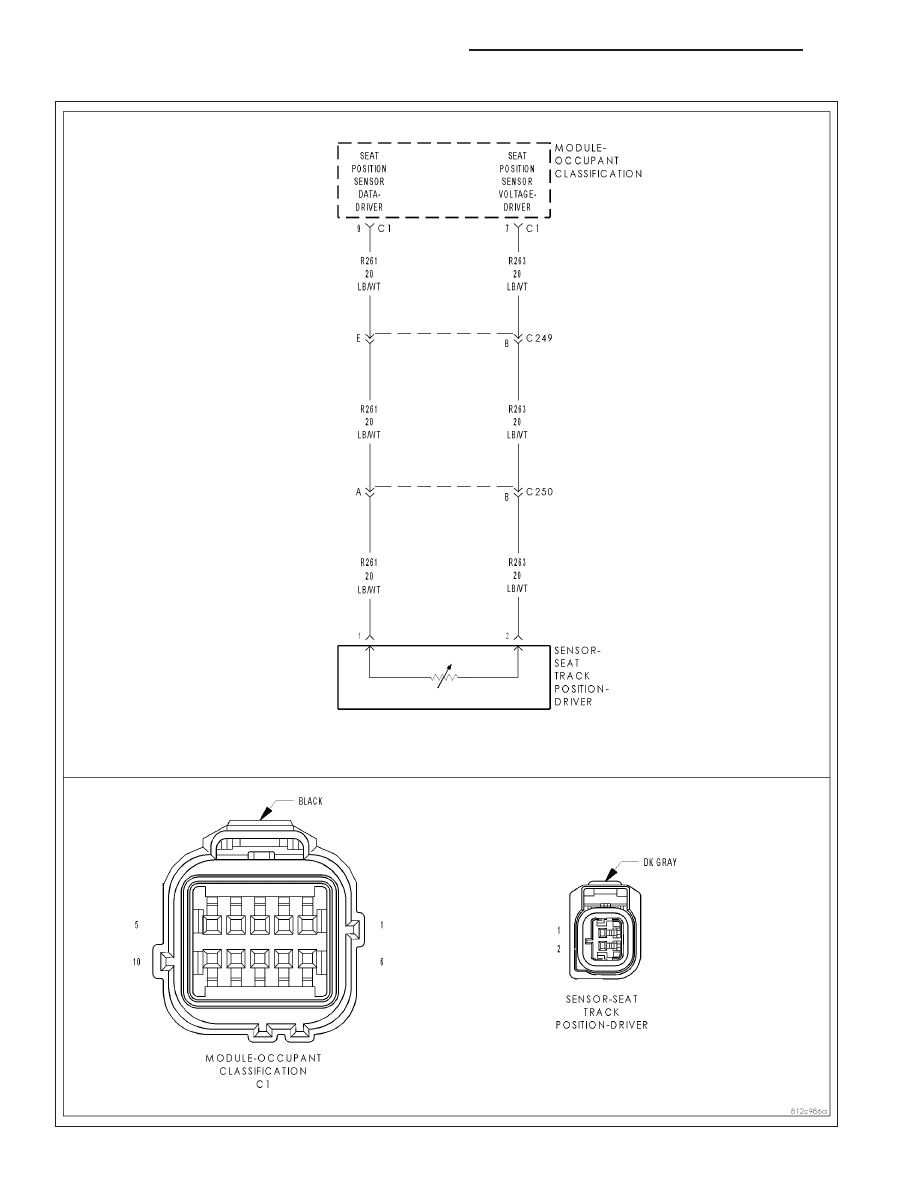

B1B8E-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT HIGH (CONTINUED) 7. CHECK (R261) SEAT POSITION SENSOR DATA-DRIVER CIRCUIT FOR A SHORT TO (R263) SEAT WARNING: To avoid personal injury or death, turn the ignition off, Is the resistance below 10k ohms? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Driver Seat Harness in accordance with the Perform the OCS VERIFICATION TEST-VER 1. No >> Replace the OCM in accordance with the Service information. Perform the OCS VERIFICATION TEST-VER 1. 8. TEST FOR AN INTERMITTENT CONDITION With the scan tool, record and erase all DTC’s from the OCM. If any ACTIVE codes are present they must be resolved before diag- WARNING: To avoid personal injury or death, turn the ignition off, Look for chaffed, pierced, pinched, or partially broken wires and bro- The following additional checks may assist you in identifying a possi- Reconnect any disconnected components and harness connector. WARNING: To avoid personal injury or death, turn the ignition on, WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the If only stored codes return continue the test until the problem area has been isolated. In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question. Are any ACTIVE DTCs present? Yes >> Select the appropriate symptom from Symptom List. No >> No problem found at this time. Erase all codes before returning vehicle to customer. HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 281 |
