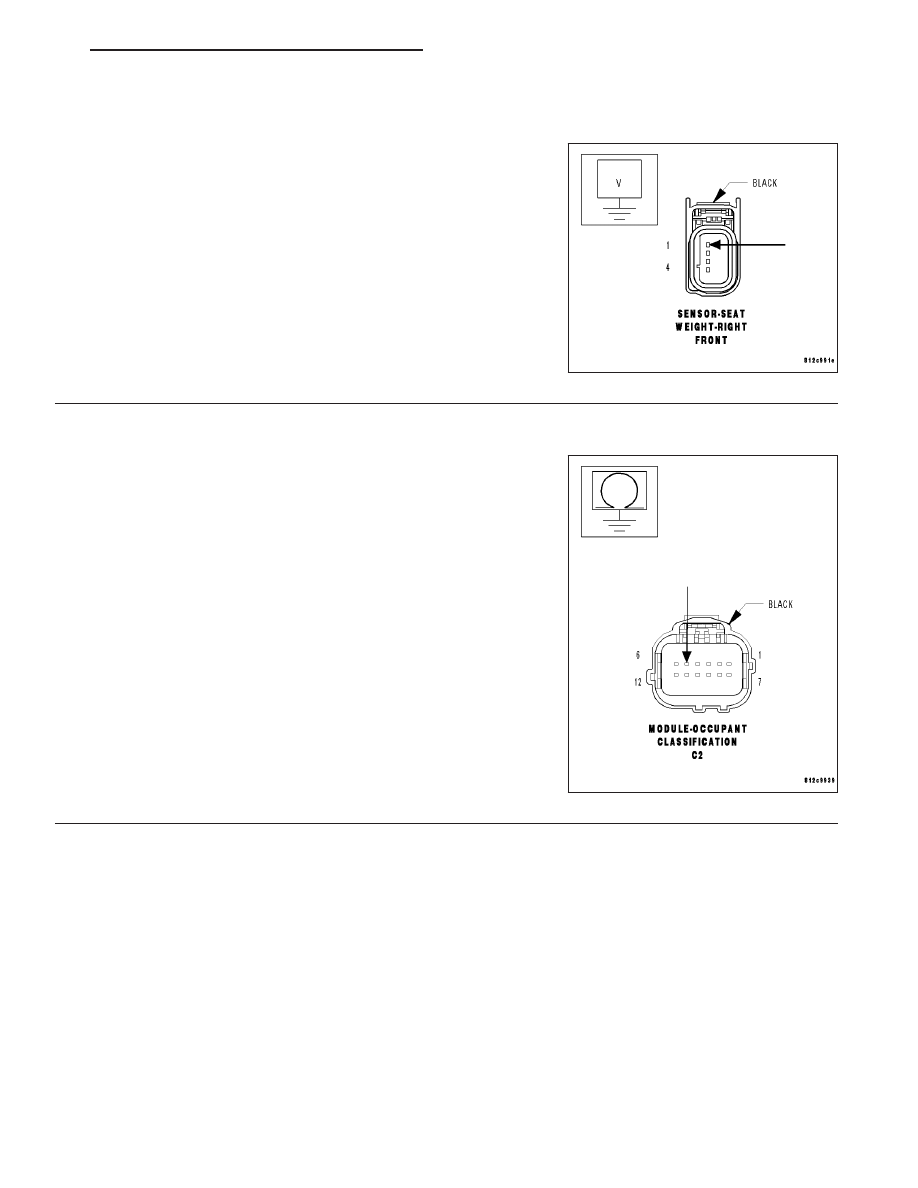

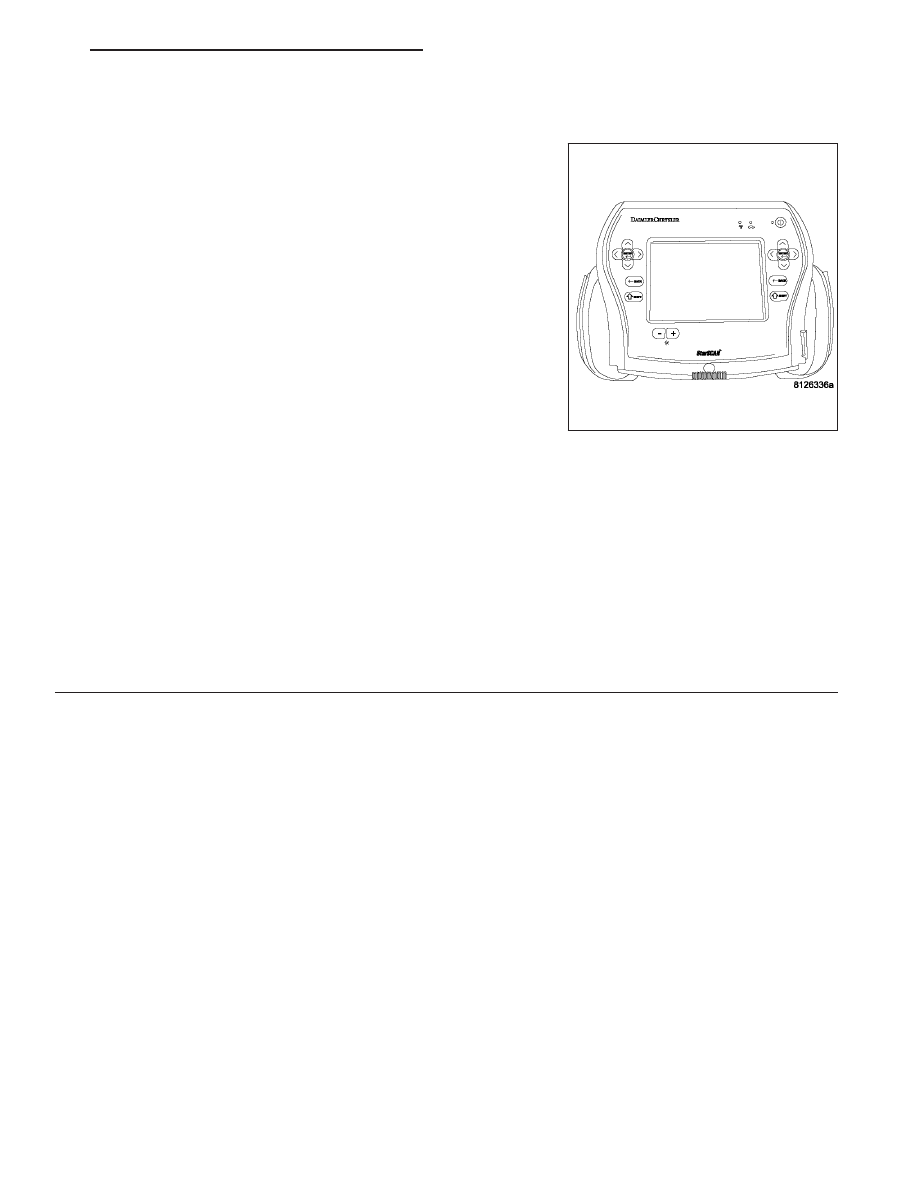

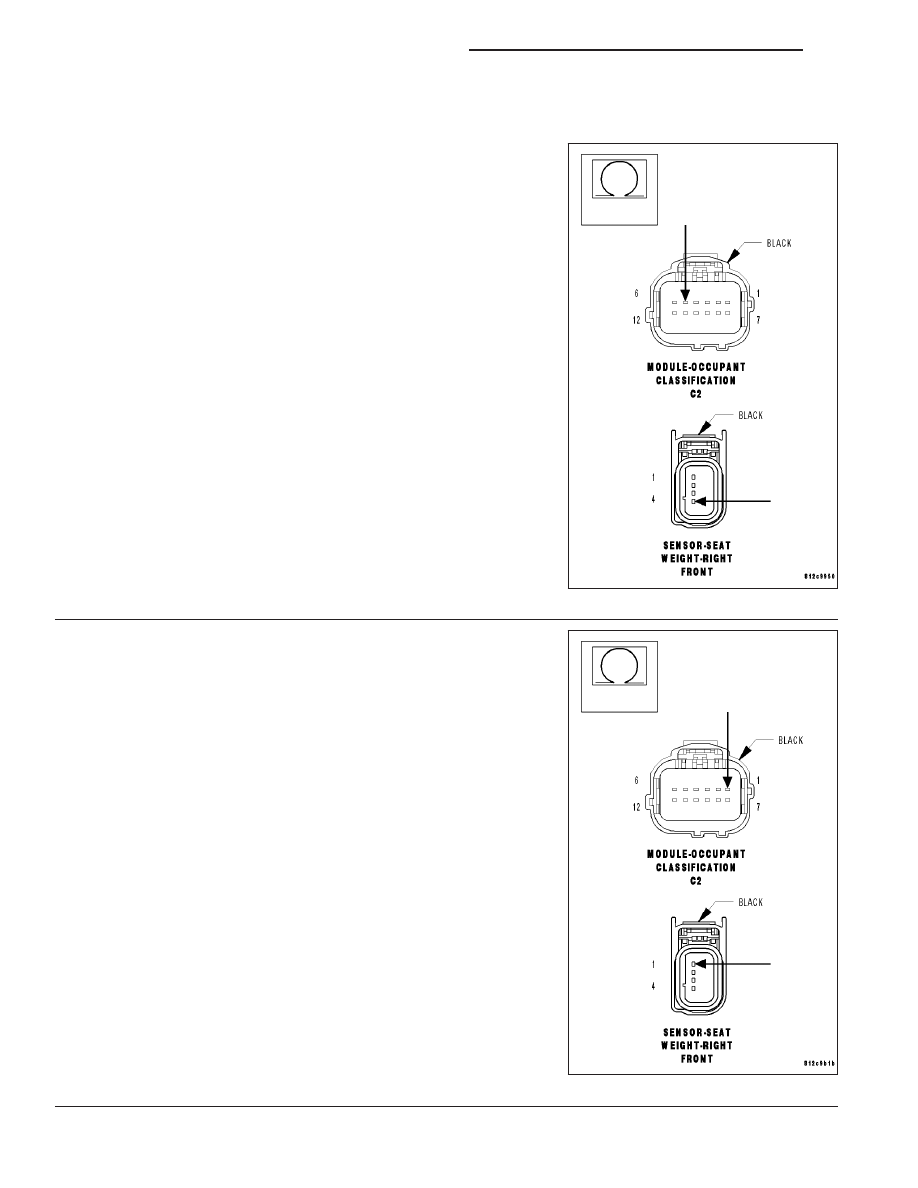

B1B7E-PASSENGER SEAT WEIGHT SENSOR 2 - RIGHT FRONT INPUT CIRCUIT LOW (CONTINUED) 6. CHECK VOLTAGE OF (R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, turn the ignition on, Is the voltage above 4.8 volts? Yes >> Go To 7 No >> Go To 9 7. CHECK (R718) RT-FT SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND WARNING: To avoid personal injury or death, turn the ignition off, Measure the resistance of the (R718) RT-FT Seat Weight Sensor Sig- Is the resistance below 10k ohms? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. No >> Go To 8 HB RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 221 |
