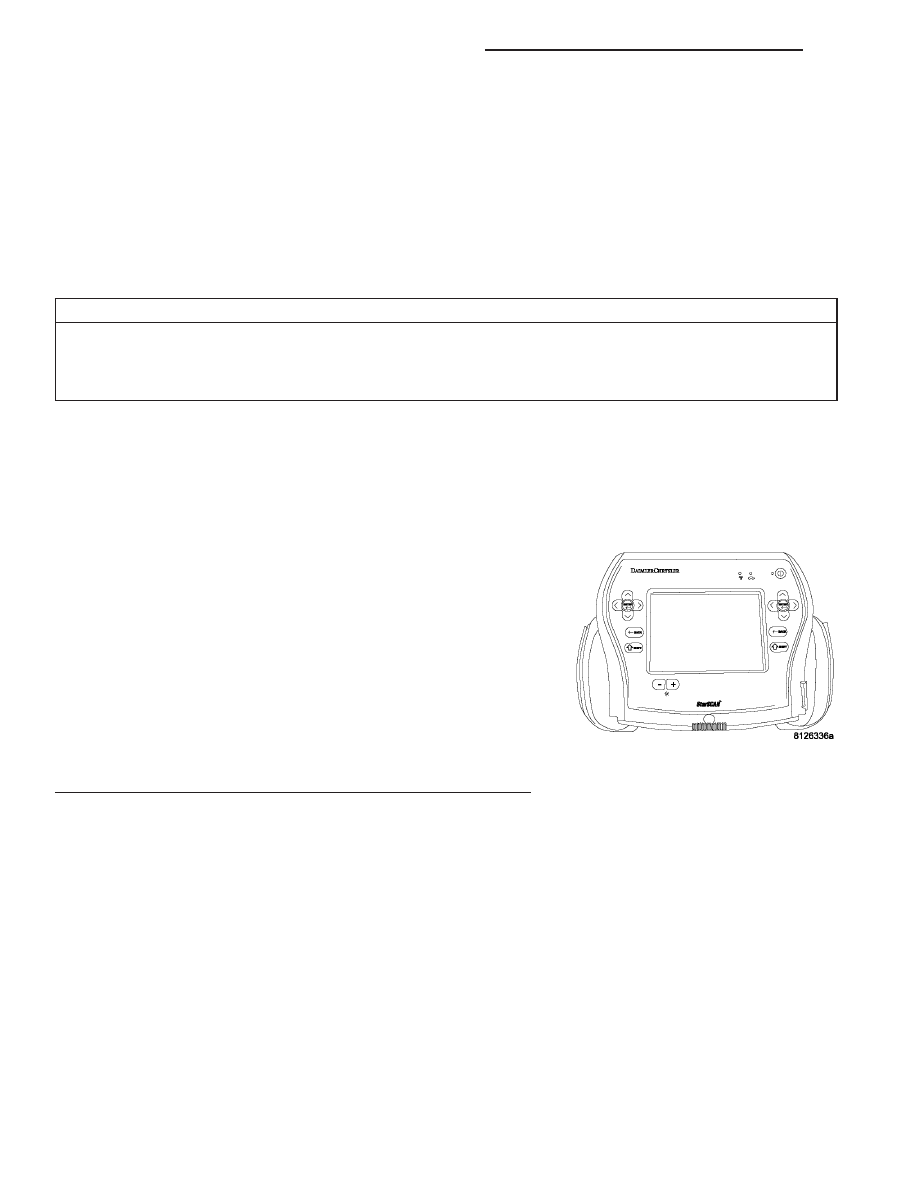

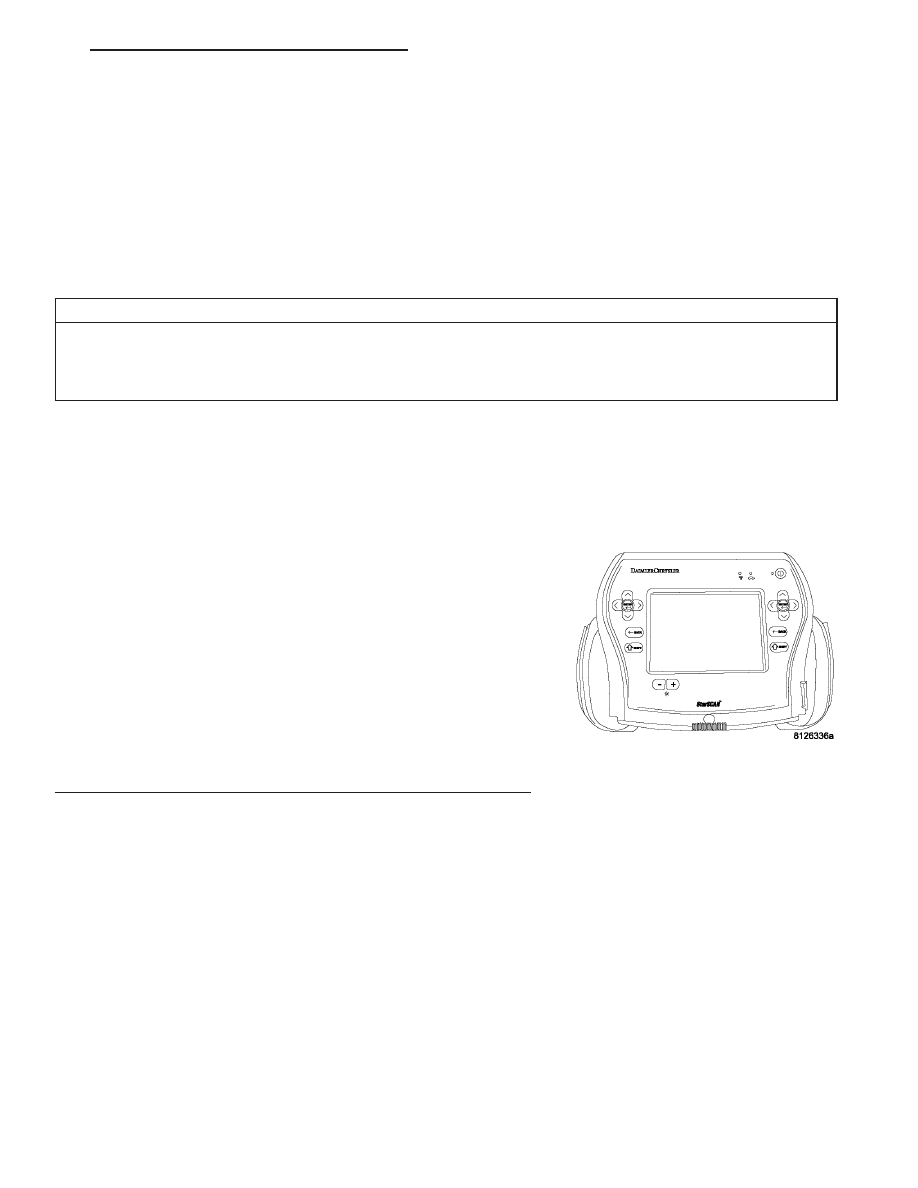

For the Power Seat System circuit diagram(Refer to 8 - ELECTRICAL/POWER SEATS - SCHEMATICS AND DIA- For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (G401) DRIVER SEAT HORZONTAL POSITION SENSE CIRCUIT SHORTED TO VOLTAGE DRIVER RECLINER SEAT ADJUSTER MOTOR SEAT MEMORY MODULE Diagnostic Test 1. TEST FOR INTERMITTENT CONDITION Turn the ignition on. With the scan tool, record and erase DTC’s Move the seat switch in the horizontal position 3 times. With the scan tool, read DTC’s. Does the scan tool display B1D6E–SEAT HORIZONTAL POSI- Yes >> Go To 2 No >> The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic Perform POWER SEAT SYSTEM VERIFICATION TEST - HB POWER SEATS - ELECTRICAL DIAGNOSTICS 8N - 157 B1D6E–SEAT HORIZONTAL POSITION SENSOR CIRCUIT HIGH — (CONTINUED) |
