Diagnostic Test

Perform Body Verification Test

Disconnect all jumper wires and reconnect all previously disconnected
components and connectors.

Ensure that all accessories are turned off.

Ensure that the battery is fully charged.

Turn the ignition on.

With the scan tool, record and erase DTCs from all modules.

If repairs were made to any of the HVAC door actuator circuits, with
the scan tool in HVAC, select System Tests and then select Actuator
DTC Detection. The test must pass before proceeding to the next
step.

If repairs were made to any of the HVAC doors, linkage, door actua-
tors, or door actuator circuits, with the scan tool in HVAC, select Sys-
tem Tests and then select Actuator Calibration Test. The test must
pass before proceeding to the next step.

Turn the ignition off, wait 10 seconds, and then turn the ignition on.

Operate all functions of the system that caused the original concern.

With the scan tool, select ECU View.

Check for DTCs in the modules.

Are DTCs present in any of the modules or is the original con-
dition still present?

Yes

>> The repair is not complete. Refer to the related category

for the DTC or symptom that is still present.

>> The repair is complete.

HEATED MIRRORS - ELECTRICAL DIAGNOSTICS

8G - 23

BODY VERIFICATION TEST – VER 1

HEATED MIRRORS - SERVICE INFORMATION

TABLE OF CONTENTS

page

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . . 24

OPERATION

. . . . . . . . . . . . . . . . . . . . . . . . . . . 24

HEATED MIRRORS - SERVICE INFORMATION

DESCRIPTION

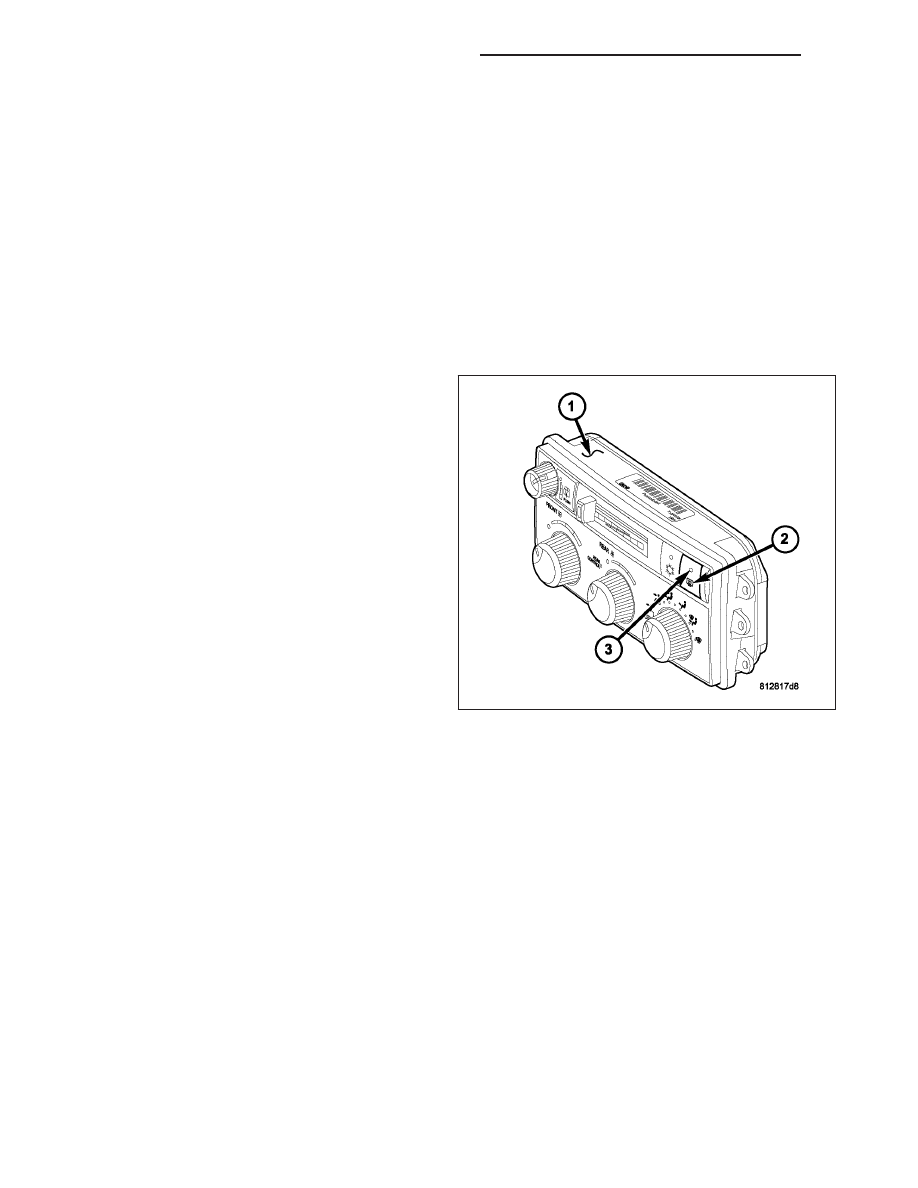

The optional heated mirror system is controlled by the
momentary rear window defogger switch (2) on the
A/C-heater control (1). An amber indicator lamp (3) in
the switch will illuminate to indicate when the rear win-
dow defogger (EBL) system is turned on.

The heated mirror system only operates in concert
with the EBL system, and will be automatically shut off
after a programmed time interval of about 15 minutes.
After the initial time interval has expired, if the defog-
ger switch is turned on again during the same ignition
cycle, the heated mirror system will automatically shut
off after about 10 minutes.

The heated mirror system will automatically shut off if
the ignition switch is turned to the Off position, or it
can be shut off manually by pressing the rear window
defogger switch a second time.

OPERATION

When the rear window defogger switch is in the On position, an electric heater grid located behind the glass of each
of the outside rear view mirrors is energized. When energized, each of these heater grids produce heat to help
clear the outside rear view mirrors of ice, snow, or fog.

If the outside mirror heating grids are both inoperative, refer to DIAGNOSIS AND TESTING - REAR WINDOW
DEFOGGER SYSTEM in his group. If only one of the outside mirror heating grids is inoperative, Refer to 8 - ELEC-
TRICAL/POWER MIRRORS - DIAGNOSIS AND TESTING.

The heating grid behind each outside mirror glass cannot be repaired and, if faulty or damaged, the entire power
mirror assembly must be replaced.
