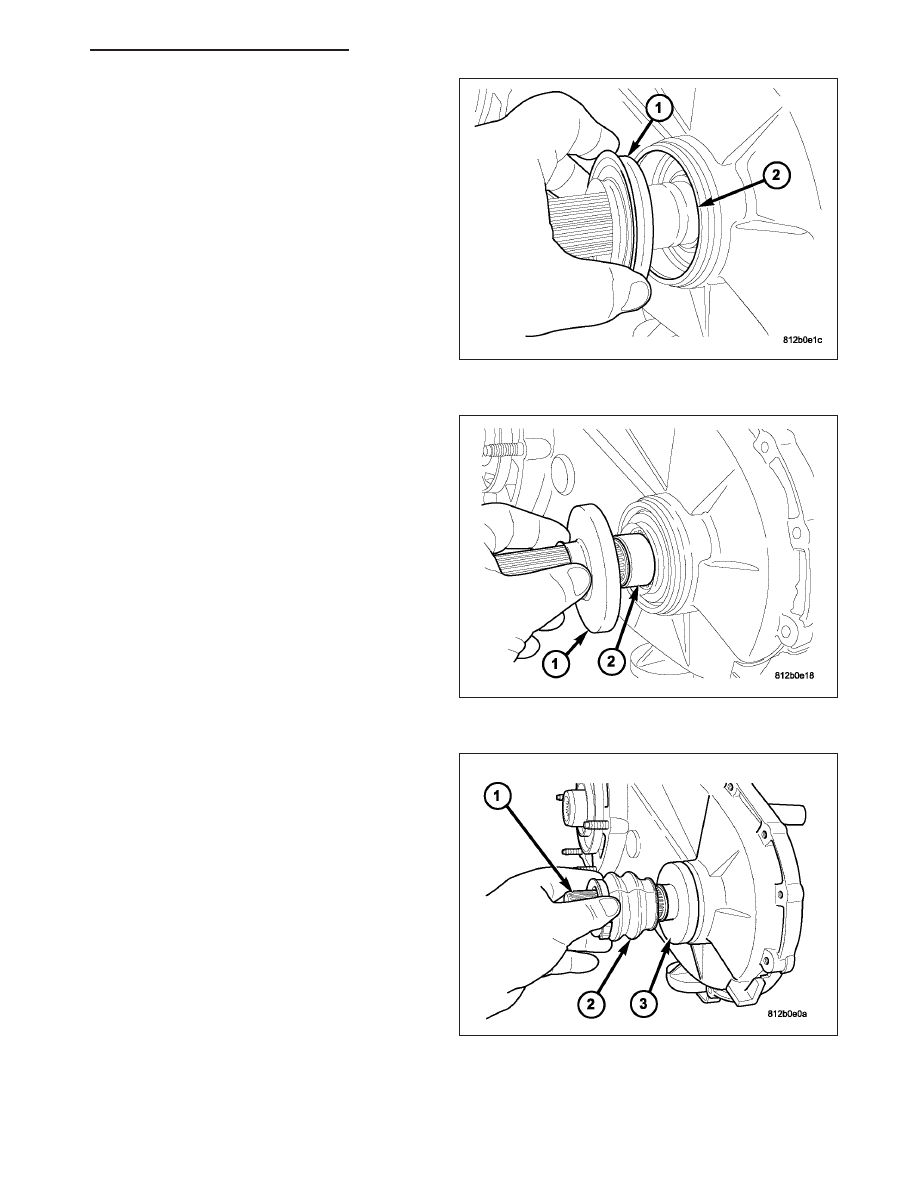

3. Install the new front output shaft seal (1) into posi-

tion in the transfer case bore (2).

4. Install the new front output shaft seal (1) with

Installer MB991168A.

5. Install the new front output shaft seal slinger (1)

into position on the output shaft (2).

6. Install the front output shaft seal slinger with

Installer 8840. Install the slinger onto the shaft until
the tool contacts the rear of the output shaft.

7. Install the seal boot (2) onto the seal slinger (3)

8. Install a new seal boot clamp onto the seal boot.

9. Install the seal boot and clamp onto the slinger hub

and tighten the clamp with Crimp Tool C-4975-A.

HB

TRANSFER CASE - NV144 - SERVICE INFORMATION

21 - 817

DRIVE CHAIN AND SPROCKETS

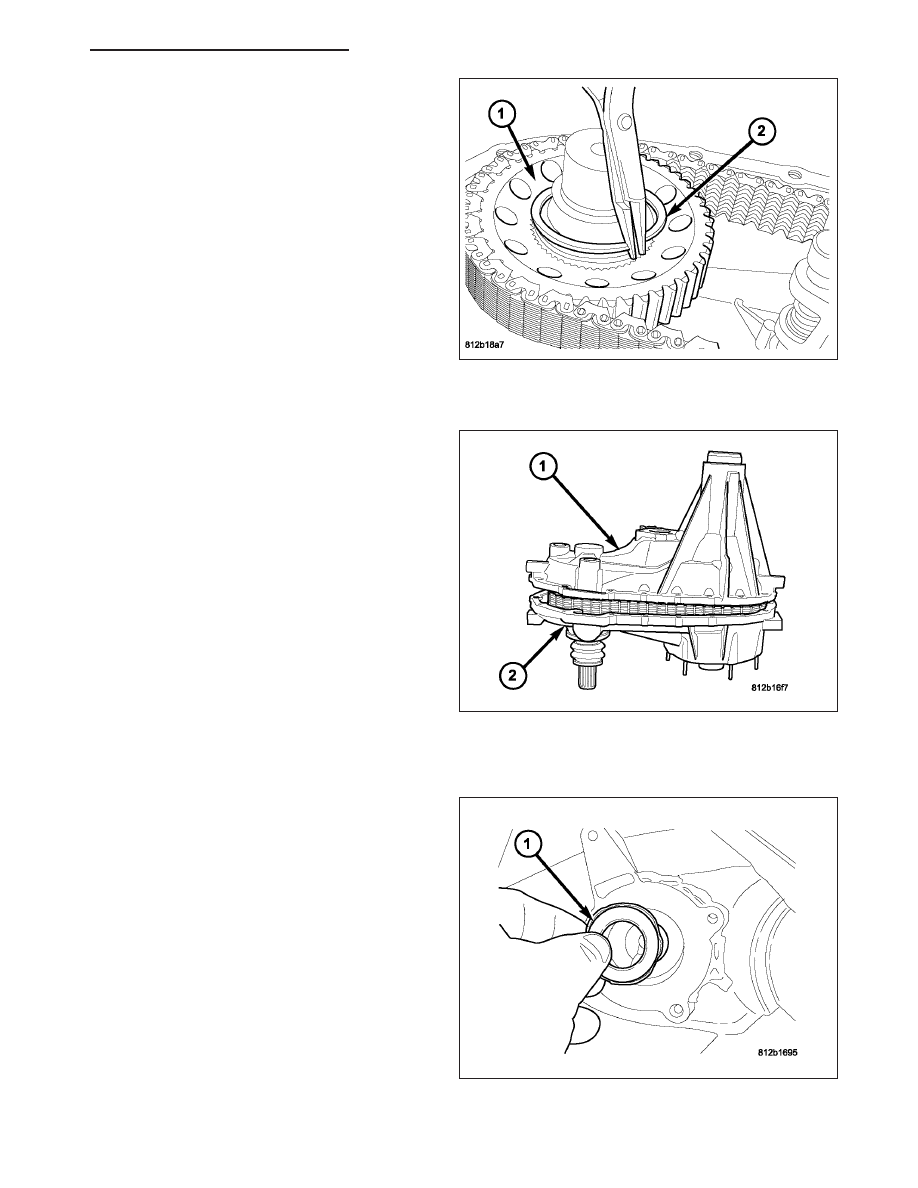

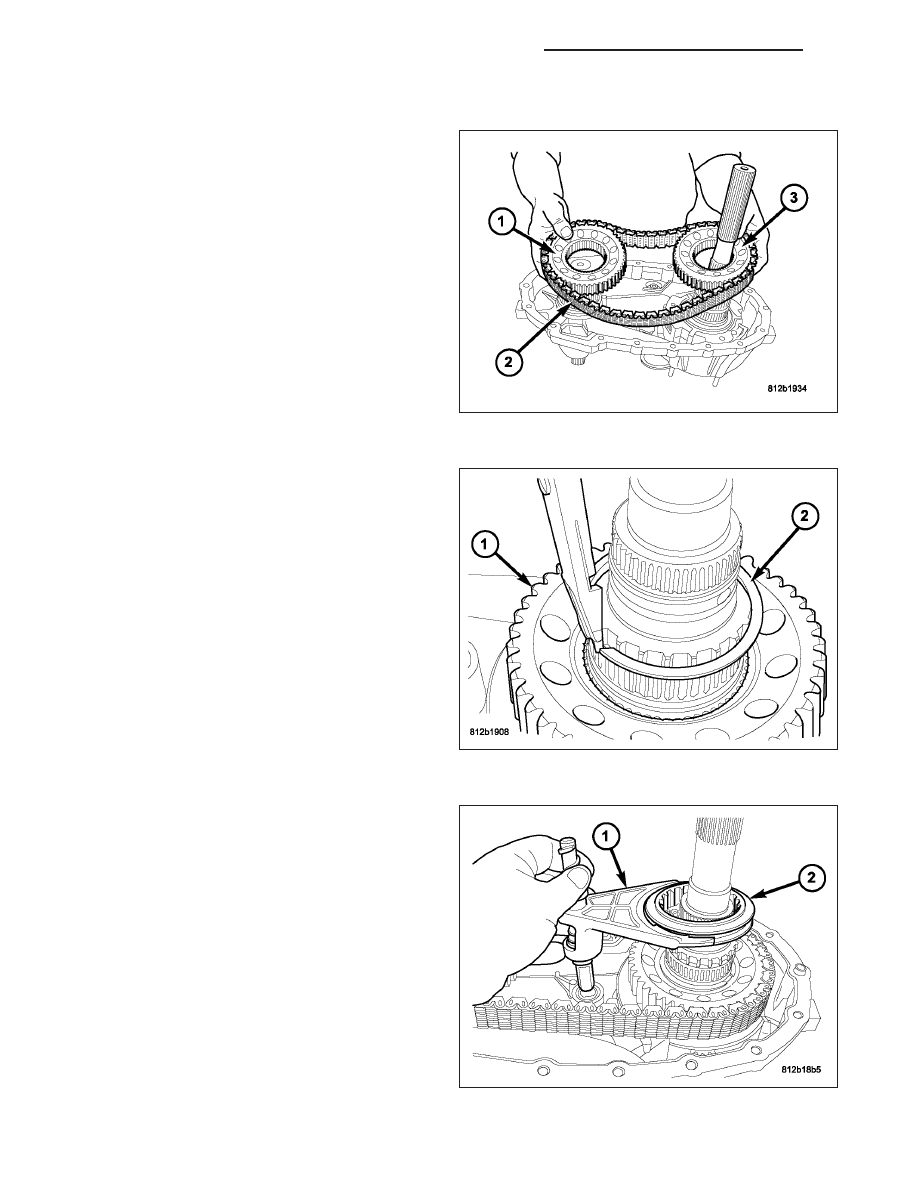

1. Install the front output shaft drive sprocket (1), the

mainshaft drive sprocket (3), and the drive chain
(2) as one unit.

2. Install the mainshaft drive sprocket (1) retaining

ring (2).

3. Install the shift fork (1) and sleeve (2) as an

assembly.

21 - 818

TRANSFER CASE - NV144 - SERVICE INFORMATION

HB

4. Install the front drive sprocket (1) retaining ring (2).

REAR CASE

1. Install the magnet in the front case pocket.

2. Support transfer case so that the rear case is fac-

ing upward.

3. Apply 3 mm (1/8 in.) wide bead of Mopar

T

Gasket

Maker, or equivalent silicone adhesive sealer, to
mounting flange of front case. Work sealer bead
around bolt holes.

4. Install the rear case (1) onto the front case (2).

5. Install the bolts to hold the front case (2) to the

rear case (1).

6. Tighten case bolts to 25-28 N·m (18-21 ft. lbs.)

torque.

SHIFT MOTOR AND MODE SENSOR ASSEMBLY

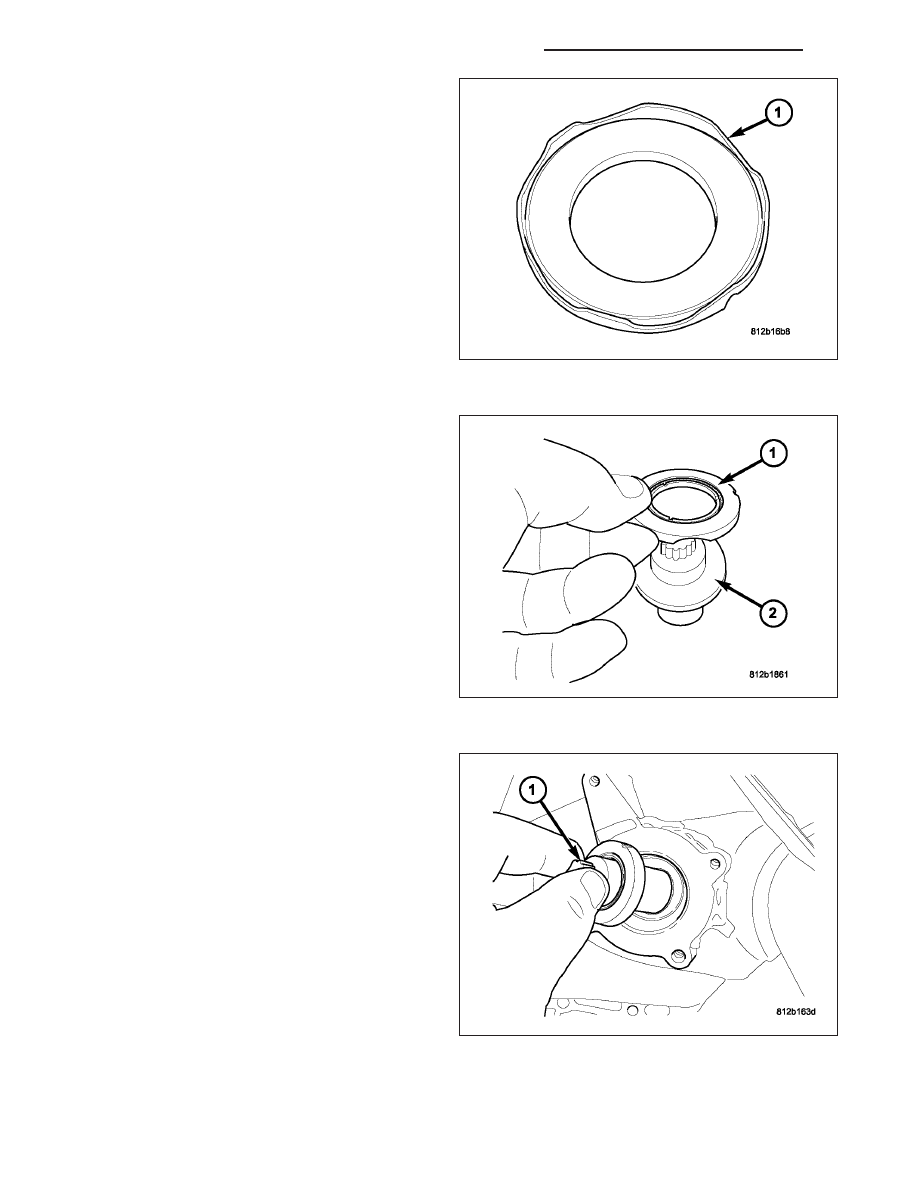

1. Install the shift screw lower bearing (1) into the

transfer case.

HB

TRANSFER CASE - NV144 - SERVICE INFORMATION

21 - 819

2. Make sure the bearing is installed with the tabs (1)

up.

3. Install the shift screw top bearing (1) onto the shift

screw (2). Make sure the bearing is installed with
the tabs down.

4. Install the transfer case shift screw (1) and top

bearing from the transfer case. Make sure that the
shift screw is fully seated in the case. The missing
tooth in the shift screw spines should be aligned
with the indicator groove in the case.

21 - 820

TRANSFER CASE - NV144 - SERVICE INFORMATION

HB
