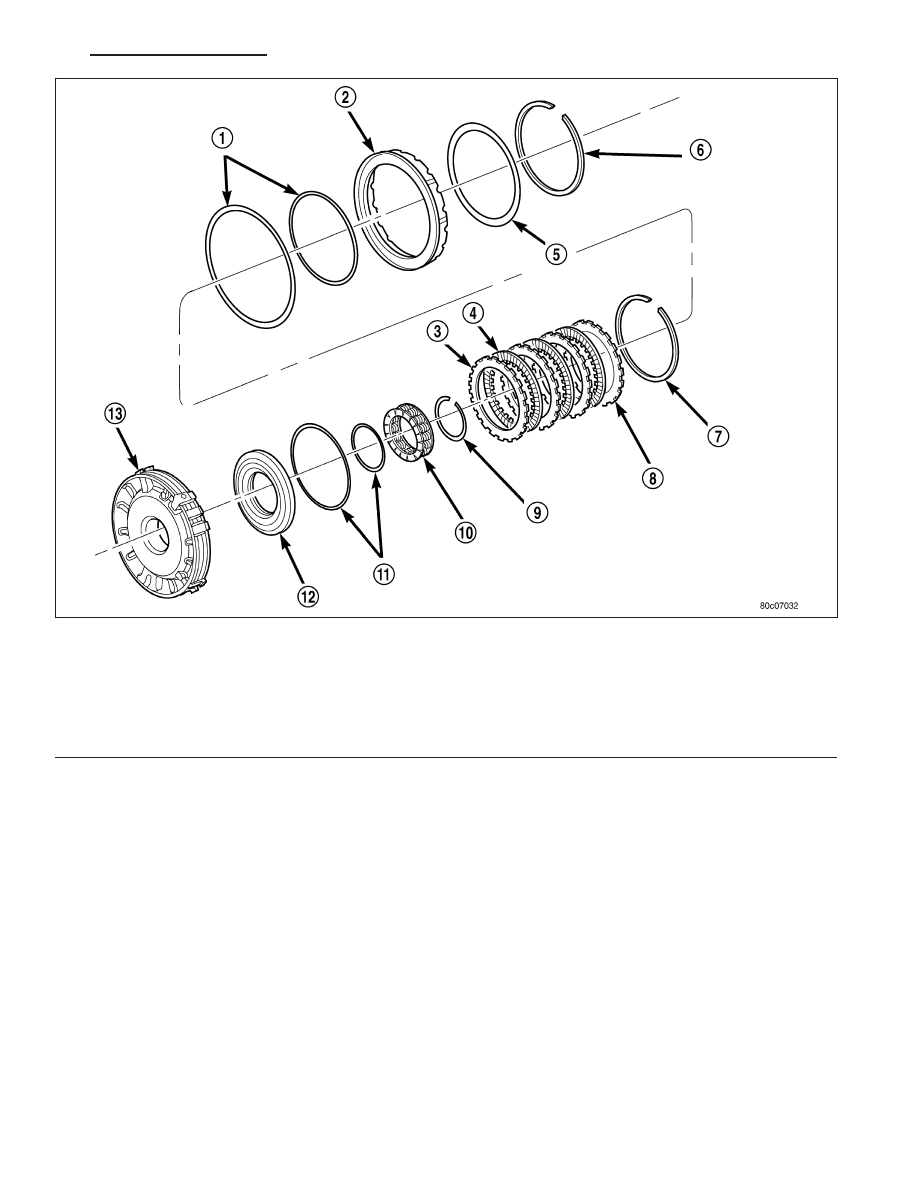

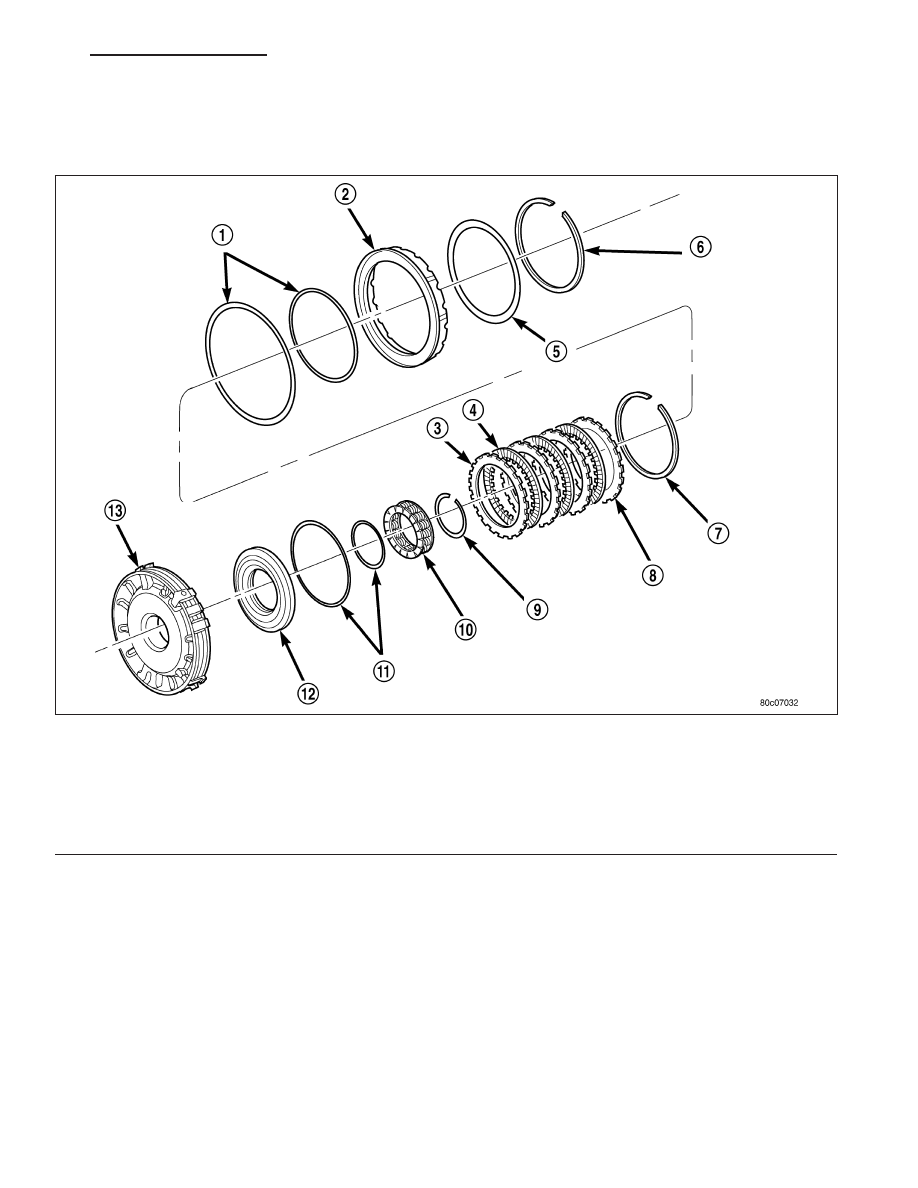

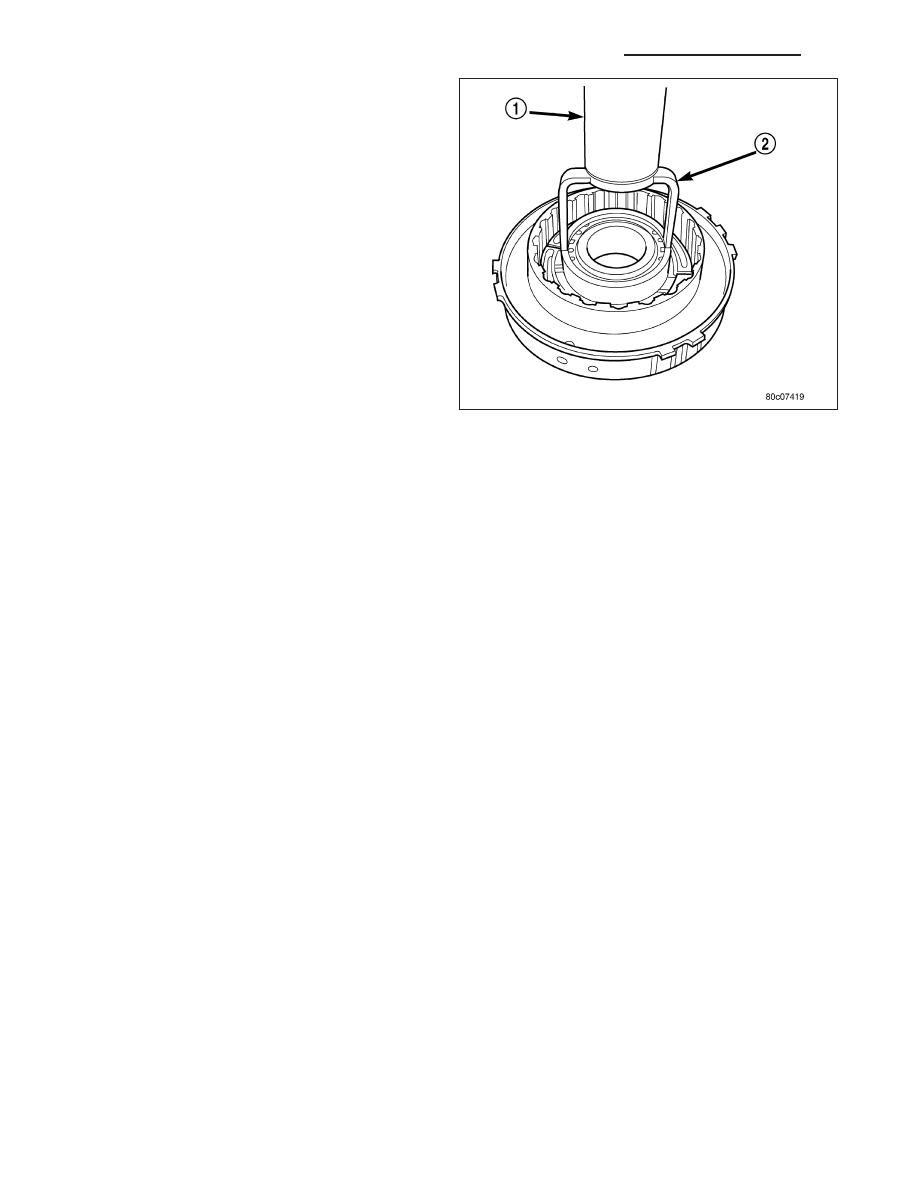

RETAINER/BULKHEAD-4C DISASSEMBLY 1. Remove the 2C piston Belleville spring snap-ring (6) from the 4C retainer /bulkhead (13). 2. Remove the 2C piston Belleville spring (5) from the retainer/bulkhead (13). 3. Remove the 2C piston (2) from the retainer/bulkhead (13). Use 20 psi of air pressure to remove the piston if necessary. 4. Remove the 4C clutch snap-ring (7) from the retainer/bulkhead (13). 5. Remove the 4C clutch pack (3, 4, 8) from the retainer/bulkhead (13). 4C Retainer/Bulkhead Components 1 - SEAL 8 - REACTION PLATE 2 - 2C PISTON 9 - SNAP-RING 3 - PLATE 10 - RETURN SPRING 4 - DISC 11 - SEAL 5 - 2C BELLEVILLE SPRING 12 - 4C PISTON 6 - SNAP-RING 13 - 4C RETAINER/BULKHEAD 7 - SNAP-RING (SELECT) HB AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION 21 - 677 |
