Dodge Durango (HB). Manual - part 1274





P0875-UD HYDRAULIC PRESSURE TEST

HB

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 501

P0875-UD HYDRAULIC PRESSURE TEST (CONTINUED)

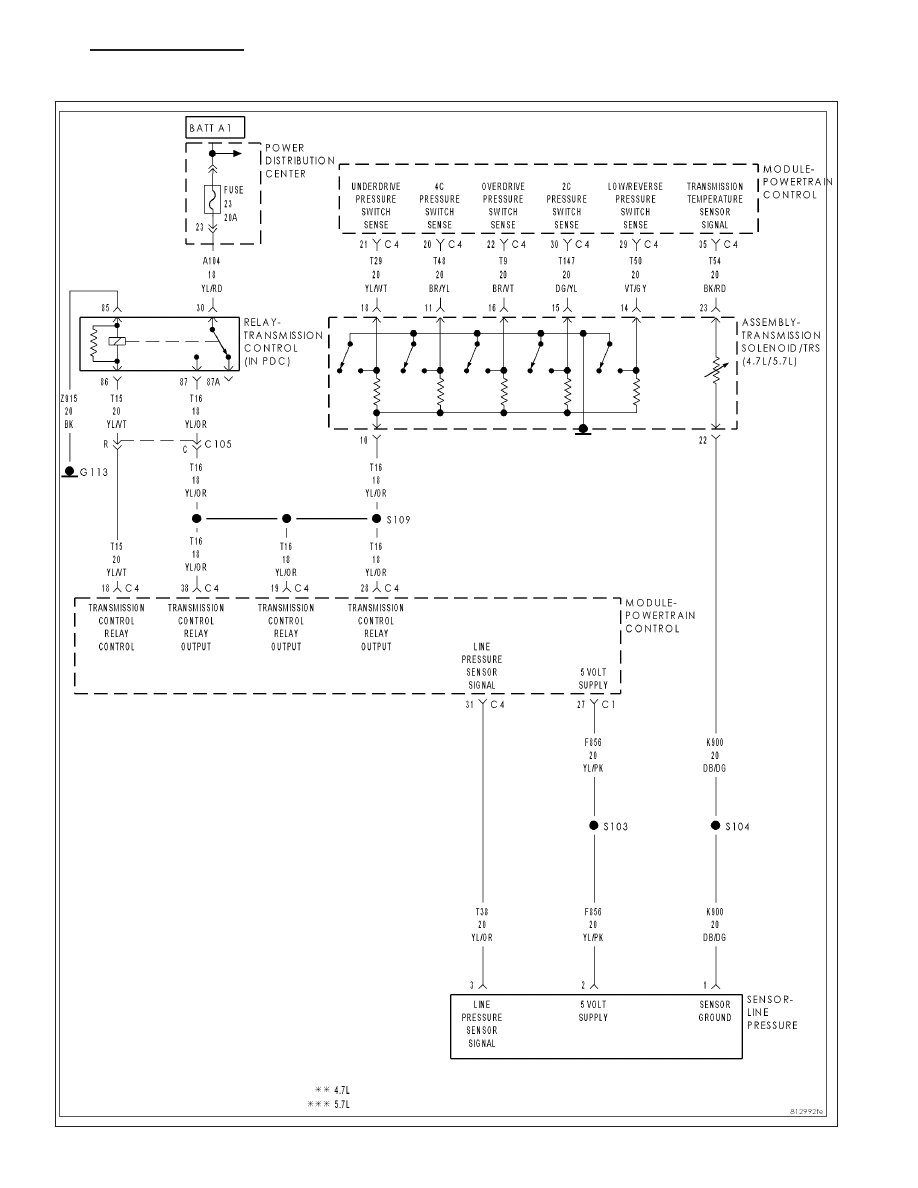

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE -
SCHEMATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W

When Monitored:
In any forward gear with engine speed above 1000 RPM shortly after a shift and every minute thereafter.

Set Condition:
After a shift into a forward gear, with engine speed above 1000 RPM, the PCM momentarily turns on element
pressure to the Clutch circuits that don’t have pressure to identify the correct Pressure Switch closes. If the
Pressure Switch does not close 2 times, the DTC sets.

Possible Causes

LINE PRESSURE SENSOR

TRANSMISSION FLUID CONTAMINATION

RELATED DTC’S PRESENT

TRANSMISSION SOLENOID/TRS ASSEMBLY

EXCESSIVE DEBRIS IN OIL PAN

POOR LINE PRESSURE SENSOR CONNECTION

(T29) UD PRESSURE SWITCH SENSE CIRCUIT OPEN

TRANSMISSION CONTROL RELAY DTCS PRESENT

(T29) UD PRESSURE SWITCH SENSE CIRCUIT OPEN

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

(T29) UD PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND

(F856) 5-VOLT SUPPLY CIRCUIT SHORT TO GROUND

(T29) UD PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

TRANSMISSION SOLENOID/TRS ASSEMBLY

INTERNAL TRANSMISSION

POWERTRAIN CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 45RFE/545RFE - DIAGNOSIS AND TESTING).

Theory of Operation

The Transmission Control System tests the pressure switches when they are off. The test verifies that the switches
are operational (They will close with pressure applied). The Transmission Control System verifies that the switch
closes when the corresponding element is applied. If a switch fails to close, it is re-tested. If it fails the second test,
the DTC will set, the MIL will illuminate and the transmission system will default to the orderly Shutdown routine.

Diagnostic Test

1.

DETERMINING IF RELATED DTC’S ARE PRESENT

With the scan tool, check for other transmission DTC’s

Is there any Loss of Prime, Transmission Control Relay, and/or Line Pressure Sensor DTCs present?

Yes

>> Refer to the Transmission category and perform the appropriate symptom. If the DTC, P0944-LOSS OF

PRIME is present, perform its respective test first.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 2

21 - 502

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

HB

P0875-UD HYDRAULIC PRESSURE TEST (CONTINUED)

2.

DTC P0765 PRESENT

With the scan tool, check Transmission DTCs.

Is the DTC P0765 also present?

Yes

>> Refer to the symptom list and perform diagnostics for P0765–UD SOLENOID CIRCUIT.

No

>> Go To 3

3.

OTHER DTCS PRESENT

With the scan tool, check for other transmission DTC’s

Are any of the DTCs, P0731, P0732, P0733, P0876, and/or P1736 present also?

Yes

>> Go To 12

No

>> Go To 4

4.

CHECK TO SEE IF DTC P0875 IS CURRENT

With the scan tool, check the STARTS SINCE SET counter for P0875.

Is the STARTS SINCE SET COUNTER 2 or less?

Yes

>> Go To 5

No

>> Go To 17

5.

LINE PRESSURE STAYS THE SAME

Start the engine.

Warm the transmission to 82° C or 180° F.

Firmly apply the brakes.

With the scan tool, monitor the Line Pressure during the following step.

Move the shift lever to each gear position, pausing momentarily in each position and record the line pressure read-
ing. Allow the pressure to stabilize for at least 5 seconds in each range.

Did the line pressure remain at a steady value between 585 and 655 kPa or 85 and 95 PSI in each posi-
tion?

Yes

>> Go To 6

No

>> Go To 10

6.

CHECK LINE PRESSURE SENSOR CONNECTION

Ignition on, engine not running.

With the scan tool, monitor the Line Pressure while firmly pushing the Transmission Line Pressure Sensor connector
inwards towards the Transmission.

Did the Line Pressure reading on the scan tool change to about 207 kPa or 30 PSI when the connector
was pushed inward?

Yes

>> Disconnect and properly reconnect the Line Pressure Sensor connector. Inspect terminals and repair as

necessary.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 7

HB

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

21 - 503

P0875-UD HYDRAULIC PRESSURE TEST (CONTINUED)

7.

LINE PRESSURE SENSOR OPERATION

Turn the ignition off to the lock position.

Remove the Starter Relay.

NOTE: Removal of the Starter Relay is to prevent a Transmission, NO RESPONSE, condition and disable the
starter.
Install the Transmission Simulator, Miller tool #8333.

NOTE: Check connectors - Clean/repair as necessary.
With the Transmission Simulator select the

9

OFF

9

position on the

9

Input/Output Speed

9

switch.

Ignition on, engine not running.

With the scan tool, monitor the Line Pressure while turning the Pressure Switch selector to each of the 3 line pres-
sure positions on the Transmission Simulator.

NOTE: All three scan tool Line Pressure readings should be steady and ±14 kPa or 2.0 PSI of the reading
specified on the Transmission Simulator.

Did the scan tool Line Pressure readings match the specified readings on the Transmission Simulator and
remain steady in all three positions?

Yes

>> Replace the Line Pressure Sensor per the Service Information.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 8

8.

(F856) 5-VOLT SUPPLY CIRCUIT OPEN

Turn the ignition off to the lock position.

Disconnect Transmission Simulator.

Disconnect the PCM C1 harness connector and connect Miller tool
#8815.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller tool
#8815 to perform diagnosis.

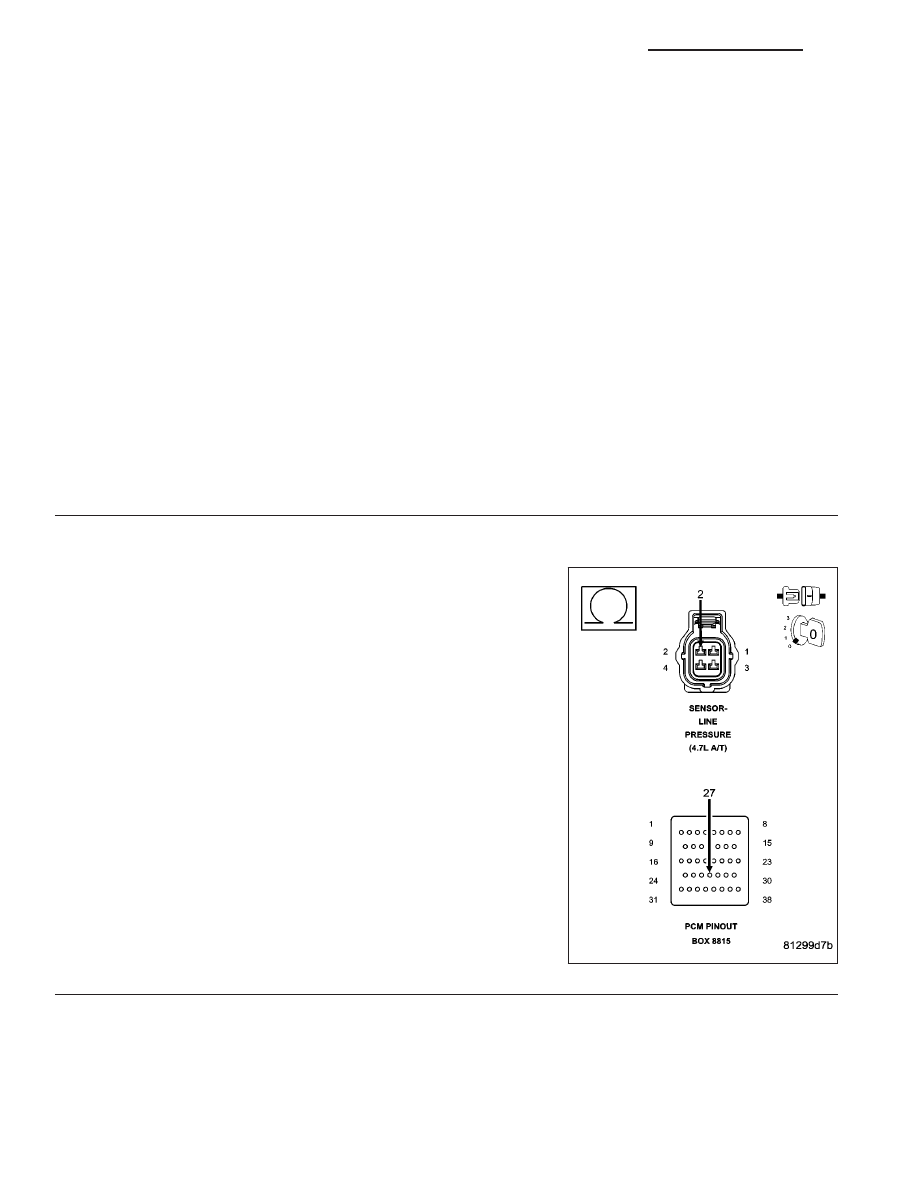

Measure the resistance of the (F856) 5-volt Supply circuit from the
Line Pressure Sensor harness connector to the appropriate terminal of
Miller tool #8815.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (F856) 5-volt Supply circuit for an open.

Perform 45RFE/545RFE TRANSMISSION VERIFICATION
TEST - VER 1.

No

>> Go To 9

21 - 504

AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS

HB
