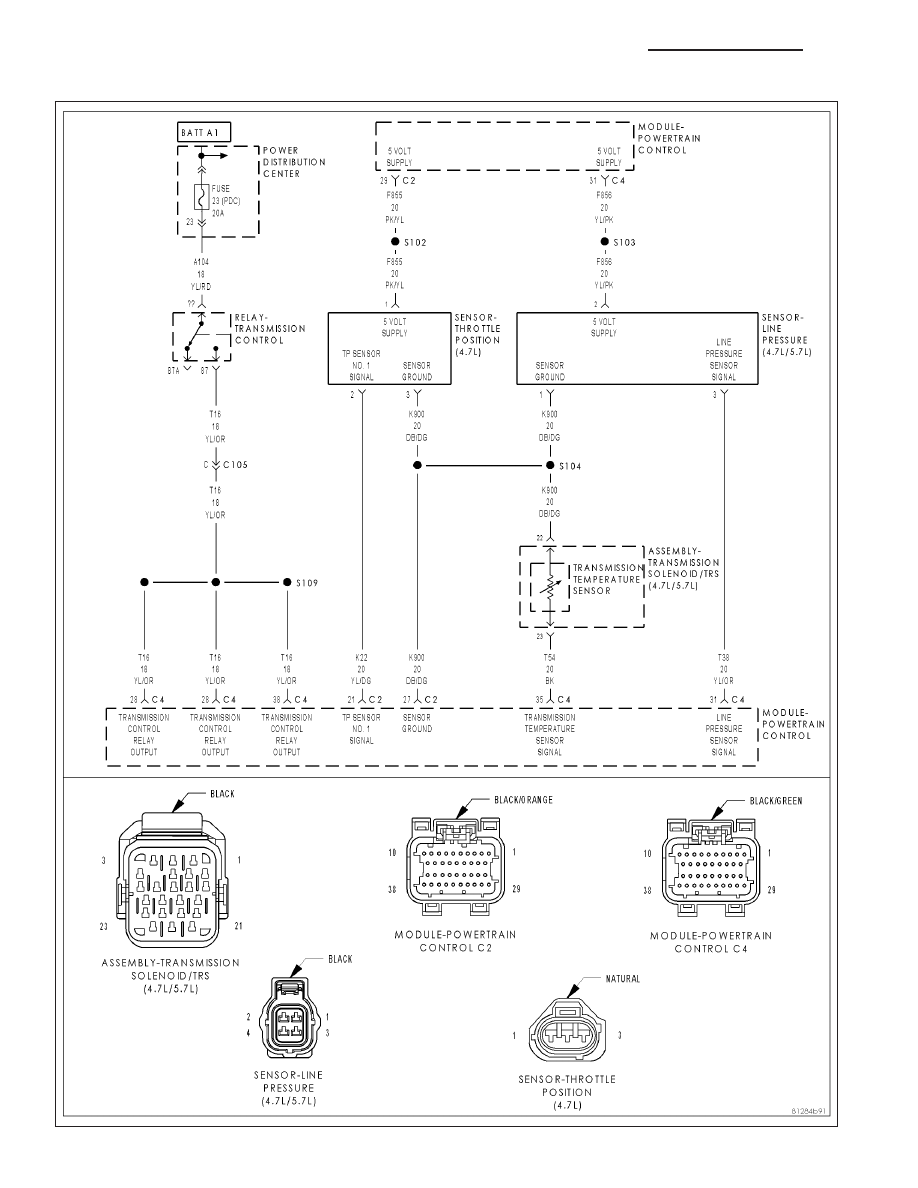

P0711-TRANSMISSION TEMPERATURE SENSOR PERFORMANCE (CONTINUED) 3. TRANSMISSION TEMPERATURE SENSOR Turn the ignition off to the lock position. Remove the Starter Relay. NOTE: Removal of the Starter Relay is to prevent a Transmission, NO RESPONSE, condition and disable the NOTE: Check connectors - Clean/repair as necessary. With the Transmission Simulator, turn the Input/Output switch to OFF. With the scan tool, monitor the TRANS TEMP VOLTS while turning the Thermistor Voltage switch to all three posi- Compare the scan tool readings to the voltage readings listed on the Transmission Simulator. Do the readings on the scan tool match the Transmission Simulator readings ± 0.2 volts? Yes >> Replace Transmission Solenoid/TRS Assembly per the Service Information. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. No >> Using the schematics as a guide, check the Powertrain Control Module (PCM) terminals for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. 4. INTERMITTENT WIRING AND CONNECTORS The conditions necessary to set this DTC are not present at this time. Using the schematics as a guide, inspect the wiring and connectors specific to this circuit. Wiggle the wires while checking for shorted and open circuits. With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set. Were there any problems found? Yes >> Repair as necessary. Perform 45RFE/545RFE TRANSMISSION VERIFICATION TEST - VER 1. No >> Test Complete. HB AUTOMATIC TRANSMISSION 545RFE - ELECTRICAL DIAGNOSTICS 21 - 373 |
