P0841-LR PRESSURE SWITCH RATIONALITY (CONTINUED)

For the Transmission circuit diagram (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - 42RLE - SCHE-
MATICS AND DIAGRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Whenever the engine is running.

Set Condition:
The DTC is set if one of the pressure switches are open or closed at the wrong time in a given gear. If the
problem is identified for 3 successive key starts, the transmission will go into Limp-in mode and the MIL will
turn on after 10 seconds of vehicle operation.

Possible Causes

RELATED TRANSMISSION RELAY DTCS PRESENT

LOSS OF PRIME DTC PRESENT

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT OPEN

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY

POWERTRAIN CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMIS-
SION/TRANSAXLE/AUTOMATIC - 42RLE - DIAGNOSIS AND TESTING).

Theory of Operation

The Transmission system uses three pressure switches to monitor the fluid pressure in the LR, 2/4, and OD ele-
ments. The pressure switches are continuously monitored for the correct states in each gear. If a set condition is
identified, 1st gear and torque converter lock-up (EMCC) will be inhibited. The vehicle will launch in 2nd gear and
shift normally through the gears without allowing EMCC. If during the same key start, the set condition is no longer
valid, the transmission will return to normal operation (1st and EMCC available). Limp-in will not occur unless DTC
P0841 is accompanied by a code P0706 and the MIL will illuminate after 5 minutes of substituted operation.

PRESSURE SWITCH STATES

GEAR

L/R

2/4

OD

R

OP

OP

OP

P/N

CL

OP

OP

1st

CL

OP

OP

2nd

OP

CL

OP

D

OP

OP

CL

OD

OP

CL

CL

OP = OPEN

CL = CLOSED

HB

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 93

P0841-LR PRESSURE SWITCH RATIONALITY (CONTINUED)

Diagnostic Test

1.

DETERMINING IF RELATED TRANSMISSION RELAY DTCS ARE PRESENT

With the scan tool, read Transmission DTCs

Are there any Transmission Control Relay DTCs present also?

Yes

>> Refer to the Transmission category and perform the appropriate diagnostic procedure.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 2

2.

CHECK FOR LOSS OF PRIME DTC

With the scan tool, check for other Transmission DTCs.

Is the DTC P0944 present also?

Yes

>> Refer to the Transmission category and perform the appropriate diagnostic procedure.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1.

No

>> Go To 3

3.

CHECK TO SEE IF P0841 IS CURRENT

With the scan tool, view DTCs.

Is the status active for this DTC or is the STARTS SINCE SET counter 2 or less?

Yes

>> Go To 4

No

>> Go To 10

4.

PCM AND WIRING

Turn the ignition off to the lock position.

Remove the Starter Relay.

CAUTION: Removal of the Starter Relay is to prevent a Transmission NO RESPONSE condition and to dis-
able the starter.
Install the Transmission Simulator, Miller tool #8333 and the Electronic Transmission Adapter kit 8333-1A.

NOTE: Check connectors - Clean/repair as necessary.
Ignition on, engine not running.

With the Transmission Simulator, turn the Pressure Switch selector to L/R.

With the scan tool , monitor the L/R Pressure Switch state while pressing the Pressure Switch Test button on the
Transmission Simulator.

Did the L/R Pressure Switch state change?

Yes

>> Go To 8

No

>> Go To 5

21 - 94

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

HB

P0841-LR PRESSURE SWITCH RATIONALITY (CONTINUED)

5.

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT OPEN

Turn the ignition off to the lock position.

Disconnect the PCM C4 harness connector.

Disconnect the Transmission Solenoid/Pressure Switch Assembly har-
ness connector.

NOTE: Check connectors - Clean/repair as necessary.

CAUTION: Do not probe the PCM harness connectors. Probing
the PCM harness connectors will damage the PCM terminals
resulting in poor terminal to pin connection. Install Miller Special
Tool #8815 to perform diagnosis.

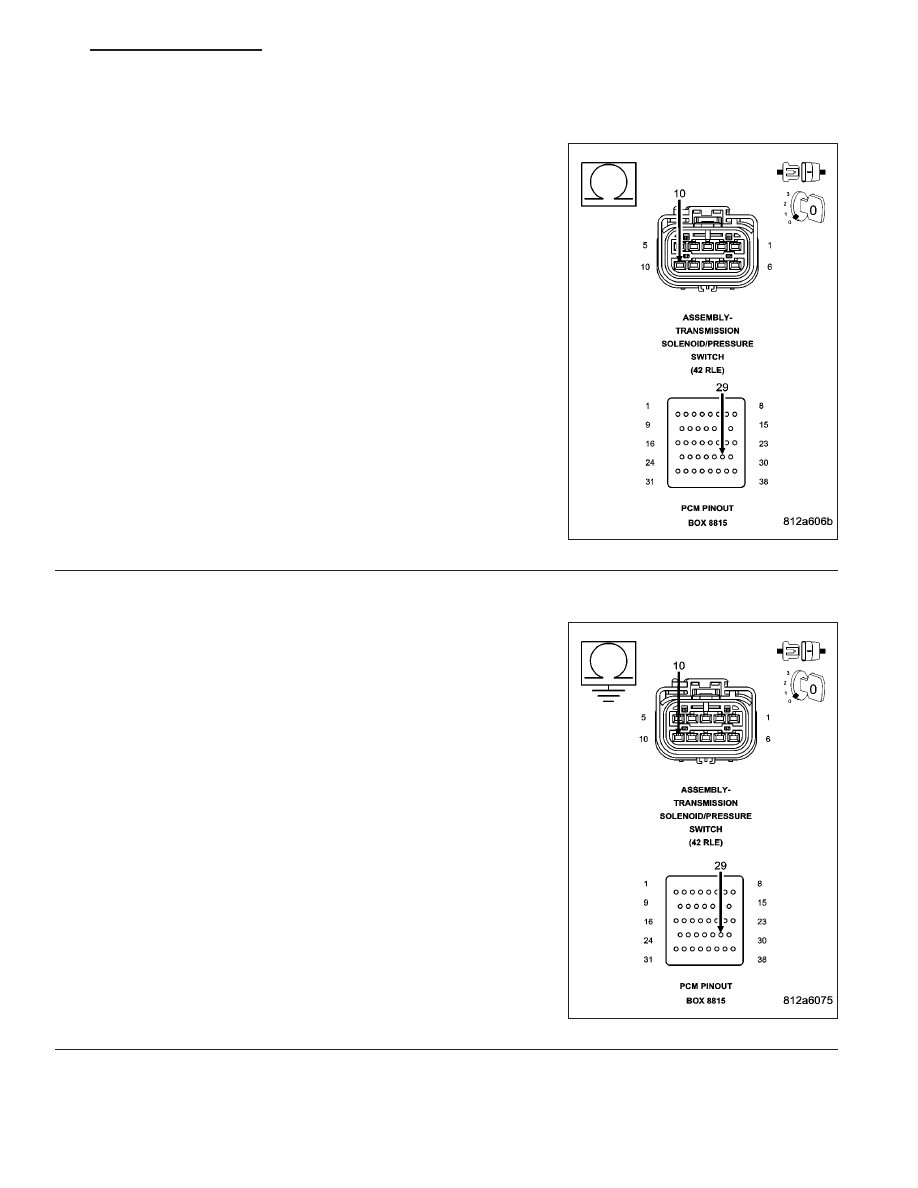

Measure the resistance of the (T50) L/R Pressure Switch Sense circuit
from the appropriate terminal of special tool #8815 to the Transmission
Solenoid/Pressure Switch Assembly harness connector.

Is the resistance above 5.0 ohms?

Yes

>> Repair the (T50) L/R Pressure Switch Sense circuit for an

open.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 6

6.

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO GROUND

Measure the resistance between ground and the (T50) L/R Pressure
Switch Sense circuit.

Is the resistance below 5.0 ohms?

Yes

>> Repair the (T50) L/R Pressure Switch Sense circuit for a

short to ground.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 7

HB

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS

21 - 95

P0841-LR PRESSURE SWITCH RATIONALITY (CONTINUED)

7.

(T50) L/R PRESSURE SWITCH SENSE CIRCUIT SHORT TO VOLTAGE

Remove the Transmission Control Relay.

NOTE: Check connectors - Clean/repair as necessary.

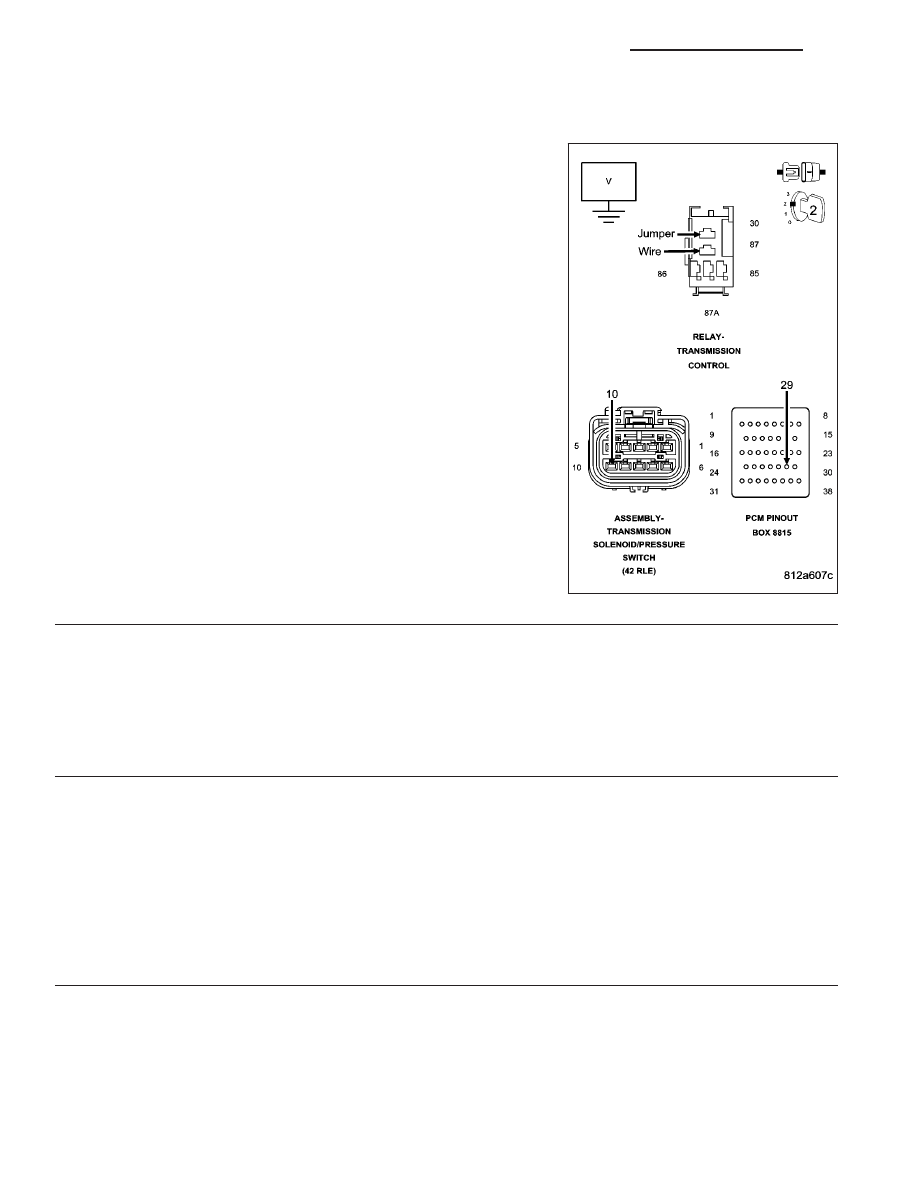

Connect a jumper wire between the (A104)Fused B+ circuit and (T16)
Transmission Control Relay Output circuit.

Ignition on, engine not running.

Measure the voltage of the (T50) L/R Pressure Switch Sense circuit.

Is the voltage above 0.5 volts?

Yes

>> Repair the (T50) L/R Pressure Switch Sense circuit for a

short to voltage.

Perform 42RLE TRANSMISSION VERIFICATION TEST -
VER 1.

No

>> Go To 9

8.

L/R PRESSURE SWITCH

If there are no possible causes remaining, view repair.

Repair

Replace the Transmission Solenoid/Pressure Switch Assembly per the Service Information.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1.

9.

POWERTRAIN CONTROL MODULE

Using the schematics as a guide, inspect the wiring and connectors. Repair as necessary. Pay particular attention
to all power and ground circuits.

If there are no possible causes remaining, view repair.

Repair

Replace the Powertrain Control Module per the Service Information. With the scan tool perform QUICK
LEARN.

Perform 42RLE TRANSMISSION VERIFICATION TEST - VER 1.

21 - 96

AUTOMATIC TRANSMISSION 42RLE - ELECTRICAL DIAGNOSTICS
