TAPPETS-HYDRAULIC ROLLER

DIAGNOSIS AND TESTING - HYDRAULIC TAPPETS

Before disassembling any part of the engine to correct tappet noise, check the oil pressure. If vehicle has no oil
pressure gauge, install a reliable gauge at the pressure sending-unit. The pressure should be between 207-552 kPa
(30-70 psi) at 3,000 RPM.

Check the oil level after the engine reaches normal operating temperature. Allow 5 minutes to stabilize oil level,
check dipstick. The oil level in the pan should never be above the FULL mark or below the ADD OIL mark on
dipstick. Either of these two conditions could be responsible for noisy tappets.

OIL LEVEL

HIGH

If oil level is above the FULL mark, it is possible for the connecting rods to dip into the oil. With the engine running,
this condition could create foam in the oil pan. Foam in oil pan would be fed to the hydraulic tappets by the oil pump
causing them to lose length and allow valves to seat noisily.

LOW

Low oil level may allow oil pump to take in air. When air is fed to the tappets, they lose length, which allows valves
to seat noisily. Any leaks on intake side of oil pump through which air can be drawn will create the same tappet
action. Check the lubrication system from the intake strainer to the pump cover, including the relief valve retainer
cap. When tappet noise is due to aeration, it may be intermittent or constant, and usually more than one tappet will
be noisy. When oil level and leaks have been corrected, operate the engine at fast idle. Run engine for a sufficient
time to allow all of the air inside the tappets to be bled out.

TAPPET NOISE DIAGNOSIS

1. To determine source of tappet noise, crank over engine with cylinder head covers removed.

2. Feel each valve spring or rocker arm to detect noisy tappet. The noisy tappet will cause the affected spring

and/or rocker arm to vibrate or feel rough in operation.

NOTE: Worn valve guides or cocked springs are sometimes mistaken for noisy tappets. If such is the case,
noise may be dampened by applying side thrust on the valve spring. If noise is not appreciably reduced, it
can be assumed the noise is in the tappet. Inspect the rocker arm push rod sockets and push rod ends for
wear.

3. Valve tappet noise ranges from light noise to a heavy click. A light noise is usually caused by excessive leak-

down around the unit plunger, or by the plunger partially sticking in the tappet body cylinder. The tappet should
be replaced. A heavy click is caused by a tappet check valve not seating, or by foreign particles wedged between
the plunger and the tappet body. This will cause the plunger to stick in the down position. This heavy click will be
accompanied by excessive clearance between the valve stem and rocker arm as valve closes. In either case,
tappet assembly should be removed for inspection and cleaning.

4. The valve train generates a noise very much like a light tappet noise during normal operation. Care must be

taken to ensure that tappets are making the noise. If more than one tappet seems to be noisy, it’s probably not
the tappets.

REMOVAL

1. Disconnect the negative cable from the battery.

2. Remove the air cleaner (Refer to 9 - ENGINE/AIR INTAKE SYSTEM - REMOVAL).

3. Remove intake manifold (Refer to 9 - ENGINE/MANIFOLDS/INTAKE MANIFOLD - REMOVAL).

4. Remove cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) -

REMOVAL).

5. Remove rocker arm assembly and push rods (Refer to 9 - ENGINE/CYLINDER HEAD/ROCKER ARM /

ADJUSTER ASSY - REMOVAL). Identify push rods to ensure installation in original location.

HB

ENGINE - 5.7L SERVICE INFORMATION

9 - 1411

6. Remove the cylinder head (Refer to 9 - ENGINE/CYLINDER HEAD - REMOVAL).

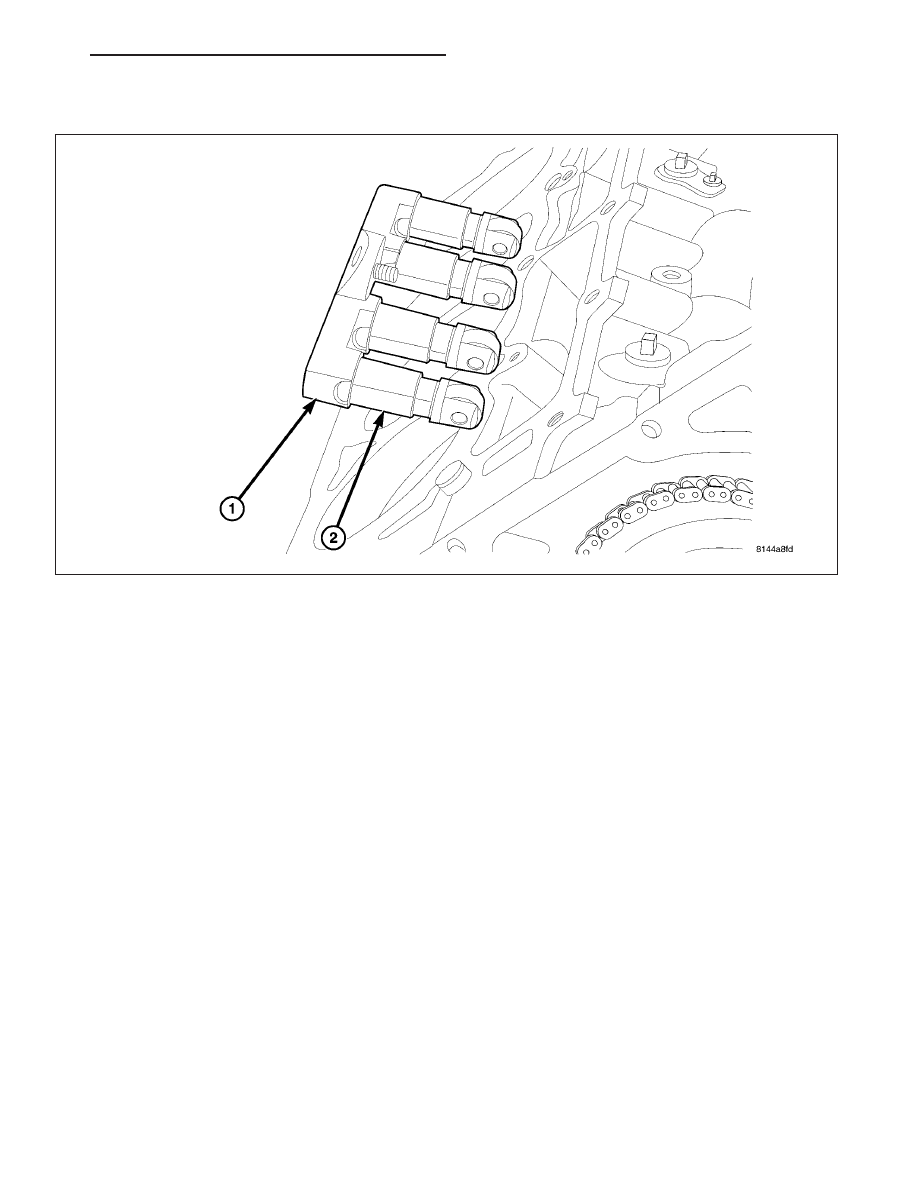

7. Remove bolt from tappet retainer (1).

8. Remove tappet retainer (1).

9. Pull tappet out of bore with a twisting motion. If all tappets are to be removed and reused, identify tappets to

ensure installation in original location.

10. Check camshaft lobes for abnormal wear.

9 - 1412

ENGINE - 5.7L SERVICE INFORMATION

HB

INSTALLATION

1. Lubricate tappets.

2. Install tappets in their original positions.

3. Install tappet retainer (1). Install the tappet retainer bolt and tighten to 12 N·m (106 in. lbs.) torque.

4. Install cylinder head (Refer to 9 - ENGINE/CYLINDER HEAD - INSTALLATION).

5. Install pushrods and rocker arm assembly (Refer to 9 - ENGINE/CYLINDER HEAD/ROCKER ARM / ADJUSTER

ASSY - INSTALLATION).

6. Install cylinder head cover (Refer to 9 - ENGINE/CYLINDER HEAD/CYLINDER HEAD COVER(S) - INSTALLA-

TION).

7. Install intake manifold (Refer to 9 - ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION).

8. Install the air cleaner (Refer to 9 - ENGINE/AIR INTAKE SYSTEM - INSTALLATION).

9. Connect the negative cable to the battery.

CAUTION: To prevent damage to valve mechanism, engine must not be run above fast idle until all hydrau-
lic tappets have filled with oil and have become quiet.

10. Road test vehicle and check for leaks.

PISTON & CONNECTING ROD

DESCRIPTION

CAUTION: Do not use a metal stamp to mark connecting rods as damage may result, instead use ink or a
scratch awl.

The pistons are made of a high strength aluminum alloy. Piston skirts are coated with a solid lubricant (Molykote) to
reduce friction and provide scuff resistance. The piston top ring groove and land is anodized. The connecting rods
are made of forged powdered metal, with a “fractured cap” design. A pressed fit piston pin is used to attach the
piston and connecting rod.

HB

ENGINE - 5.7L SERVICE INFORMATION

9 - 1413

STANDARD PROCEDURE - PISTON FITTING

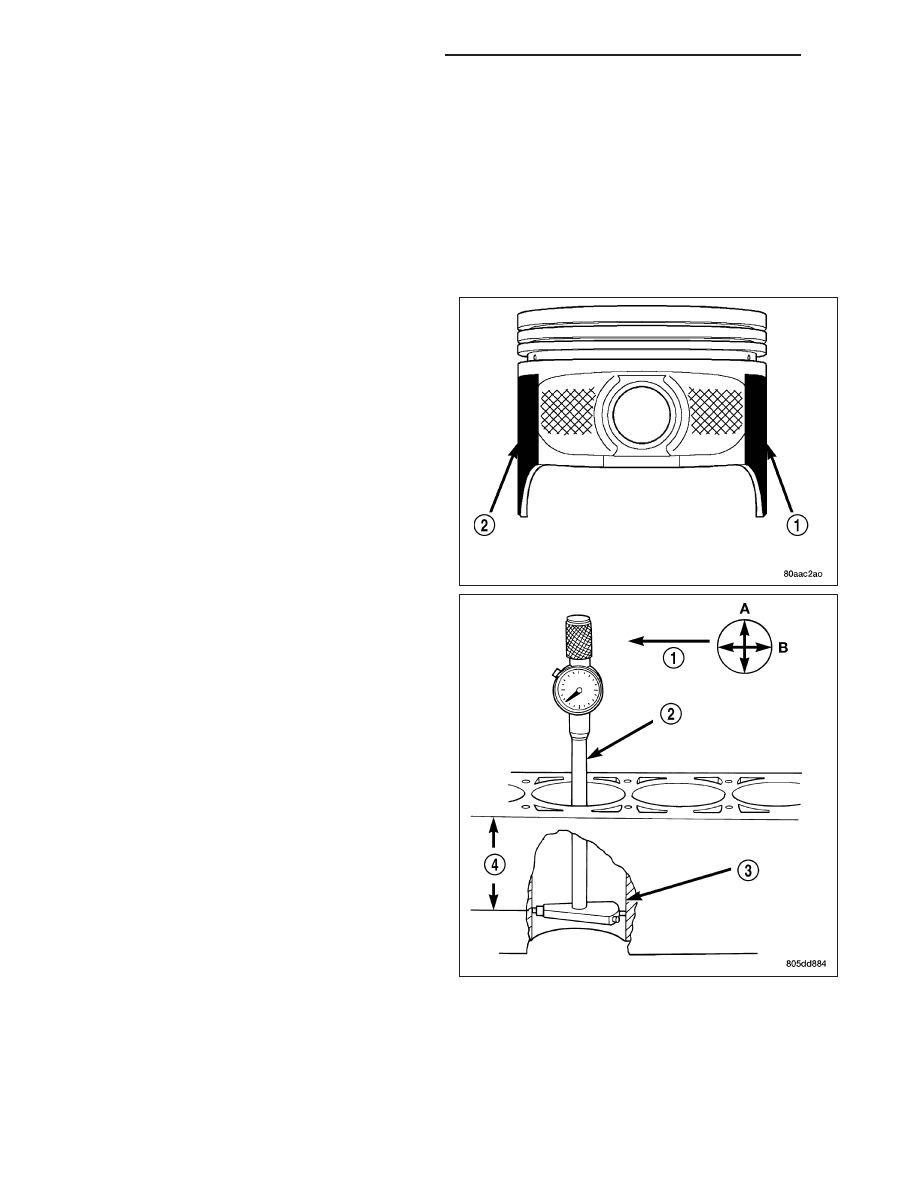

1. To correctly select the proper size piston, a cylinder bore gauge, capable of reading in 0.003 mm ( .0001 in.)

INCREMENTS is required. If a bore gauge is not available, do not use an inside micrometer.

2. Measure the inside diameter of the cylinder bore at a point 38.0 mm (1.5 inches) below top of bore. Start per-

pendicular (across or at 90 degrees) to the axis of the crankshaft at point A and then take an additional bore
reading 90 degrees to that at point B.

3. The coated pistons will be serviced with the piston pin and connecting rod pre-assembled. The piston-rod assem-

bly is specific for the left cylinder bank ( odd numbered) and the right cylinder bank ( even numbered) and must
not be interchanged.

4. The coating material is applied to the piston after

the final piston machining process. Measuring the
outside diameter of a coated piston will not provide
accurate results. Therefore measuring the inside
diameter of the cylinder bore with a dial Bore
Gauge is MANDATORY. To correctly select the
proper size piston, a cylinder bore gauge capable
of reading in 0.003 mm (.0001 in.) increments is
required.

5. Piston installation into the cylinder bore requires

slightly more pressure than that required for non-
coated pistons. The bonded coating on the piston
will give the appearance of a line-to-line fit with the
cylinder bore.

REMOVAL

1. Disconnect negative cable from battery.

2. Remove the following components:

Oil pan and gasket/windage tray (Refer to 9 -
ENGINE/LUBRICATION/OIL PAN - REMOVAL).

Cylinder head covers (Refer to 9 - ENGINE/CYL-
INDER HEAD/CYLINDER HEAD COVER(S) -
REMOVAL) and (Refer to 9 - ENGINE/CYLIN-
DER

HEAD/CYLINDER

HEAD

COVER(S)

-

REMOVAL).

Timing chain cover (Refer to 9 - ENGINE/VALVE
TIMING/TIMING BELT / CHAIN COVER(S) -
REMOVAL).

Cylinder head(s) (Refer to 9 - ENGINE/CYLIN-
DER HEAD - REMOVAL) and (Refer to 9 -
ENGINE/CYLINDER HEAD - REMOVAL).

3. If necessary, remove top ridge of cylinder bores

with a reliable ridge reamer before removing pis-
tons from cylinder block. Be sure to keep tops of
pistons covered during this operation.
Pistons and connecting rods must be removed from top of cylinder
block. When removing piston and connecting rod assemblies from the engine, rotate crankshaft so the each con-
necting rod is centered in cylinder bore.

CAUTION: DO NOT use a number stamp or a punch to mark connecting rods or caps, as damage to con-
necting rods could occur

9 - 1414

ENGINE - 5.7L SERVICE INFORMATION

HB
