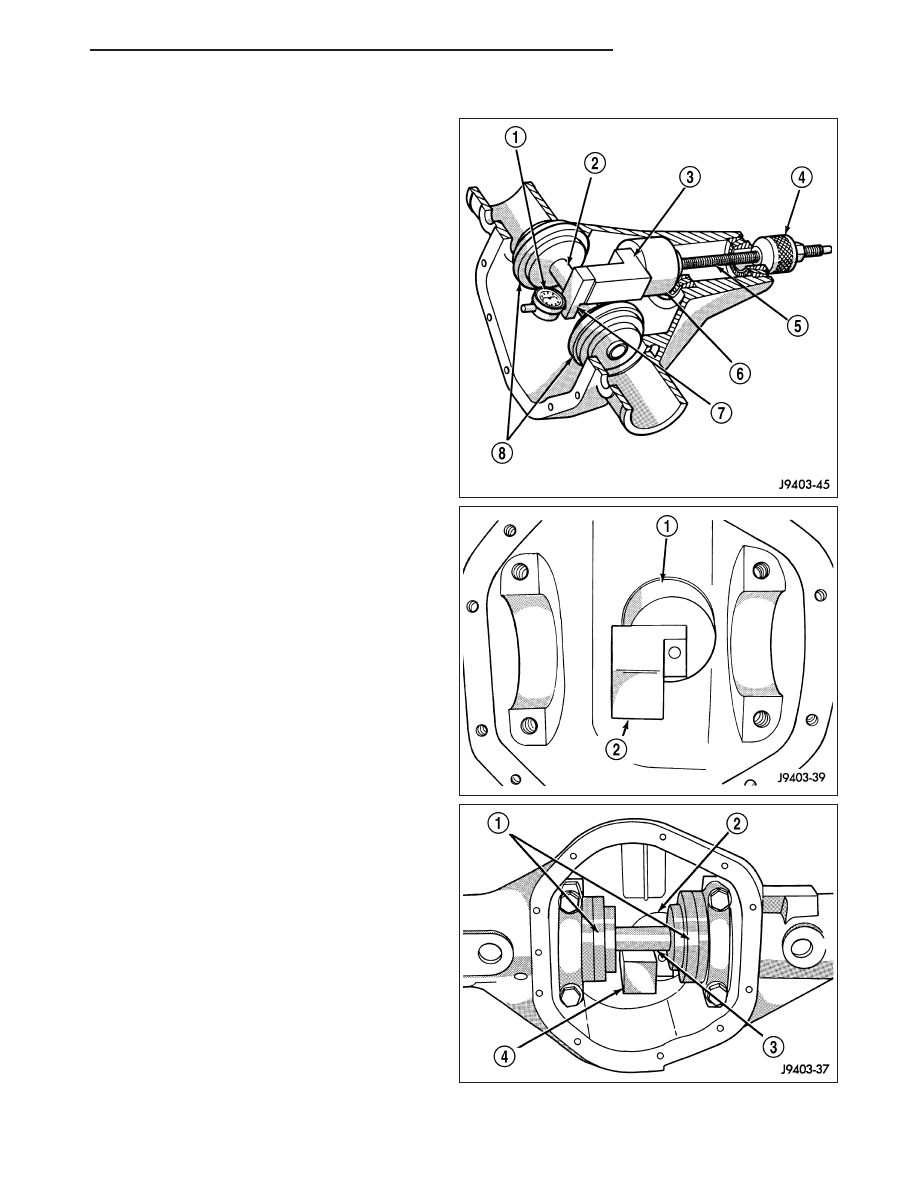

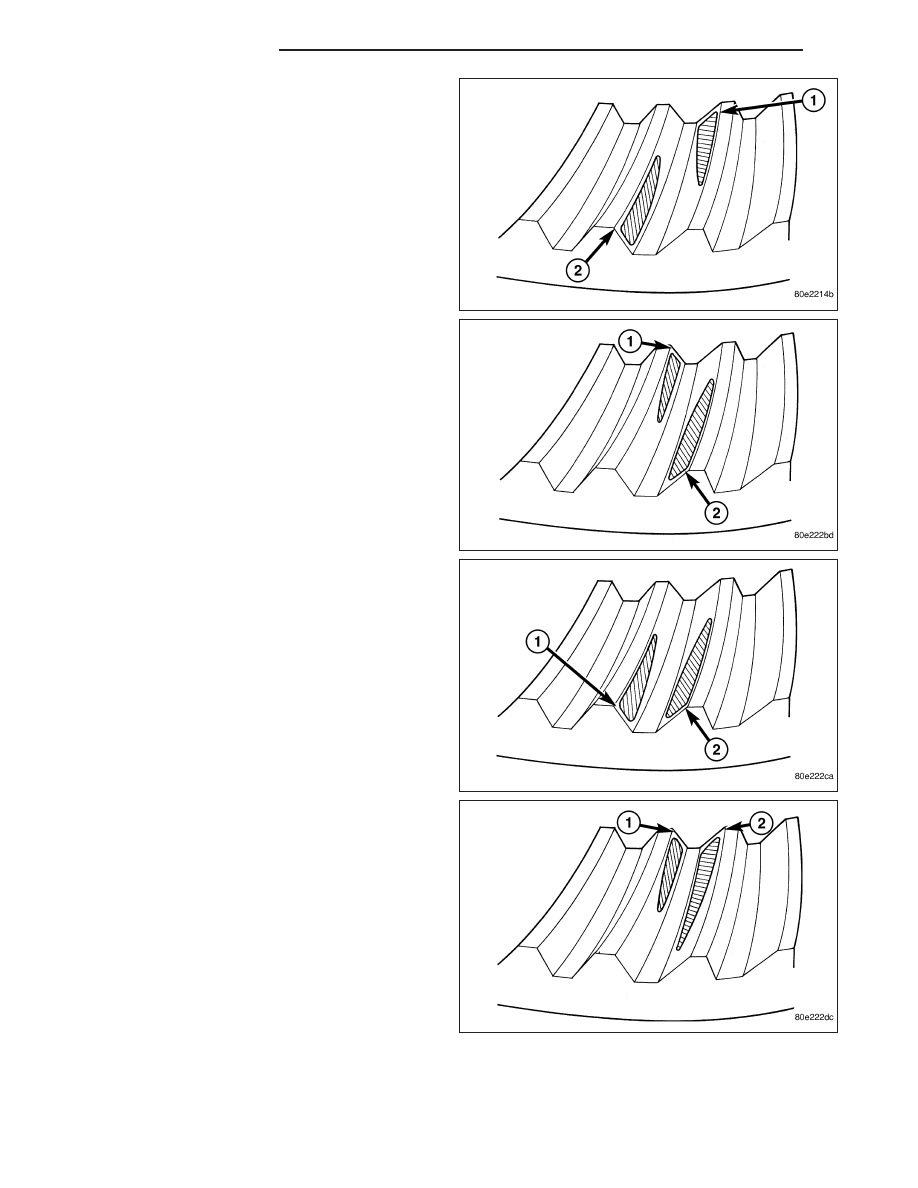

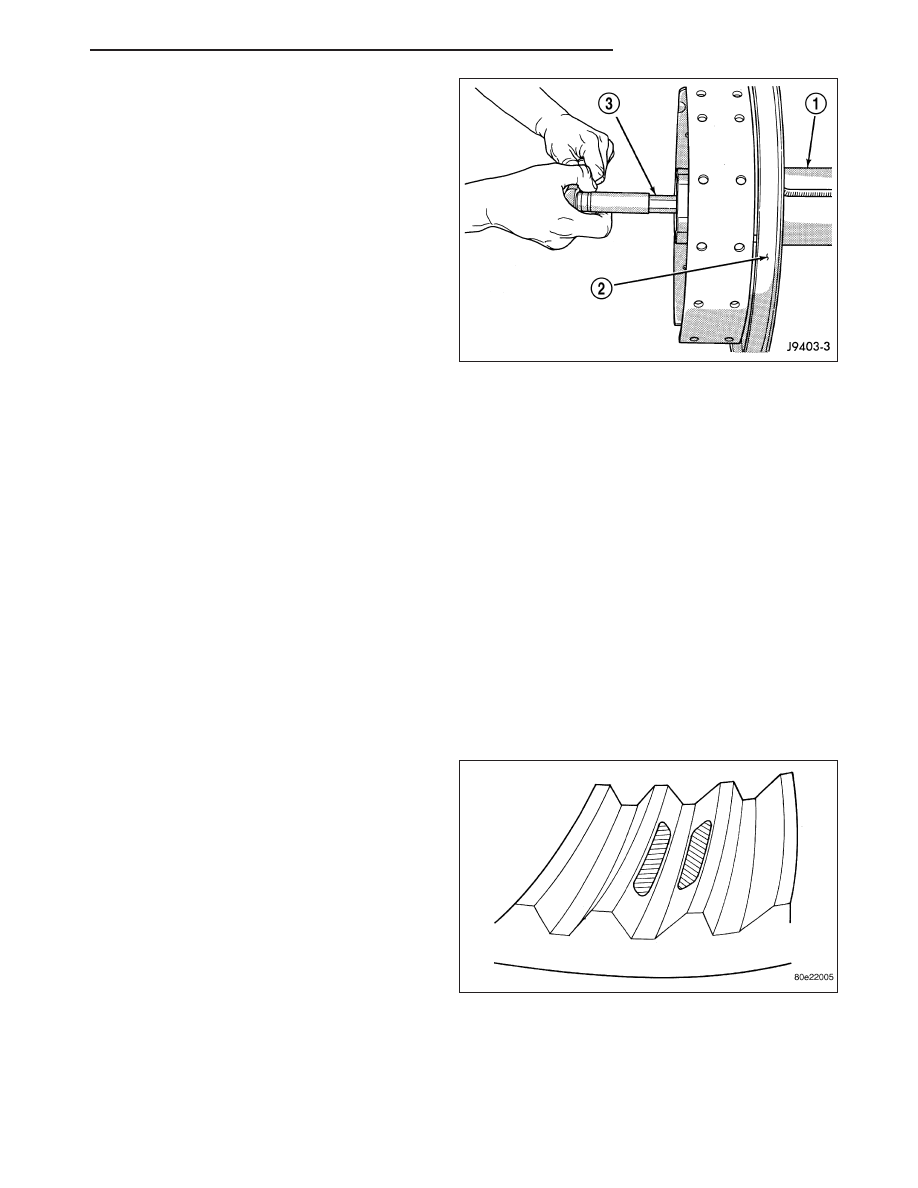

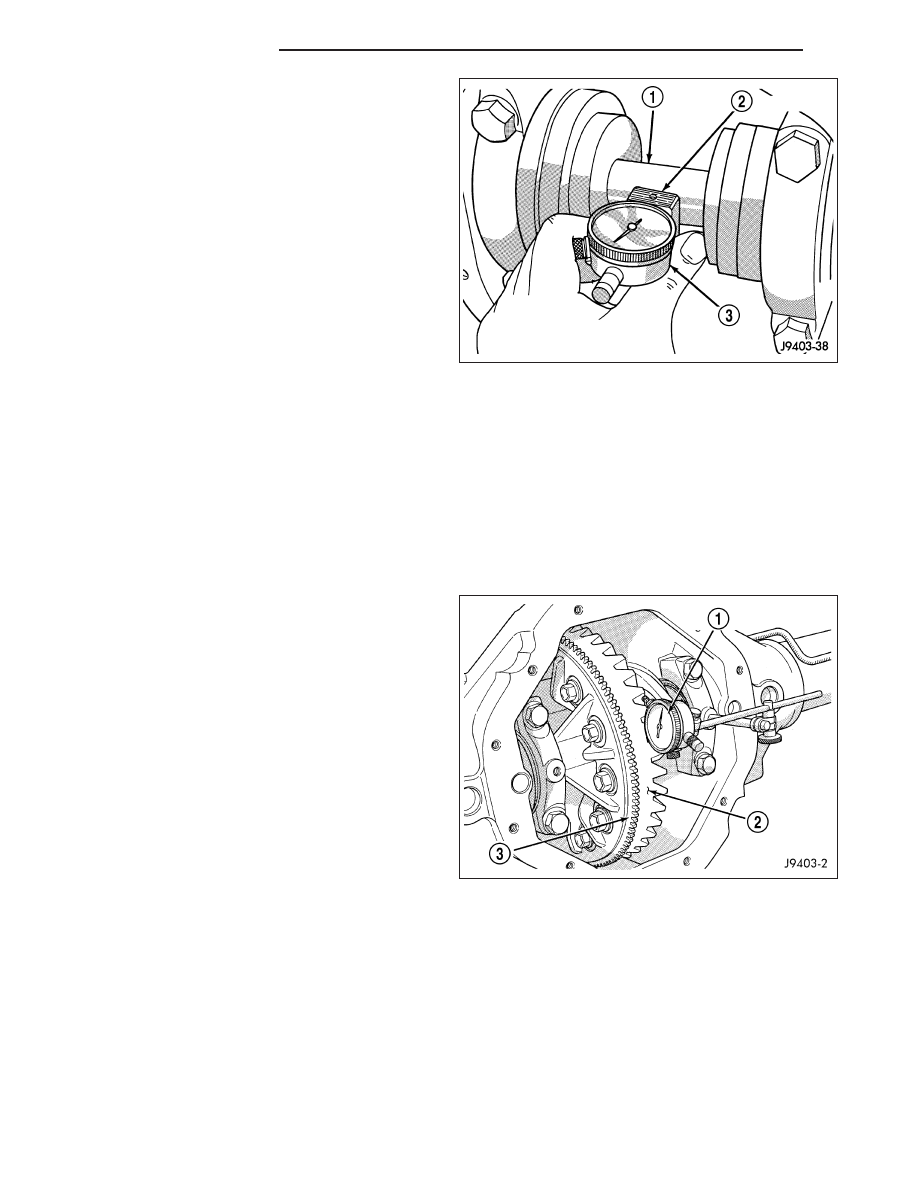

PINION DEPTH MEASUREMENT Measurements are taken with pinion bearing cups and 1. Assemble Pinion Height Block 6739 (2) Pinion Block 8540 (1) and rear pinion bearing onto Screw 2. Insert assembled height gauge components, rear bearing and screw into housing through pinion 3. Install front pinion bearing and Cone-Nut 6740 onto the screw. Tighten cone-nut until Torque To Rotate 4. Place Arbor Disc 8541 (1) on Arbor D-115-3 (3) in position in the housing side bearing cradles. Install HB REAR AXLE - 8 1/4 3 - 79 |
