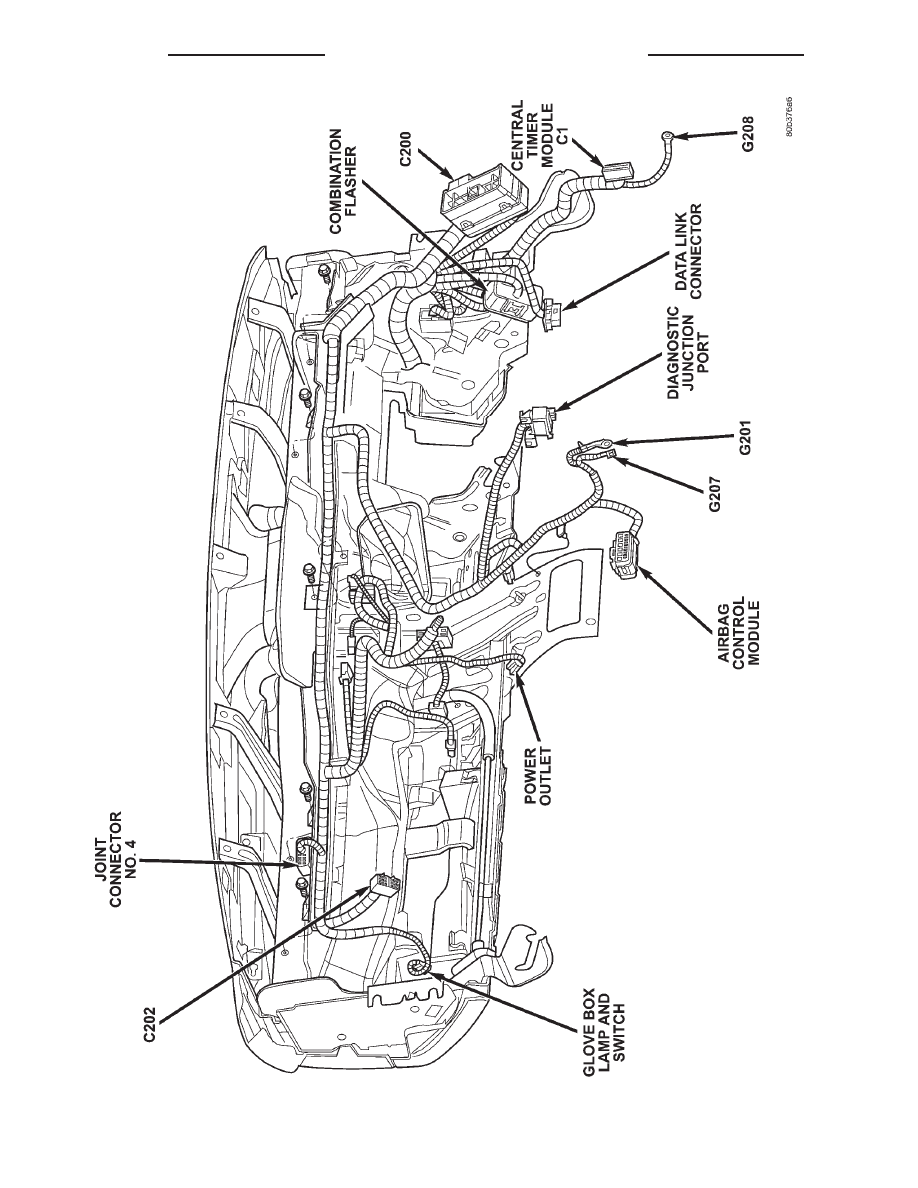

Fig.

25

INSTRUMENT

P

ANEL

CONNECT

ORS

8Wa - 90 - 24

8W-90 CONNECTOR/GROUND LOCATIONS

R1

CONNECTOR/GROUND LOCATIONS (Continued)

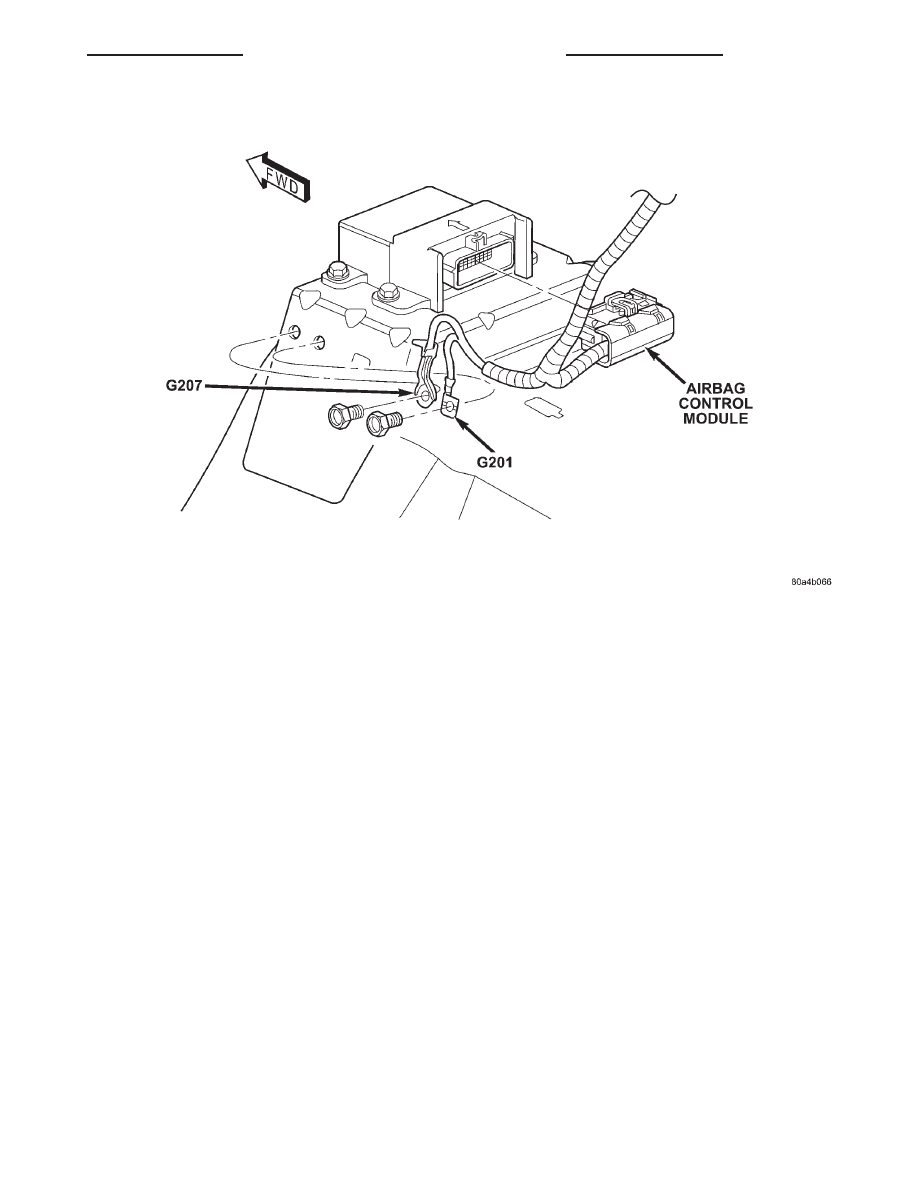

Fig. 26 AIRBAG CONTROL MODULE

R1

8W-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 25

CONNECTOR/GROUND LOCATIONS (Continued)

Fig.

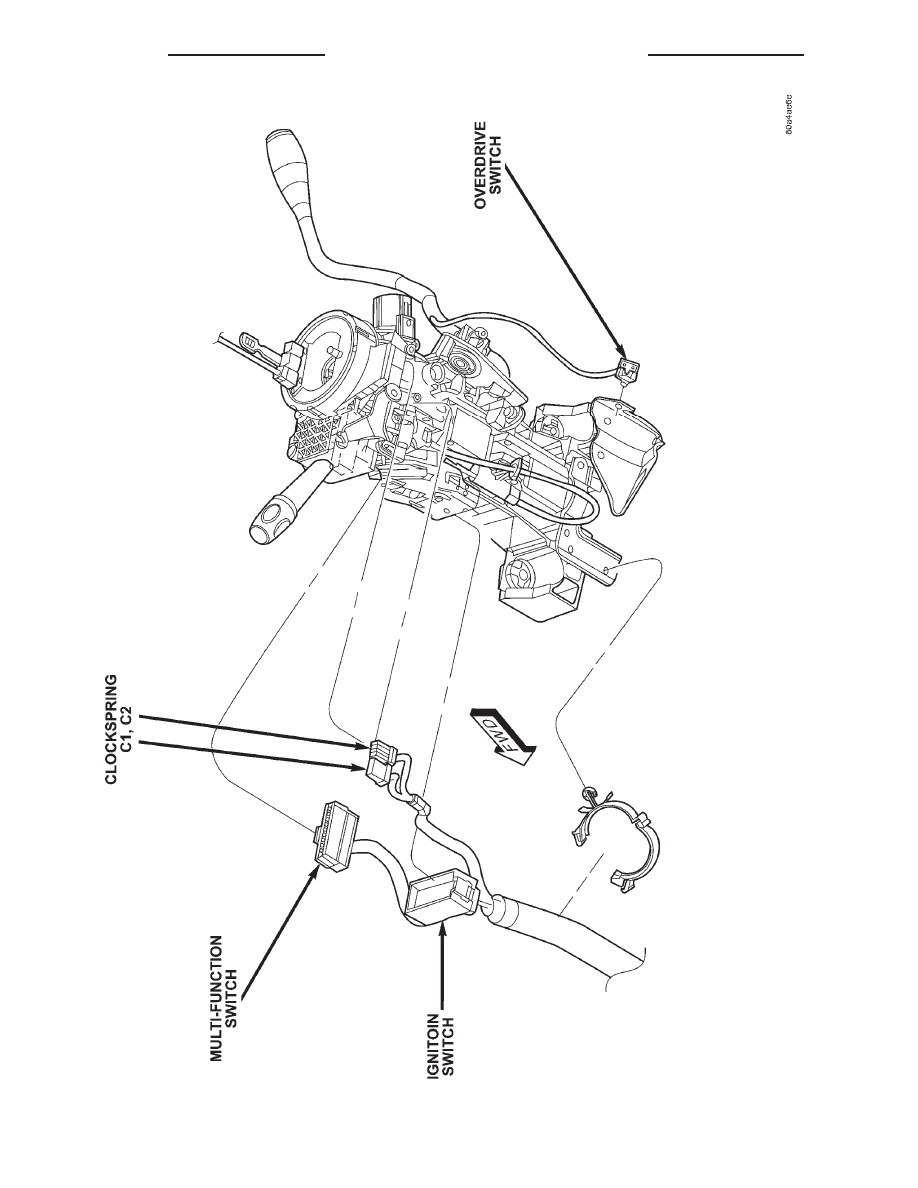

27

MUL

TI-FUNCTION

SWITCH

CONNECT

ORS

8Wa - 90 - 26

8W-90 CONNECTOR/GROUND LOCATIONS

R1

CONNECTOR/GROUND LOCATIONS (Continued)

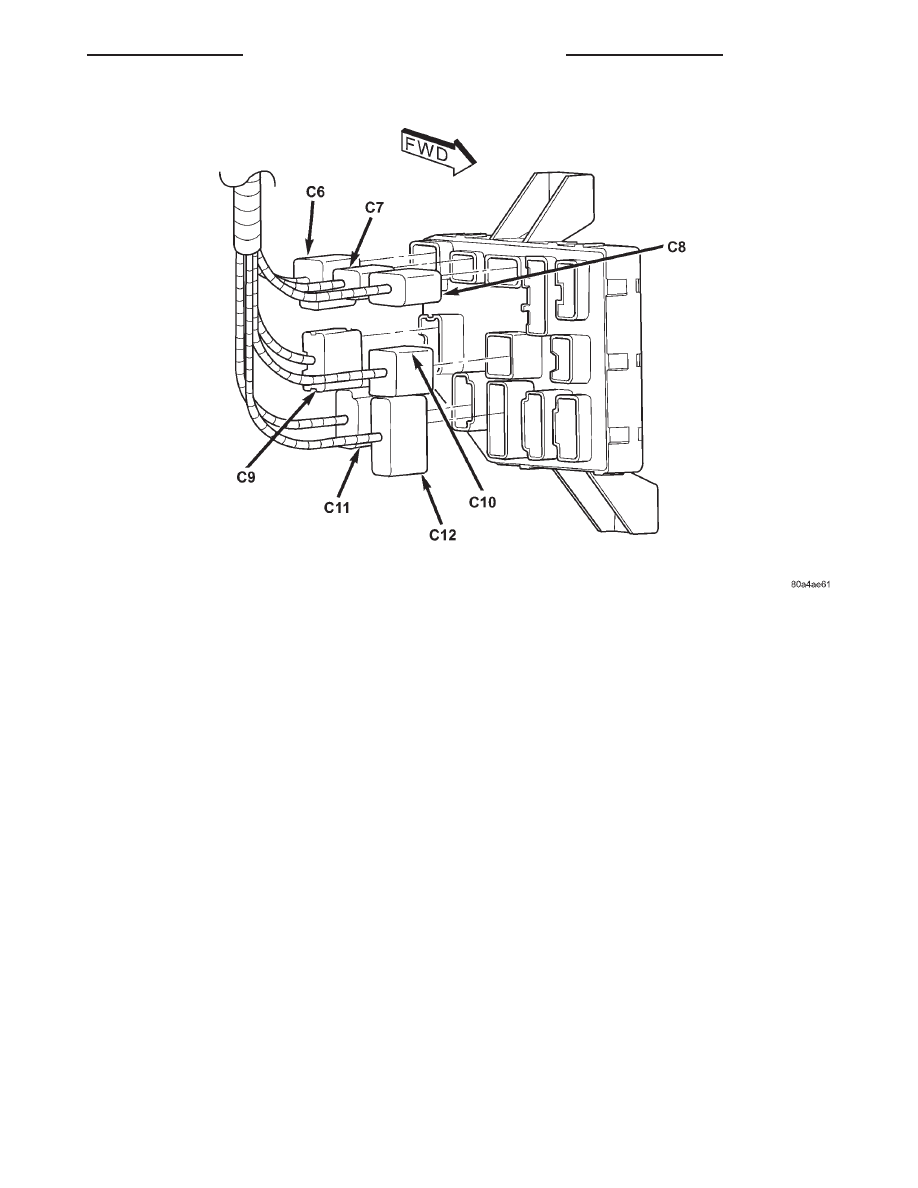

Fig. 28 JUNCTION BLOCK CONNECTORS

R1

8W-90 CONNECTOR/GROUND LOCATIONS

8Wa - 90 - 27

CONNECTOR/GROUND LOCATIONS (Continued)
