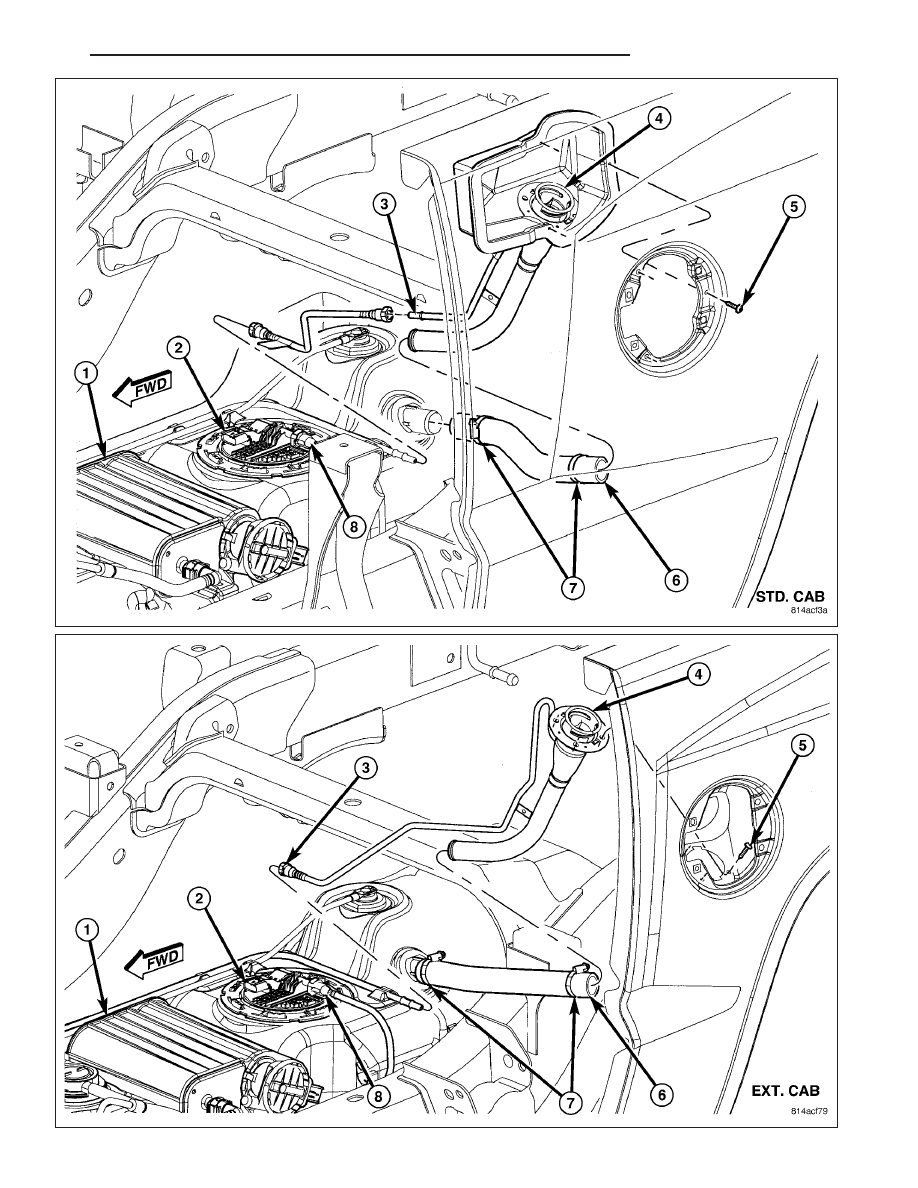

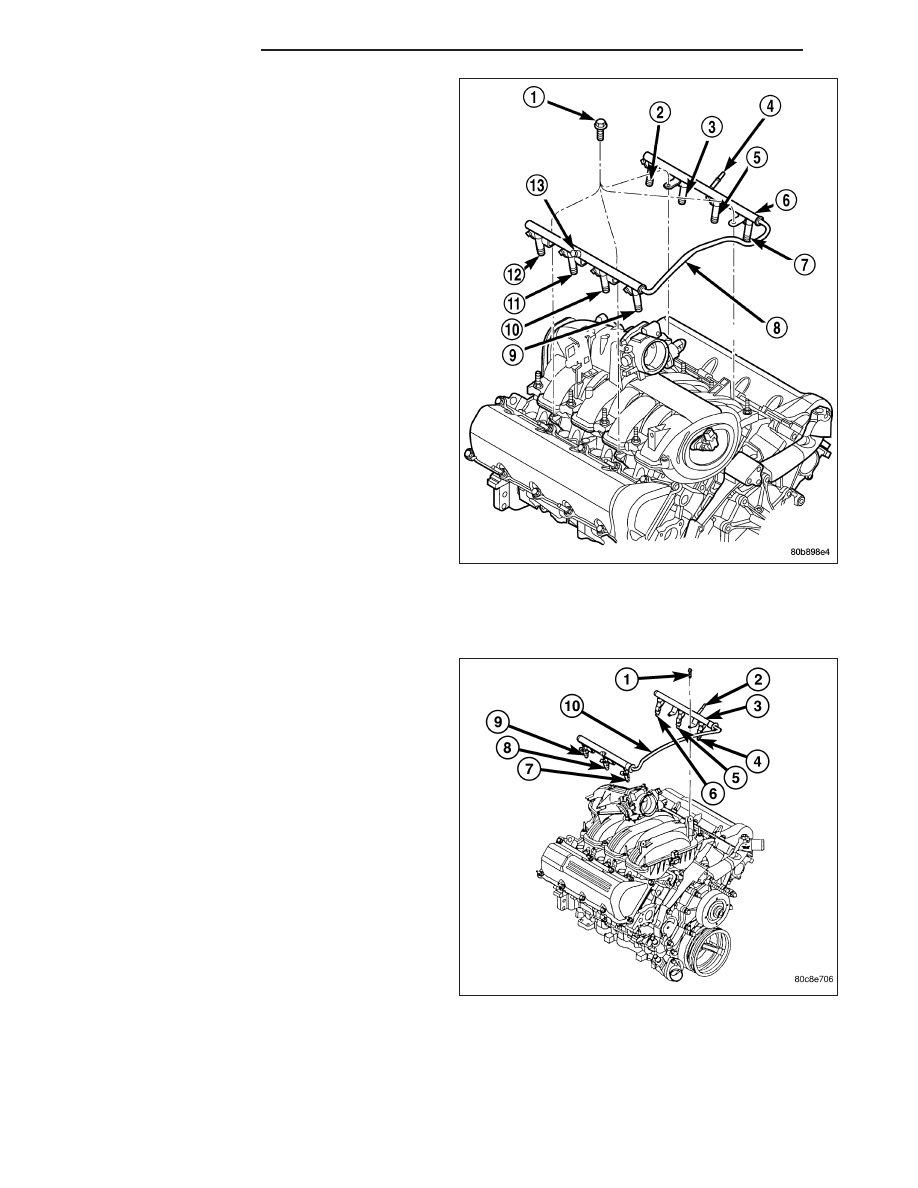

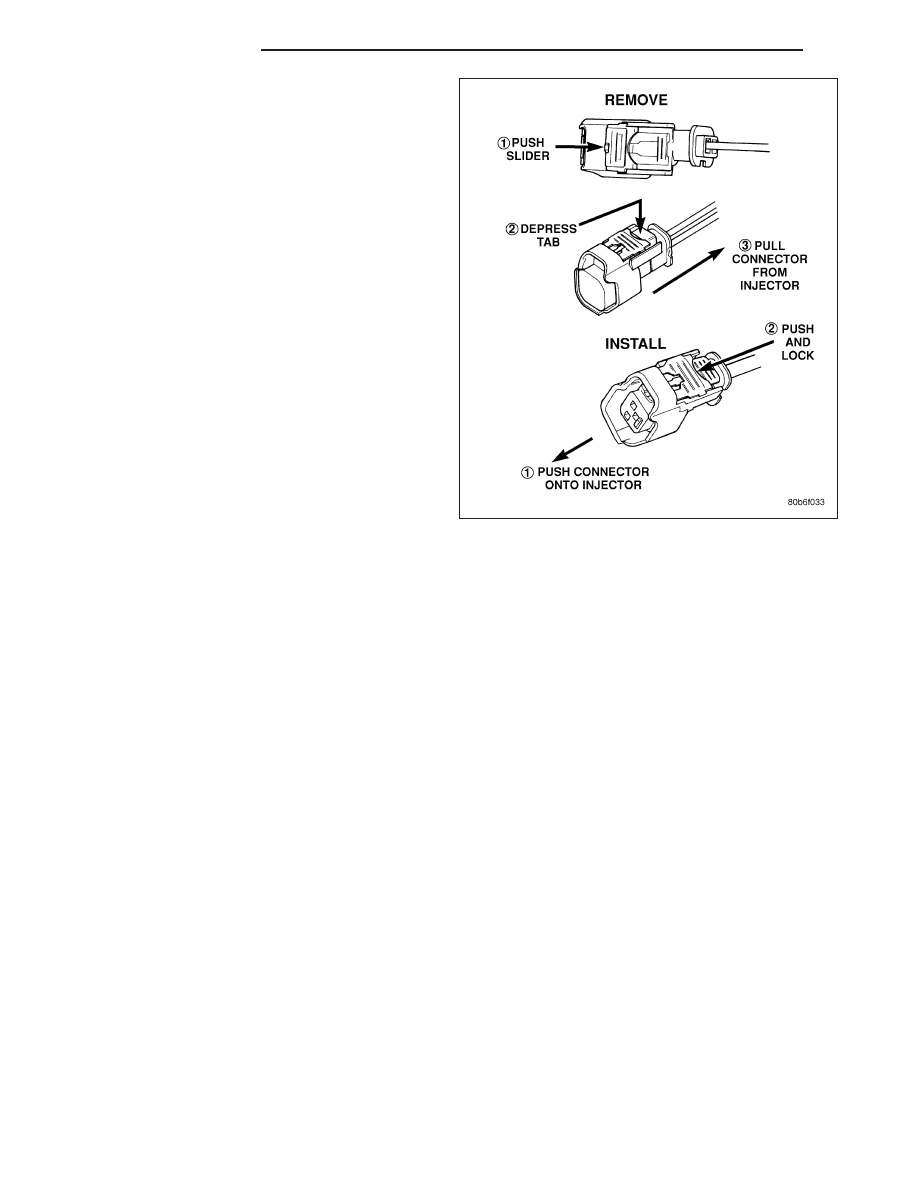

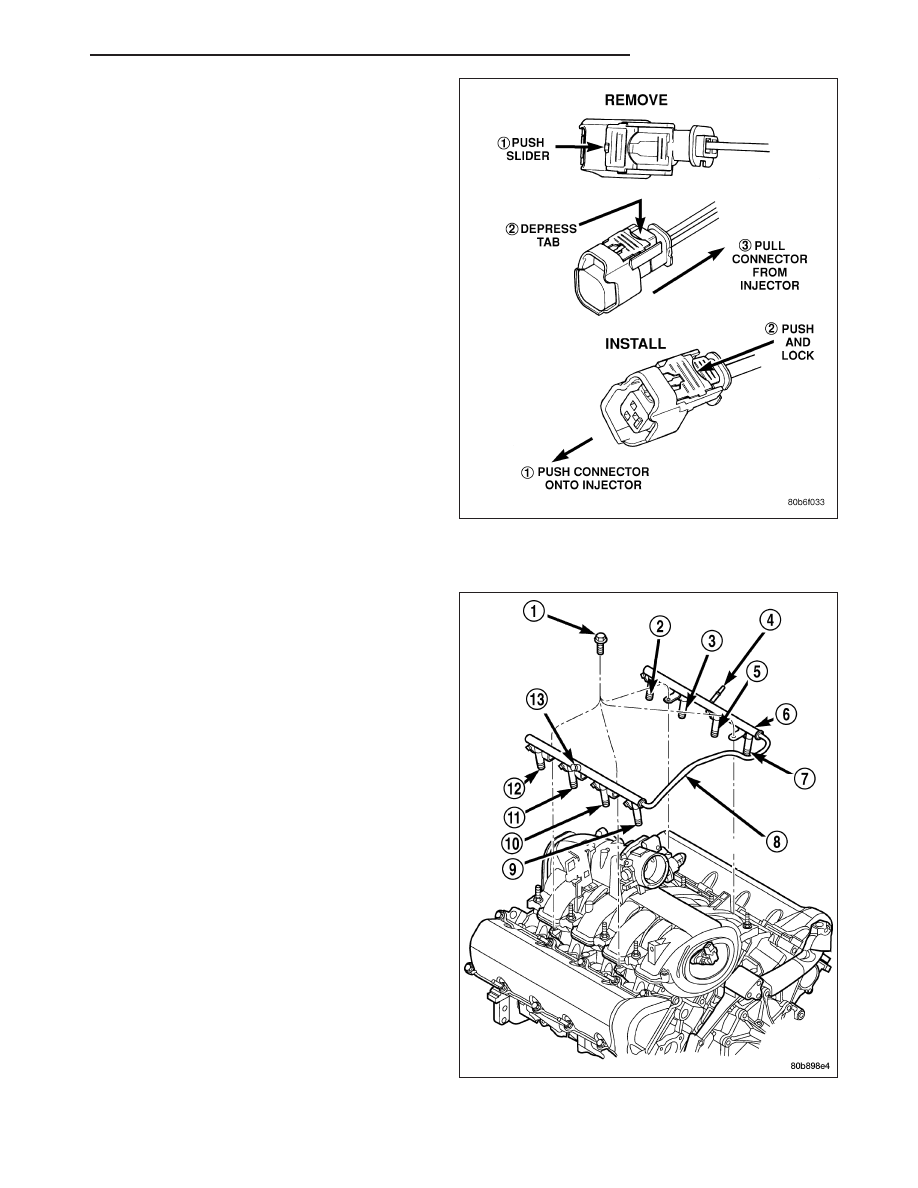

12. Remove 4 fuel rail mounting bolts (1). 13. Gently rock and pull left side of fuel rail until fuel injectors just start to clear machined holes in cyl- 14. Remove fuel rail (with injectors attached) from engine. 15. If fuel injectors are to be removed, refer to Fuel Injector Removal/Installation. INSTALLATION 3.7L V-6 1. If fuel injectors are to be installed, refer to Fuel Injector Removal/Installation. 2. Clean out fuel injector machined bores in intake manifold. 3. Apply a small amount of engine oil to each fuel injector o-ring. This will help in fuel rail installation. 4. Position fuel rail/fuel injector assembly to machined injector openings in cylinder head. 5. Guide each injector into cylinder head. Be careful not to tear injector o-rings. 6. Push right side of fuel rail down until fuel injectors have bottomed on cylinder head shoulder. Push 7. Install four fuel rail mounting bolts (1) and tighten. Refer to torque specifications. 8. Install 6 ignition coils. Refer to Ignition Coil Remov- al/Installation. 9. Connect electrical connectors to throttle body. 14 - 14 FUEL DELIVERY ND |
