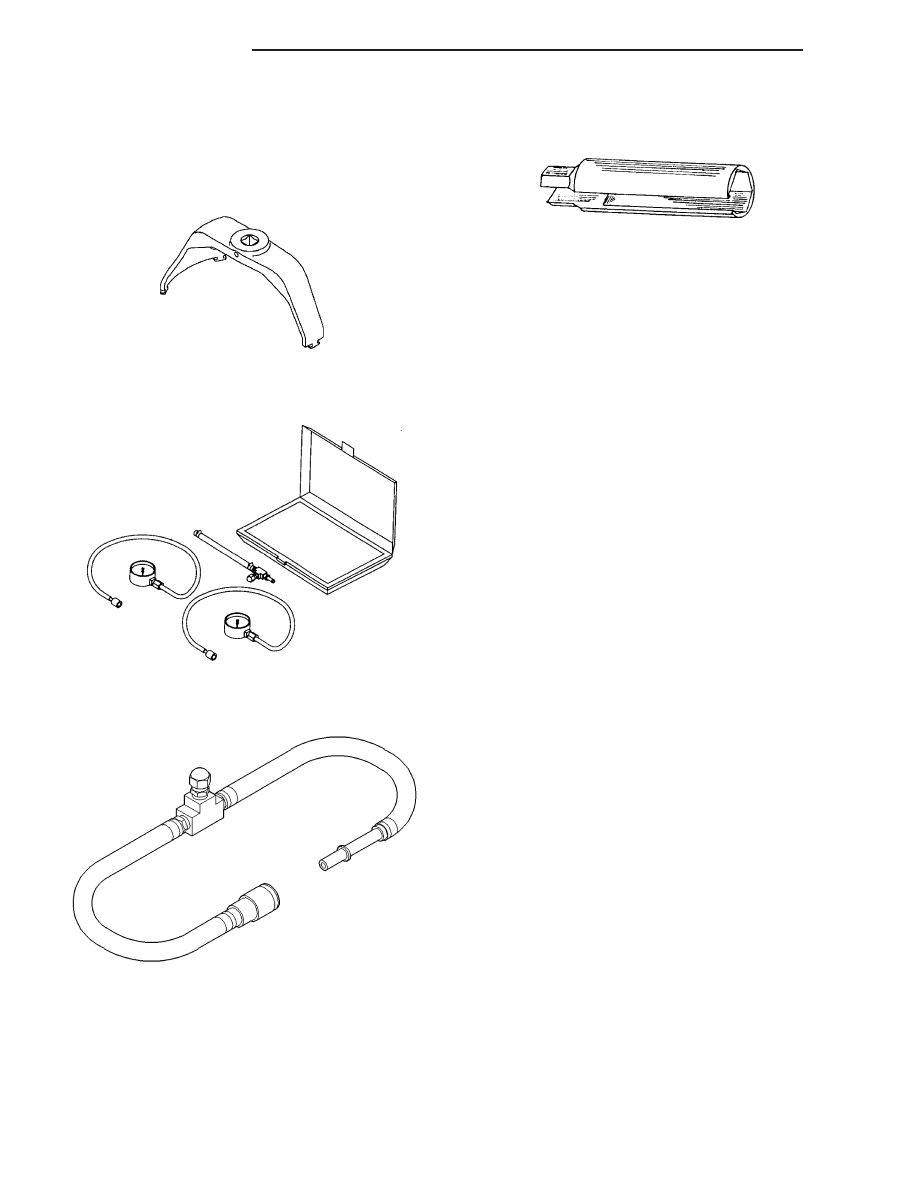

6. Unplug connector from any fuel injector. 7. Attach one end of a jumper wire with alligator clips (18 gauge or smaller) to either injector terminal. 8. Connect other end of jumper wire to positive side of battery. 9. Connect one end of a second jumper wire to remaining injector terminal. CAUTION: Powering an injector for more than a few seconds will permanently damage the injector. 10. Momentarily touch other end of jumper wire to negative terminal of battery for no more than a few seconds. 11. Place a rag or towel below fuel line quick-connect fitting at fuel rail. 12. Disconnect quick-connect fitting at fuel rail. Refer to Quick-Connect Fittings. 13. Return fuel pump relay to PDC. 14. One or more Diagnostic Trouble Codes (DTC’s) may have been stored in PCM memory due to fuel pump relay removal. A diagnostic scan tool must be used to erase a DTC. SPECIFICATIONS FUEL SYSTEM PRESSURE 58 psi +/- 2 psi TORQUE - FUEL SYSTEM DESCRIPTION N-m Ft. Lbs. In. Lbs. Accelerator Pedal Bracket Mounting 12 - 105 Crankshaft Position Sensor - 3.7L 28 21 - Crankshaft Position Sensor - 4.7L 28 21 - Camshaft Position Sensor - 3.7L 12 - 106 Camshaft Position Sensor - 4.7L 12 - 106 Engine Coolant Temperature Sensor - 3.7L 11 - 96 Engine Coolant Temperature Sensor - 4.7L 11 - 96 Fuel Filler Hose Clamp 3 - 30 Fuel Filler Housing-to- Body Screws 2 - 17 Fuel Rail Mounting Bolts - 3.7L 11 - 100 Fuel Rail Mounting Bolts - 4.7L 11 - 100 Fuel Tank Mounting Straps 41 30 - IAC Motor Mounting Screws - 3.7L 7 - 60 IAC Motor Mounting Screws - 4.7L 7 - 60 NVLD Pump Mounting Bolt 8.5 - 75 14 - 2 FUEL DELIVERY ND |
