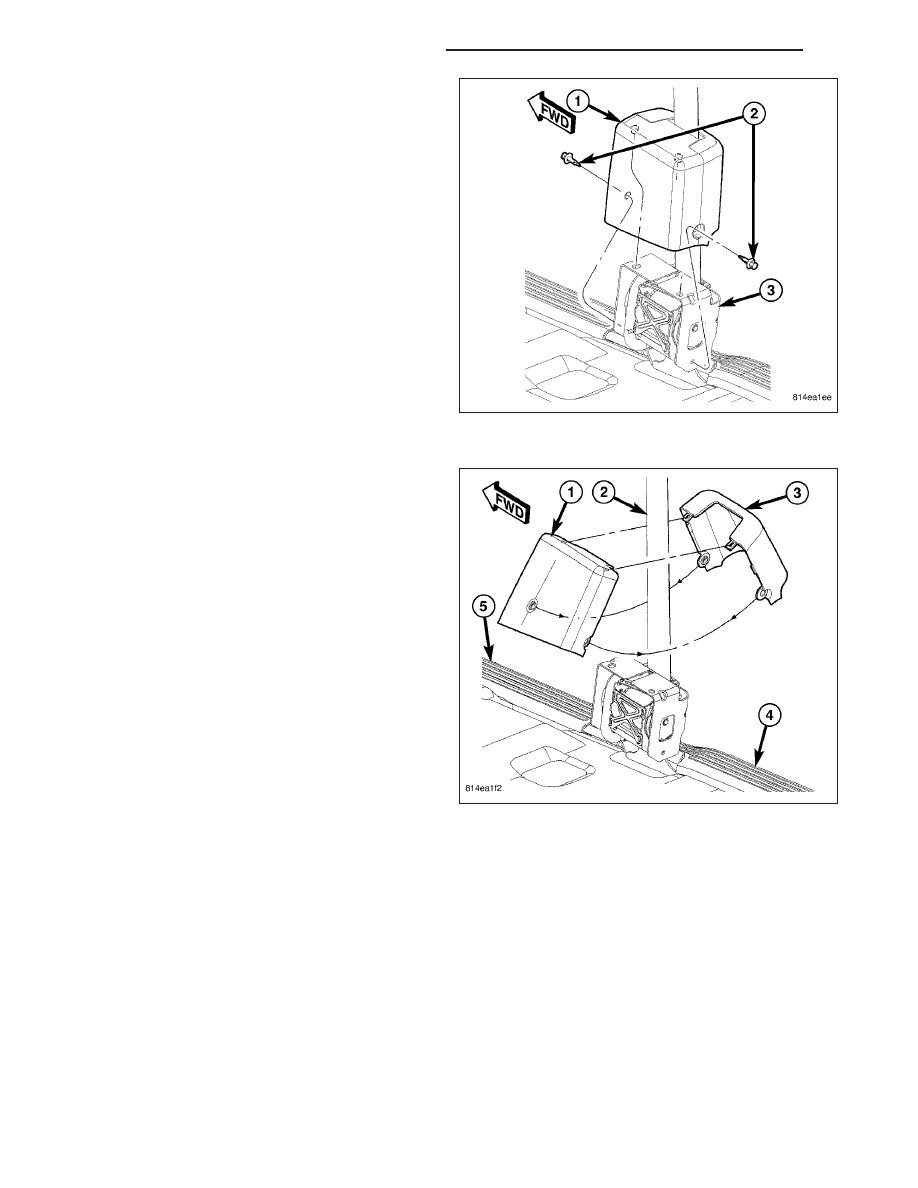

4. Remove the two plastic push-pin retainers (2) that secure the trim cover (1) to the retractor (3) on the 5. Raise the trim cover up off of the retractor far enough to disengage the two locator pins in the top 6. Spread apart the lower end of the inboard (1) and outboard (3) trim cover halves far enough to 7. Remove the trim cover halves from around the seat belt and retractor (2). 8. Loosen and move aside the front (5) and rear (4) scuff plates from the door sill far enough to access 8O - 468 RESTRAINTS - SERVICE INFORMATION ND |
