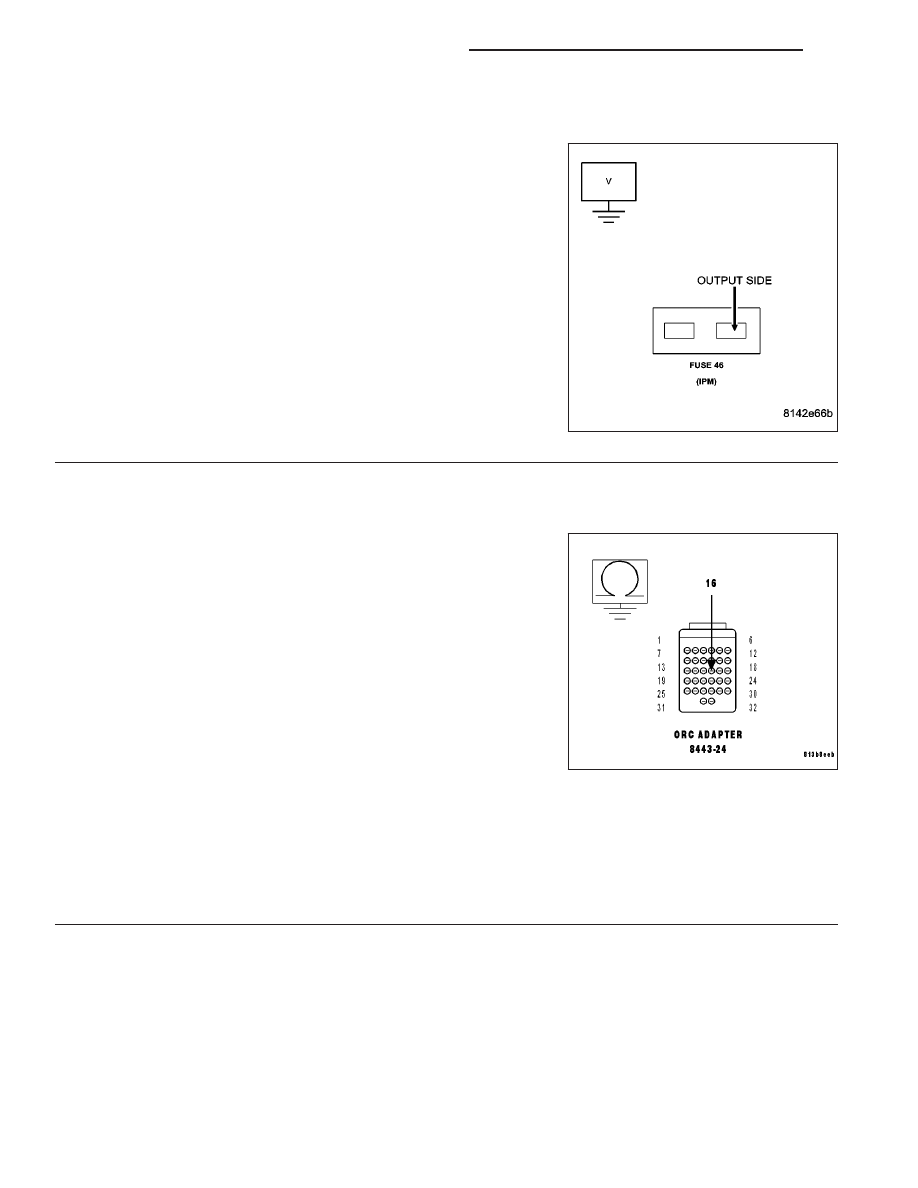

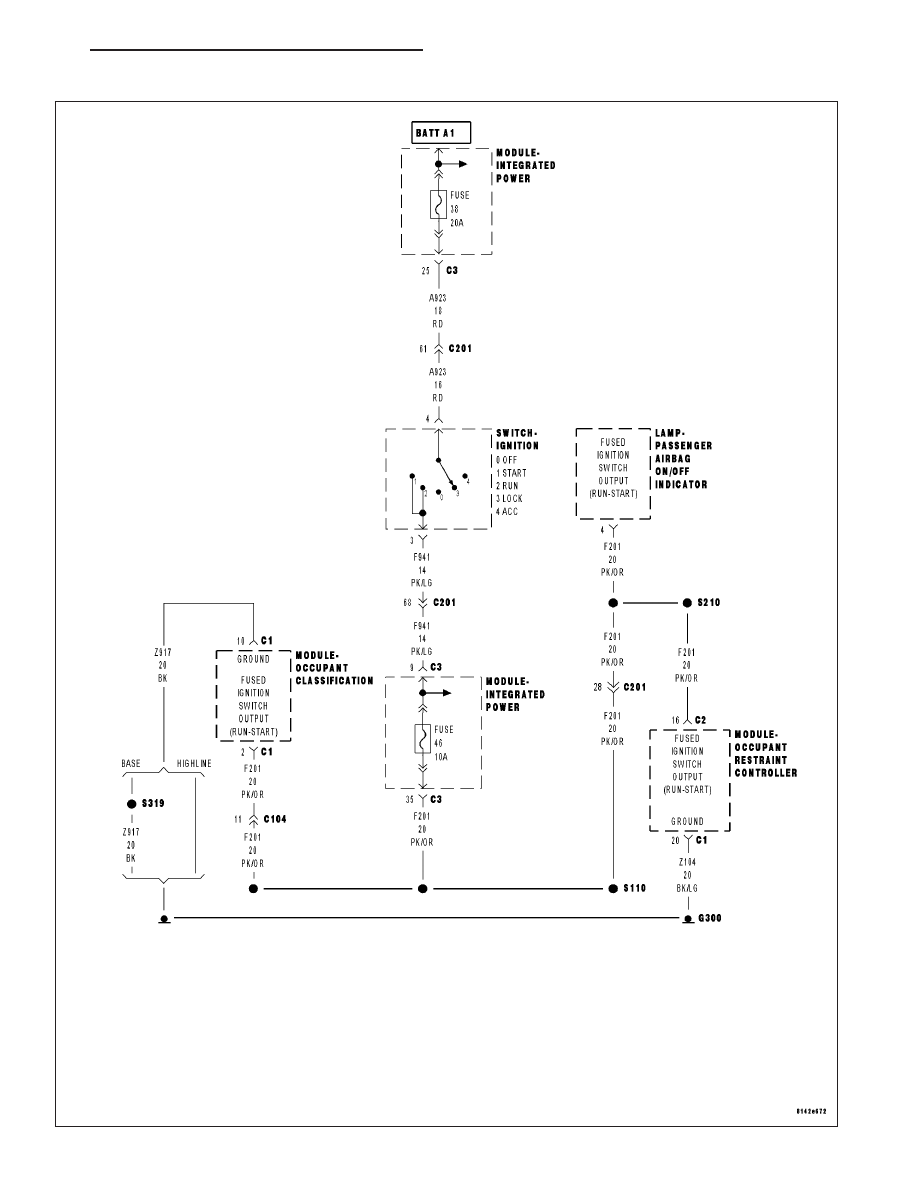

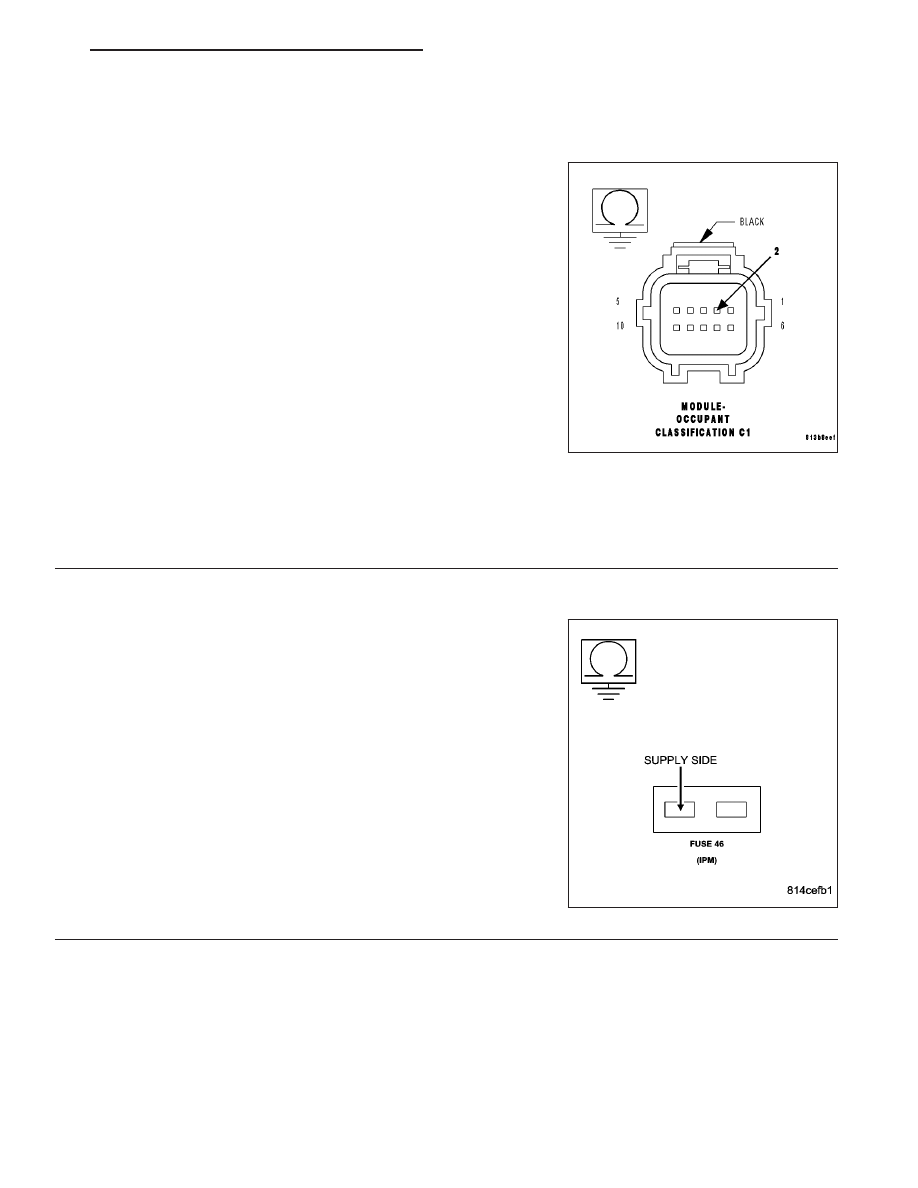

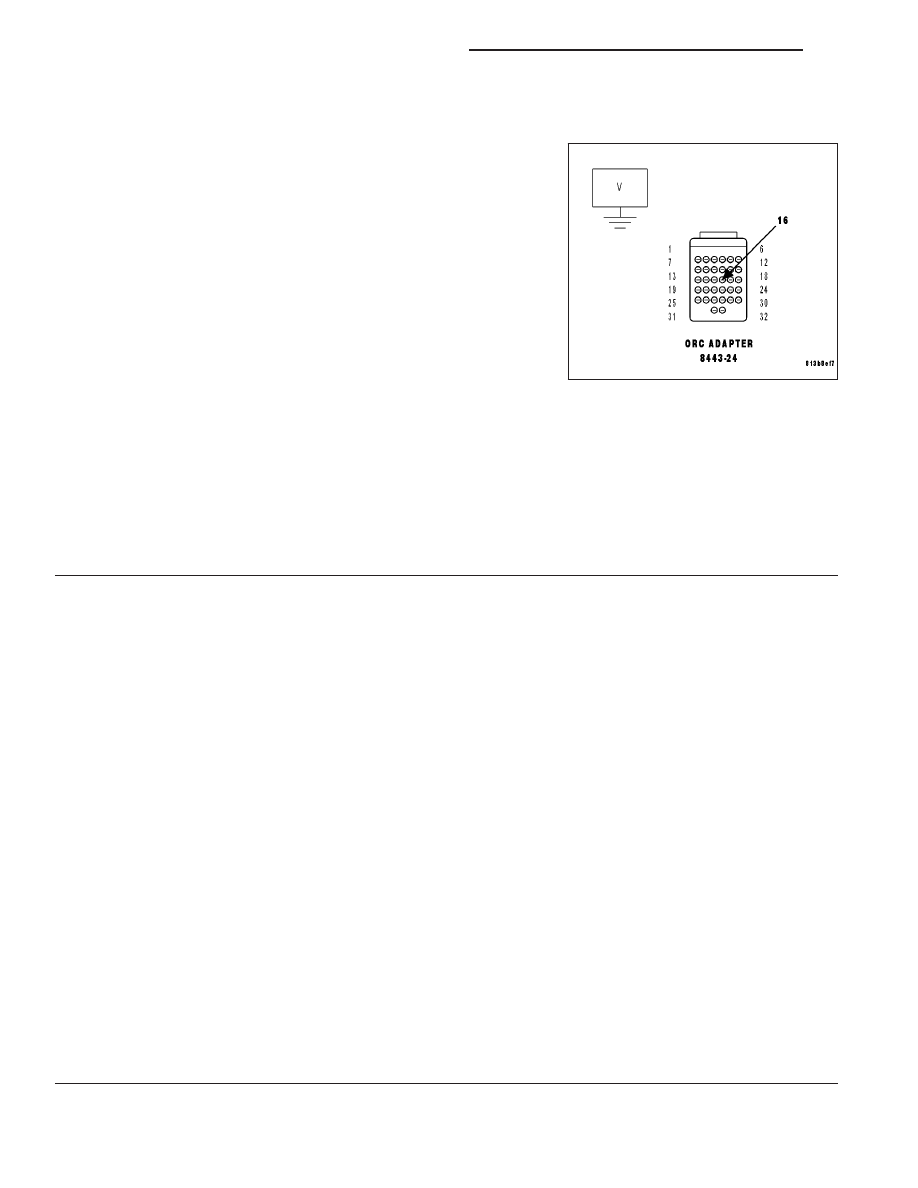

B2101-IGNITION RUN/START INPUT CIRCUIT LOW (CONTINUED) 4. CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE Measure the resistance of the (F201) Fused Ignition Switch Output Is the resistance below 100.0 ohms? Yes >> Go To 5 No >> Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors. Look for chaffed, Replace Airbag Run-Start Fuse. Perform ORC VERIFICATION TEST - VER 1. Perform OCS VERIFICATION TEST - VER 1. 5. CHECK (F201) FUSED IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT RESISTANCE WITH ORC WARNING: If the Occupant Restraint Controller is dropped at any WARNING: To avoid personal injury or death, turn the ignition off, NOTE: Check connectors - Clean and repair as necessary. Measure the resistance of the (F201) Fused Ignition Switch Output Is the resistance below 100.0 ohms? Yes >> Go To 6 No >> Replace the ORC in accordance with the Service Information. Replace the Airbag Run-Start Fuse. Perform ORC VERIFICATION TEST - VER 1. Perform OCS VERIFICATION TEST - VER 1. 8O - 312 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
