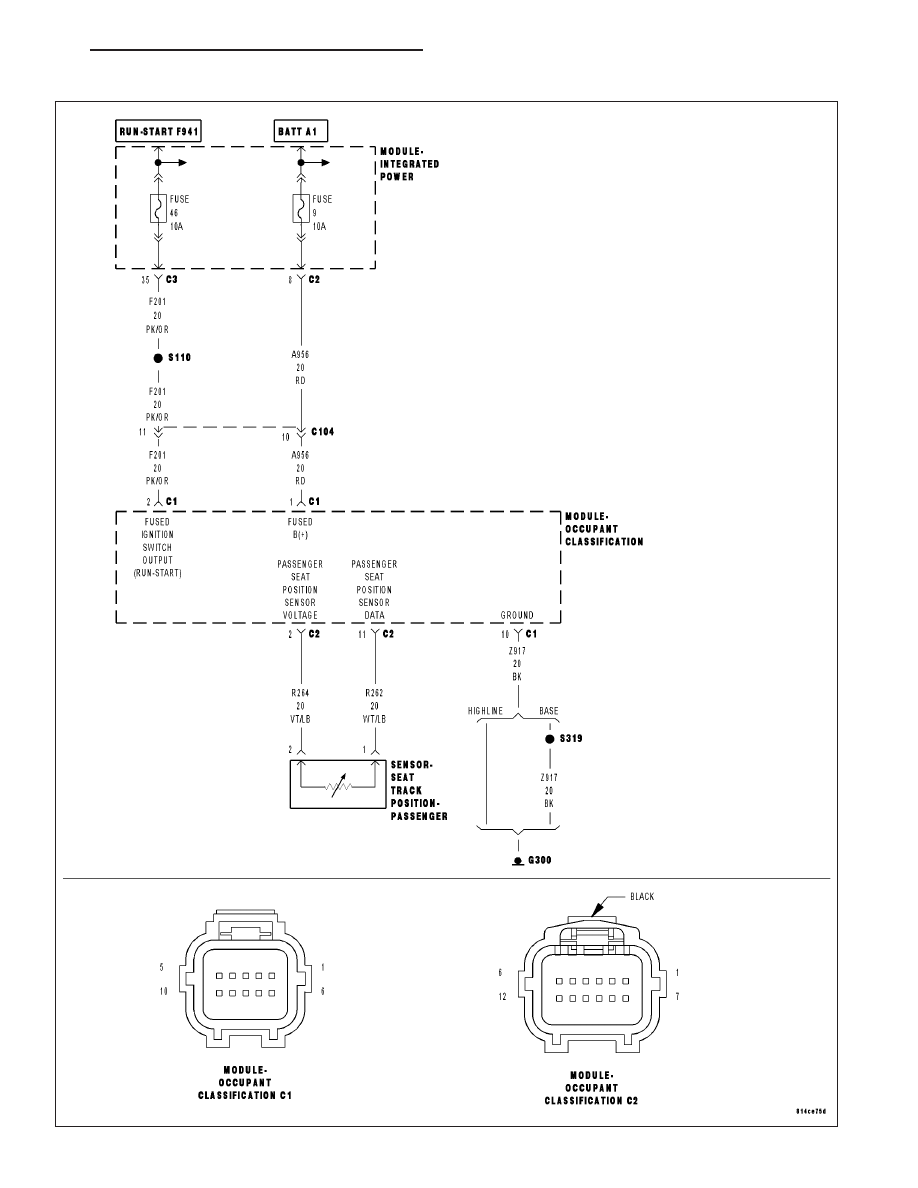

B1B93-PASSENGER SEAT TRACK POSITION SENSOR CIRCUIT LOW (CONTINUED) 3. INSPECT PASSENGER SEAT HARNESS WIRES & CONNECTORS WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min- Are any of these conditions present? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or Replace the Passenger Seat Harness in accordance with the Service Information. Perform OCS VERIFICATION TEST - VER 1. No >> Go To 4 4. VERIFY THAT PASSENGER SEAT HARNESS IS ROUTED CORRECTLY Verify that the Passenger Seat Harness is routed correctly. Is the Passenger Seat Harness routed correctly? Yes >> Go To 5 No >> Reroute the Passenger Seat Harness as necessary. Perform OCS VERIFICATION TEST - VER 1. 5. CHECK (R262) SEAT POSITION SENSOR DATA-PASSENGER CIRCUIT & (R264) SEAT POSITION Measure the resistance between ground and the (R262) Seat Position Measure the resistance between ground and the (R264) Seat Position Is the resistance below 10k ohms on either circuit? Yes >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform the OCS VERIFICATION TEST-VER 1. No >> Go To 6 8O - 268 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
