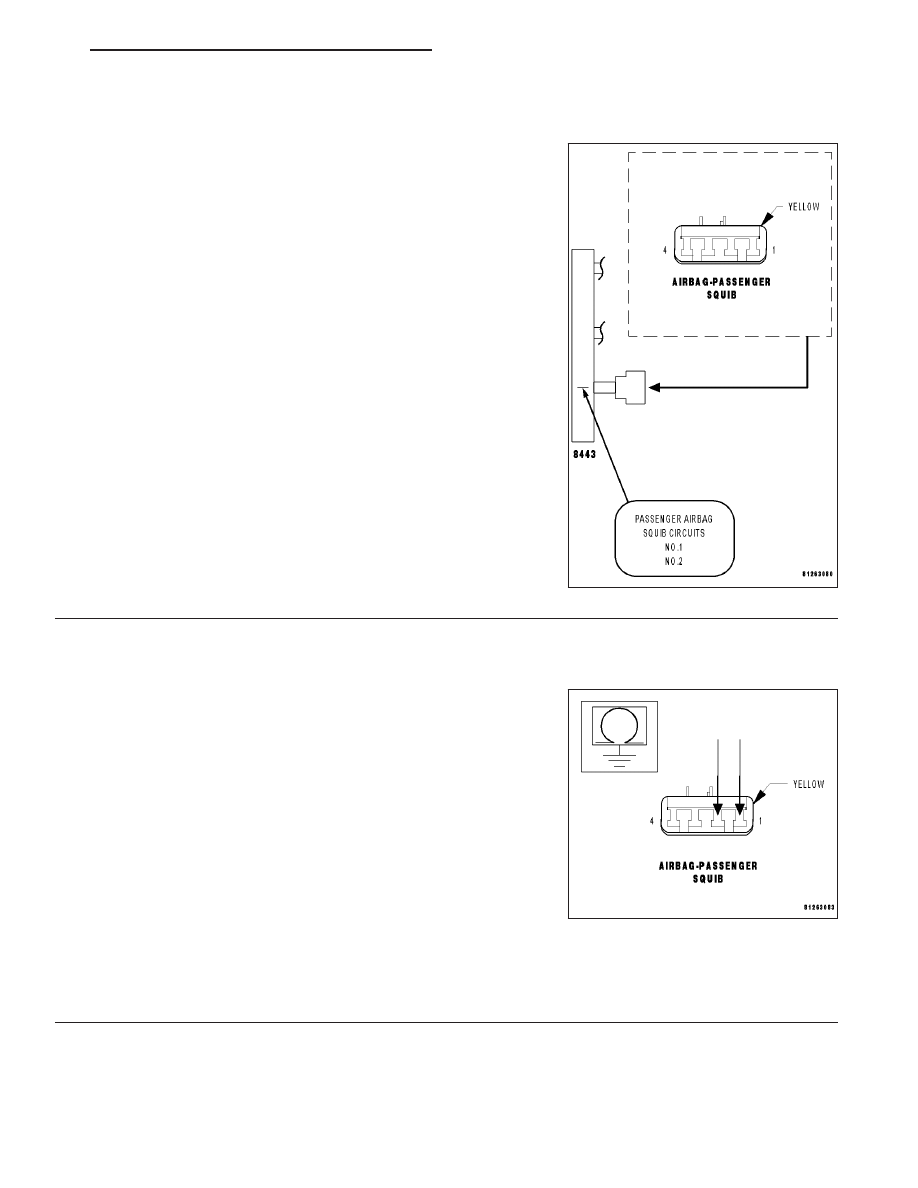

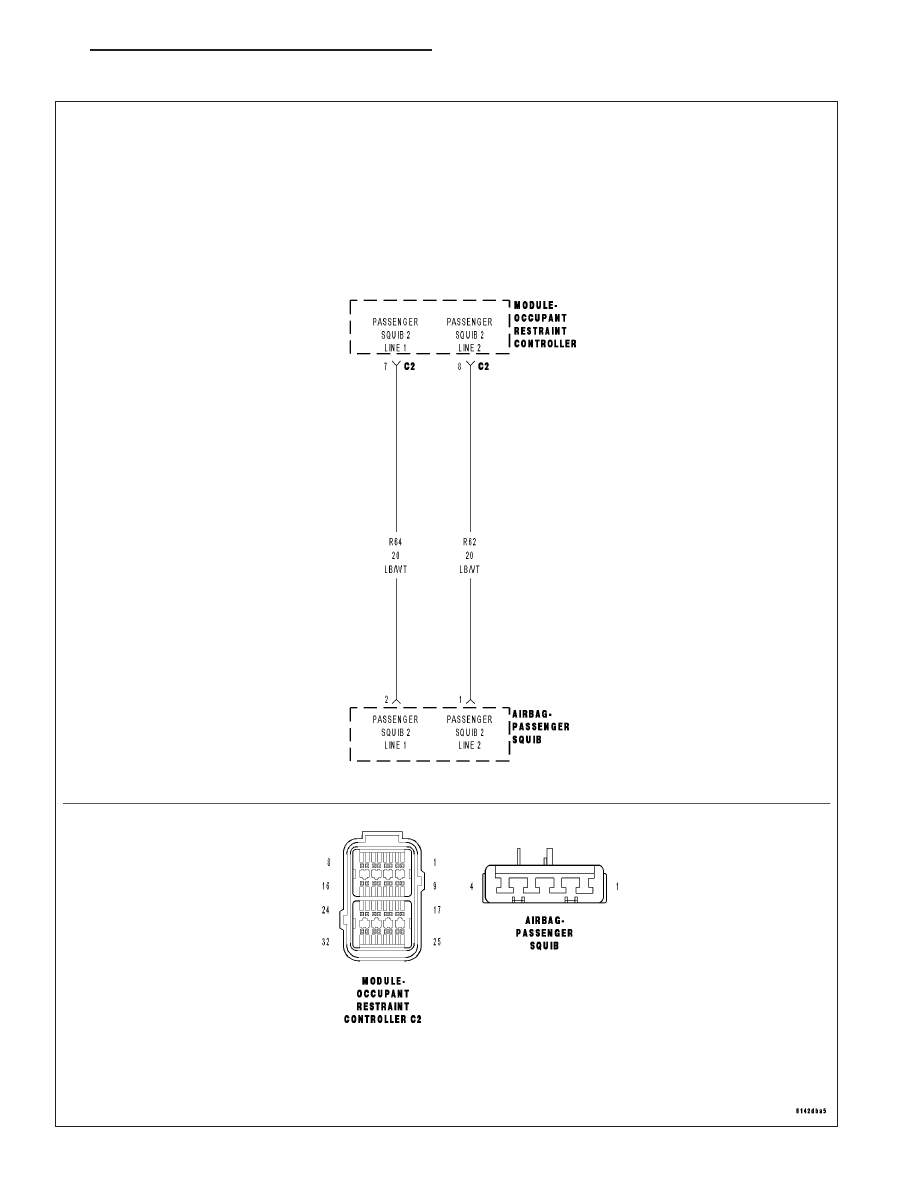

B1B0C-PASSENGER AIRBAG SQUIB 2 CIRCUIT LOW (CONTINUED) For the Air Bag System circuit diagram (Refer to 8 - ELECTRICAL/RESTRAINTS - SCHEMATICS AND DIA- For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes (R64) PASSENGER SQUIB 2 LINE 1 CIRCUIT OR (R62) PASSENGER SQUIB 2 LINE 2 CIRCUIT SHORTED TO PASSENGER AIRBAG ORC Diagnostic Test 1. DETERMINE ACTIVE OR STORED DTC NOTE: Ensure the battery is fully charged. NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following NOTE: When reconnecting airbag system components the Ignition must be turned off and the Battery must Is the DTC active or stored? ORC - ACTIVE DTC Go To 2 ORC - STORED DTC Go To 5 8O - 80 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
